Kohler 1948-LA-0 Archer 66" x 32" Alcove Bath Left Drain White
Archer®
66" x 32" alcove bath, left drain
K-1948-LA-0
Color/Finish: White
Taking its design cues from traditional Craftsman furniture, the Archer line of baths reveals beveled edges and curved bases for a clean, sophisticated style. This bath offers a low step-over height while allowing deep, comfortable soaking. A lumbar arch gently support the natural curves of your body.
Features
Comfort Depth® design offers a convenient 19" step-over height while retaining the same depth as a standard 21" bath
Integral lumbar support

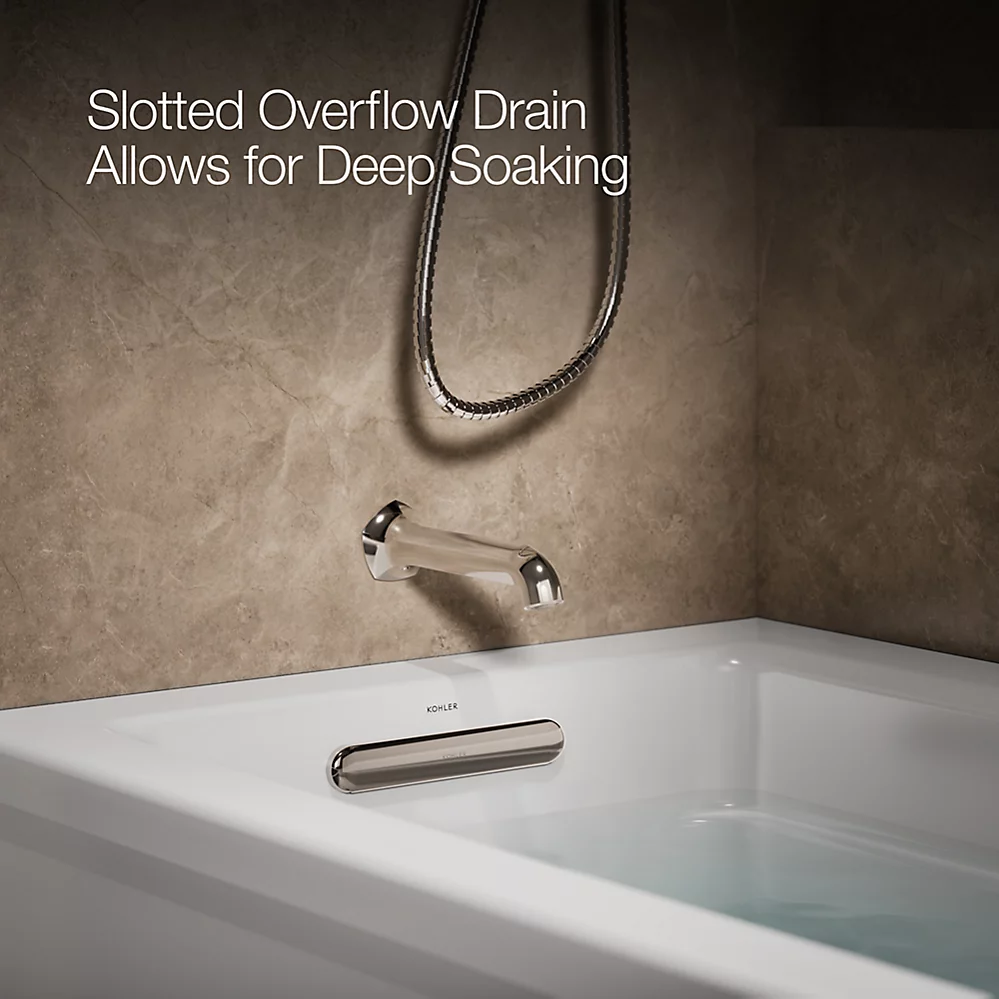

Slotted overflow allows for deep soaking
Integral apron
Integral flange helps prevent water from seeping behind wall and simplifies alcove installation
Textured bottom surface

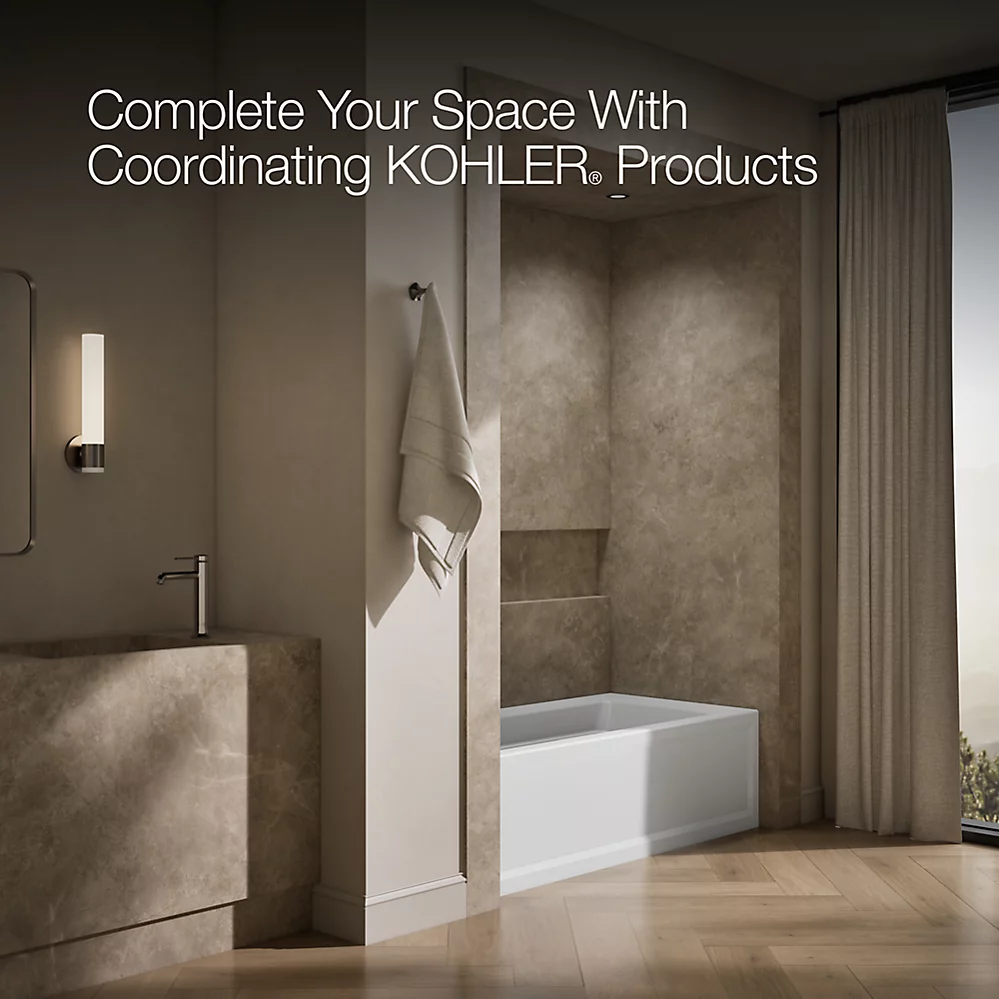

Coordinates with other products in the Archer collection
Material
Acrylic
Installation
Left drain
Alcove
Required Products/Accessories
K-7271 Brass Slotted Overflow Bath Drain
K-7272 PVC Slotted Overflow Bath Drain
Recommended Products/Accessories
K-23726 Drain treatment

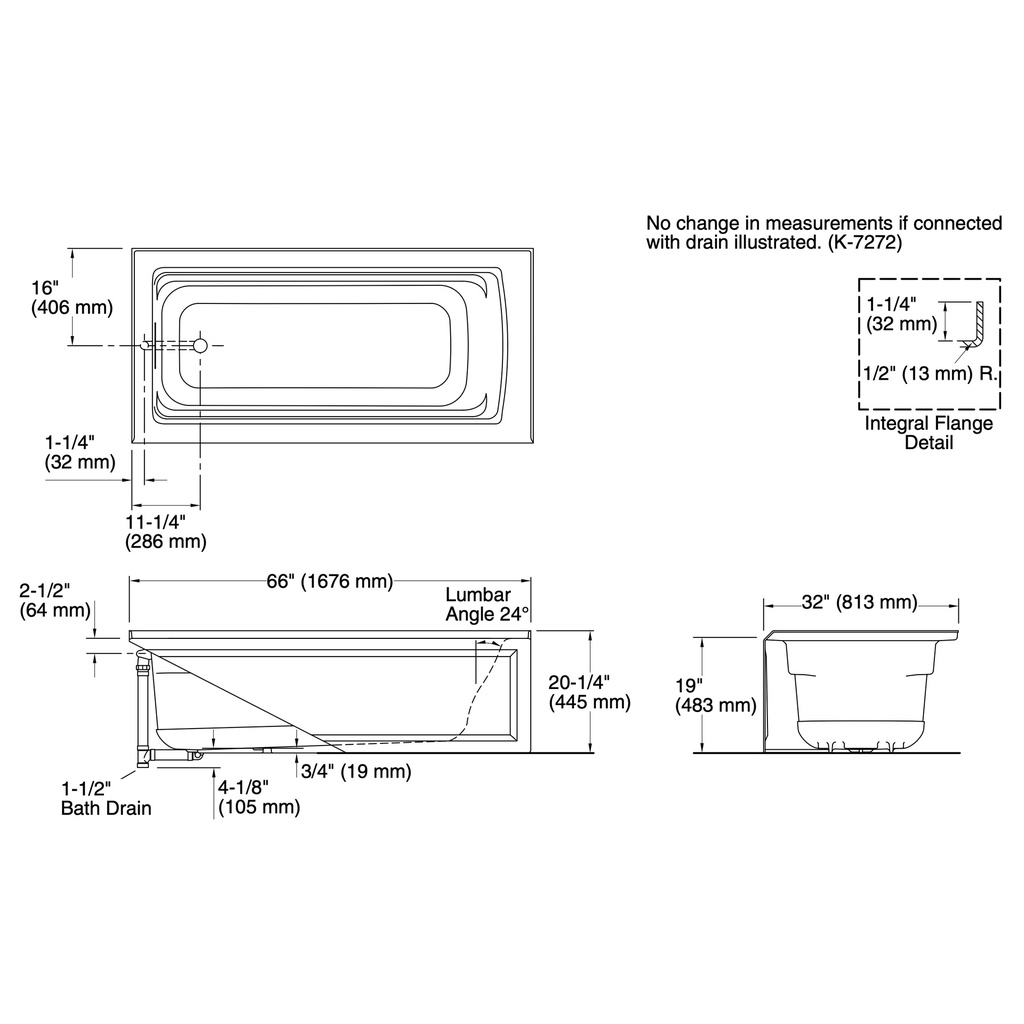

Technical Information
All product dimensions are nominal.
Drain location: Left
Basin area, bottom: 50-3/8" x 19-5/8" (1280 mm x 498 mm)
Basin area, top: 57-5/16" x 24-1/16" (1456 mm x 611 mm)
Weight: 80 lbs (36.3 kg)
Minimum floor load: 45 lbs/ft² (219.7 kg/m²)

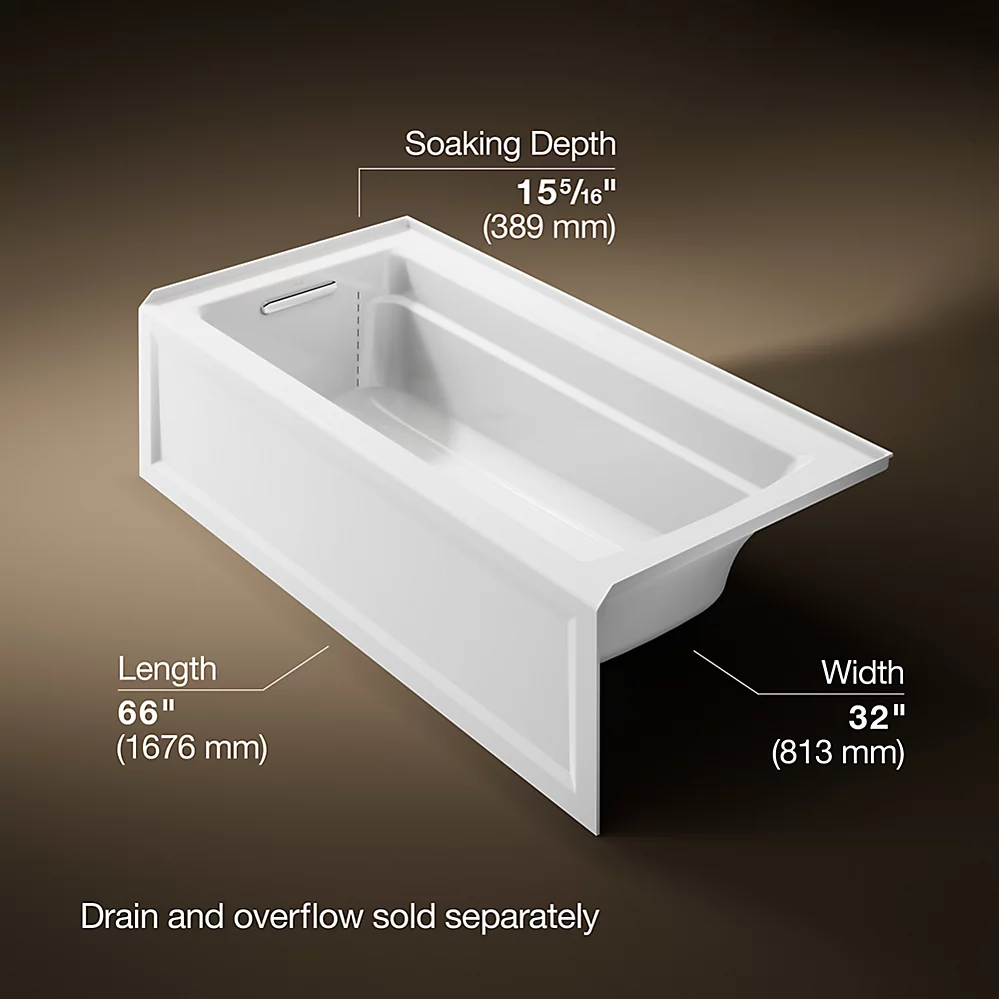

Water depth: 15-5/16" (389 mm)
Water capacity: 66 gal (249.8 L)
Minimum flat for door: 2-5/8" (66 mm)
