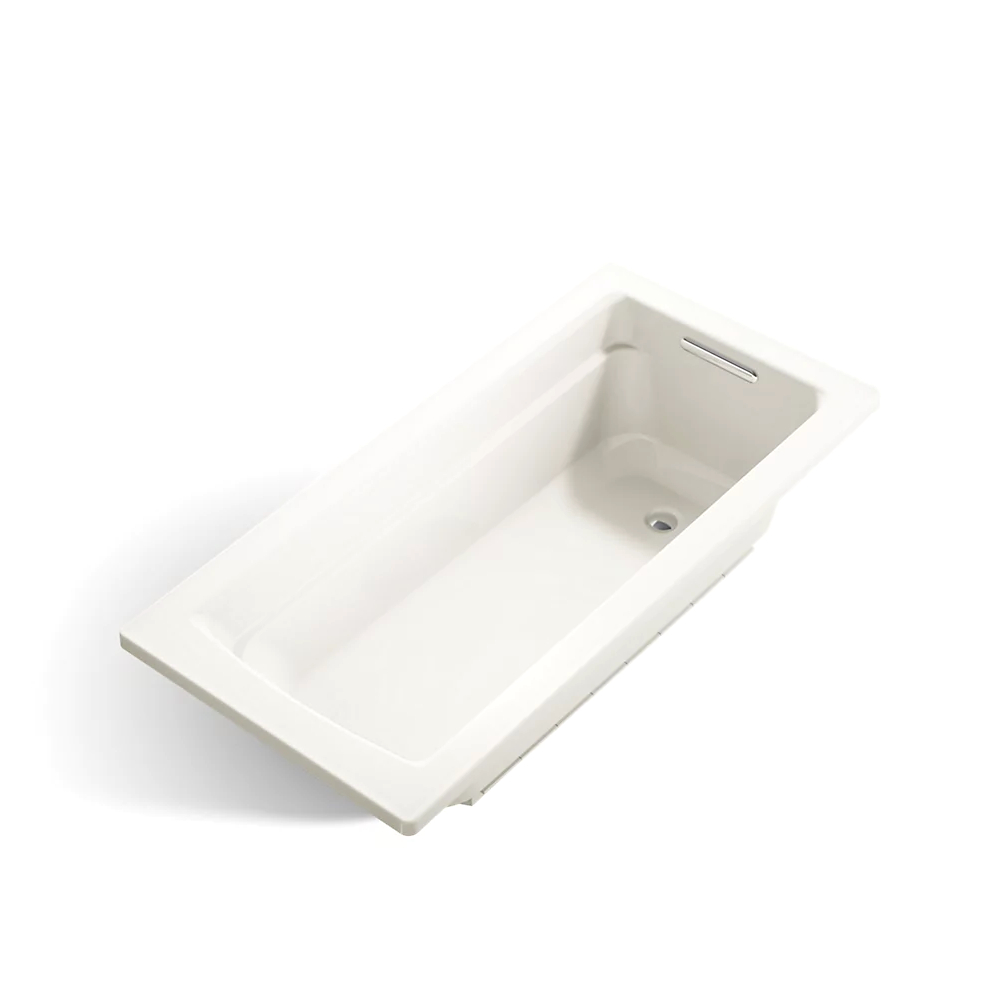

Kohler 1948-96 Archer 66" x 32" Drop-in Bath Biscuit
Archer®
66" x 32" drop-in bath
K-1948-96
Color/Finish: Biscuit
Taking its design cues from traditional Craftsman furniture, the Archer line of baths reveals beveled edges and curved bases for a clean, sophisticated style. This bath offers a low step-over height while allowing deep, comfortable soaking and a lumbar arch gently support the natural curves of your body.
Features
Comfort Depth® design offers a convenient 19" step-over height while retaining the same depth as a standard 21" bath
Integral lumbar support

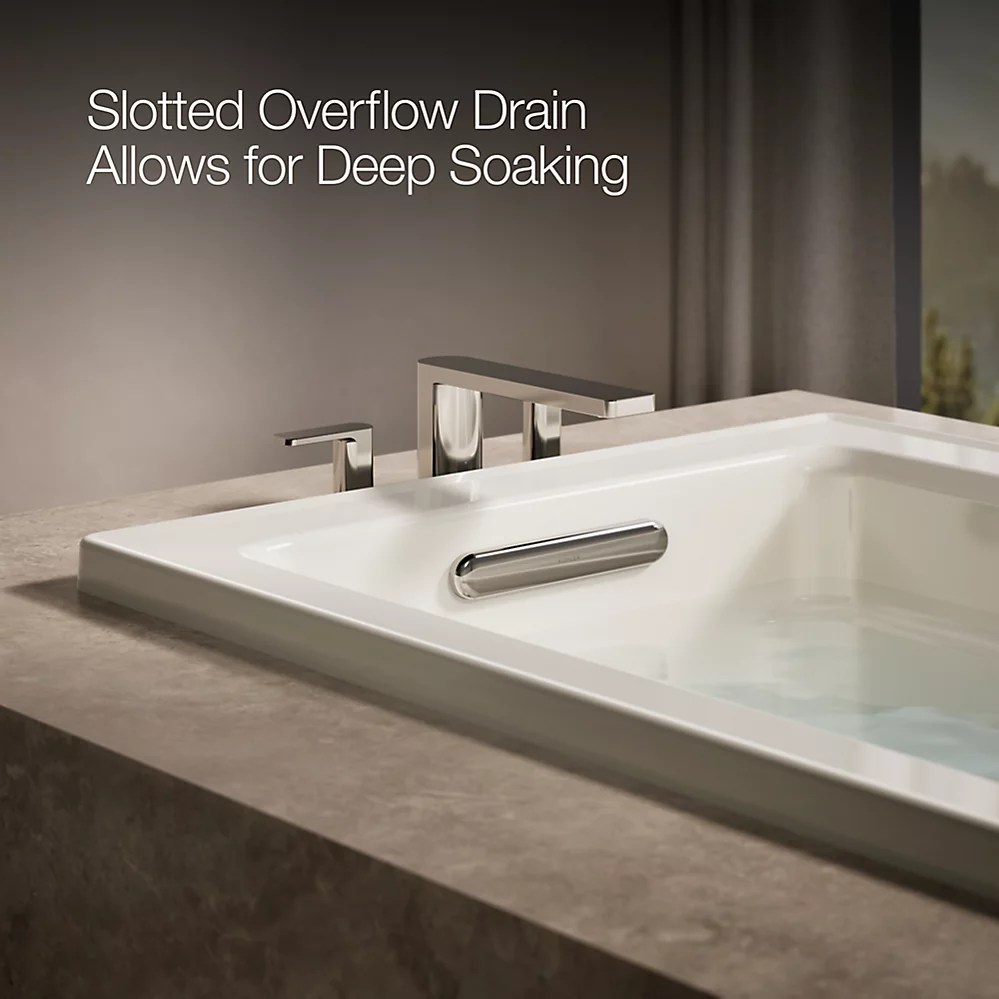

Slotted overflow allows for deep soaking
Textured bottom surface

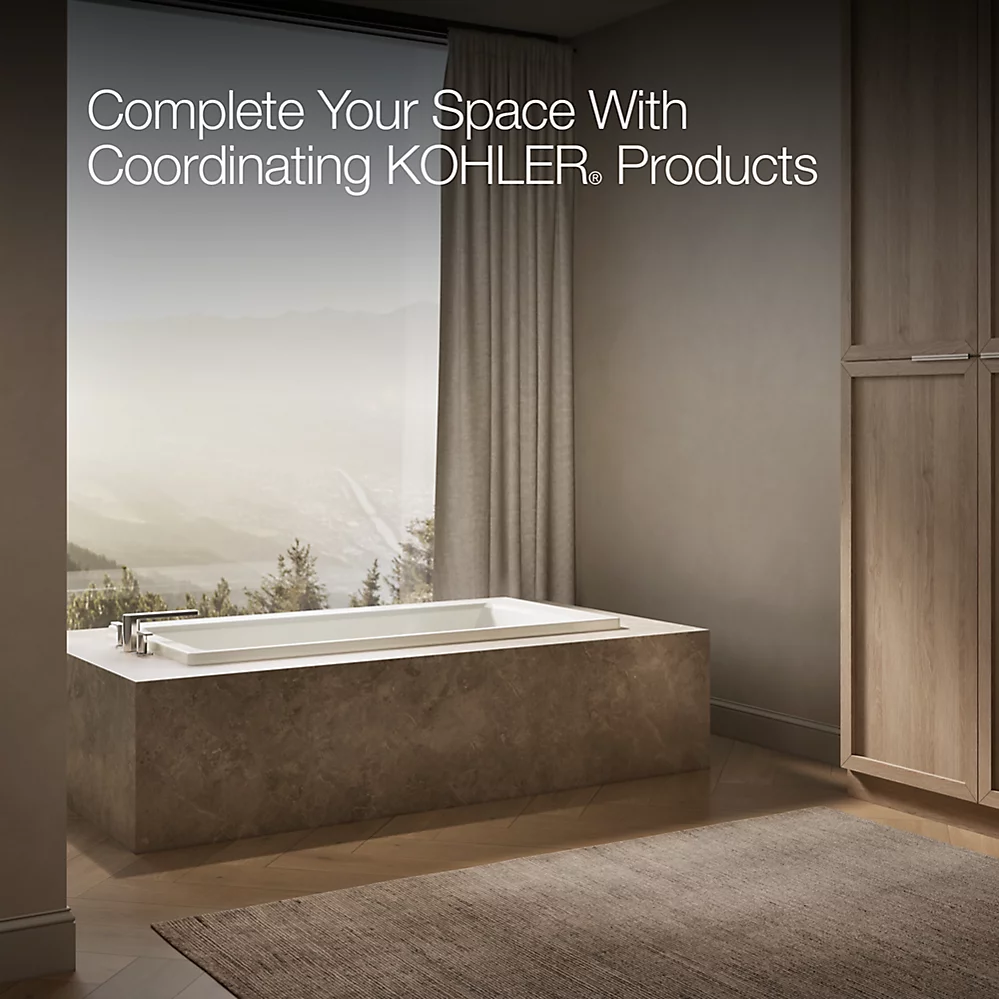

Coordinates with other products in the Archer collection
Material
Acrylic
Installation
Reversible drain
Drop-in
Required Products/Accessories
K-7271 Brass Slotted Overflow Bath Drain
K-7272 PVC Slotted Overflow Bath Drain
Recommended Products/Accessories
K-23726 Drain treatment

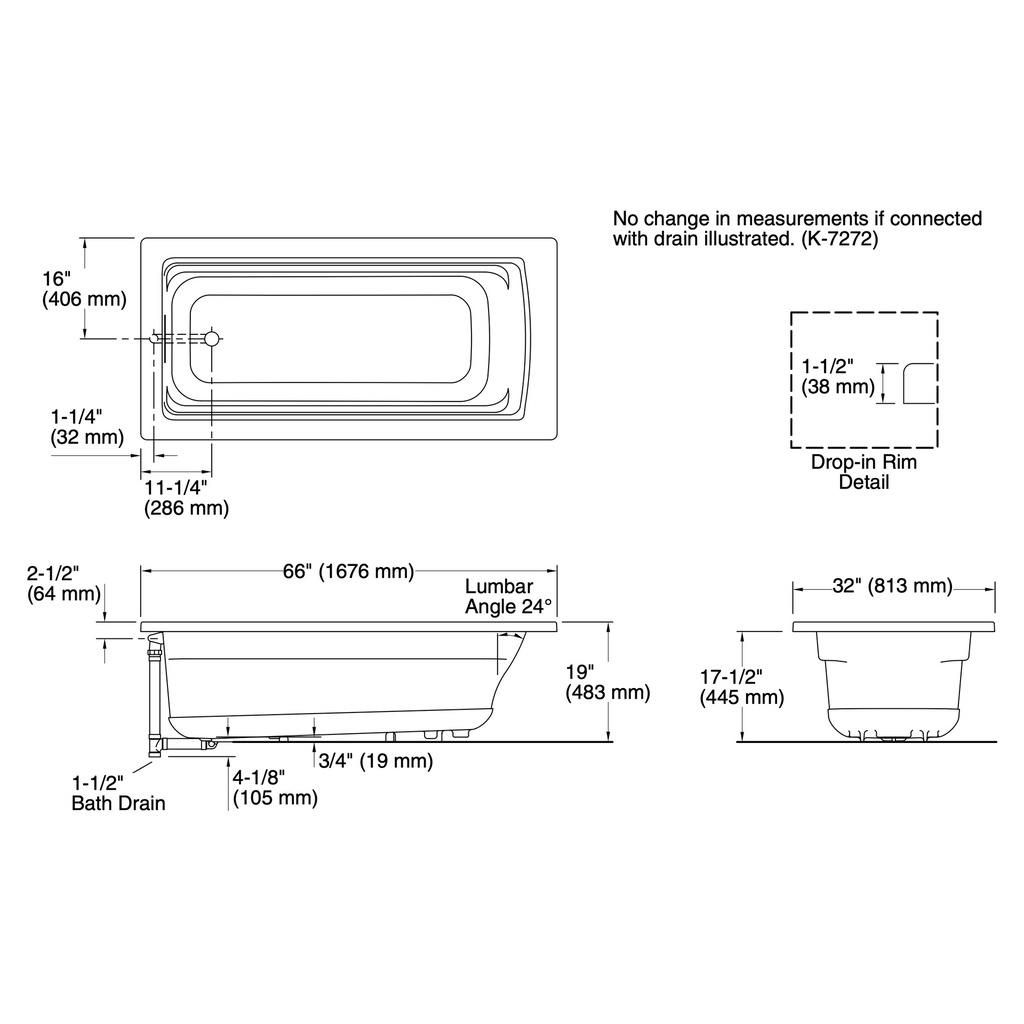

Technical Information
All product dimensions are nominal.
Drain location: Reversible
Basin area, bottom: 50-3/8" x 19-5/8" (1280 mm x 498 mm)
Basin area, top: 57-5/16" x 24-1/16" (1456 mm x 611 mm)
Weight: 66 lbs (29.9 kg)
Minimum floor load: 44 lbs/ft² (214.8 kg/m²)

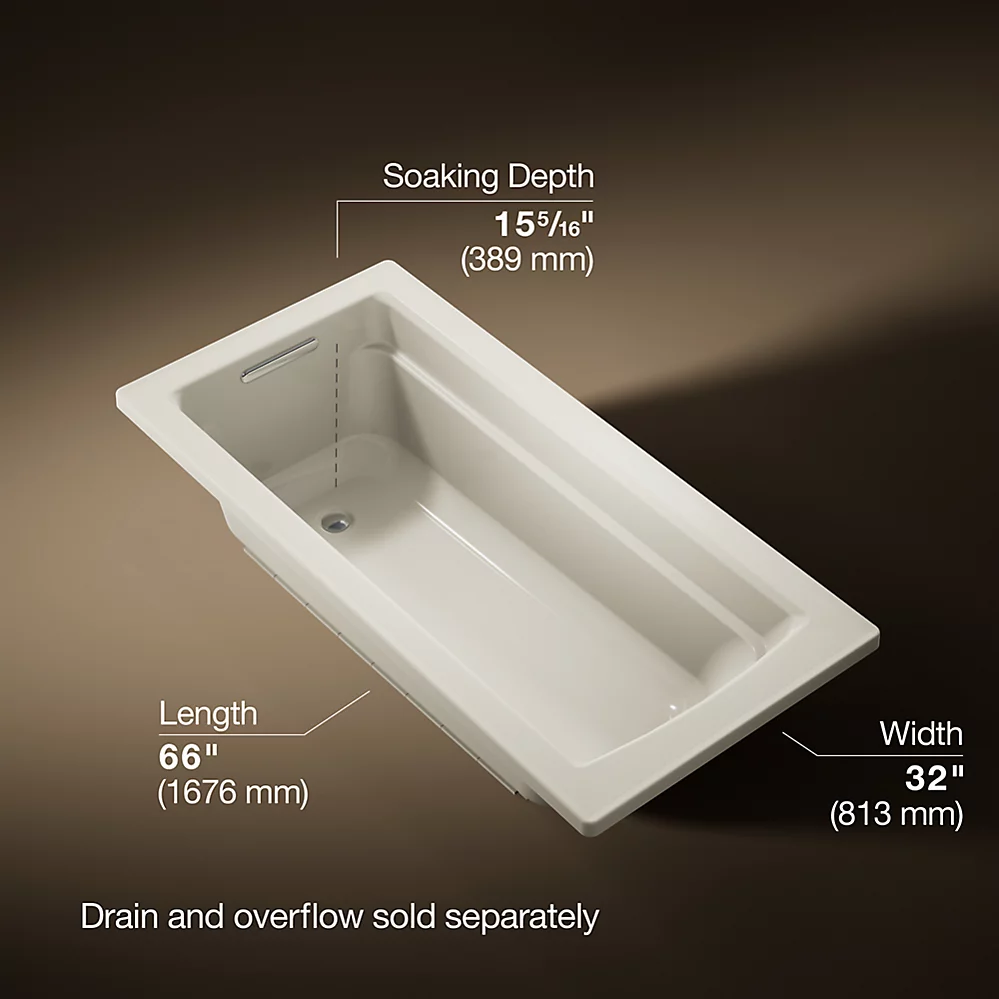

Water depth: 15-5/16" (389 mm)
Water capacity: 66 gal (249.8 L)
Cutout: Drop-in, 64-1/2" x 30-1/2" (1638 mm x 775 mm)
Minimum flat for door: 2-1/8" (54 mm)
