Kohler 1946-W1-95 Archer 60" x 30" Drop-in Bath Heated Surface Ice Grey
Archer®
60" x 30" drop-in bath with Bask® heated surface
K-1946-W1-95
Color/Finish: Ice Grey
Taking its design cues from traditional Craftsman furniture, the Archer line of baths reveals beveled edges and curved bases for a clean, sophisticated style. This bath's heated surface warms the back and neck with adjustable temperature settings to create a soothing, spa-like environment. A low step-over height offers easy access while allowing deep, comfortable soaking. A lumbar arch gently supports the natural curves of your body.
Features
Bask® heated surface creates spa-like relaxation with soothing warmth on your back, shoulders, and neck
Three heat settings allow you to customize the surface temperature
Comfort Depth® design offers a convenient 19" step-over height while retaining the same depth as a standard 21" bath
Integral lumbar support

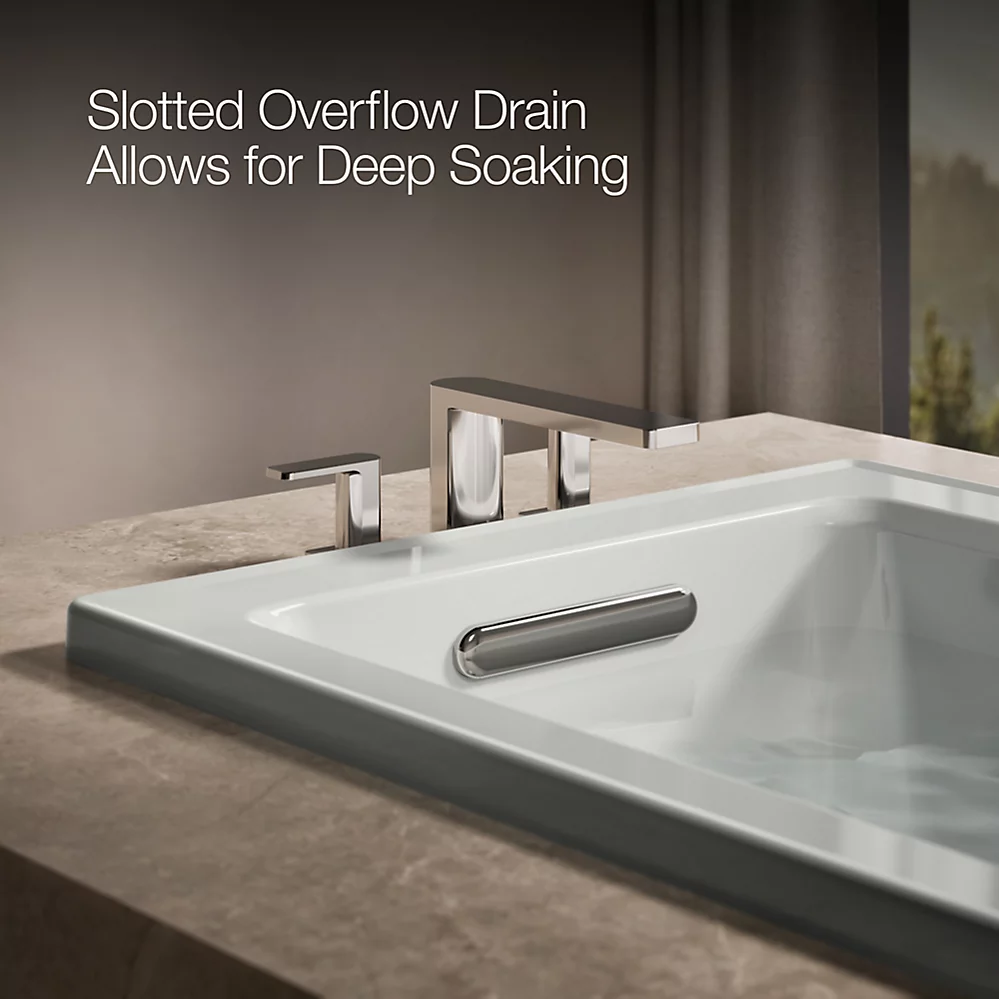

Slotted overflow allows for deep soaking
Textured bottom surface
Coordinates with other products in the Archer collection
Material
Acrylic
Installation
Reversible drain
Drop-in
Required Products/Accessories
K-7271 Brass Slotted Overflow Bath Drain
K-7272 PVC Slotted Overflow Bath Drain
Recommended Products/Accessories
K-23726 Drain treatment
Required Electrical Service
One circuit required, protected with Class A Ground-Fault
Circuit-Interrupter (GFCI). Outside North America, this device may be known as a Residual Current Device (RCD).
Heated Surface: 120 V, 15 A, 60 Hz

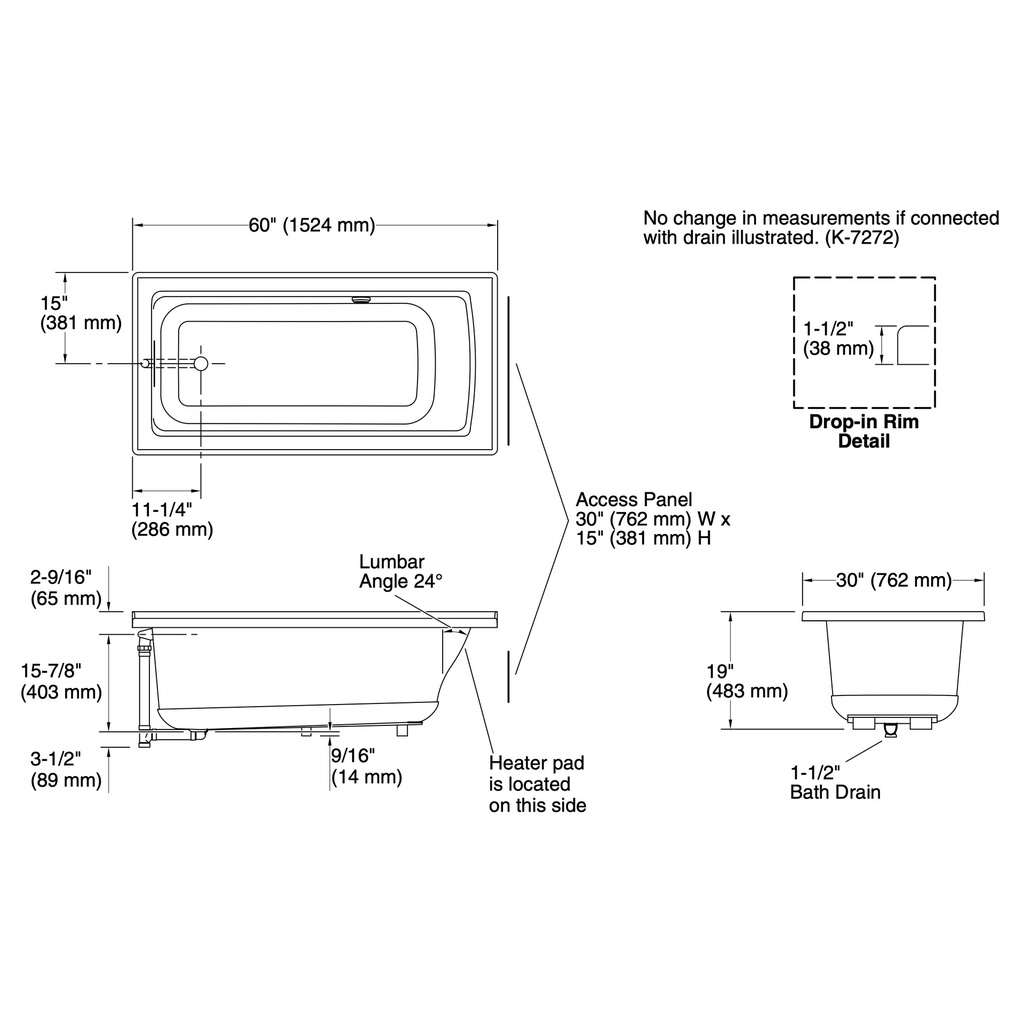

Technical Information
All product dimensions are nominal.
Drain location: Reversible
Basin area, bottom: 45-1/8" x 19-11/16" (1146 mm x 500 mm)
Basin area, top: 52-1/8" x 22-1/16" (1324 mm x 560 mm)
Weight: 68 lbs (30.8 kg)
Minimum floor load: 45.5 lbs/ft² (222.2 kg/m²)

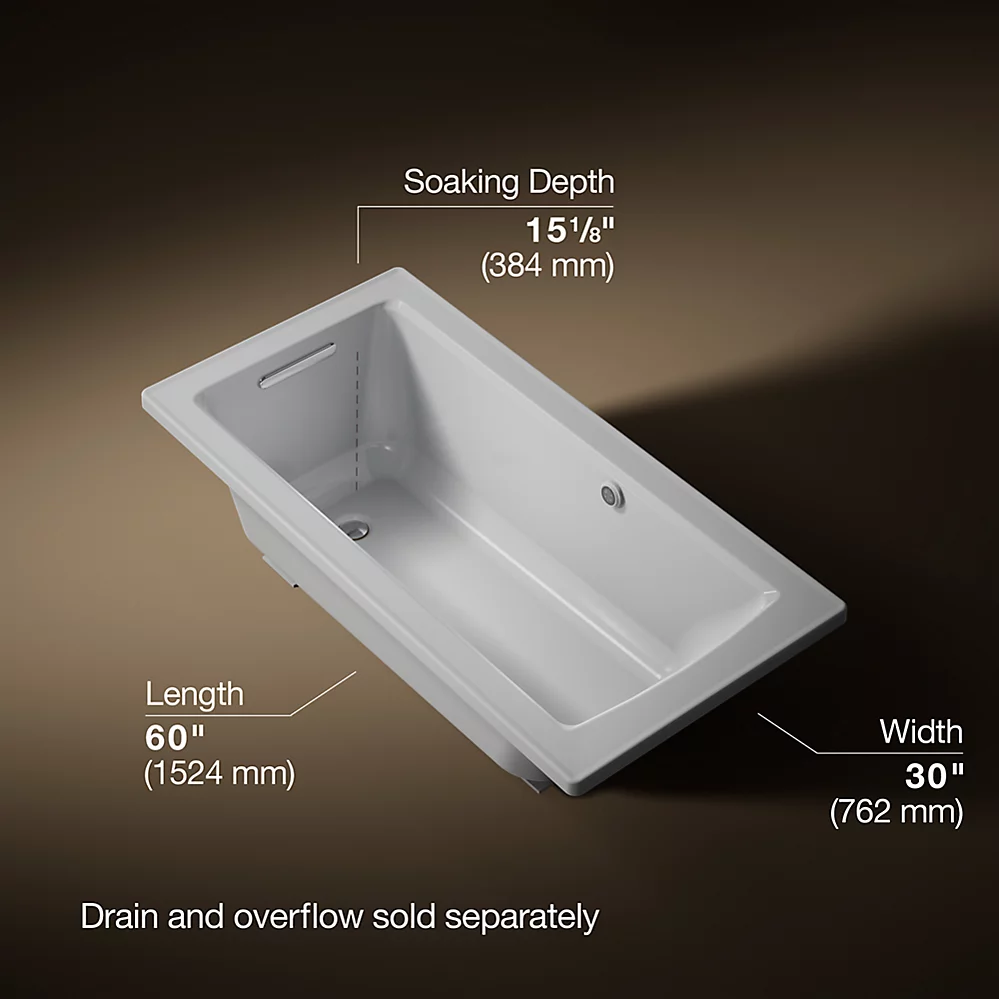

Water depth: 15-1/8" (384 mm)
Water capacity: 57 gal (215.8 L)
Cutout: Drop-in, 85-1/2" x 20-1/2" (2172 mm x 521 mm)
Electrical component rating:
Heated Surface: 120 V, 0.5 A, 60 Hz, 65W
Minimum flat for door: 2-9/16" (65 mm)
