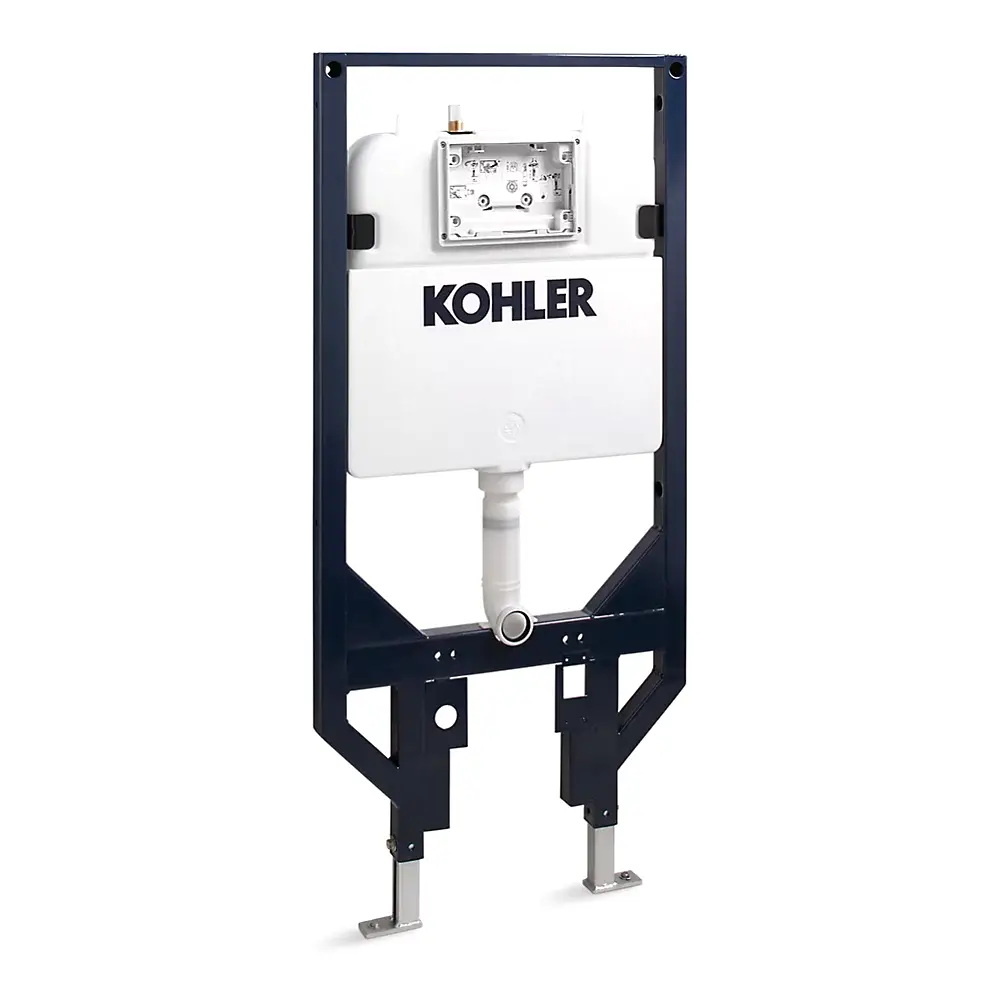

Kohler 18647-NA Veil Intelligent In-Wall Tank
Veil®
In-wall tank and carrier for K-76395 Veil® wall-hung smart toilet
K-18647-NA
This dual-flush in-wall toilet tank and carrier completes the K-76395 Veil wall-hung smart toilet. Designed with a large, easy-access actuator plate opening, the insulated tank is completely concealed within the wall and provides economical water savings with 0.8/1.6 gallon dual flushing.
Features
Robust steel frame
Insulated tank to prevent sweating
Large flush actuator plate opening can be removed for easy access to inner tank
Adjustable height allows bowl to be set anywhere from 15" to 23" (381 to 584 mm) from floor
Dual-flush actuator offers a choice of 0.8 or 1.6 gpf (3.0 or 6.0 lpf)
Requires K-76395 Veil smart wall-hung toilet (sold separately)
Dual-flush technology allows you to choose between a full or partial flush
Eligible for consumer rebates in some municipalities
Installation

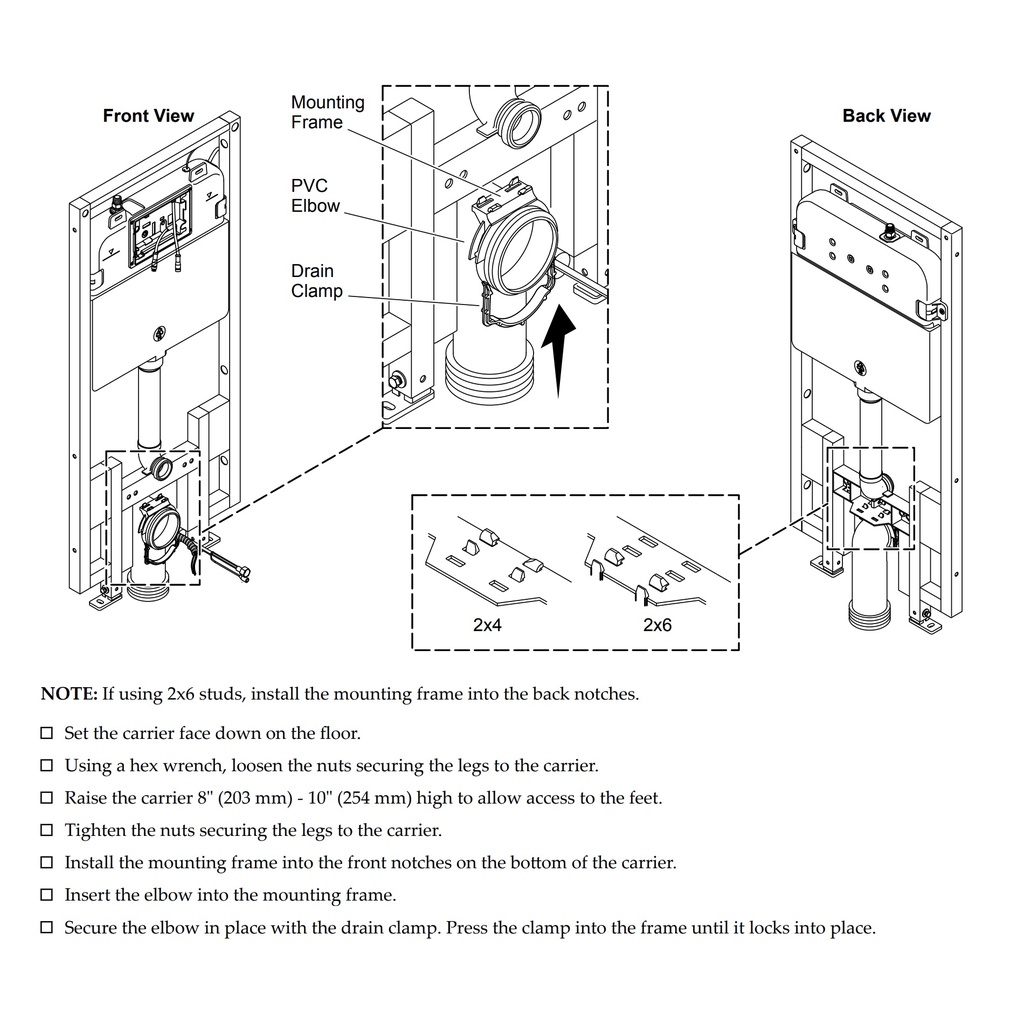

Durable steel frame carrier is installed on 2" x 6" (51 x 152 mm) studs behind the wall. See installation guide and installation video for more detailed information
When installed per Kohler installation instructions, the KOHLER in-wall tank and carrier system can support up to 500 lb (226.8 kg) without damage
Supply line sold separately
Required Products/Accessories
K-76395 Wall-hung compact elongated smart toilet bowl,
dual-flush
Technical Information
All product dimensions are nominal.
Toilet type: Wall-mount In-wall mount
Waste Outlet: Wall
Flush type: Power
