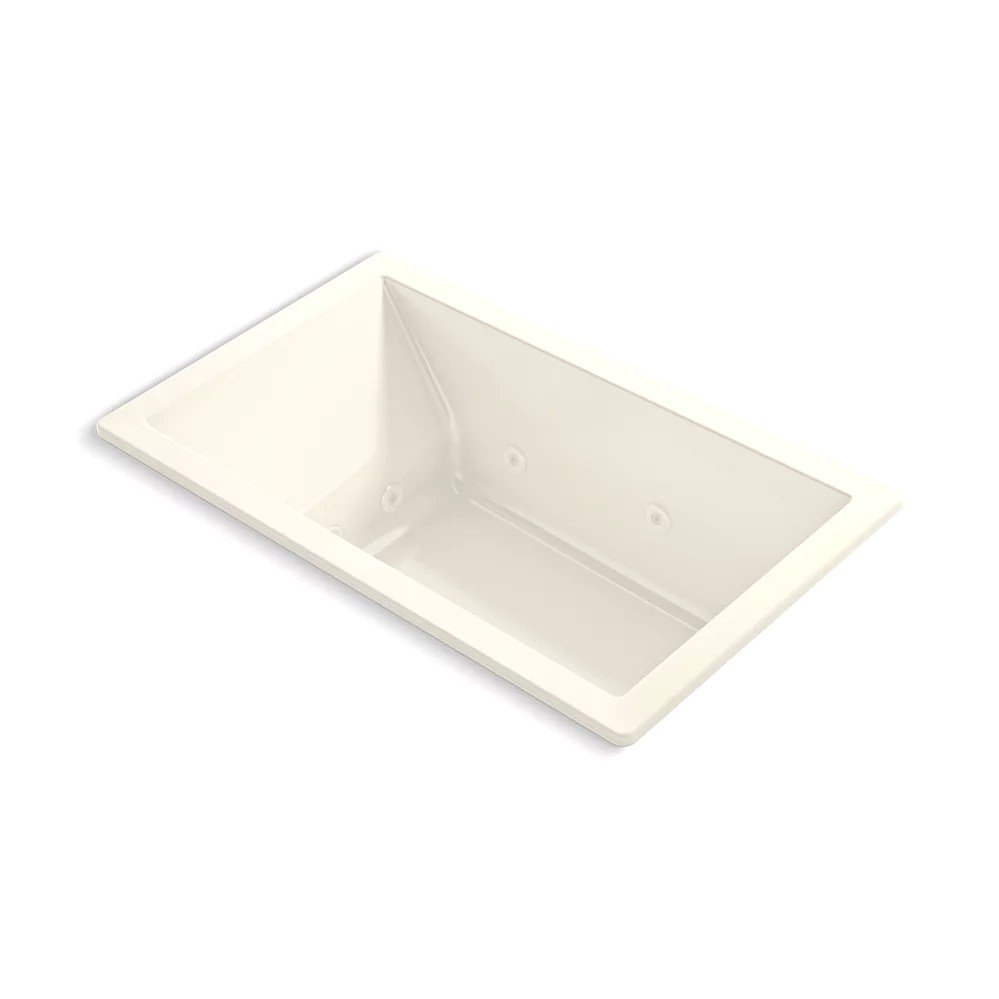

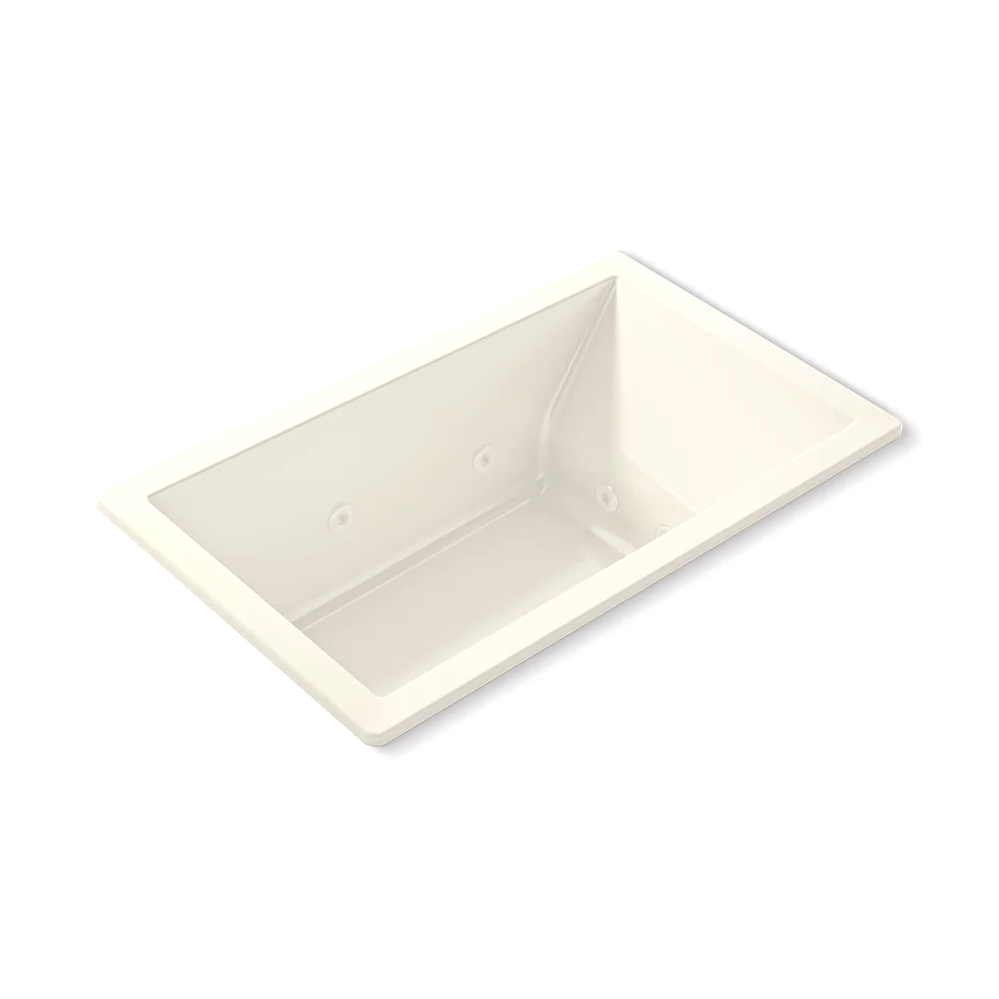

Kohler 1849-JH-96 Underscore 60" x 36" Drop-in Heated Whirlpool Bath Biscuit
Underscore®
60" x 36" drop-in heated whirlpool bath
K-1849-JH-96
Color/Finish: Biscuit
With clean, smooth lines, the Underscore whirlpool bath is a welcome retreat to soak away the day’s tension and center your mind. Lay back and melt in the deep bath as eight fully-adjustable jets deliver a powerful hydromassage, while the built-in heater maintains the water at your desired temperature to create a soothing, spa-like environment. Realize your vision. It’s all at the touch of your finger
Features
Eight Proflex® hydromassage jets can be individually adjusted for water flow and direction
Single-speed whirlpool offers performance and value with 8 fully adjustable jets
Built-in heater
Slotted overflow allows for deep soaking
Integral lumbar support
Textured bottom surface
Material
Acrylic
Installation
Requires K-7271 or K-7272 Clearflo slotted overflow bath drain (sold separately)
Drop-in or undermount
Reversible drain
120 V electrical requirement allows for easy installation with standard outlet
Requires two dedicated circuits
Required Products/Accessories
K-7271 Brass Slotted Overflow Bath Drain
K-7272 PVC Slotted Overflow Bath Drain
Recommended Products/Accessories
K-1491 Bath/Whirlpool Pillow
K-1601 Bath/whirlpool footstop, removable
K-706000-D3 Frameless Sliding Bath Door
K-706000-L 62" H sliding bath door with 1/4"-thick glass
K-706004-D3 Frameless Sliding Bath Door
K-706004-L Frameless Sliding Bath Door
Required Electrical Service
Two dedicated circuits required, protected with Class A GroundFault Circuit-Interrupter (GFCI). Outside North America, this device may be known as a Residual Current Device (RCD).
Pump: 120 V, 15 A, 60 Hz
Heater: 120 V, 15 A, 60 Hz

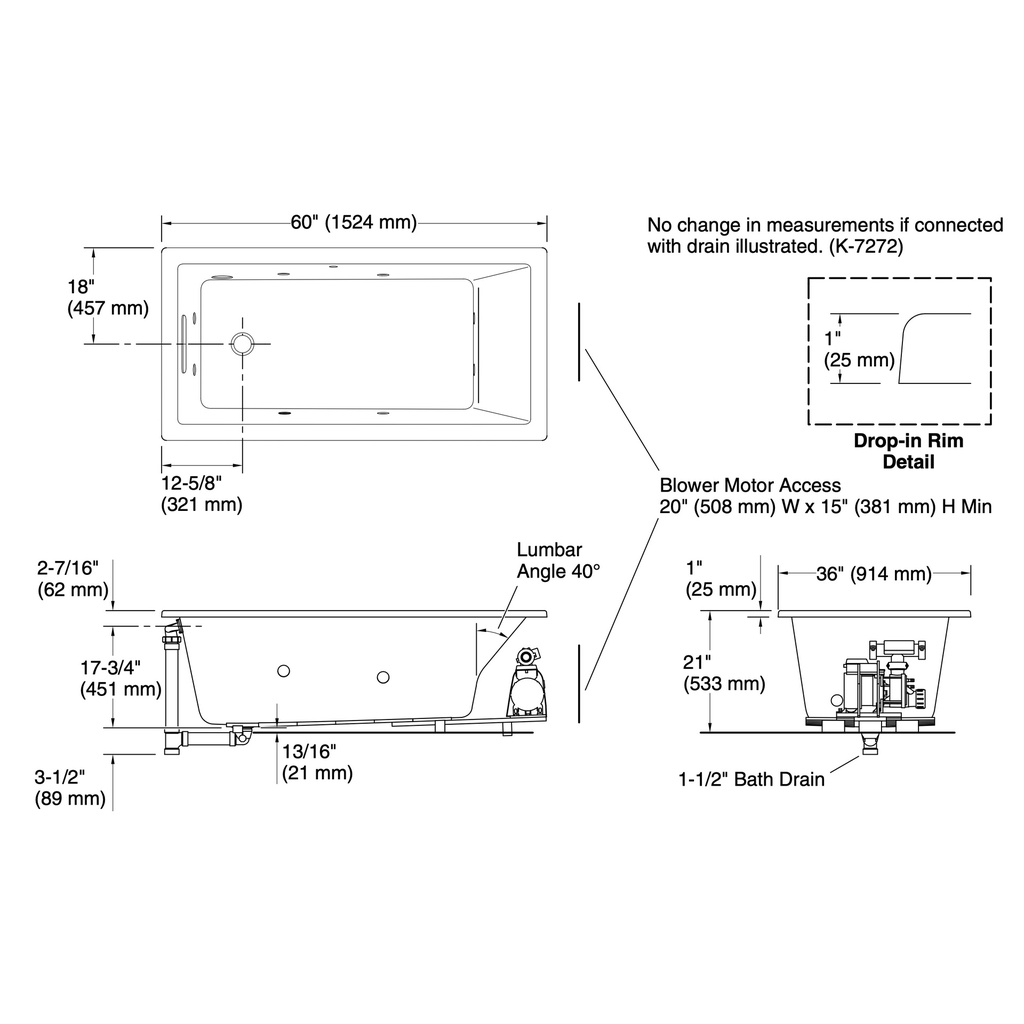

Technical Information
All product dimensions are nominal.
Drain location: Reversible
Basin area, bottom: 39-9/16" x 24-3/4" (1005 mm x 628 mm)
Basin area, top: 54-1/4" x 30-1/4" (1377 mm x 768 mm)
Weight: 121.5 lbs (55.1 kg)
Minimum floor load: 56 lbs/ft² (273.4 kg/m²)
Water depth: 16-11/16" (424 mm)
Water capacity: 81.1 gal (307 L)
Cutout: Drop-in, 59-1/2" x 35-1/2" (1511 mm x 902 mm)
Electrical component rating:
Pump: 120 V, 7 A, 60 Hz
Heater: 120 V, 12 A, 60 Hz
Minimum flat for door: 2-7/16" (61 mm)
