Kohler 1848-0 Underscore 60" x 36" Drop-in Bath White
Underscore®
60" x 36" drop-in bath
K-1848-0
Color/Finish: White
Streamlined for simplicity, the Underscore bath exudes refined style with contemporary flair. A slotted overflow drain allows for a luxuriously deep bath as you relax against the comfortable sloped backrest.
Features
Integral lumbar support

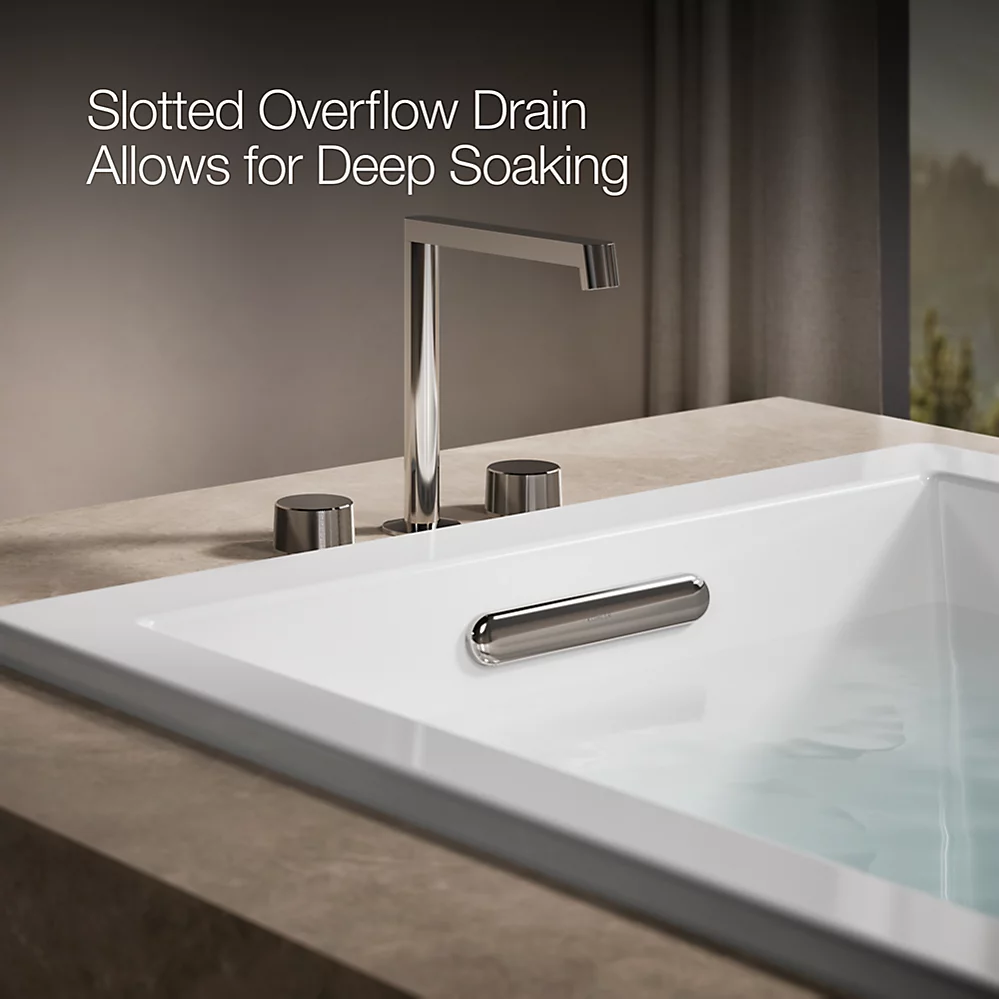

Slotted overflow allows for deep soaking
Material
Acrylic
Installation
Requires K-7271 or K-7272 Clearflo slotted overflow bath drain (sold separately)
Reversible drain

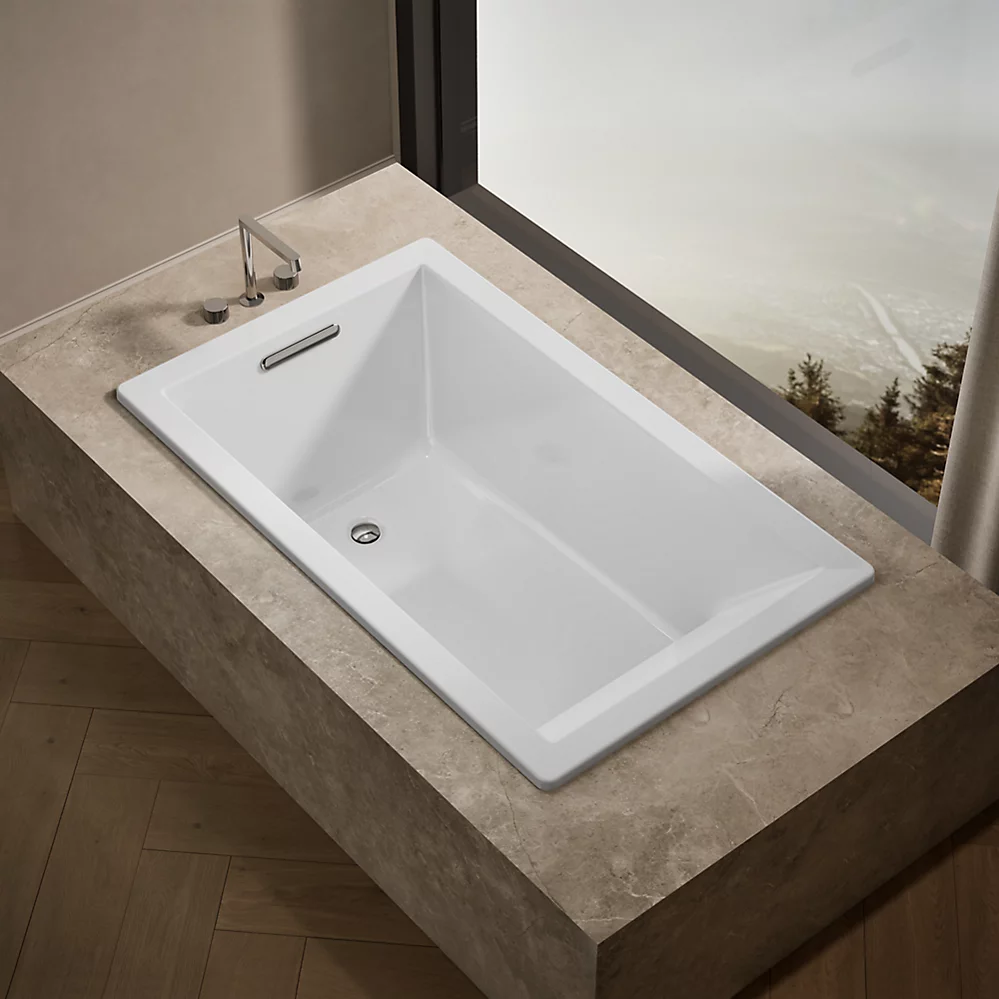

Drop-in or undermount
Under-mount installation requires kit K-534 (sold separately)
Required Products/Accessories
K-7271 Brass Slotted Overflow Bath Drain
K-7272 PVC Slotted Overflow Bath Drain
Recommended Products/Accessories
K-534 Under-Mount Installation Kit
K-1491 Bath/Whirlpool Pillow
K-1601 Bath/whirlpool footstop, removable
K-1177 Vinyl Tiling-in Bead
K-23726 Drain treatment

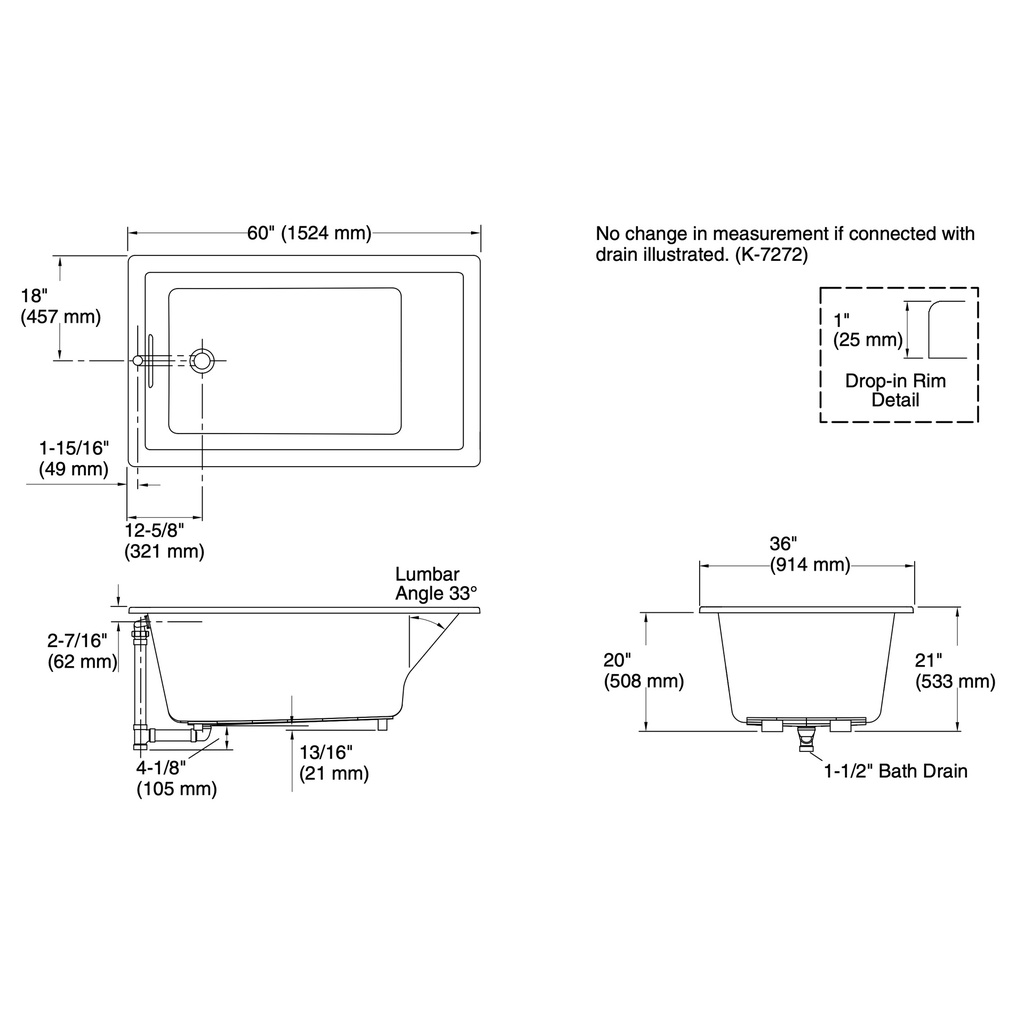

Technical Information
All product dimensions are nominal.
Drain location: Reversible
Basin area, bottom: 39-9/16" x 24-11/16" (1005 mm x 627 mm)
Basin area, top: 53-5/8" x 29-1/2" (1362 mm x 749 mm)
Weight: 75 lbs (34 kg)
Minimum floor load: 52 lbs/ft² (253.9 kg/m²)

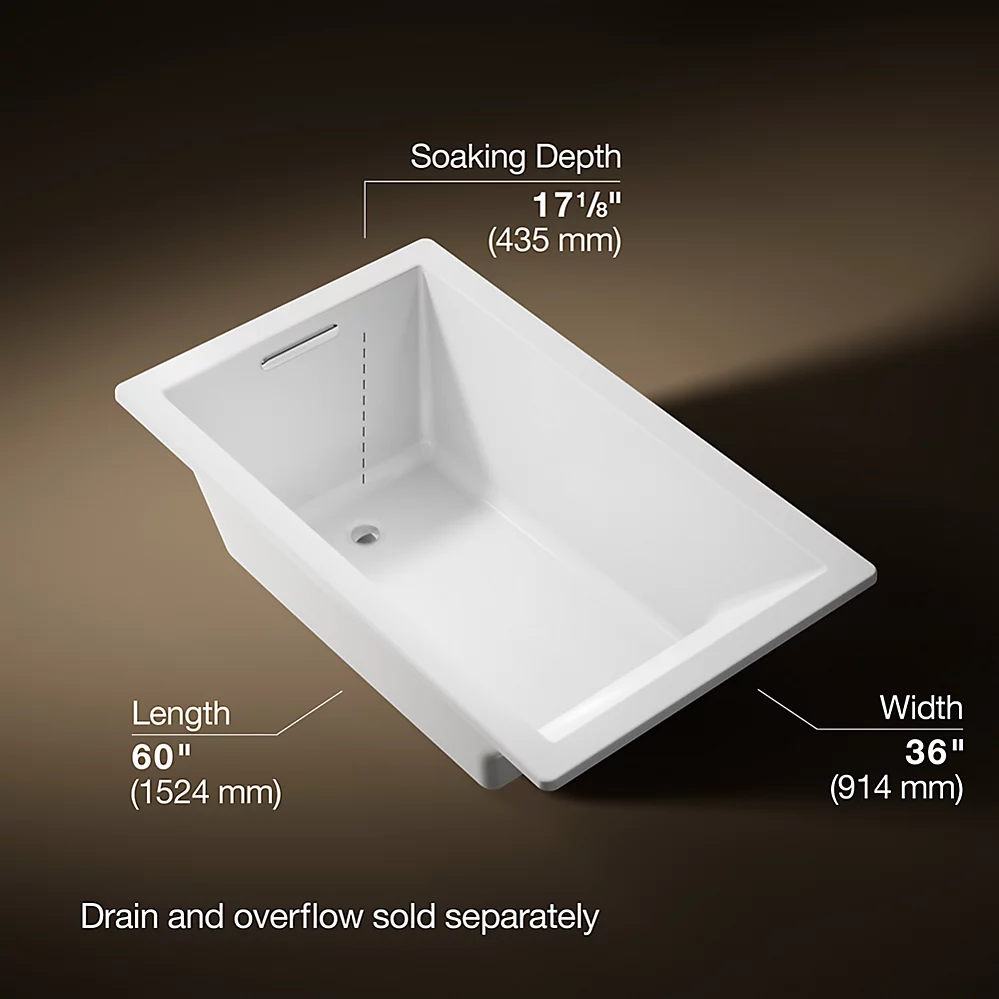

Water depth: 17-1/8" (435 mm)
Water capacity: 81.1 gal (307 L)
Cutout: Drop-in, 59-1/2" x 35-1/2" (1511 mm x 902 mm)
Minimum flat for door: 2-7/16" (61 mm)
