Kohler 1834-W1-96 Underscore 72" x 36" Drop-in Bath With Heated Surface Biscuit
Underscore®
72" x 36" drop-in bath with Bask® heated surface
K-1834-W1-96
Color/Finish: Biscuit
Streamlined for simplicity, this Underscore bath exudes refined style with contemporary flair. Its heated surface warms the back and neck with adjustable temperature settings to create a soothing, spa-like environment. A slotted overflow drain allows for a luxuriously deep bath as you relax against the comfortable sloped backrest.
Features
Bask® heated surface creates spa-like relaxation with soothing warmth on your back, shoulders, and neck
Customize the heat with three adjustable settings
Generous length provides a spacious bathing area
Integral lumbar support

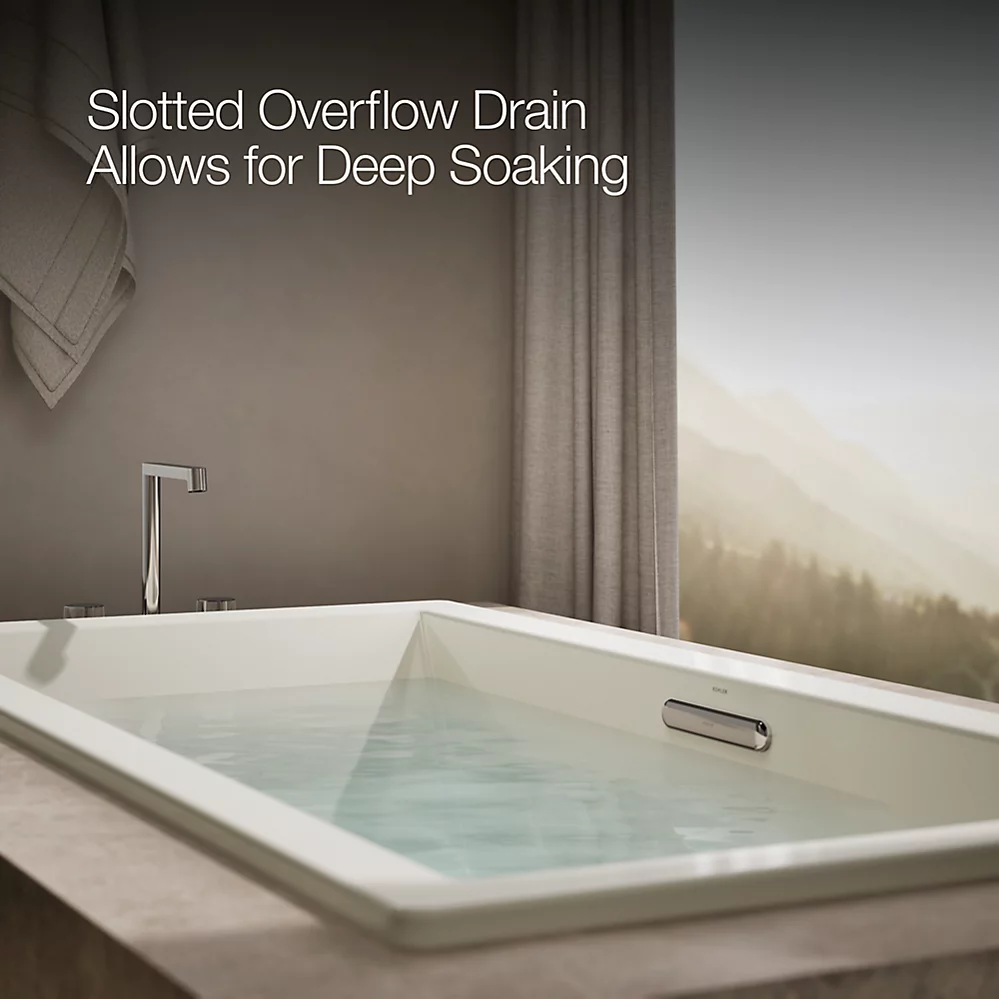

Slotted overflow allows for deep soaking
Material
Acrylic
Installation
Center drain
Drop-in or undermount
Requires 110 V electrical service
Under-mount installation requires kit K-593 (sold separately)
Required Products/Accessories
K-7271 Brass Slotted Overflow Bath Drain
K-7272 PVC Slotted Overflow Bath Drain
Recommended Products/Accessories
K-1491 Bath/Whirlpool Pillow
K-1601 Bath/whirlpool footstop, removable
K-593 Under-Mount Installation Kit
K-1177 Vinyl Tiling-in Bead
K-23726 Drain treatment
Required Electrical Service
One circuit required, protected with Class A Ground-Fault
Circuit-Interrupter (GFCI). Outside North America, this device
may be known as a Residual Current Device (RCD).
Heated Surface: 120 V, 15 A, 60 Hz

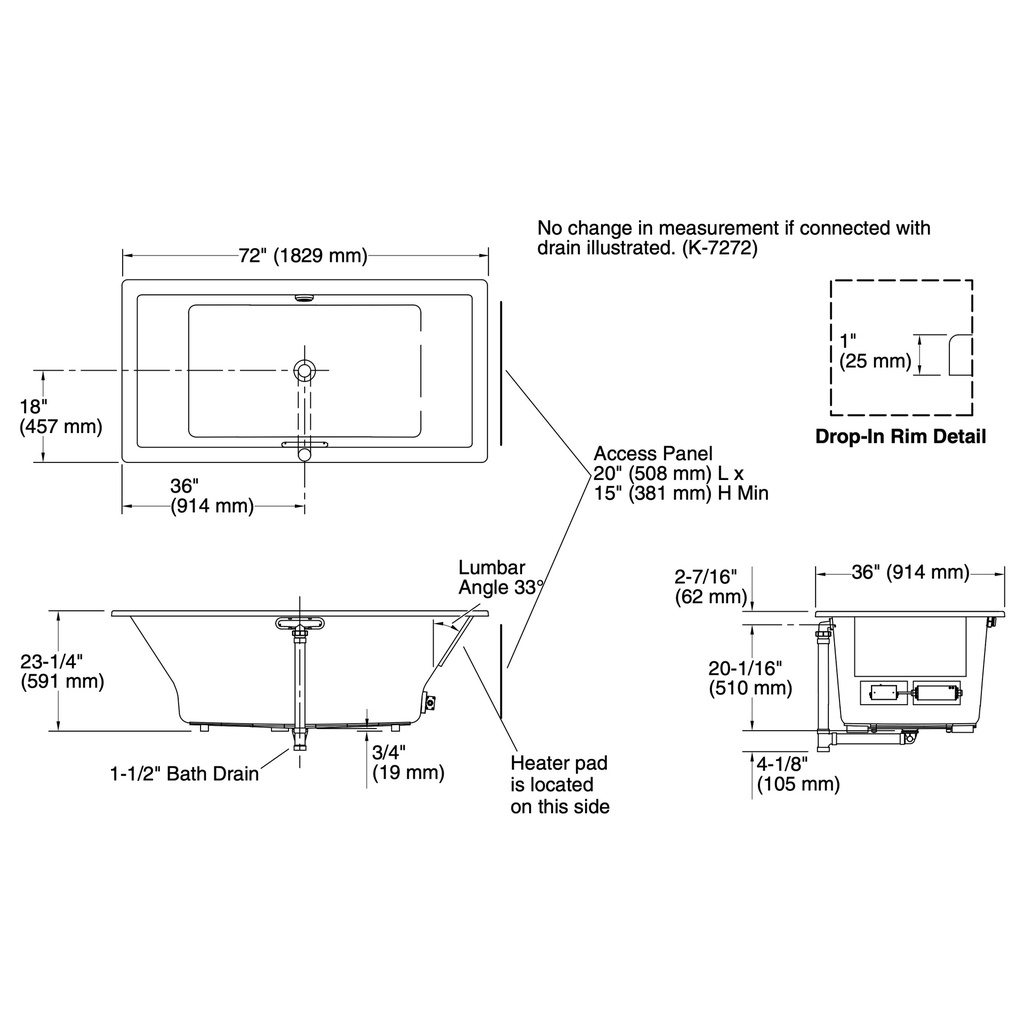

Technical Information
All product dimensions are nominal.
Drain location: Center
Basin area, bottom: 45-3/4" x 25-15/16" (1162 mm x 659 mm)
Basin area, top: 65-3/8" x 29-5/16" (1661 mm x 745 mm)
Weight: 88 lbs (39.9 kg)
Minimum floor load: 58 lbs/ft² (283.2 kg/m²)

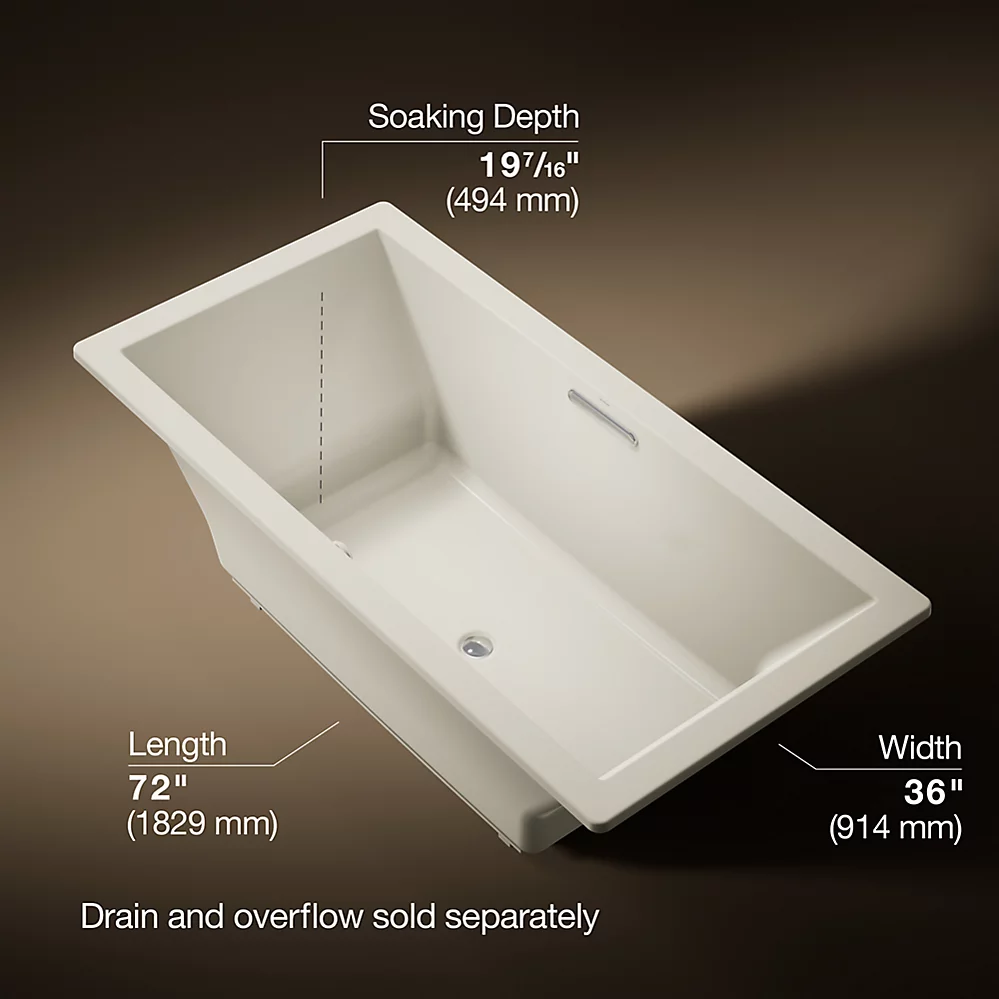

Water depth: 19-7/16" (494 mm)
Water capacity: 112.9 gal (427.4 L)
Cutout: Drop-in, 71-1/2" x 35-1/2" (1816 mm x 902 mm)
Electrical component rating:
Heated Surface: 120 V, 0.5 A, 60 Hz, 65W
Minimum flat for door: 2-1/2" (64 mm)
