Kohler 1834-0 Underscore 72" x 36" Drop-in Bath White
Underscore®
72" x 36" drop-in bath
K-1834-0
Color/Finish: White
Streamlined for simplicity, the Underscore bath exudes refined style with contemporary flair that fits with a variety of decors. A slotted overflow drain allows for a luxuriously deep bath as you relax against the comfortable sloped backrest.
Features
Generous length provides a spacious bathing area
Integral lumbar support
Slotted overflow allows for deep soaking
Material
Acrylic
Installation
Requires K-7271 or K-7272 Clearflo slotted overflow bath drain (sold separately)
Center drain

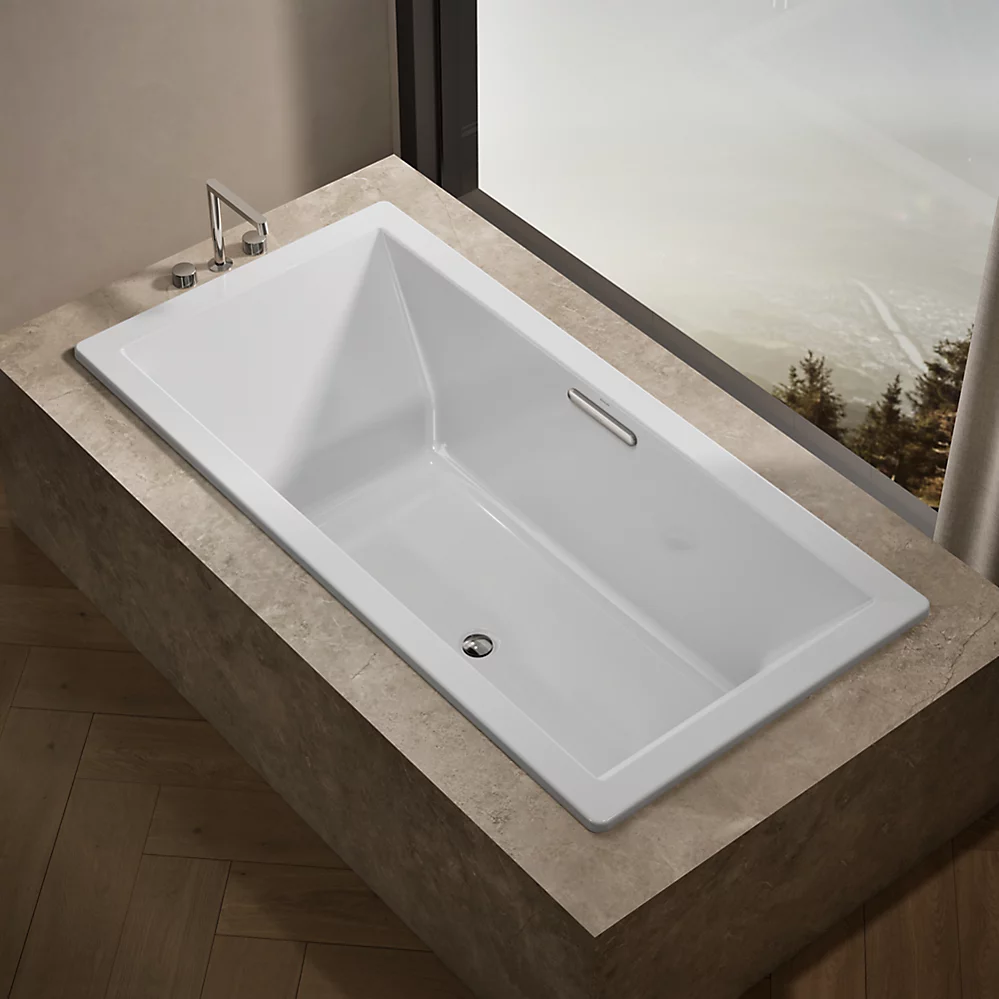

Drop-in or undermount
Under-mount installation requires kit K-593 (sold separately)
Required Products/Accessories
K-7271 Brass Slotted Overflow Bath Drain
K-7272 PVC Slotted Overflow Bath Drain
Recommended Products/Accessories
K-593 Under-Mount Installation Kit
K-1491 Bath/Whirlpool Pillow
K-1601 Bath/whirlpool footstop, removable
K-1177 Vinyl Tiling-in Bead
K-23726 Drain treatment

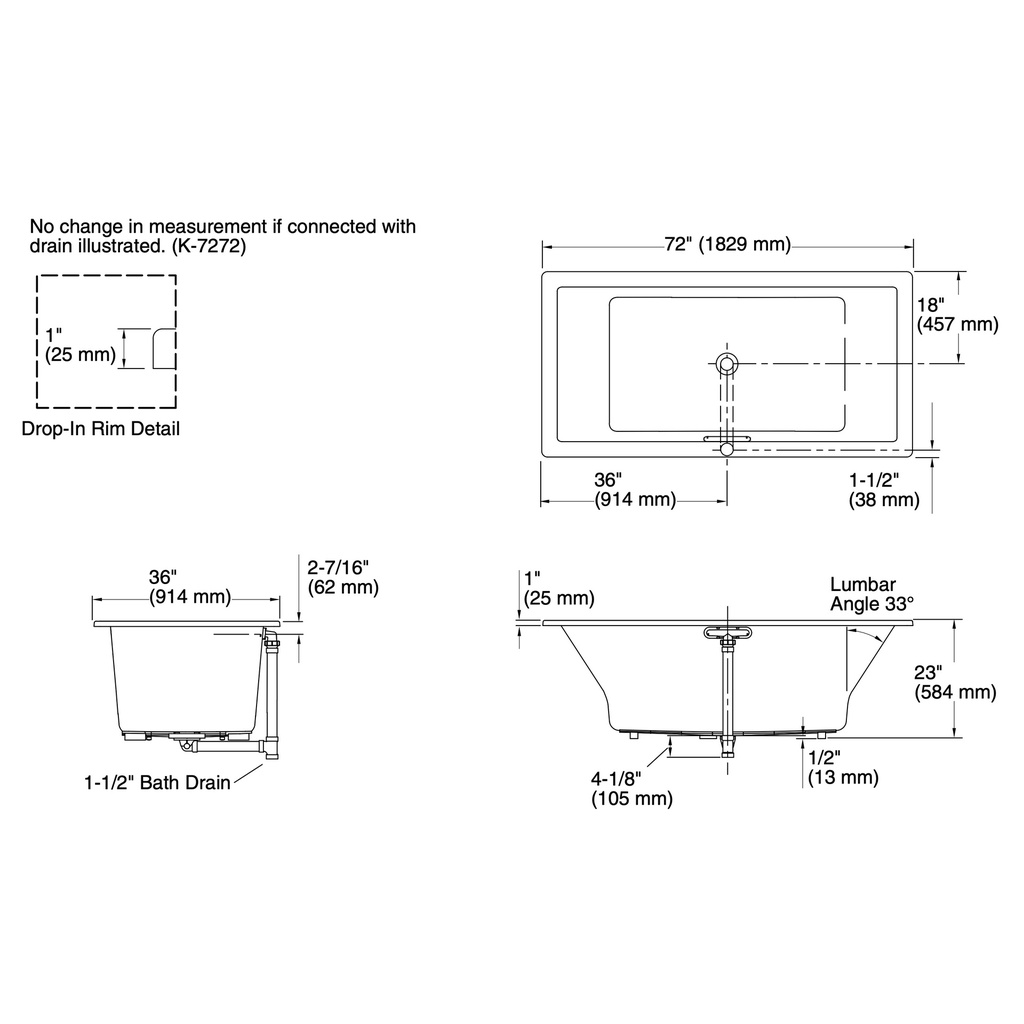

Technical Information
All product dimensions are nominal.
Drain location: Center
Basin area, bottom: 45-3/4" x 25-15/16" (1162 mm x 659 mm)
Basin area, top: 65-3/8" x 29-5/16" (1661 mm x 745 mm)
Weight: 82 lbs (37.2 kg)
Minimum floor load: 58 lbs/ft² (283.2 kg/m²)

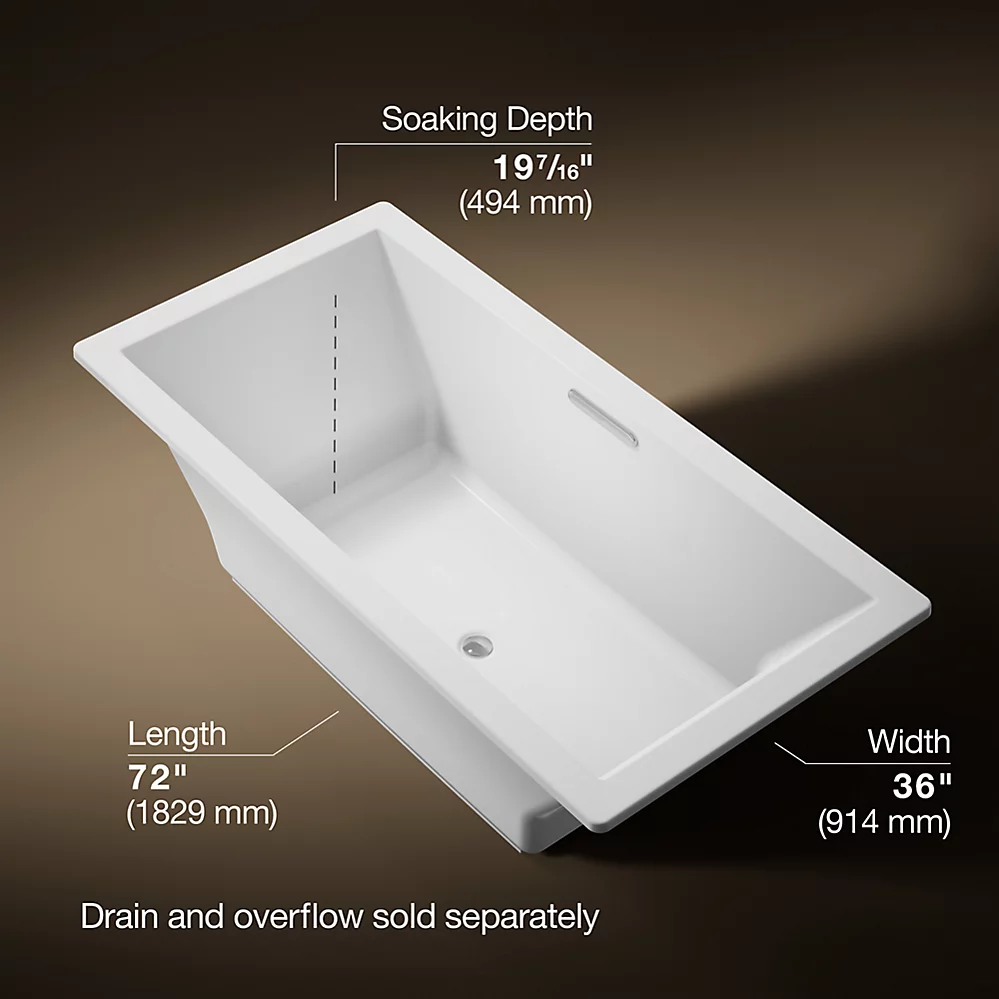

Water depth: 19-7/16" (494 mm)
Water capacity: 112.9 gal (427.4 L)
Cutout: Drop-in, 71-1/2" x 35-1/2" (1816 mm x 902 mm)
Minimum flat for door: 2-1/2" (64 mm)
