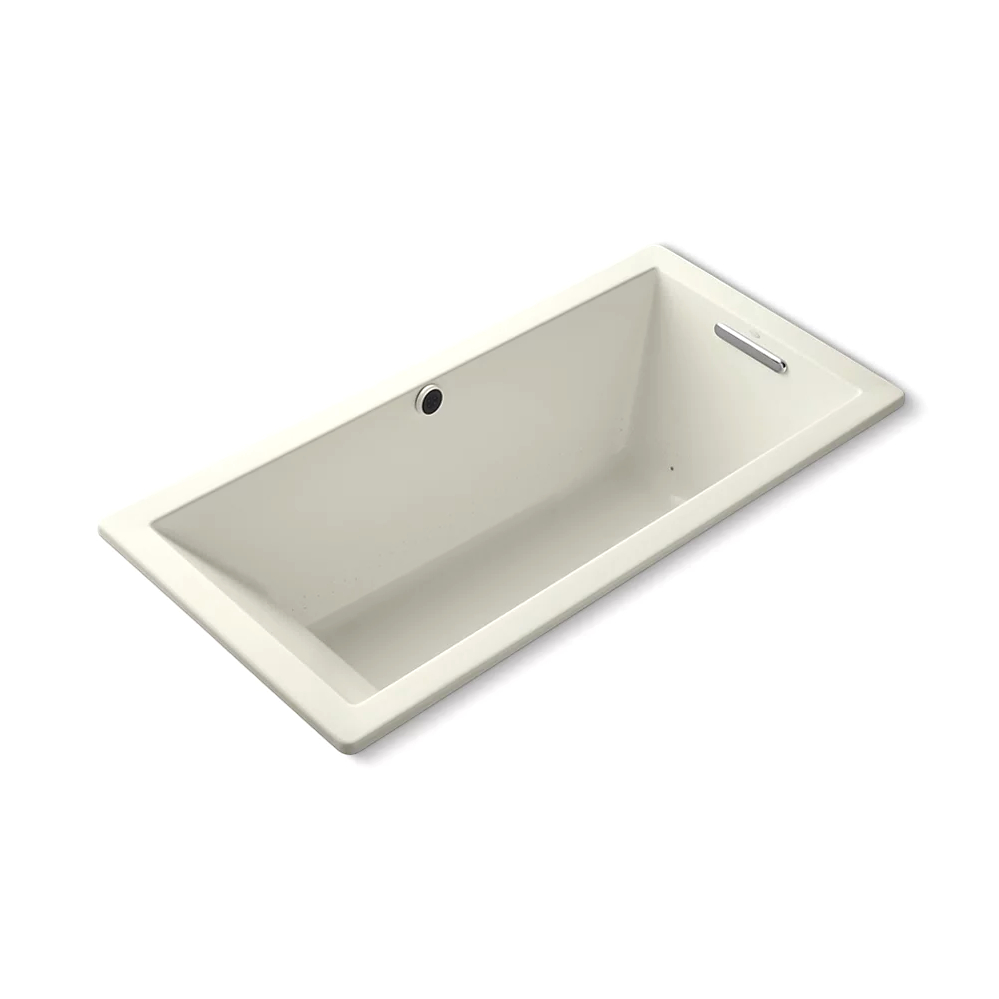

Kohler 1822-GH-96 Underscore 66" x 32" Drop-in Heated Bubble Massage Air Bath Biscuit
Underscore®
66" x 32" drop-in Heated BubbleMassage™ air bath
K-1822-GH-96
Color/Finish: Biscuit
With clean, smooth lines, the Underscore Heated Bubblemassage™ air bath is a welcome retreat to soak away the day’s tension and center your mind. Lay back and melt in the deep bath as strategically-placed airjets release thousands of bubbles to massage your body at the level of intensity you prefer, to create a soothing, spa-like environment. Realize your vision. It’s all at the touch of your finger
Features
122 airjets release thousands of heated bubbles that surround, support, and massage the body
Variable-speed blower lets you adjust massage intensity to 18 levels
Built-in heater
Automatic and manual purge cycles remove residual water from air channels after use
60-minute automatic shutoff timer
Slotted overflow allows for deep soaking
Spacious design accommodates up to two bathers
Integral lumbar support
Keypad control
Textured bottom surface
Technology
Heated BubbleMassage™ technology warms and humidifies air before it enters the bath
Material
Acrylic
Installation
Requires K-7271 or K-7272 Clearflo slotted overflow bath drain (sold separately)
Drop-in or undermount
Reversible drain
120 V electrical requirement allows for easy installation with standard outlet
Requires one dedicated circuit
Requires two dedicated circuits
Required Products/Accessories
K-7271 Brass Slotted Overflow Bath Drain
K-7272 PVC Slotted Overflow Bath Drain
Recommended Products/Accessories
K-1491 Bath/Whirlpool Pillow
K-1601 Bath/whirlpool footstop, removable
K-706000-D3 Frameless Sliding Bath Door
K-706000-L 62" H sliding bath door with 1/4"-thick glass
K-706004-D3 Frameless Sliding Bath Door
K-706004-L Frameless Sliding Bath Door
K-1177 Vinyl Tiling-in Bead
K-550 Under-Mount Installation Kit
Required Electrical Service
Two dedicated circuits required, protected with Class A GroundFault Circuit-Interrupter (GFCI). Outside North America, this device may be known as a Residual Current Device (RCD).
Blower: 120 V, 15 A, 60 Hz
Air bath: 120 V, 15 A, 60 Hz

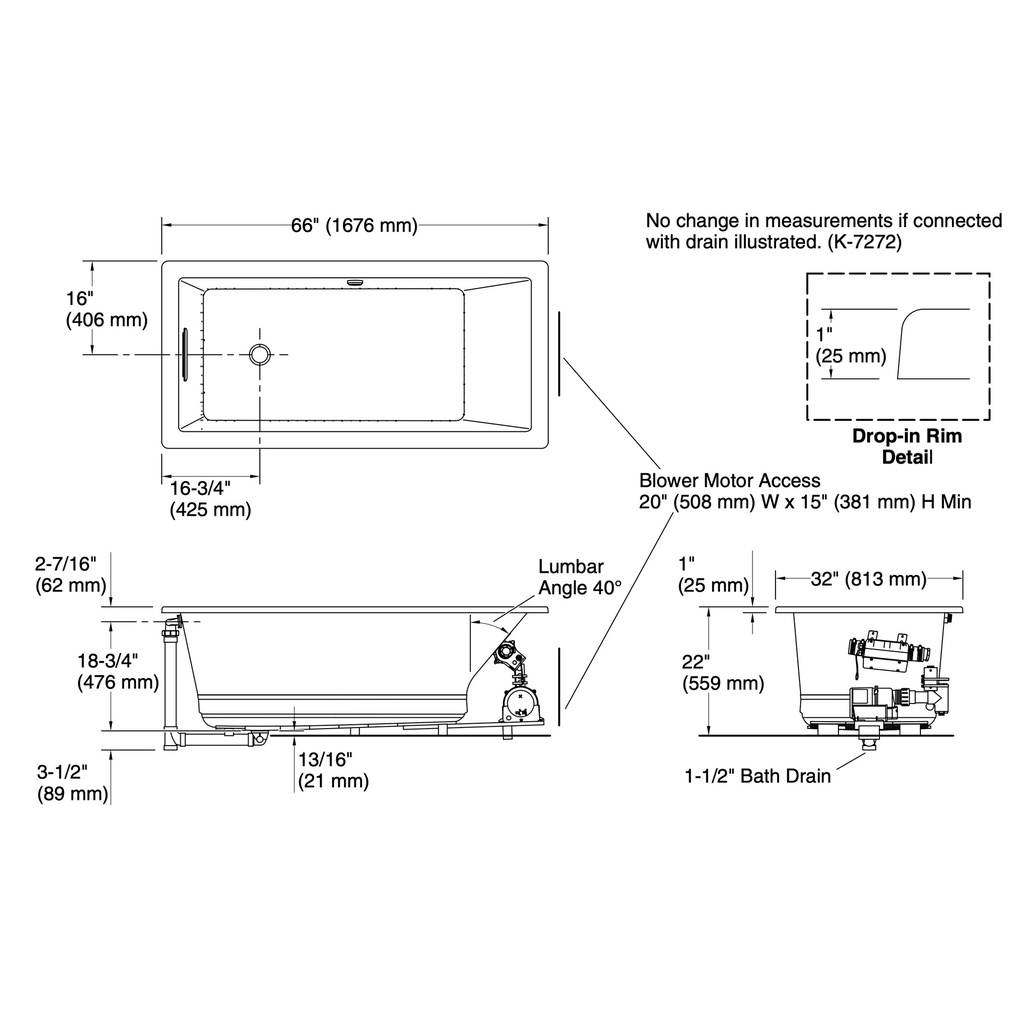

Technical Information
All product dimensions are nominal.
Drain location: Reversible
Basin area, bottom: 44-1/2" x 22-5/16" (1130 mm x 567 mm)
Basin area, top: 59-5/8" x 25-1/2" (1514 mm x 648 mm)
Weight: 111 lbs (50.3 kg)
Minimum floor load: 50 lbs/ft² (244.1 kg/m²)
Water depth: 18" (457 mm)
Water capacity: 85.8 gal (324.8 L)
Cutout: Drop-in, 64-1/2" x 30-1/2" (1638 mm x 775 mm)
Electrical component rating:
Blower: 120 V, 10 A, 60 Hz
Air bath: 120 V, 5 A, 60 Hz
Blower speed: Variable
