Kohler 1821-W1-96 Underscore 66" x 32" Drop-in Bath With Heated Surface Biscuit
Underscore®
66" x 32" drop-in bath with Bask® heated surface
K-1821-W1-96
Color/Finish: Biscuit
Streamlined for simplicity, this Underscore bath exudes refined style with contemporary flair. Its heated surface warms the back and neck with adjustable temperature settings to create a soothing, spa-like environment. A slotted overflow drain allows for a luxuriously deep bath as you relax against the comfortable sloped backrest.
Features
Bask® heated surface creates spa-like relaxation with soothing warmth on your back, shoulders, and neck
Customize the heat with three adjustable settings
Integral lumbar support

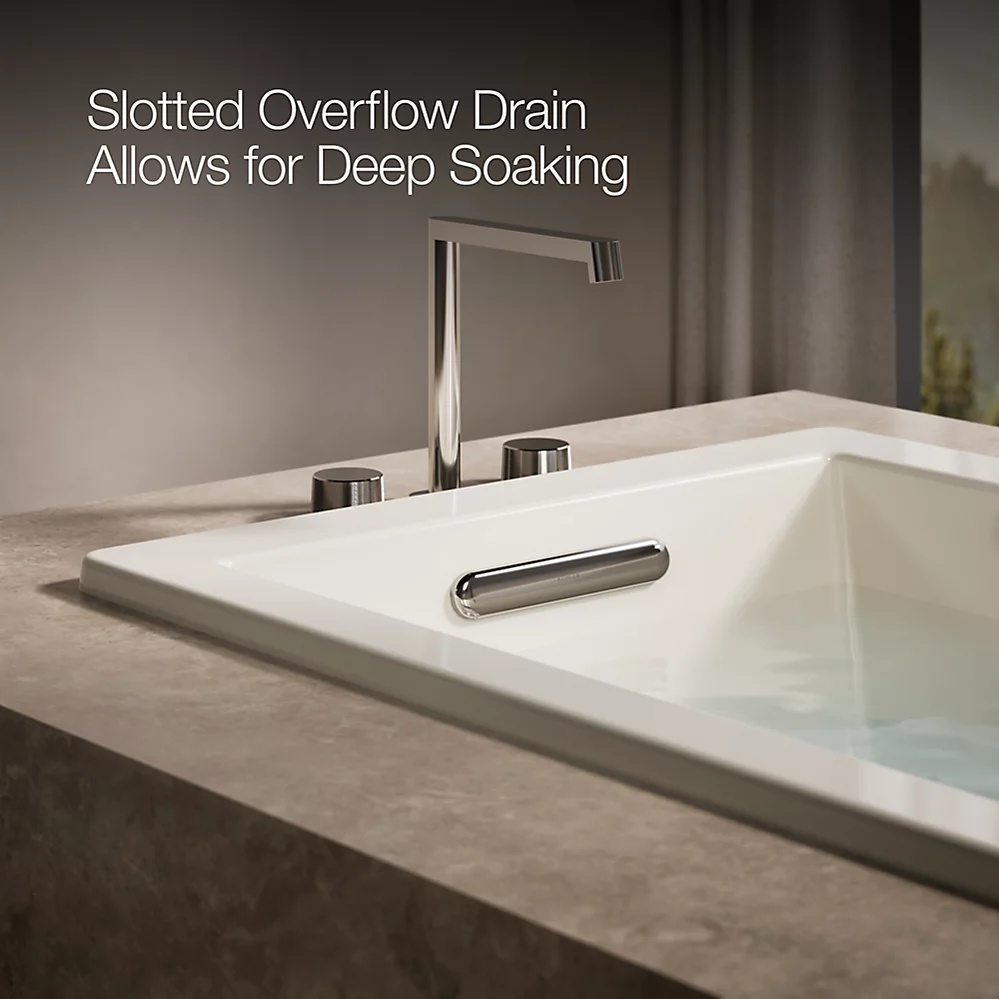

Slotted overflow allows for deep soaking
Material
Acrylic
Installation
Reversible drain
Drop-in or undermount
Requires 110 V electrical service
Required Products/Accessories
K-7271 Brass Slotted Overflow Bath Drain
K-7272 PVC Slotted Overflow Bath Drain
Recommended Products/Accessories
K-1491 Bath/Whirlpool Pillow
K-1601 Bath/whirlpool footstop, removable
K-550 Under-Mount Installation Kit
K-1177 Vinyl Tiling-in Bead
K-23726 Drain treatment
Required Electrical Service
One circuit required, protected with Class A Ground-Fault
Circuit-Interrupter (GFCI). Outside North America, this device may be known as a Residual Current Device (RCD).
Heated Surface: 120 V, 15 A

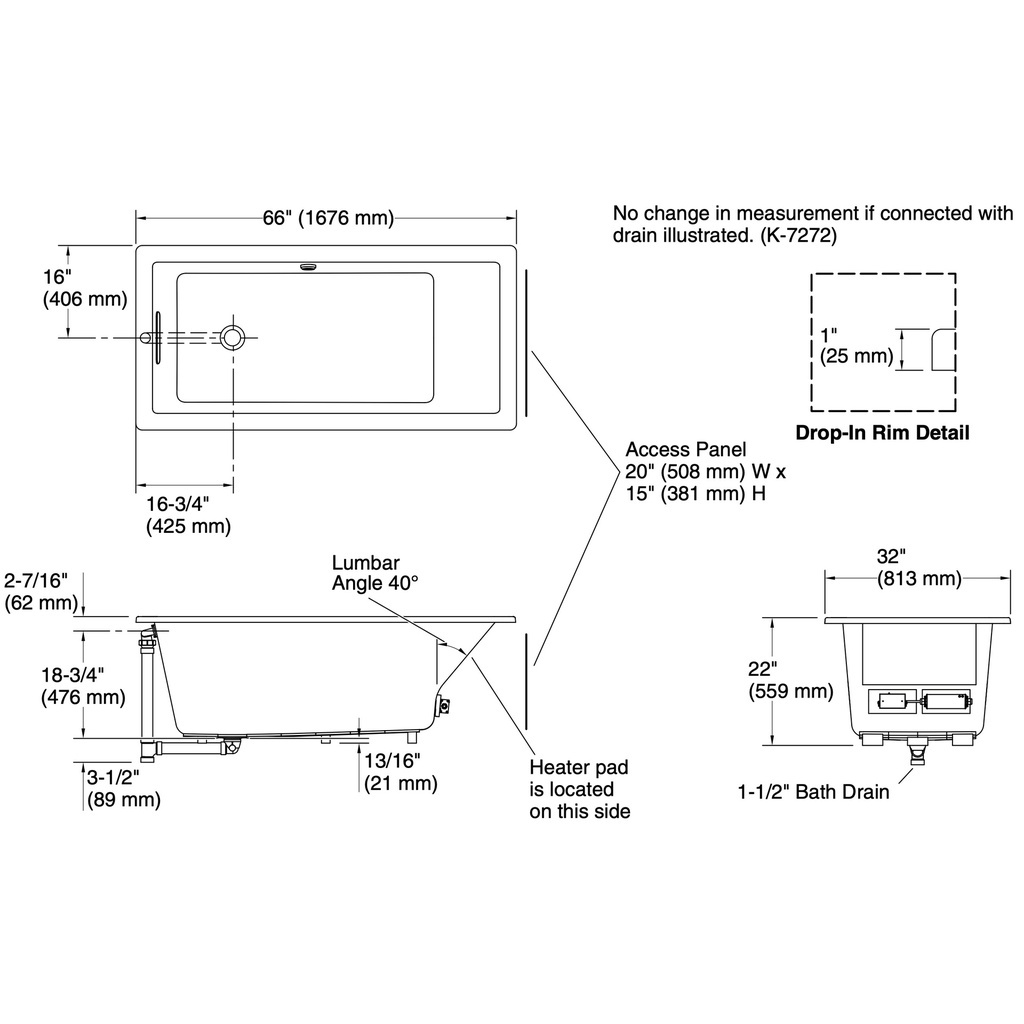

Technical Information
All product dimensions are nominal.
Drain location: Reversible
Basin area, bottom: 44-1/2" x 22-5/16" (1130 mm x 567 mm)
Basin area, top: 59-5/8" x 25-1/2" (1514 mm x 648 mm)
Weight: 92 lbs (41.7 kg)
Minimum floor load: 50 lbs/ft² (244.1 kg/m²)

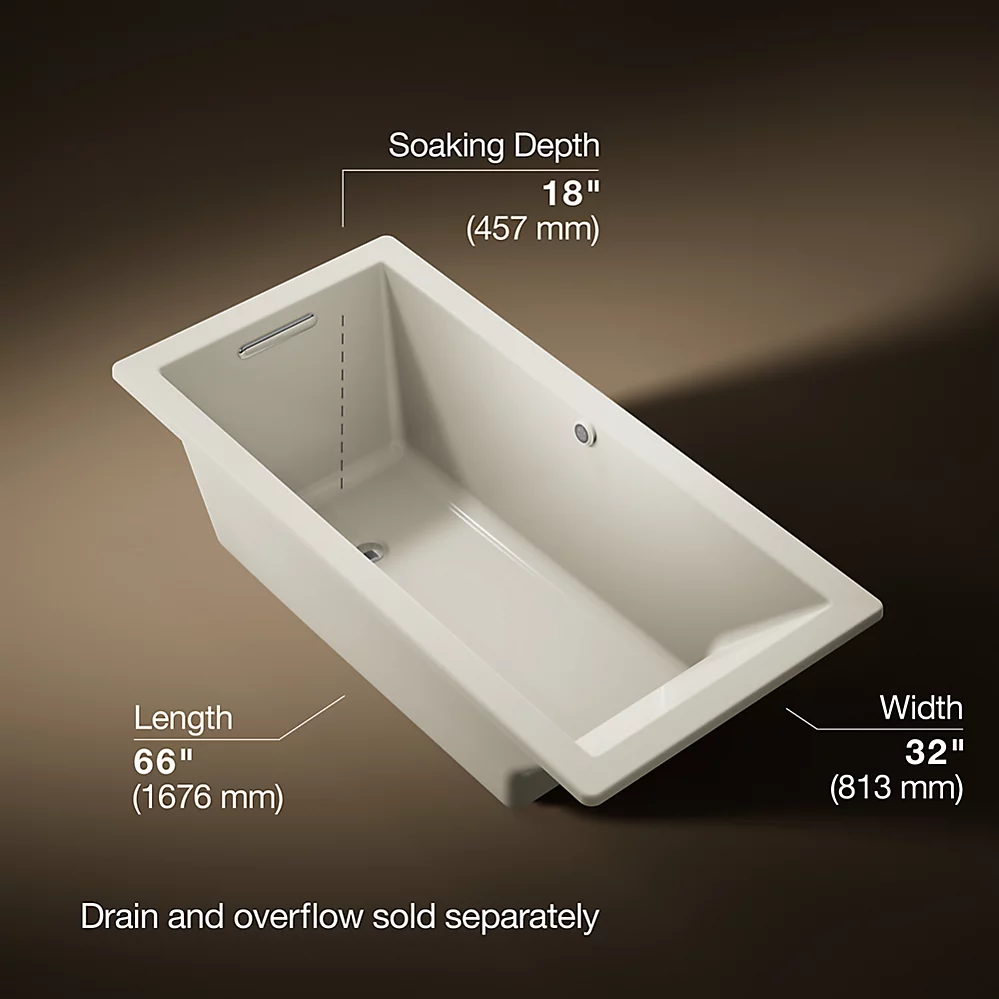

Water depth: 18" (457 mm)
Water capacity: 85.8 gal (324.8 L)
Cutout: Drop-in, 64-1/2" x 30-1/2" (1638 mm x 775 mm)
Electrical component rating:
Heated Surface: 120 V, 0.5 A, 60 Hz, 65W
Minimum flat for door: 2-7/16" (61 mm)
