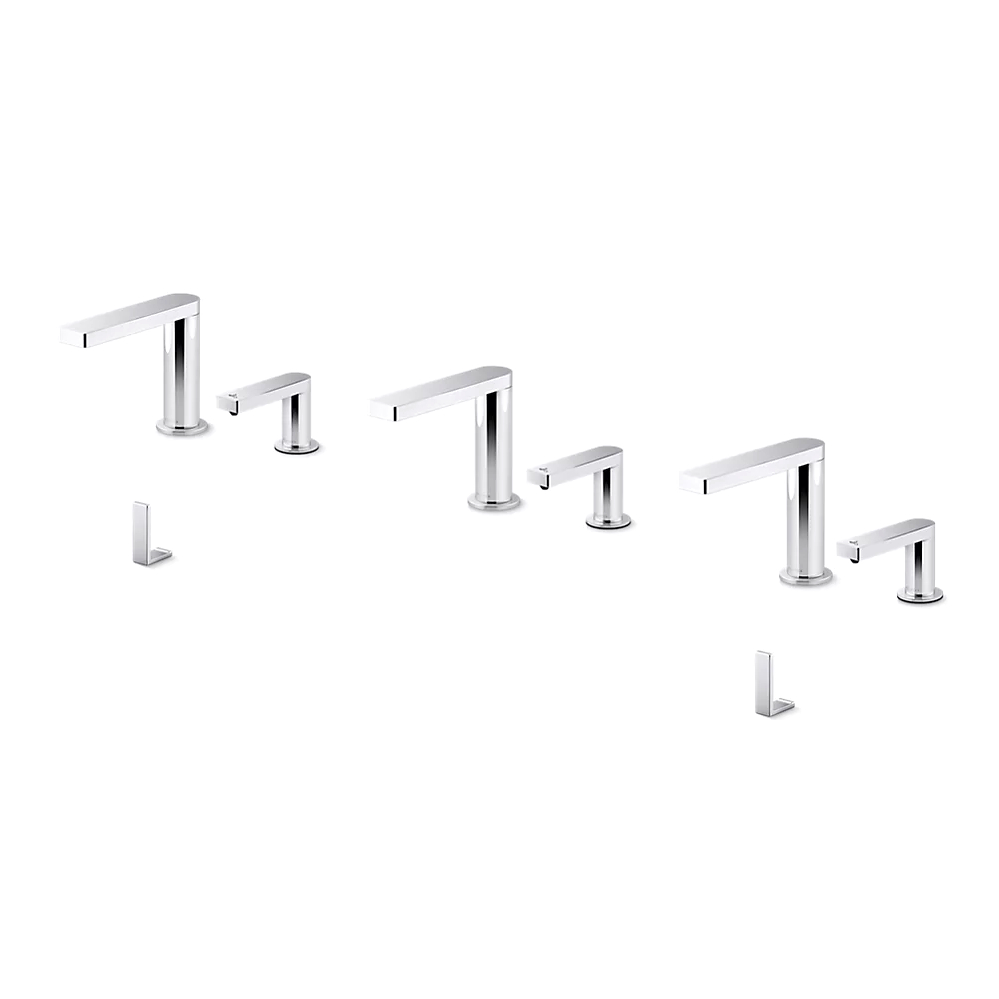

Kohler 181033-BC1-CP Composed Touchless Lavatory Faucets And Soap Dispensers Polished Chrome
Composed®
Touchless lavatory faucets and soap dispensers for Constellation™ lavatory system, 0.5 gpm
K-181033-BC1-CP
Color/Finish: Polished Chrome
With understated minimalist style, Composed faucets and soap dispensers bring elegant residential design to commercial bathrooms. Kinesis technology features a concealed sensor inside the spout for highly accurate, consistent activation and a sleek look. Valving is located below the deck, creating a smaller footprint with a clean, design-forward aesthetic.
Features
Touchless faucet, soap dispenser, and accessory combination designed for Constellation™ 90" wall-mount lavatory systems
Faucets with Kinesis® technology and concealed sensors give a clean aesthetic and provide extraordinarily accurate and reliable actuation in varying installation environments
0.5 gpm (1.9 lpm) maximum flow rate
On-demand usage with 30-second max. continual run cycle to prevent vandalism and save water
Vandal-resistant aerators
Soap dispensers possess adjustable volume and sensor range for precise actuations
Soap dispenser requires low (1-20 cps or gr/m-s) viscosity foam soap with no suspended particles. Please see Installation Guide or Maintenance and Use Guide for specific soap recommendations
Below-counter faucet valving and soap dispenser reservoirs reduce footprints and provide easier servicing
Vandal-resistant sensor on soap dispenser delays dispensing for 30 seconds if blocked for ten seconds
Above-counter low soap and low battery indicators
Coordinating bag hooks hold purses, backpacks, and other bags
Includes three assembled faucets and soap dispensers, two bag hooks, two multi-outlet power supplies, six 10' (3.1 m) cable assemblies, three overflow assemblies, one 1-gallon bulk soap refill, mechanical mixing tee
Material
Durable brass construction
Installation
Deck-mount
Required Electrical Service
One dedicated circuit required, protected with Class A GroundFault Circuit-Interrupter (GFCI). Outside North America, this device may be known as a Residual Current Device (RCD).
110/220 V, 50/60 Hz
Technical Information

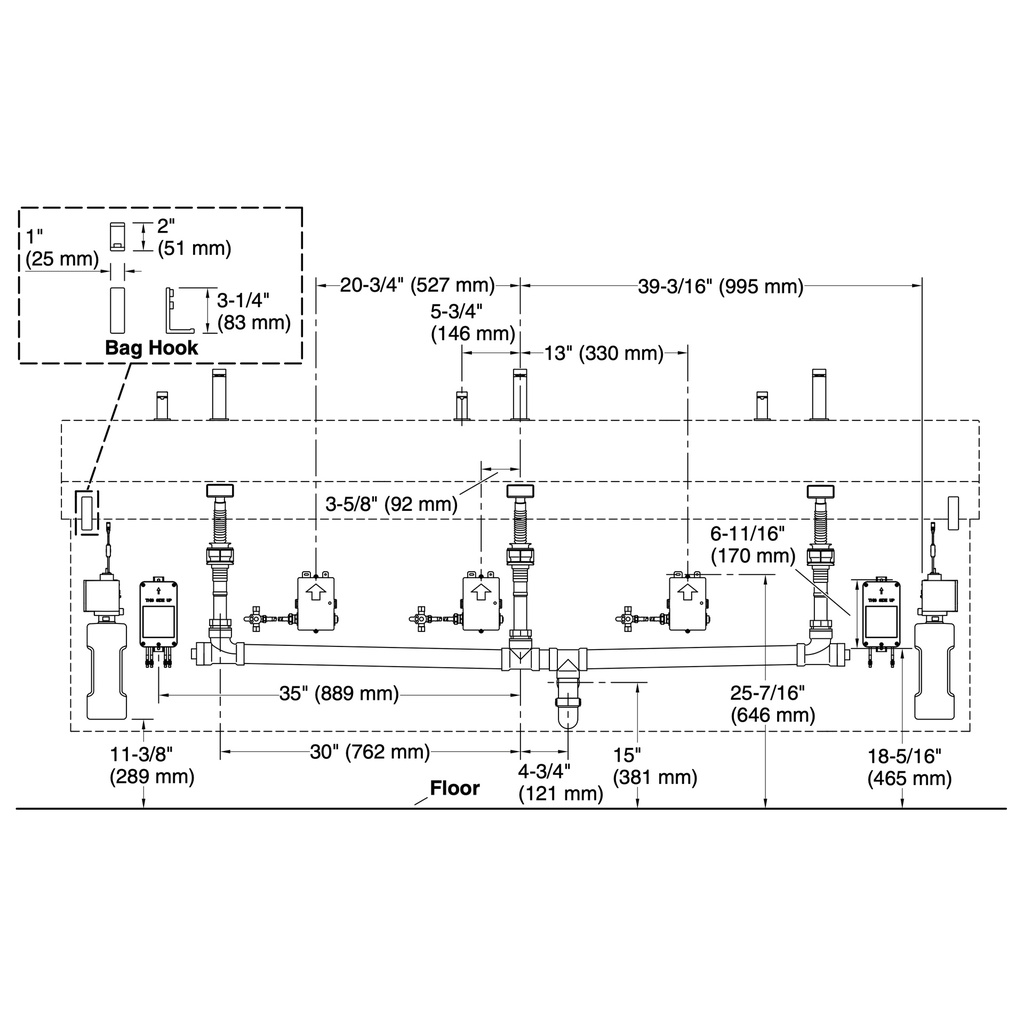

All product dimensions are nominal.
Power source: Hardwire - AC and Plug - AC, included
Faucet flow rate: 0.5 gal/min (1.9 l/min)
Drain included: Yes
Spout: Spout reach: 5-13/16" (148 mm)
Pressure/fixture Supply Requirements
Fixture pressure max (static): 80 psi (551.6 kPa)
Fixture pressure min (static): 25 psi (172.4 kPa)
Min flow rate: 0.5 gpm (1.9 lpm)
