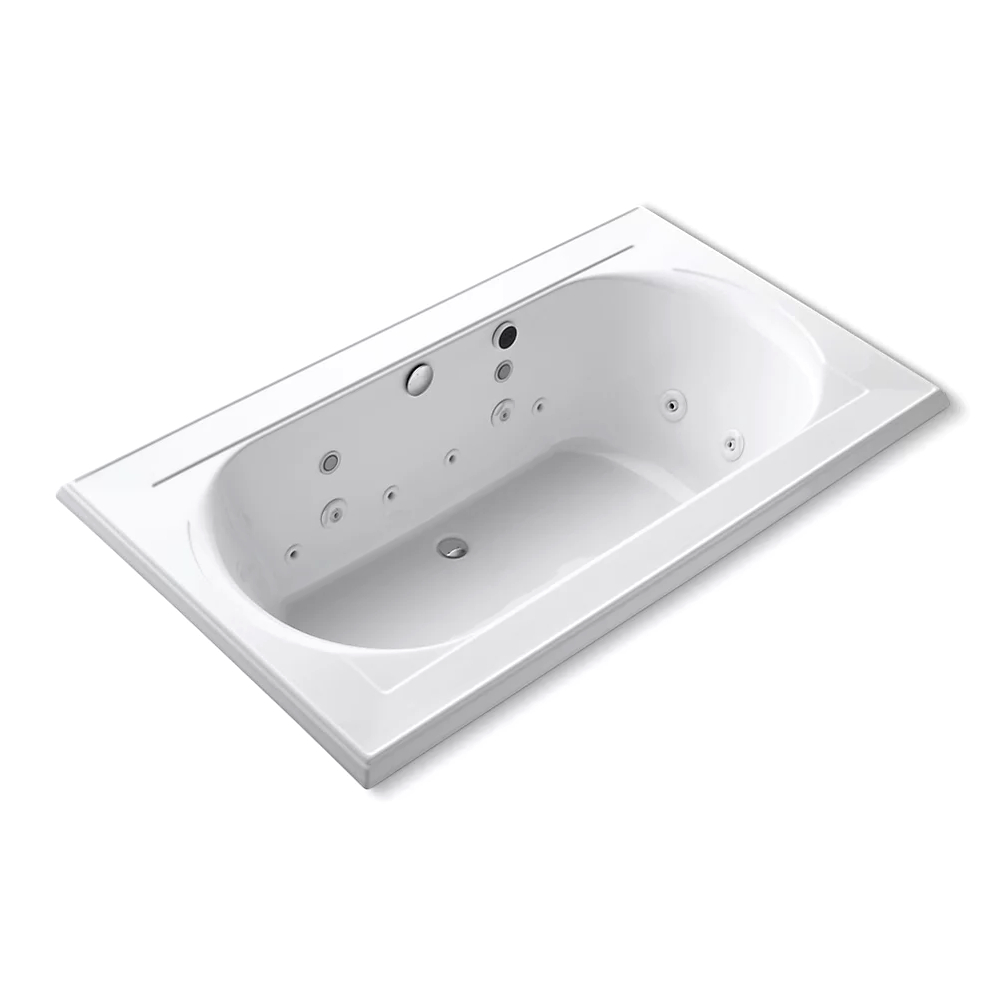

Kohler 1418-AH-0 Memoirs 72" x 42" Drop-in Effervescence Whirlpool Bath White
Memoirs®
72" x 42" drop-in Effervescence whirlpool bath
K-1418-AH-0
Color/Finish: White
With rich detailing reminiscent of crown molding, Memoirs brings classic architectural style to your bathroom. This Spa Package bath features effervescence ports that release thousands of tiny champagne-like bubbles for a unique, revitalizing sensation, while whirlpool jets massage tired muscles. Chromatherapy lights bathe you in the soothing glow of colors for enhanced mind-body relaxation.
Features

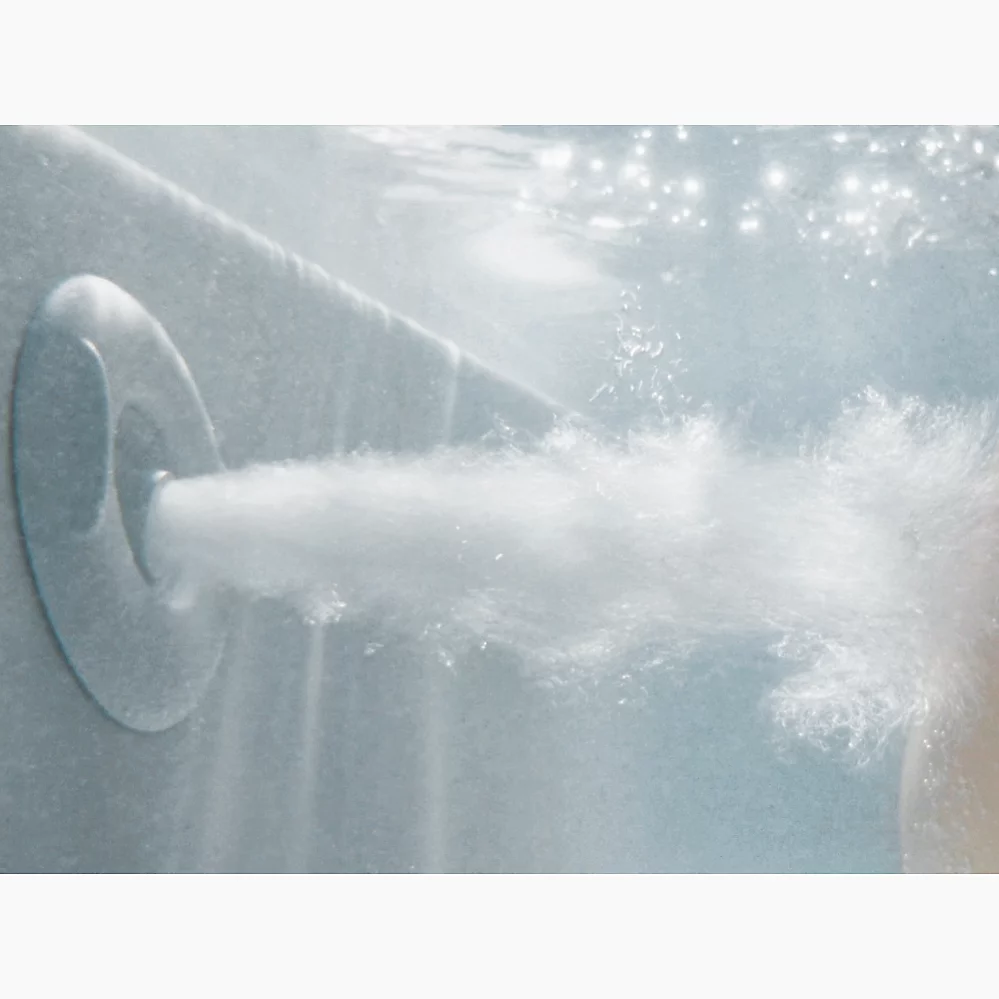

8 hydromassage jets can be individually adjusted for water flow and direction
Variable-speed pump for adjusting hydromassage intensity
Chromatherapy lighting allows you to select a preferred color scheme to suit your mood
Built-in heater
Lighted keypad control
Remote control
Spacious design accommodates up to two bathers
Coordinates with other products in the Memoirs collection
Hydrotherapy

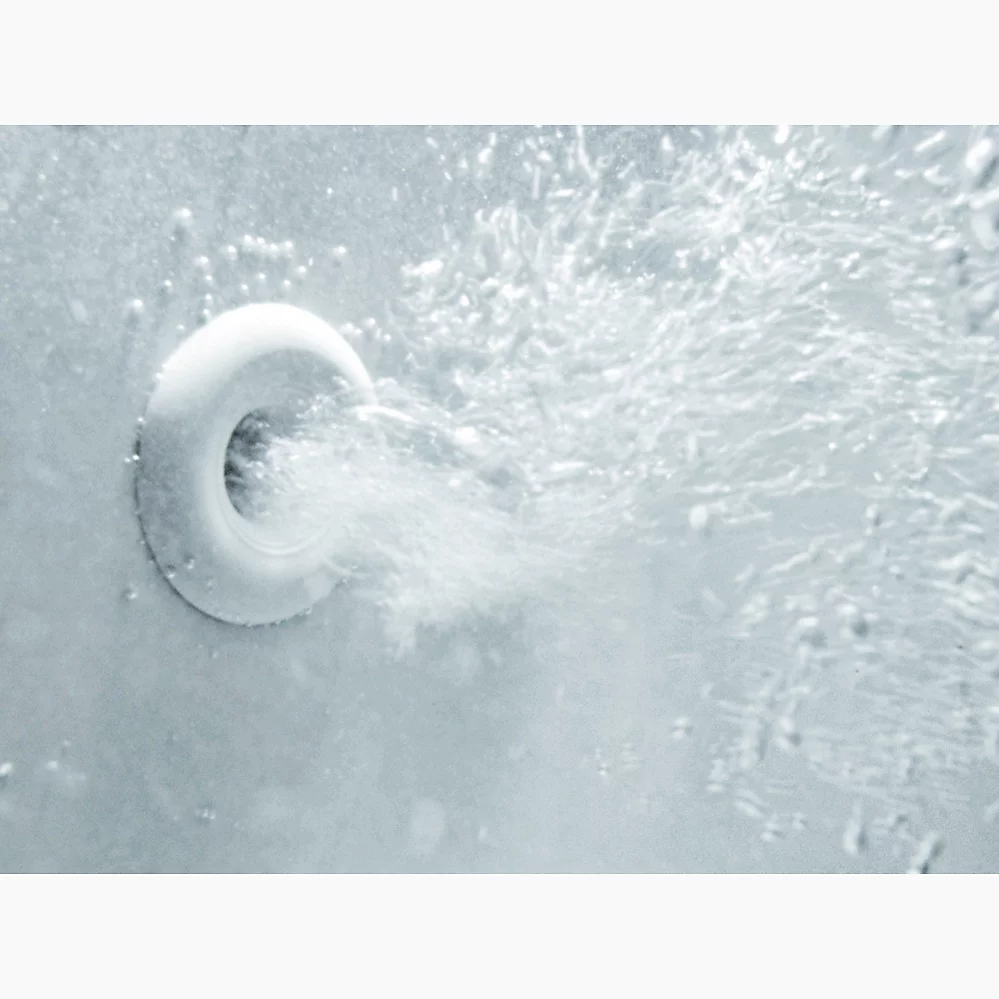

8 effervescence ports deliver gentle, caressing bubbles
Whirlpool
Chromatherapy
Material
Acrylic
Installation
Drop-in
Required Products/Accessories
K-T37391 Rotary-turn bath drain trim
K-T37392 Rotary-turn bath drain trim
K-37385 rough-in cable drain, PVC, 45” cable
K-78439 45" cable bath drain
Recommended Products/Accessories
K-1491 Bath/Whirlpool Pillow
K-1601 Bath/whirlpool footstop, removable
K-23726 Drain treatment
Required Electrical Service
One dedicated circuit required, protected with Class A GroundFault Circuit-Interrupter (GFCI). Outside North America, this device may be known as a Residual Current Device (RCD).
Pump, Heater: 240 V, 20 A, 50/60 Hz

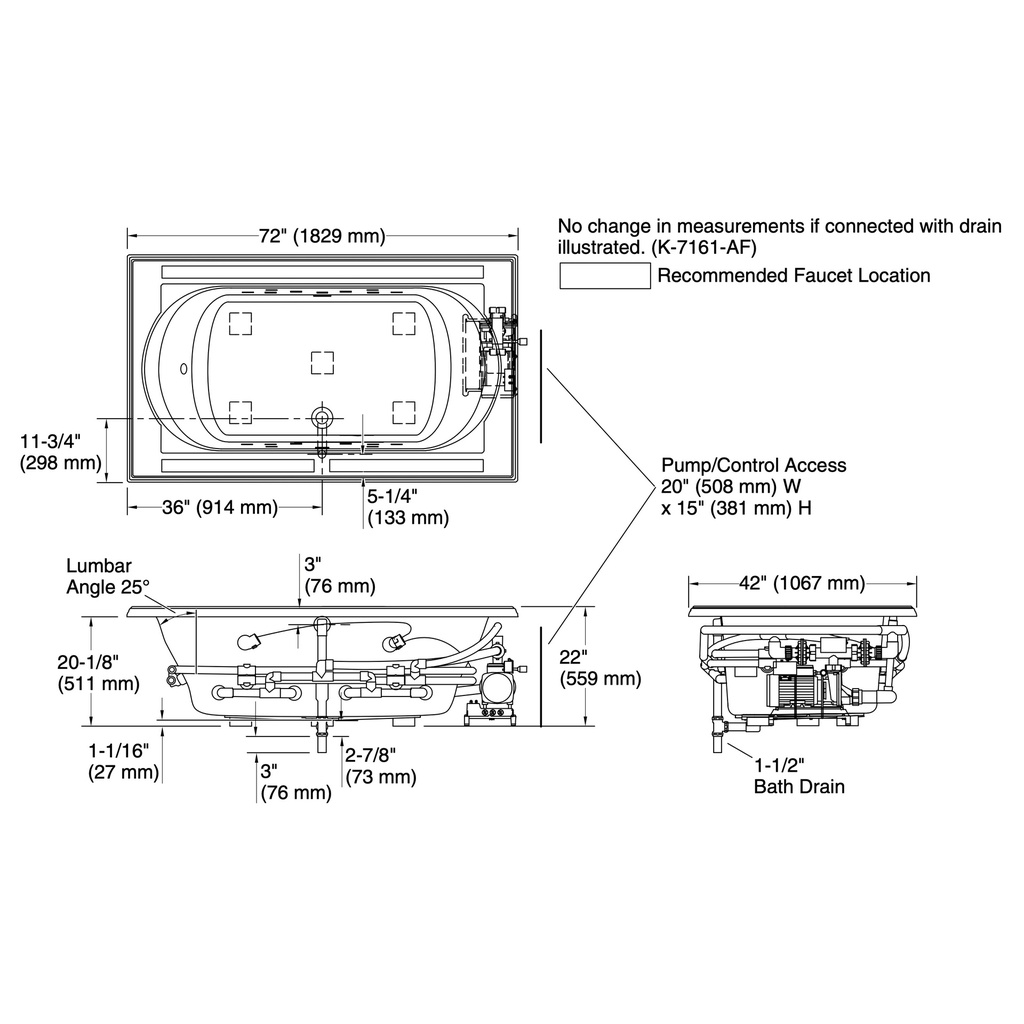

Technical Information
All product dimensions are nominal.
Drain location: Center
Basin area, bottom: 48" x 27" (1219 mm x 686 mm)
Basin area, top: 60" x 30" (1524 mm x 762 mm)
Weight: 140 lbs (63.5 kg)
Minimum floor load: 45 lbs/ft² (219.7 kg/m²)
Water depth: 16" (406 mm)
Water capacity: 94 gal (355.8 L)
Cutout: Drop-in, 70-1/2" x 40-1/2" (1791 mm x 1029 mm)
Electrical component rating:
Pump: 240 V, 11 A, 50/60 Hz
Heater: 240 V, 6.3 A, 50/60 Hz, 1500 W
Pump speed: Variable
Minimum flat for door: 3-13/16" (97 mm)
