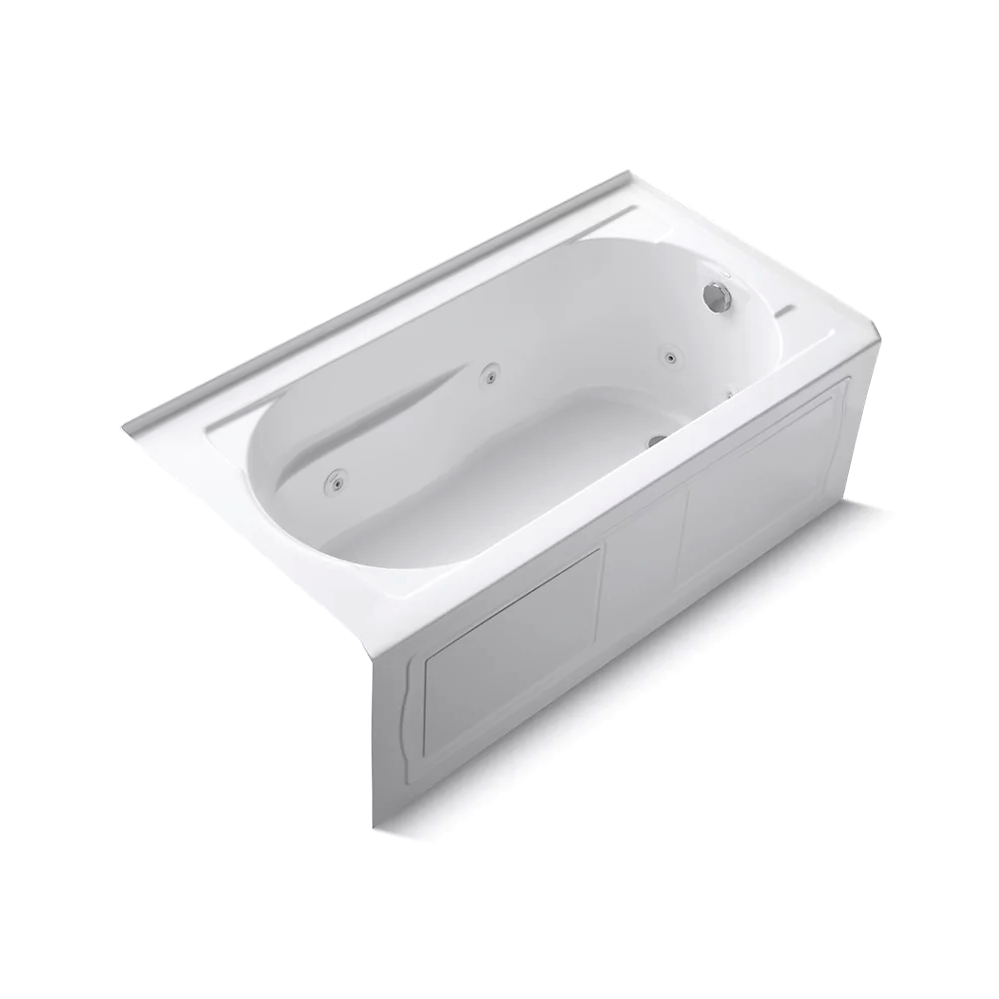

Kohler 1357-HL-0 Devonshire 60" x 32" Alcove Heated Whirlpool Bath Left Drain White
Devonshire®
60" x 32" alcove heated whirlpool bath, left drain
K-1357-HL-0
Color/Finish: White
The Devonshire whirlpool reveals elegant, old-world style while delivering the modern comforts of hydrotherapy massage. With adjustable jets and a built-in heater to keep your water warm, this bath is a haven for private relaxation.
Features
Single-speed whirlpool offers performance and value with 8 fully adjustable jets
Hydromassage flow and direction can be controlled at each jet
Built-in heater
Integral lumbar support and armrests offer extra comfort while bathing
Integral apron
Integral flange helps prevent water from seeping behind wall and simplifies alcove installation
Textured bottom surface
Coordinates with other products in the Devonshire collection
Hydrotherapy
Whirlpool
Material
Acrylic
Installation
Left drain
Alcove
Required Products/Accessories
K-T37391 Rotary-turn bath drain trim
K-T37392 Rotary-turn bath drain trim
K-37383 Rough-in cable bath drain, PVC, 30" cable with tubing
K-78438 30" cable bath drain
K-37385 rough-in cable drain, PVC, 45” cable
K-78439 45" cable bath drain
Recommended Products/Accessories
K-1491 Bath/Whirlpool Pillow
K-1601 Bath/whirlpool footstop, removable
K-7213 27" Cable Bath Drain
K-7214 27" Cable Bath Drain
K-7259 Brass toe tap bath drain
K-23726 Drain treatment
Required Electrical Service
Two dedicated circuits required, protected with Class A GroundFault Circuit-Interrupter (GFCI). Outside North America, this
device may be known as a Residual Current Device (RCD).
Pump: 120 V, 15 A, 60 Hz
Heater: 120 V, 15 A, 60 Hz

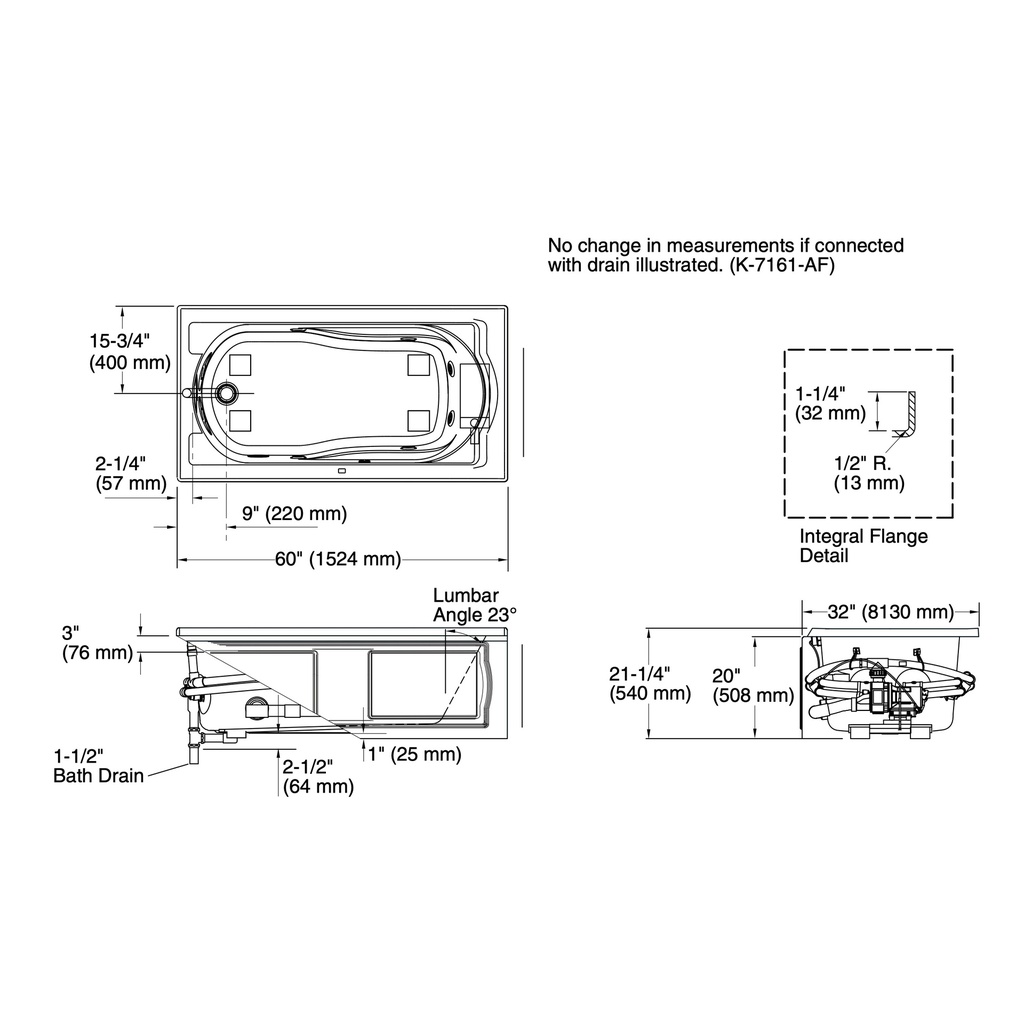

Technical Information
All product dimensions are nominal.
Drain location: Left
Basin area, bottom: 42" x 20" (1067 mm x 508 mm)
Basin area, top: 51" x 24" (1295 mm x 610 mm)
Weight: 160 lbs (72.6 kg)
Minimum floor load: 51 lbs/ft² (249 kg/m²)
Water depth: 14" (356 mm)
Water capacity: 60 gal (227.1 L)
Electrical component rating:
Pump: 120 V, 7 A, 60 Hz
Heater: 120 V, 12.5 A, 60 Hz, 1500 W
Pump speed: Single
