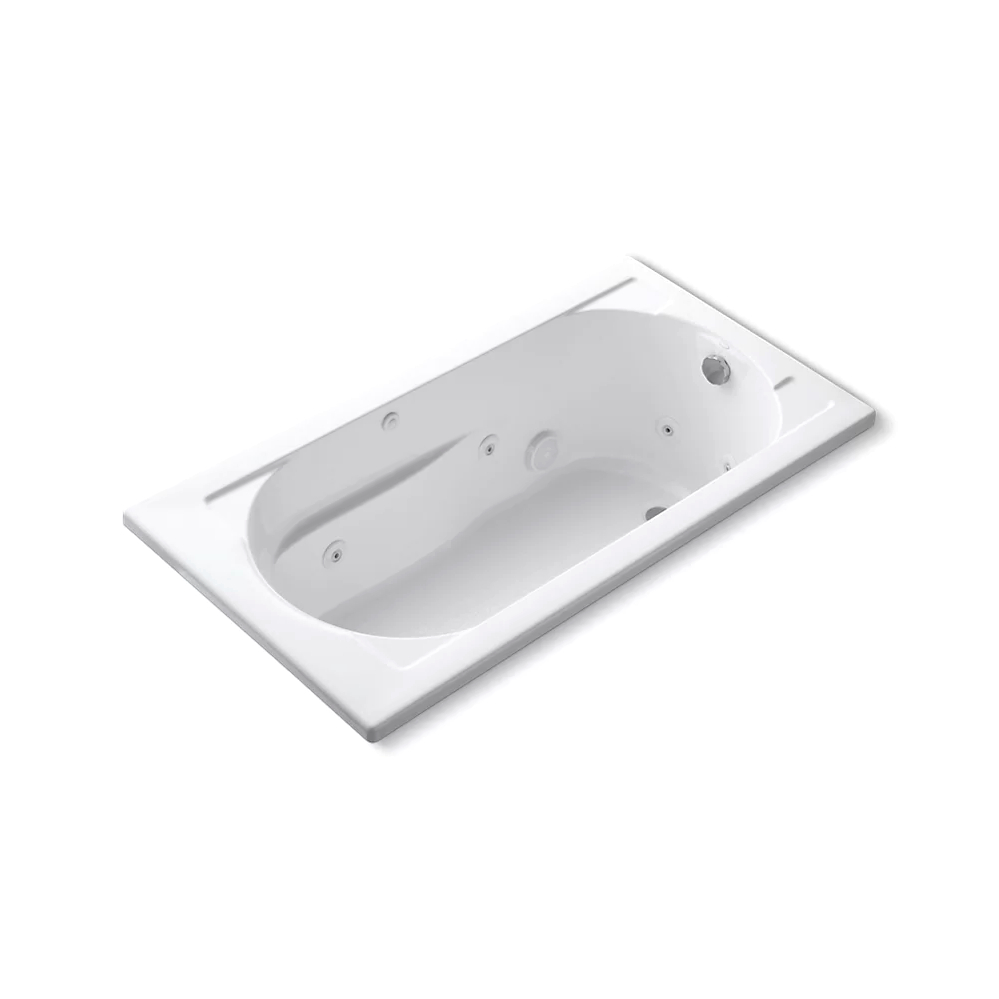

Kohler 1357-H-0 Devonshire 60" x 32" Drop-in Whirlpool Bath Heater White
Devonshire®
60" x 32" drop-in whirlpool bath heater
K-1357-H-0
Color/Finish: White
Devonshire captures the essence of old-world elegance with a striking combination of curves and design lines. The Devonshire whirlpool reveals elegant, old-world style while delivering the modern comforts of hydrotherapy massage. With adjustable jets and a built-in heater to keep your water warm, this bath is a haven for private relaxation.
Features
Single-speed whirlpool offers performance and value with 8 fully adjustable jets
Hydromassage flow and direction can be controlled at each jet
Built-in heater
Integral lumbar support and armrests offer extra comfort while bathing
Textured bottom surface
Coordinates with other products in the Devonshire collection
Hydrotherapy
Whirlpool
Material
Acrylic
Installation
Reversible drain
Drop-in
Required Products/Accessories
K-T37391 Rotary-turn bath drain trim
K-T37392 Rotary-turn bath drain trim
K-37383 Rough-in cable bath drain, PVC, 30" cable with tubing
K-78438 30" cable bath drain
K-37385 rough-in cable drain, PVC, 45” cable
K-78439 45" cable bath drain
Recommended Products/Accessories
K-1491 Bath/Whirlpool Pillow
K-1601 Bath/whirlpool footstop, removable
K-7213 27" Cable Bath Drain
K-7214 27" Cable Bath Drain
K-7259 Brass toe tap bath drain
K-1177 Vinyl Tiling-in Bead
K-23726 Drain treatment
Required Electrical Service
Two dedicated circuits required, protected with Class A GroundFault Circuit-Interrupter (GFCI). Outside North America, this device may be known as a Residual Current Device (RCD).
Pump: 120 V, 15 A, 60 Hz
Heater: 120 V, 15 A, 60 Hz

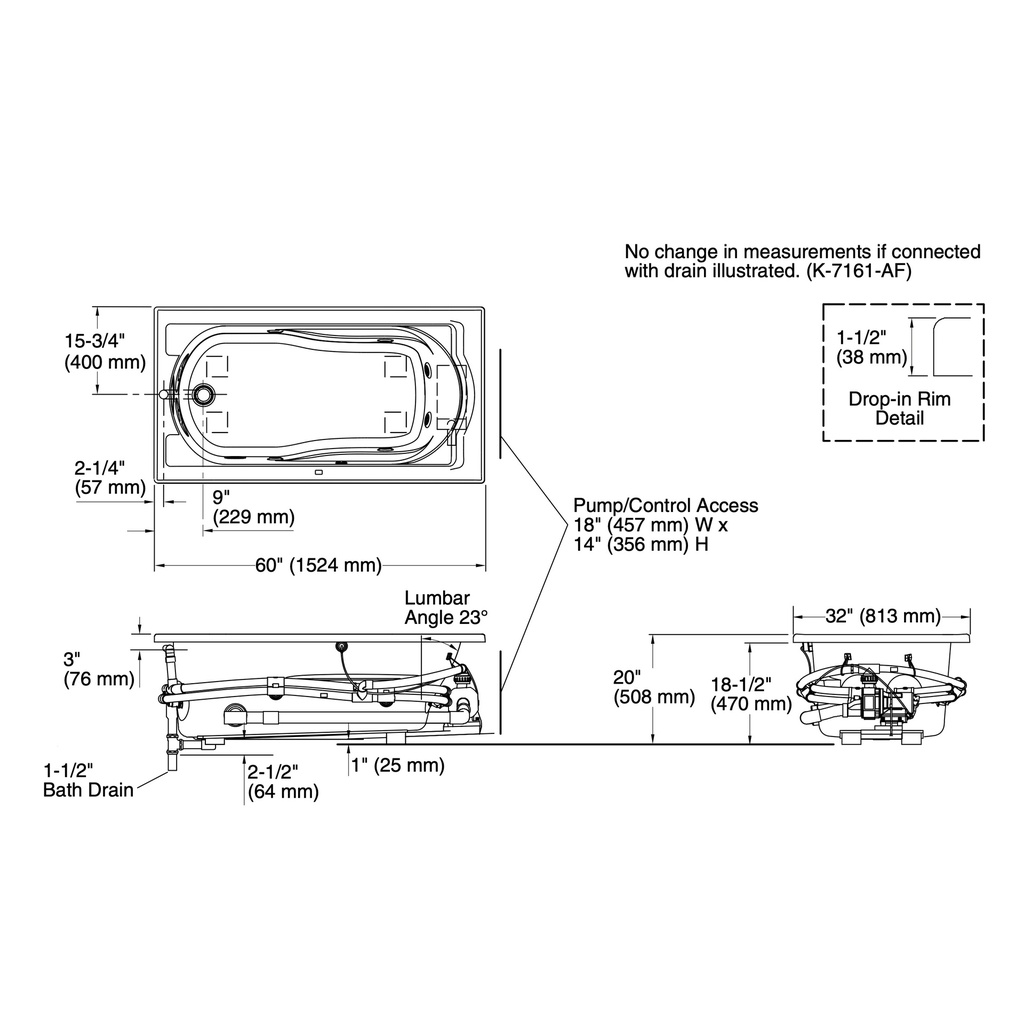

Technical Information
All product dimensions are nominal.
Drain location: Reversible
Basin area, bottom: 42" x 20" (1067 mm x 508 mm)
Basin area, top: 51" x 24" (1295 mm x 610 mm)
Weight: 145 lbs (65.8 kg)
Minimum floor load: 50 lbs/ft² (244.1 kg/m²)
Water depth: 14" (356 mm)
Water capacity: 60 gal (227.1 L)
Cutout: Drop-in, 58" x 30" (1473 mm x 762 mm)
Electrical component rating:
Pump: 120 V, 7 A, 60 Hz
Heater: 120 V, 12.5 A, 60 Hz, 1500 W
Pump speed: Single
Minimum flat for door: 2-1/2" (63 mm)
