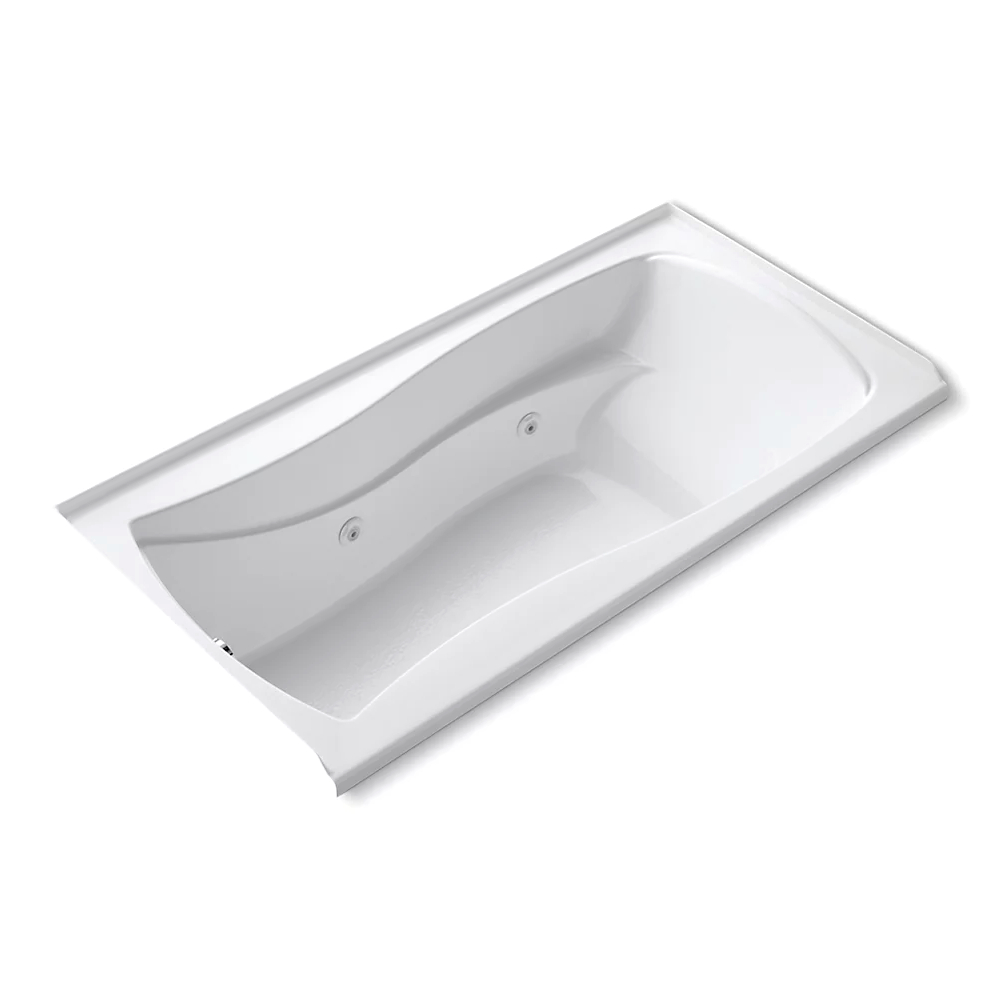

Kohler 1257-R-0 Mariposa 72" x 36" Alcove Whirlpool Bath Right Drain White
Mariposa®
72" x 36" alcove whirlpool bath, right drain
K-1257-R-0
Color/Finish: White
The body-contoured design of the Mariposa whirlpool is accented by six adjustable ProFlex(R) whirlpool jets for maximum bather comfort. Constructed of high-quality acrylic, this 6' model features a right-hand drain and includes an integral flange to further simplify installation and prevent behind-the-wall water damage.
Features
72"L x 36"W x 20"H
Includes integral flange to simplify installation and prevent the possibility of water damage behind the wall
Six adjustable ProFlex® whirlpool jets for maximum bather comfort
Innovative technology enables this pump to provide a strong, steady level of hydromassage
Textured bottom surface
Hydrotherapy
Whirlpool
Material
Acrylic
Installation
Alcove
Required Products/Accessories
K-T37391 Rotary-turn bath drain trim
K-T37392 Rotary-turn bath drain trim
K-37383 Rough-in cable bath drain, PVC, 30" cable with tubing
K-78438 30" cable bath drain
Recommended Products/Accessories
K-1491 Bath/Whirlpool Pillow
K-1601 Bath/whirlpool footstop, removable
K-7213 27" Cable Bath Drain
K-7214 27" Cable Bath Drain
K-7259 Brass toe tap bath drain
K-23726 Drain treatment
K-7265 Brass toe tap bath drain
Required Electrical Service
One dedicated circuit required, protected with Class A GroundFault Circuit-Interrupter (GFCI). Outside North America, this device may be known as a Residual Current Device (RCD).
Pump: 120 V, 15 A, 60 Hz

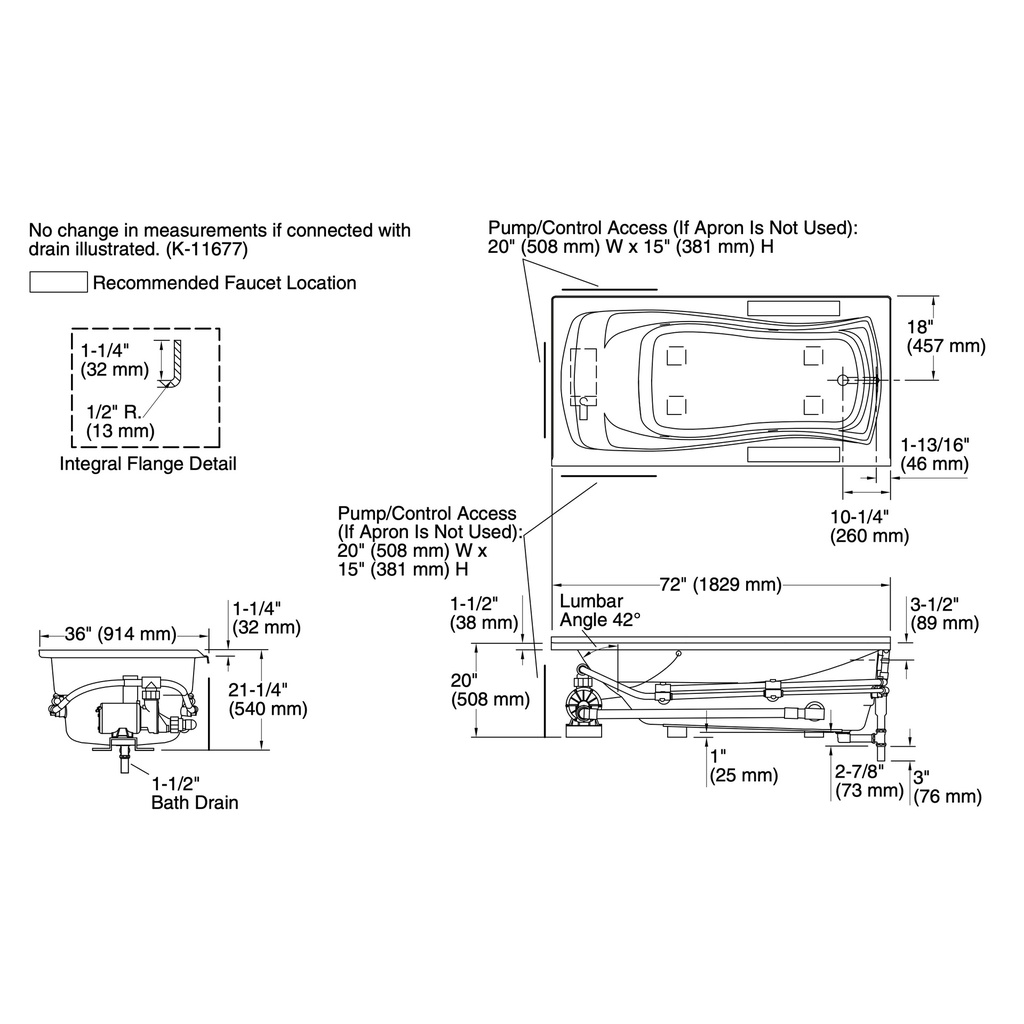

Technical Information
All product dimensions are nominal.
Drain location: Right
Basin area, bottom: 50" x 24" (1270 mm x 610 mm)
Basin area, top: 65" x 27" (1651 mm x 686 mm)
Weight: 110 lbs (49.9 kg)
Minimum floor load: 41 lbs/ft² (200.2 kg/m²)
Water depth: 14" (356 mm)
Water capacity: 72 gal (272.5 L)
Electrical component rating:
Pump: 120 V, 7.5 A, 60 Hz
Pump speed: Single
