Kohler 1257-LA-0 Mariposa 72" x 36" Alcove Whirlpool Bath Left Drain White
Mariposa®
72" x 36" alcove whirlpool bath, left drain
K-1257-LA-0
Color/Finish: White
The body-contoured design of the Mariposa whirlpool is accented by six adjustable ProFlex(R) whirlpool jets for maximum bather comfort. Constructed of high-quality acrylic, this 6' model features a left-hand drain and includes an integral apron and flange to further simplify installation and prevent behind-the-wall water damage.
Features
72"L x 36"W x 20"H
Integral apron for easy alcove installation and pump access
Six adjustable ProFlex® whirlpool jets for maximum bather comfort
Innovative technology enables this pump to provide a strong, steady level of hydromassage
Includes integral flange to simplify installation and prevent the possibility of water damage behind the wall
Custom pump locations expand installation and pump access options
Hydrotherapy
Whirlpool
Material
Acrylic
Installation
Drop-in or alcove
Required Products/Accessories
K-T37391 Rotary-turn bath drain trim
K-T37392 Rotary-turn bath drain trim
K-37383 Rough-in cable bath drain, PVC, 30" cable with tubing
K-78438 30" cable bath drain
Recommended Products/Accessories
K-1491 Bath/Whirlpool Pillow
K-23726 Drain treatment
K-7265 Brass toe tap bath drain
Required Electrical Service
One dedicated circuit required, protected with Class A GroundFault Circuit-Interrupter (GFCI). Outside North America, this device may be known as a Residual Current Device (RCD).
Pump: 120 V, 15 A, 60 Hz

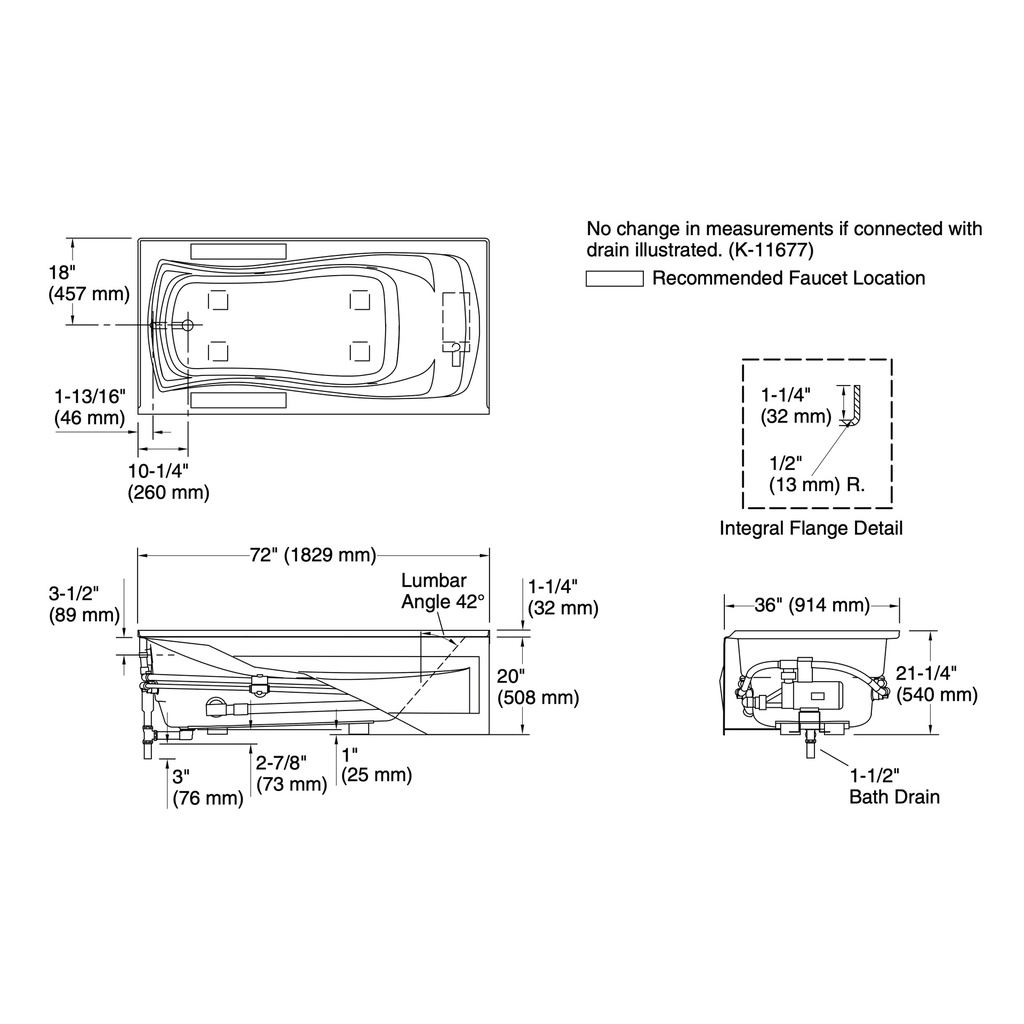

Technical Information
All product dimensions are nominal.
Drain location: Left
Basin area, bottom: 50" x 24" (1270 mm x 610 mm)
Basin area, top: 65" x 27" (1651 mm x 686 mm)
Weight: 110 lbs (49.9 kg)
Minimum floor load: 41 lbs/ft² (200.2 kg/m²)
Water depth: 14" (356 mm)
Water capacity: 72 gal (272.5 L)
Electrical component rating:
Pump: 120 V, 7.5 A, 60 Hz
Pump speed: Single
Minimum flat for door: 2-1/8" (54 mm)
