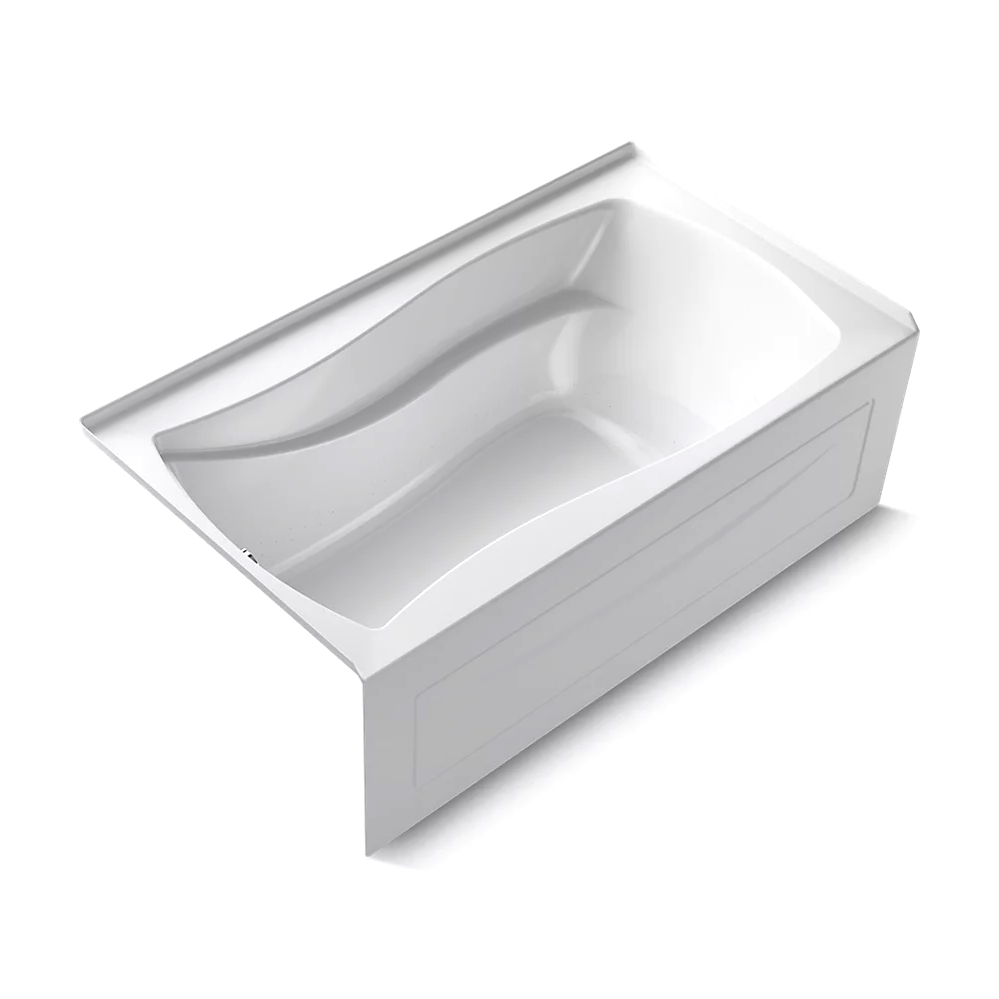

Kohler 1257-GHRAW-0 Mariposa 72" x 36" Alcove Heated Bubble Massage Air Bath Right Drain White
Mariposa®
72" x 36" alcove Heated BubbleMassage™ air bath with Bask® heated surface, right drain
K-1257-GHRAW-0
Color/Finish: White
With Heated BubbleMassage™ hydrotherapy, airjets release thousands of heated bubbles that deliver a blissfully warm, invigorating full-body massage experience. This air bath's heated surface warms the back, shoulders and neck with adjustable temperature settings to create a soothing, spa-like environment. Featuring delicate curves and an hourglass shape, the Mariposa® air bath brings harmony to your bathroom's design.
Features
Bask® heated surface creates spa-like relaxation with soothing warmth on your back, shoulders, and neck
Three heat settings allow you to customize the surface temperature
120 airjets release thousands of heated bubbles that surround and support the body in a warm massage
Variable-speed blower lets you adjust massage intensity to 18 levels
Heated BubbleMassage™ includes 60-minute automatic shutoff timer
Two separate electronic keypad controls for Heated BubbleMassage™ and Bask®
Hourglass shape adds style and elegance to your bathroom
Integral apron
Integral flange helps prevent water from seeping behind wall and simplifies alcove installation
Textured bottom surface
Automatic and manual purge cycles remove residual water from air channels after use
Technology
Heated BubbleMassage™ technology warms and humidifies air before it enters the bath
Material
Acrylic
Installation
Right drain
Alcove
120 V electrical requirement allows for easy installation with standard outlet
Requires two dedicated circuits
Required Products/Accessories
K-T37391 Rotary-turn bath drain trim
K-T37392 Rotary-turn bath drain trim
K-37383 Rough-in cable bath drain, PVC, 30" cable with tubing
K-78438 30" cable bath drain
Recommended Products/Accessories
K-1446 Remote Installation Kit
K-1491 Bath/Whirlpool Pillow
K-1601 Bath/whirlpool footstop, removable
K-23726 Drain treatment
K-7265 Brass toe tap bath drain
Required Electrical Service
Two dedicated circuits required, protected with Class A GroundFault Circuit-Interrupter (GFCI). Outside North America, this
device may be known as a Residual Current Device (RCD).
Blower, Heated Surface:
120 V, 15 A, 60 Hz
Air bath: 120 V, 15 A, 60 Hz

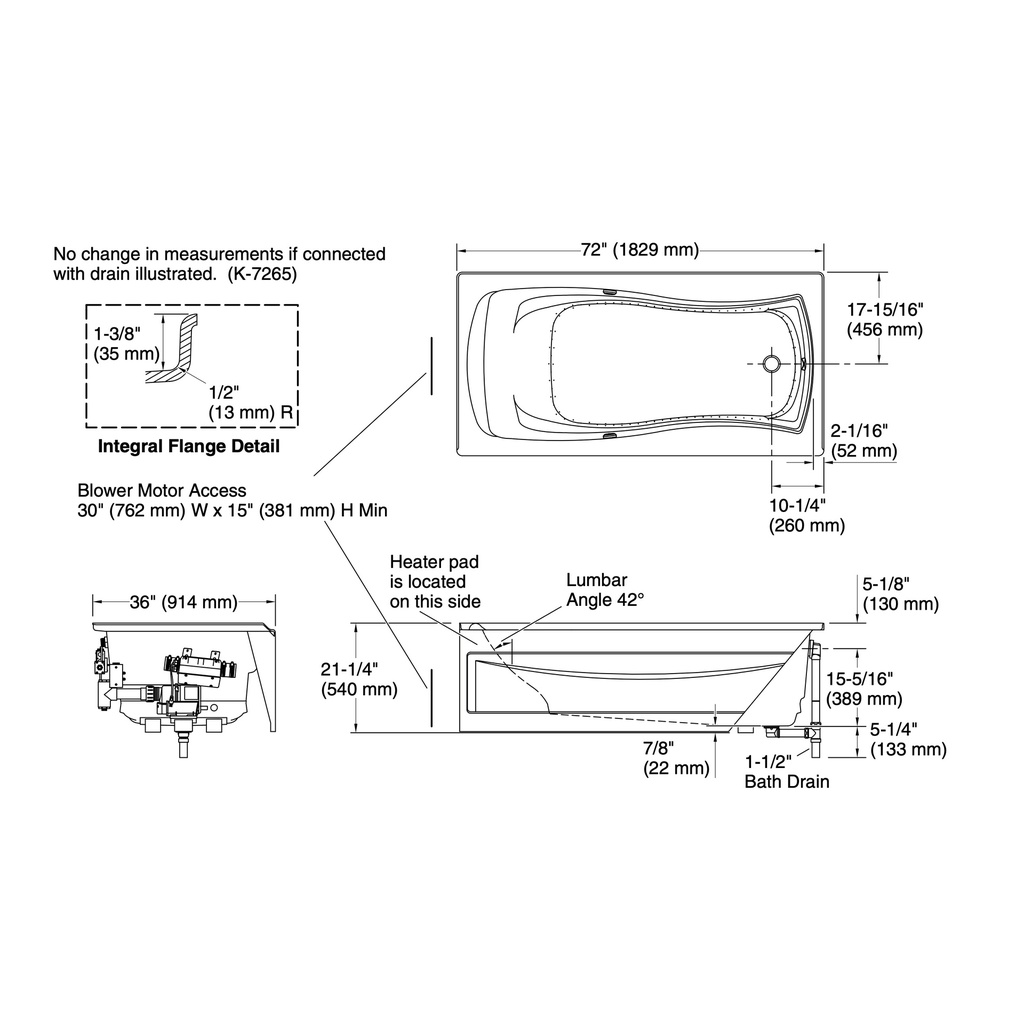

Technical Information
All product dimensions are nominal.
Drain location: Right
Basin area, bottom: 47-15/16" x 20-1/16" (1218 mm x 510 mm)
Basin area, top: 65-3/8" x 25" (1660 mm x 636 mm)
Weight: 121 lbs (54.9 kg)
Minimum floor load: 41 lbs/ft² (200.2 kg/m²)
Water depth: 13-3/8" (340 mm)
Water capacity: 72 gal (272.5 L)
Electrical component rating:
Blower: 120 V, 10 A, 60 Hz
Heated Surface: 120 V, 0.5 A, 60 Hz, 65W
