Kohler 1242-0 Mariposa 60" x 36" Drop-in Bath White
Mariposa
60" x 36" drop-in bath with
K-1242-0
Color/Finish: White
The body-contoured design of the Mariposa, combined with its quick and easy installation, makes this 5' bath a builder favorite. Constructed of high-quality acrylic, this model features a reversible drain.
Features

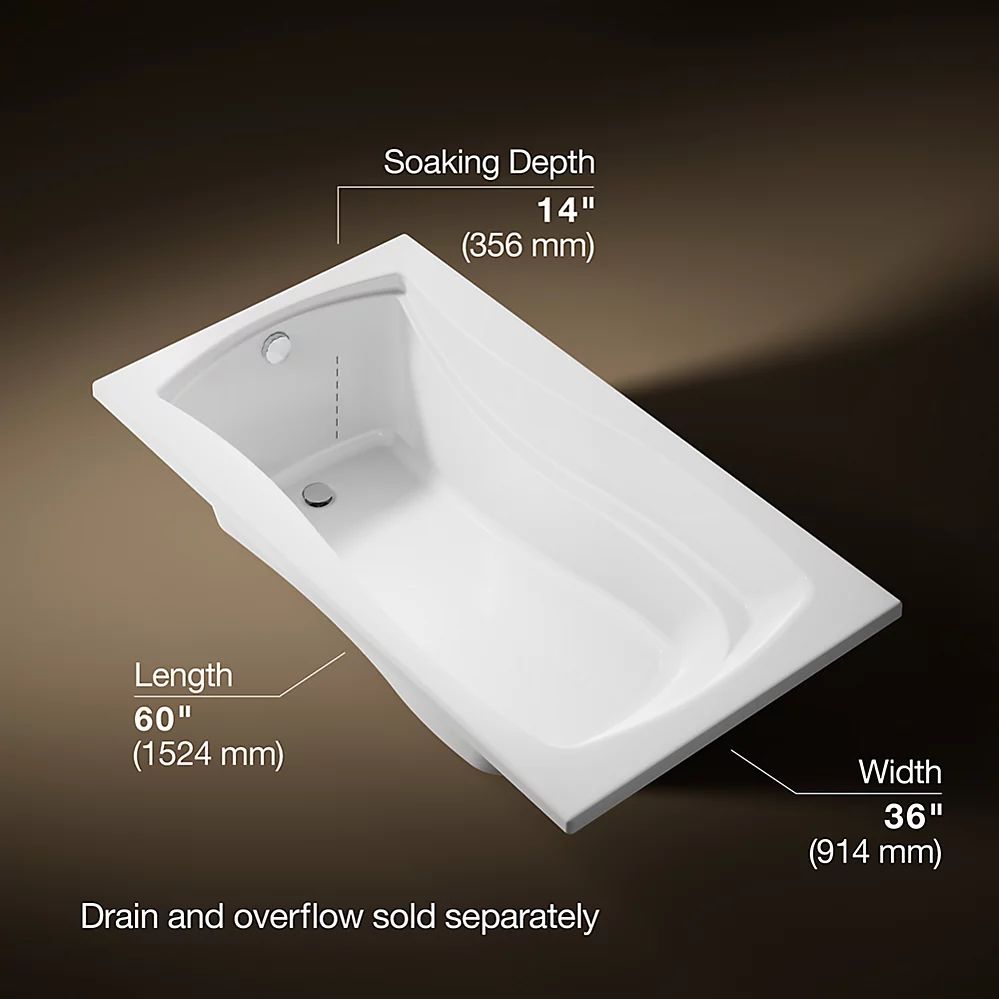

60"L x 36"W x 20"H
A builder favorite designed for quick and easy installation
Models available featuring integral apron and nailing flange
Textured bottom surface
Material
Acrylic
Installation
Drop-in
Required Products/Accessories
K-T37391 Rotary-turn bath drain trim
K-T37392 Rotary-turn bath drain trim
K-37385 rough-in cable drain, PVC, 45ﾔ cable
K-78439 45" cable bath drain
Recommended Products/Accessories
K-1491 Bath/Whirlpool Pillow
K-1601 Bath/whirlpool footstop, removable
K-7259 Brass toe tap bath drain
K-706000-D3 Frameless Sliding Bath Door
K-706000-L 62" H sliding bath door with 1/4"-thick glass
K-706004-D3 Frameless Sliding Bath Door
K-706004-L Frameless Sliding Bath Door
K-23726 Drain treatment

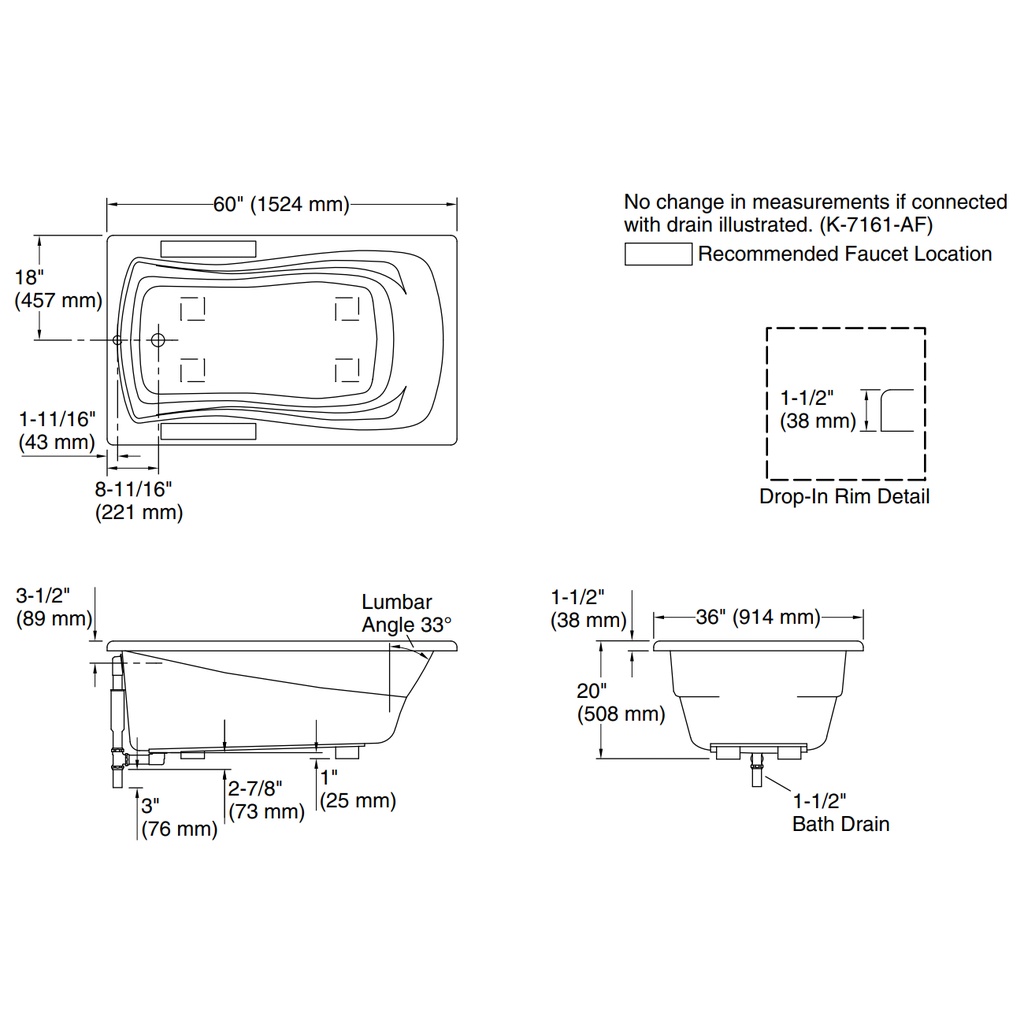

Technical Information
All product dimensions are nominal.
Drain location: Reversible
Basin area, bottom: 46" x 24" (1168 mm x 610 mm)
Basin area, top: 54" x 27" (1372 mm x 686 mm)
Weight: 62 lbs (28.1 kg)
Minimum floor load: 41 lbs/ftﾲ (200.2 kg/mﾲ)
Water depth: 14" (356 mm)
Water capacity: 63 gal (238.5 L)
Cutout: Drop-in, 58" x 34" (1473 mm x 864 mm)
Minimum flat for door: 2-1/16" (52 mm)
