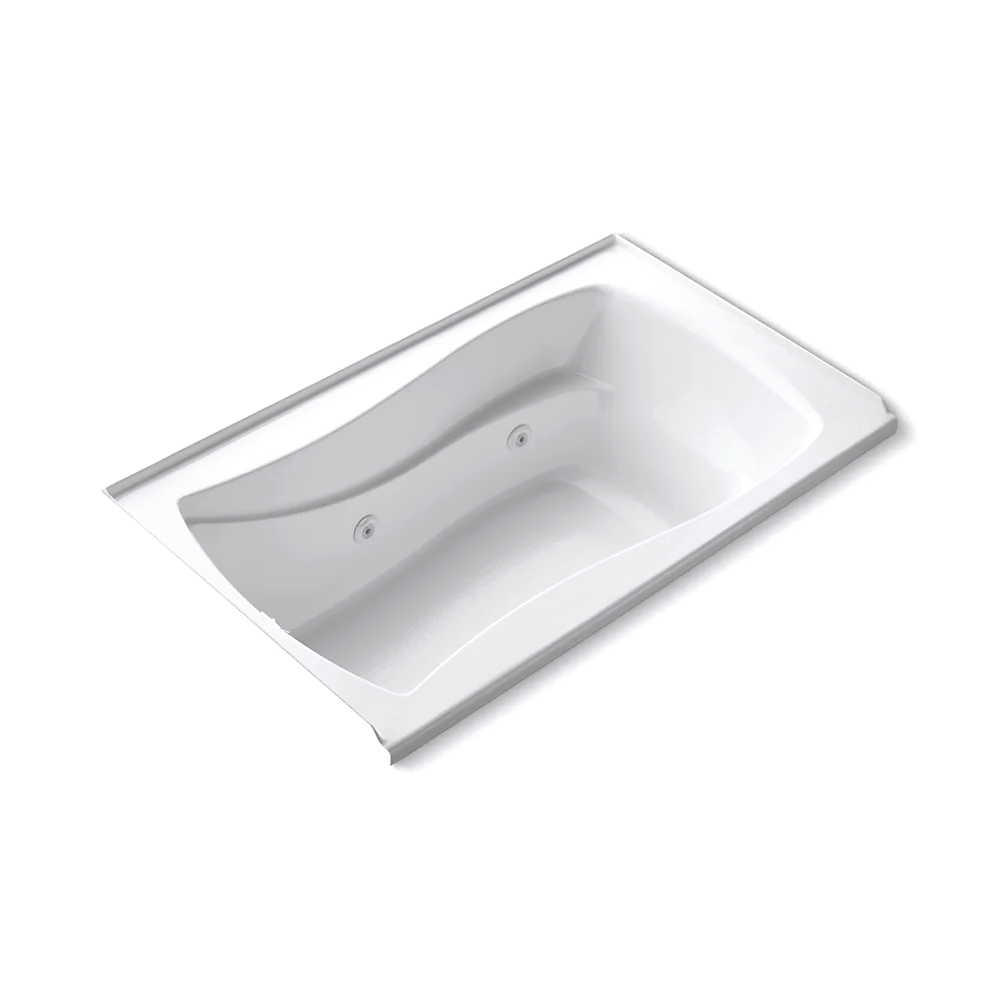

Kohler 1239-RH-0 Mariposa 60" x 36" Alcove Heated Whirlpool Right Drain and Heater White
Mariposa
60" x 36" alcove heated whirlpool, right drain and heater
K-1239-RH-0
Color/Finish: White
With delicate curves and an hourglass shape, the Mariposa bath brings harmony to your bathroom's design. Whirlpool jets massage away the day's tension as the built-in heater keeps your bath at the perfect temperature.
Features
Single-speed whirlpool offers performance and value, with 5 fully adjustable jets
Hydromassage flow and direction can be controlled at each jet
Built-in heater
Hourglass shape adds style and elegance to your bathroom
Integral flange helps prevent water from seeping behind wall and simplifies alcove installation
Textured bottom surface
Hydrotherapy
Whirlpool
Material
Acrylic
Installation
Right drain
Alcove
Required Products/Accessories
K-T37391 Rotary-turn bath drain trim
K-T37392 Rotary-turn bath drain trim
K-37383 Rough-in cable bath drain, PVC, 30" cable with tubing
K-78438 30" cable bath drain
Recommended Products/Accessories
K-1601 Bath/whirlpool footstop, removable
K-7213 27" Cable Bath Drain
K-7214 27" Cable Bath Drain
K-23726 Drain treatment
K-7265 Brass toe tap bath drain
K-7259 Brass toe tap bath drain
Required Electrical Service
Two dedicated circuits required, protected with Class A GroundFault Circuit-Interrupter (GFCI). Outside North America, this
device may be known as a Residual Current Device (RCD).
Pump: 120 V, 15 A, 60 Hz
Heater: 120 V, 15 A, 60 Hz

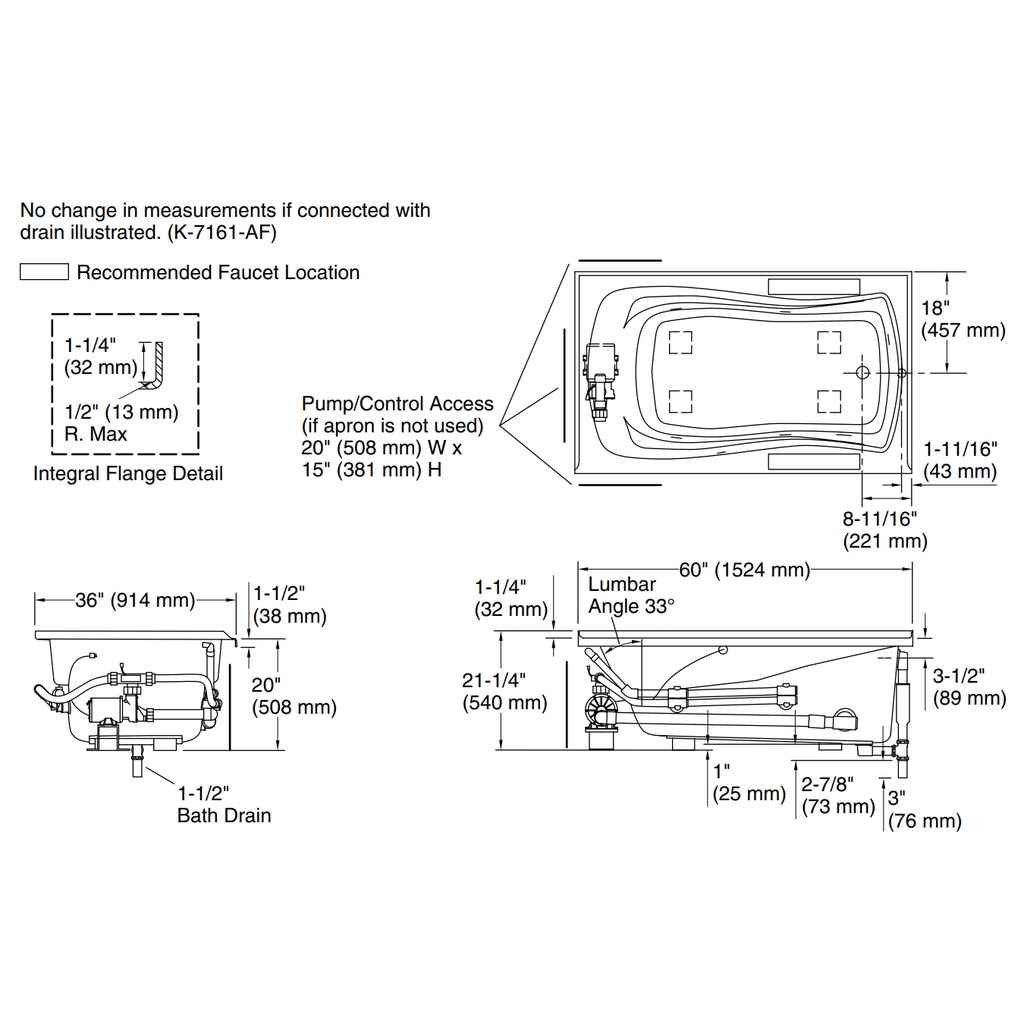

Technical Information
All product dimensions are nominal.
Drain location: Right
Basin area, bottom: 46" x 24" (1168 mm x 610 mm)
Basin area, top: 54" x 27" (1372 mm x 686 mm)
Weight: 110 lbs (49.9 kg)
Minimum floor load: 44 lbs/ftﾲ (214.8 kg/mﾲ)
Water depth: 14" (356 mm)
Water capacity: 63 gal (238.5 L)
Electrical component rating:
Pump: 120 V, 7.5 A, 60 Hz
Heater: 120 V, 12.5 A, 60 Hz, 1500 W
Pump speed: Single
