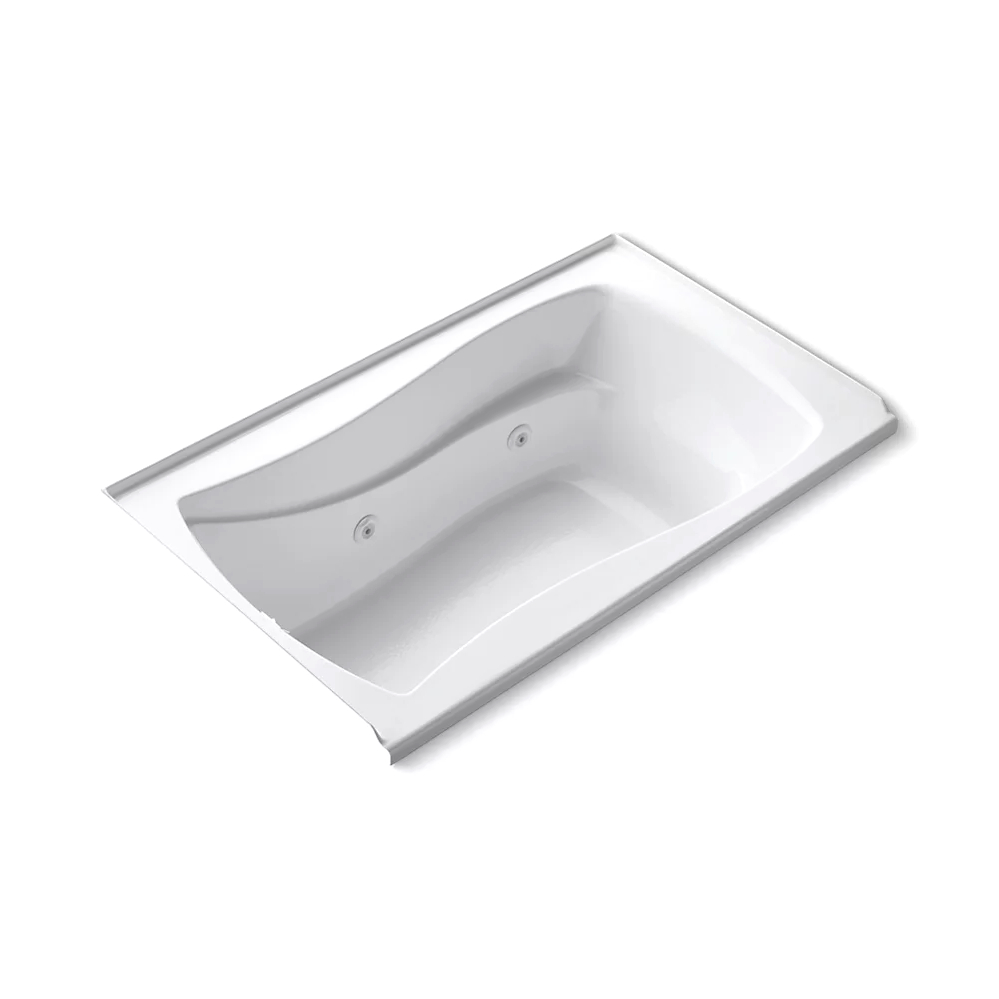

Kohler 1239-R-0 Mariposa 60" x 36" Alcove Whirlpool Right Drain White
Mariposa
60" x 36" alcove whirlpool, right drain
K-1239-R-0
Color/Finish: White
Escape to your own spa getaway without leaving home, and emerge transformed. Relax into your Mariposa 5' whirlpool and enjoy the extra-wide bathing retreat while the five adjustable ProFlex(R) whirlpool jets massage away stress to leave you renewed.
Features
60"L x 36"W x 20"H
Extra width enhances comfort
Five adjustable ProFlex whirlpool jets for maximum bather comfort
Innovative technology enables this pump to provide a strong, steady level of hydromassage
Includes integral flange to simplify installation and prevent the possibility of water damage behind the wall
Textured bottom surface
Hydrotherapy
Whirlpool
Material
Acrylic
Installation
Alcove
Required Products/Accessories
K-T37391 Rotary-turn bath drain trim
K-T37392 Rotary-turn bath drain trim
K-37383 Rough-in cable bath drain, PVC, 30" cable with tubing
K-78438 30" cable bath drain
Recommended Products/Accessories
K-1491 Bath/Whirlpool Pillow
K-1601 Bath/whirlpool footstop, removable
K-7214 27" Cable Bath Drain
K-23726 Drain treatment
K-7265 Brass toe tap bath drain
K-7259 Brass toe tap bath drain
Required Electrical Service
One dedicated circuit required, protected with Class A GroundFault Circuit-Interrupter (GFCI). Outside North America, this
device may be known as a Residual Current Device (RCD).
Pump: 120 V, 15 A, 60 Hz

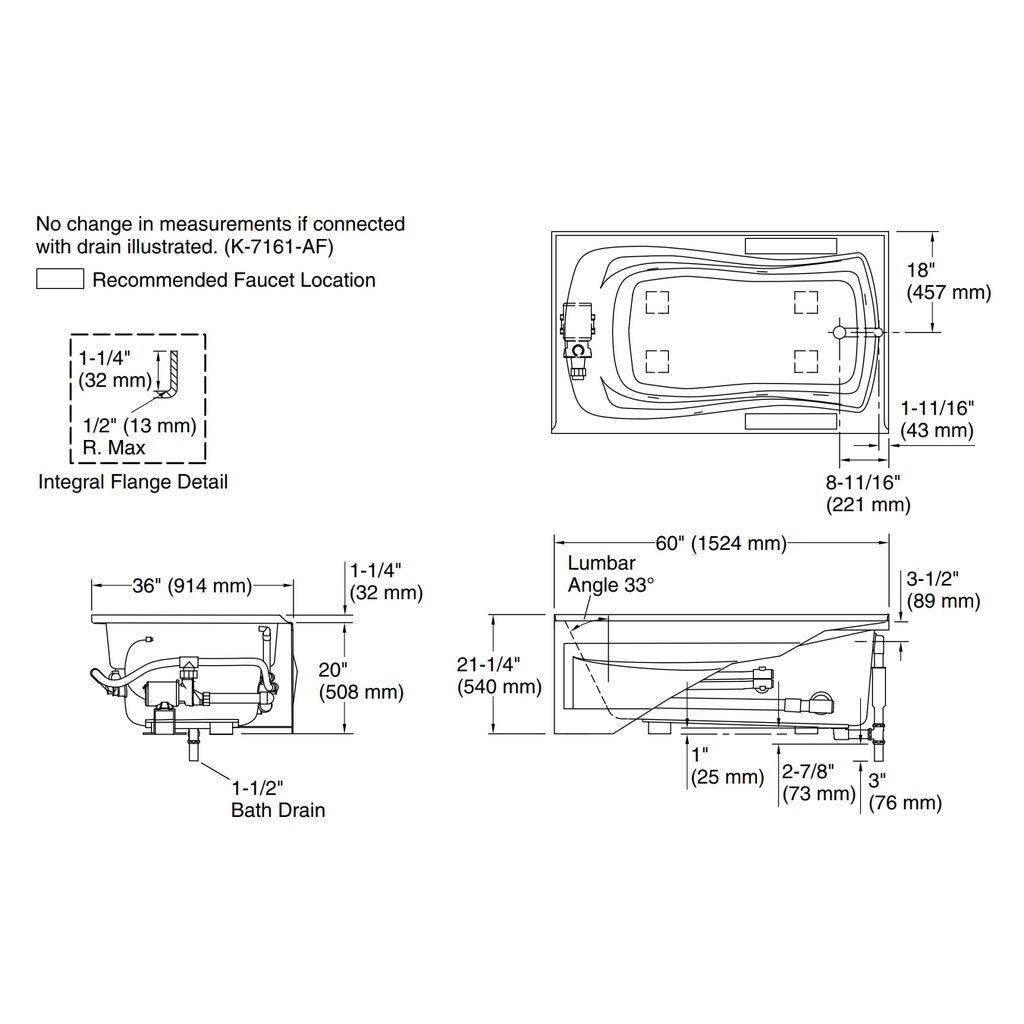

Technical Information
All product dimensions are nominal.
Drain location: Right
Basin area, bottom: 46" x 24" (1168 mm x 610 mm)
Basin area, top: 54" x 27" (1372 mm x 686 mm)
Weight: 105 lbs (47.6 kg)
Minimum floor load: 44 lbs/ftﾲ (214.8 kg/mﾲ)
Water depth: 14" (356 mm)
Water capacity: 63 gal (238.5 L)
Electrical component rating:
Pump: 120 V, 7.5 A, 60 Hz
Pump speed: Single
