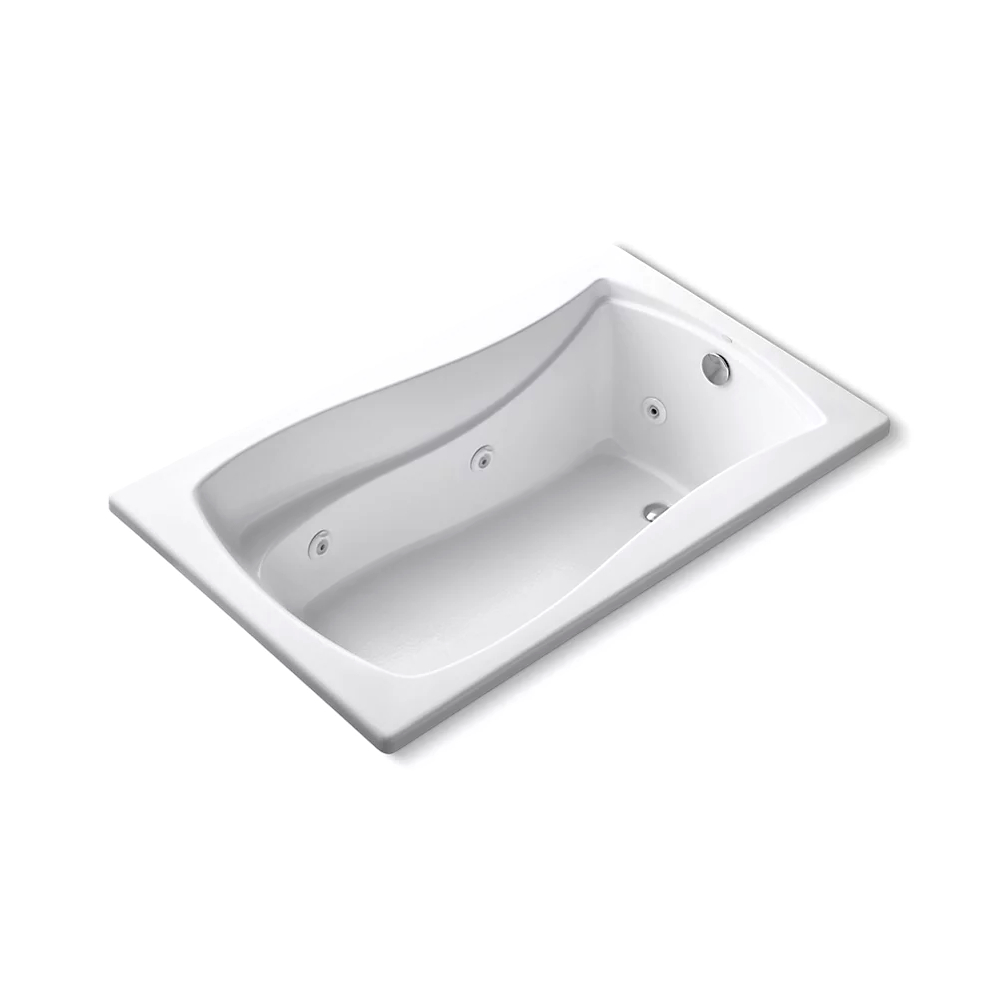

Kohler 1239-H-0 Mariposa 60" x 36" Drop-in Heated Whirlpool Bath White
Mariposa
60" x 36" drop-in heated whirlpool bath
K-1239-H-0
Color/Finish: White
With delicate curves and an hourglass shape, the Mariposa bath brings harmony to your bathroom's design. Whirlpool jets massage away the day's tension as the built-in heater keeps your bath at the perfect temperature.
Features
Single-speed whirlpool offers performance and value, with 5 fully adjustable jets
Hydromassage flow and direction can be controlled at each jet
Built-in heater
Hourglass shape adds style and elegance to your bathroom
Textured bottom surface
Hydrotherapy
Whirlpool
Material
Acrylic
Installation
Reversible drain
Drop-in
Required Products/Accessories
K-37383 Rough-in cable bath drain, PVC, 30" cable with tubing
K-37385 rough-in cable drain, PVC, 45ﾔ cable
Recommended Products/Accessories
K-1601 Bath/whirlpool footstop, removable
K-7213 27" Cable Bath Drain
K-7214 27" Cable Bath Drain
K-23726 Drain treatment
K-7265 Brass toe tap bath drain
K-7259 Brass toe tap bath drain
Required Electrical Service
Two dedicated circuits required, protected with Class A GroundFault Circuit-Interrupter (GFCI). Outside North America, this
device may be known as a Residual Current Device (RCD).
Pump: 120 V, 15 A, 60 Hz
Heater: 120 V, 15 A, 60 Hz

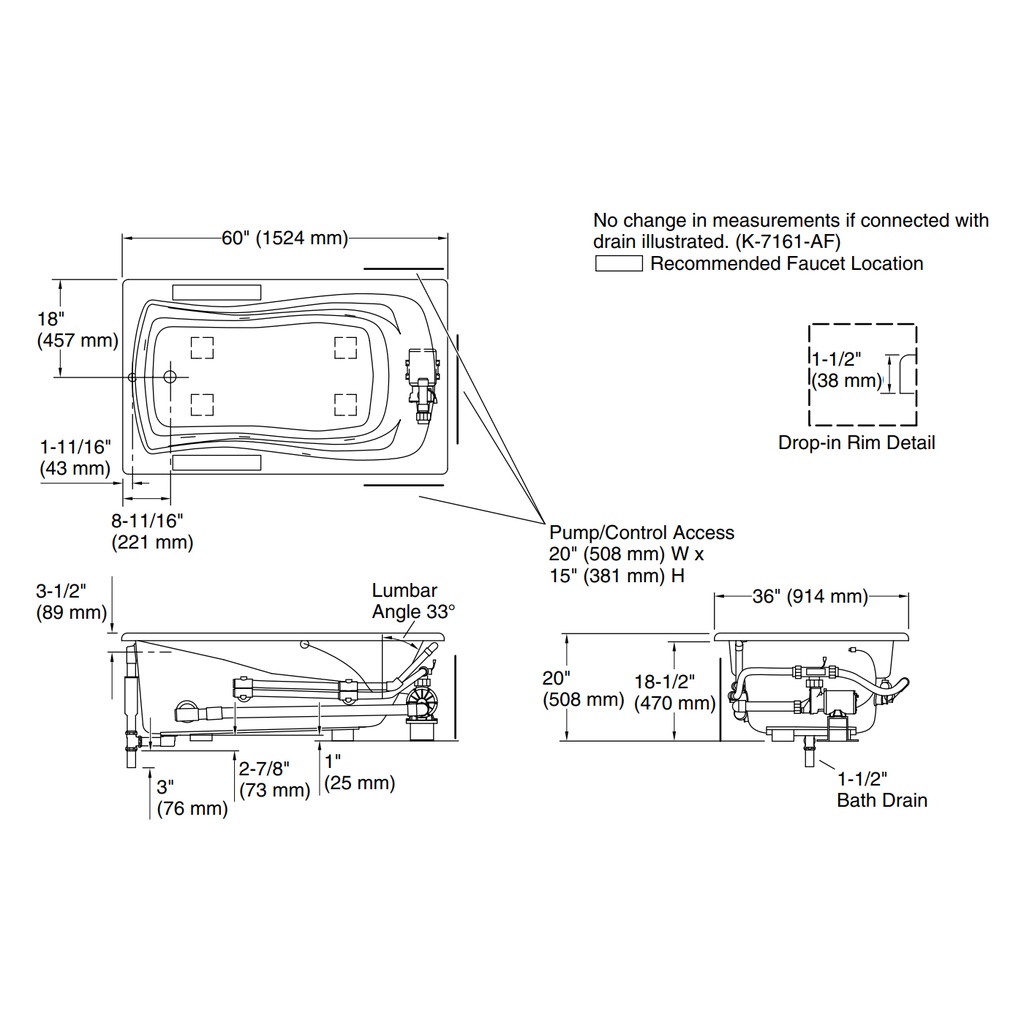

Technical Information
All product dimensions are nominal.
Drain location: Reversible
Basin area, bottom: 46" x 24" (1168 mm x 610 mm)
Basin area, top: 54" x 27" (1372 mm x 686 mm)
Weight: 110 lbs (49.9 kg)
Minimum floor load: 44 lbs/ftﾲ (214.8 kg/mﾲ)
Water depth: 14" (356 mm)
Water capacity: 63 gal (238.5 L)
Cutout: Drop-in, 58" x 34" (1473 mm x 864 mm)
Electrical component rating:
Pump: 120 V, 7.5 A, 60 Hz
Heater: 120 V, 12.5 A, 60 Hz, 1500 W
Pump speed: Single
