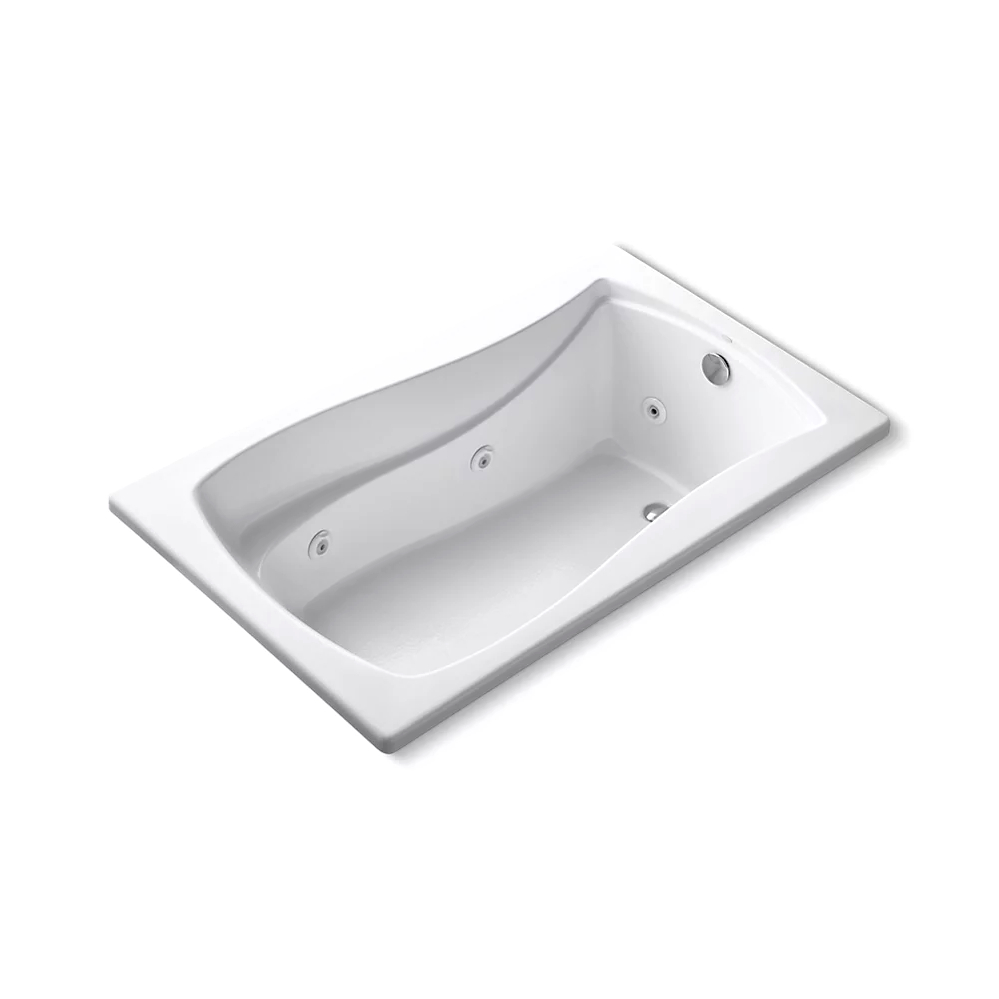

Kohler 1239-0 Mariposa 60" x 36" Drop-in Whirlpool Bath White
Mariposa
60" x 36" drop-in whirlpool bath
K-1239-0
Color/Finish: White
Escape to your own spa getaway without leaving home, and emerge transformed. Relax into your Mariposa 5' whirlpool and enjoy the extra-wide bathing retreat while the five adjustable ProFlex(R) whirlpool jets massage away stress to leave you renewed. Our Innovative technology enables a strong, steady level of hydro-massage to relax tired muscles. Designed with an integral apron for easy alcove installation and pump access. This model features a reversible outlet.
Features
60"L x 36"W x 20"H
Extra width enhances comfort

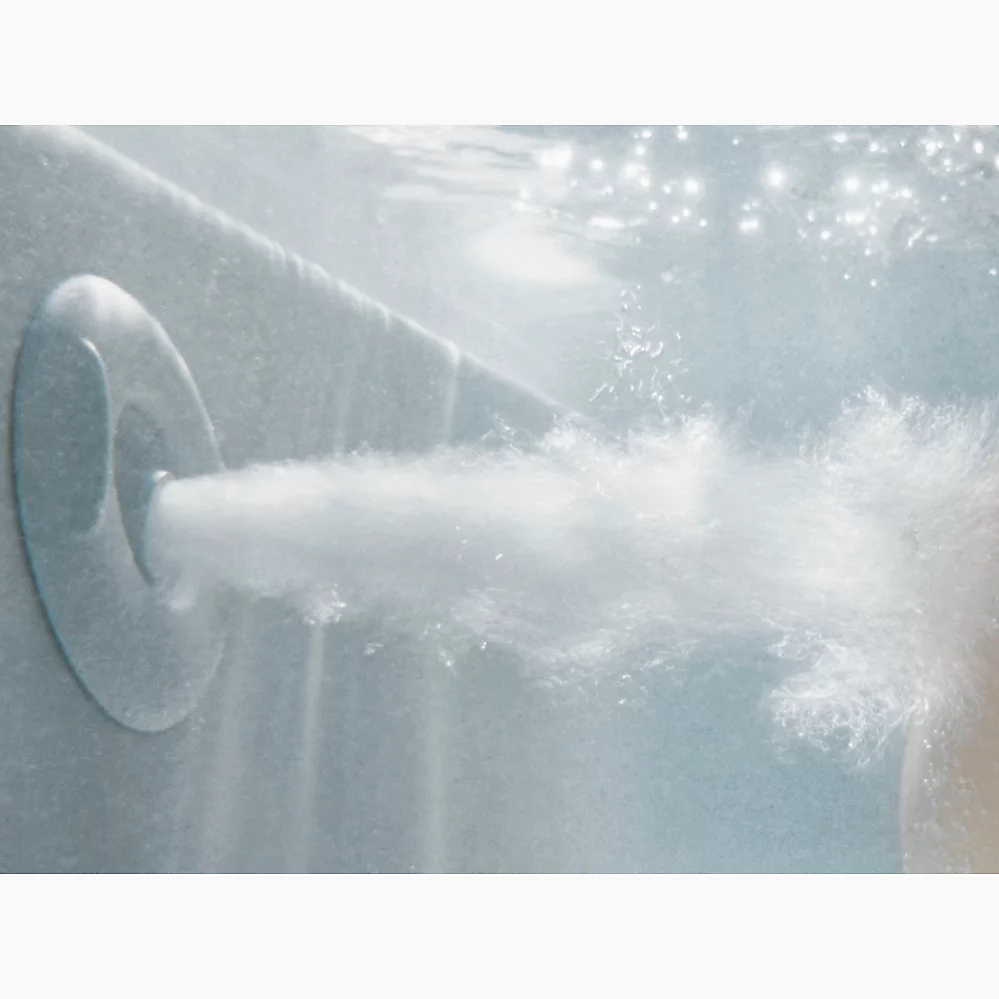

Five adjustable ProFlex whirlpool jets for bather comfort
Innovative technology enables this pump to provide a strong, steady level of hydromassage
Textured bottom surface
Hydrotherapy
Whirlpool
Material
Acrylic
Installation
Alcove
Required Products/Accessories
K-T37391 Rotary-turn bath drain trim
K-T37392 Rotary-turn bath drain trim
Recommended Products/Accessories
K-1601 Bath/whirlpool footstop, removable
K-7213 27" Cable Bath Drain
K-7214 27" Cable Bath Drain
K-706000-D3 Frameless Sliding Bath Door
K-706000-L 62" H sliding bath door with 1/4"-thick glass
K-706004-D3 Frameless Sliding Bath Door
K-706004-L Frameless Sliding Bath Door
K-23726 Drain treatment
K-7265 Brass toe tap bath drain
K-7259 Brass toe tap bath drain
Required Electrical Service
One dedicated circuit required, protected with Class A GroundFault Circuit-Interrupter (GFCI). Outside North America, this device may be known as a Residual Current Device (RCD).
Pump: 120 V, 15 A, 60 Hz

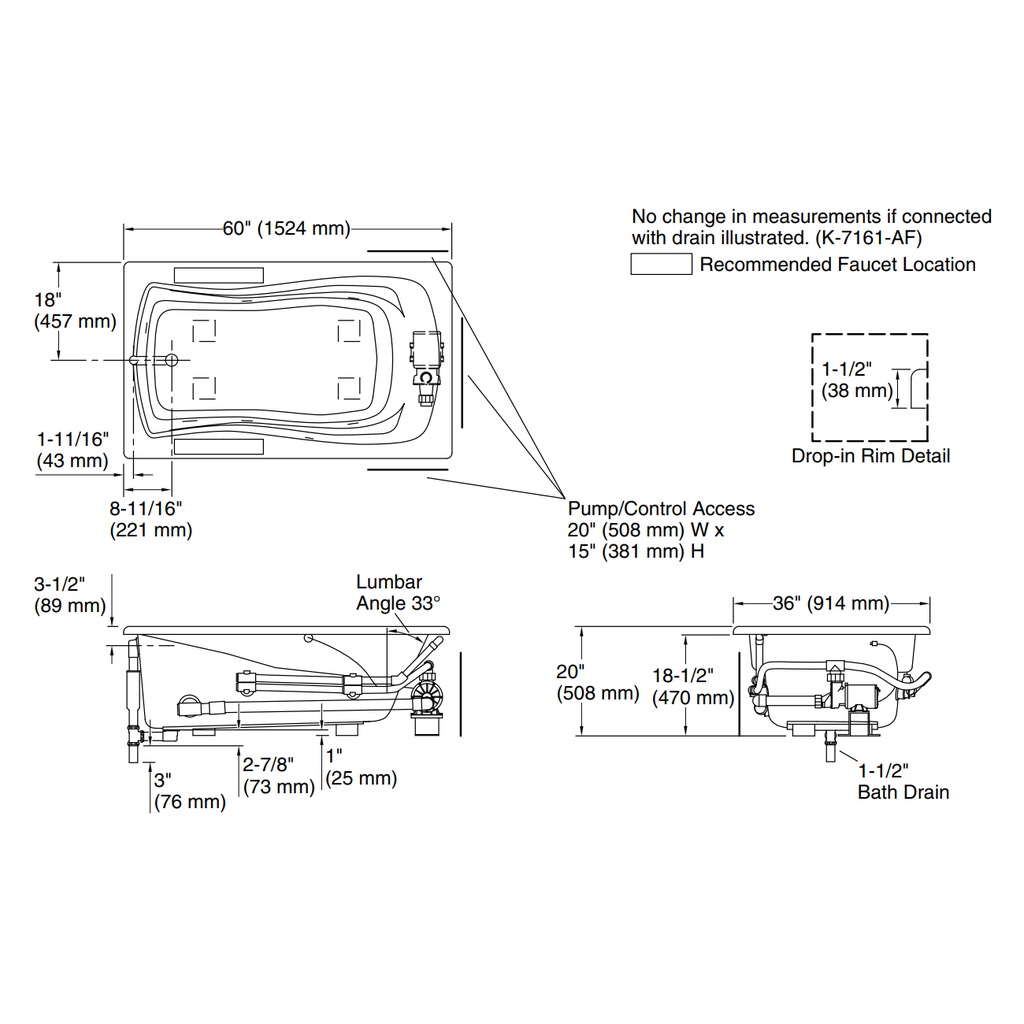

Technical Information
All product dimensions are nominal.
Drain location: Reversible
Basin area, bottom: 46" x 24" (1168 mm x 610 mm)
Basin area, top: 54" x 27" (1372 mm x 686 mm)
Weight: 105 lbs (47.6 kg)
Minimum floor load: 44 lbs/ftﾲ (214.8 kg/mﾲ)
Water depth: 14" (356 mm)
Water capacity: 63 gal (238.5 L)
Cutout: Drop-in, 58" x 34" (1473 mm x 864 mm)
Electrical component rating:
Pump: 120 V, 7.5 A, 60 Hz
Pump speed: Single
Minimum flat for door: 1-15/16" (49 mm)
