Kohler 1229-R-0 Mariposa 66" x 36" Alcove Bath Right Hand Drain White
Mariposa
66" x 36" alcove bath with alcove and right-hand drain
K-1229-R-0
Color/Finish: White
Escape to your own spa getaway without leaving home. The body-contoured design of the Mariposa, combined with its extra length and width, provides you with enhanced comfort. Constructed of high-quality acrylic, this 5.5' model features a right-hand drain and includes an integral flange to further simplify installation.
Features

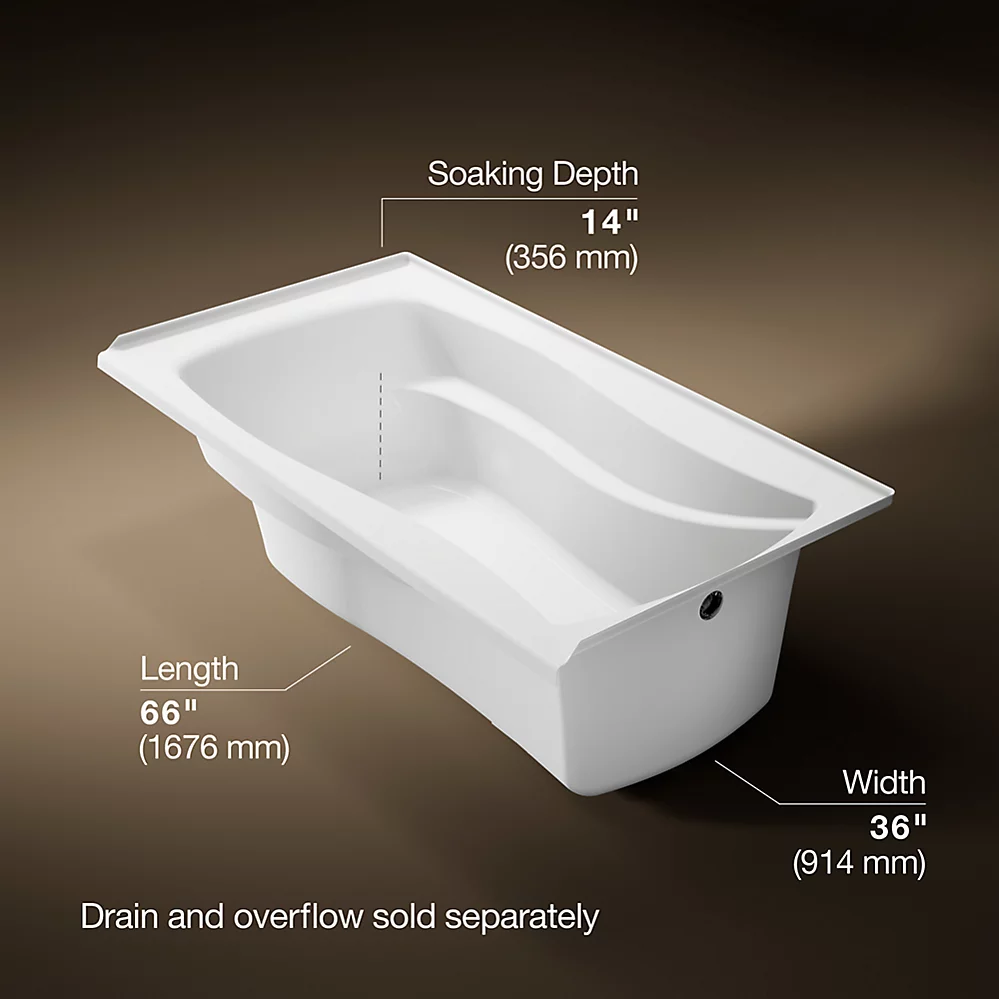

66"L x 35-7/8"W x 20"H
Extra length and width enhance bathing comfort
Includes integral flange to simplify installation and prevent the possibility of water damage behind the wall
Textured bottom surface
Material
Acrylic
Installation
Alcove
Required Products/Accessories
K-T37391 Rotary-turn bath drain trim
K-T37392 Rotary-turn bath drain trim
Recommended Products/Accessories
K-1491 Bath/Whirlpool Pillow
K-1601 Bath/whirlpool footstop, removable
K-7213 27" Cable Bath Drain
K-7214 27" Cable Bath Drain
K-7259 Brass toe tap bath drain
K-23726 Drain treatment
K-7265 Brass toe tap bath drain

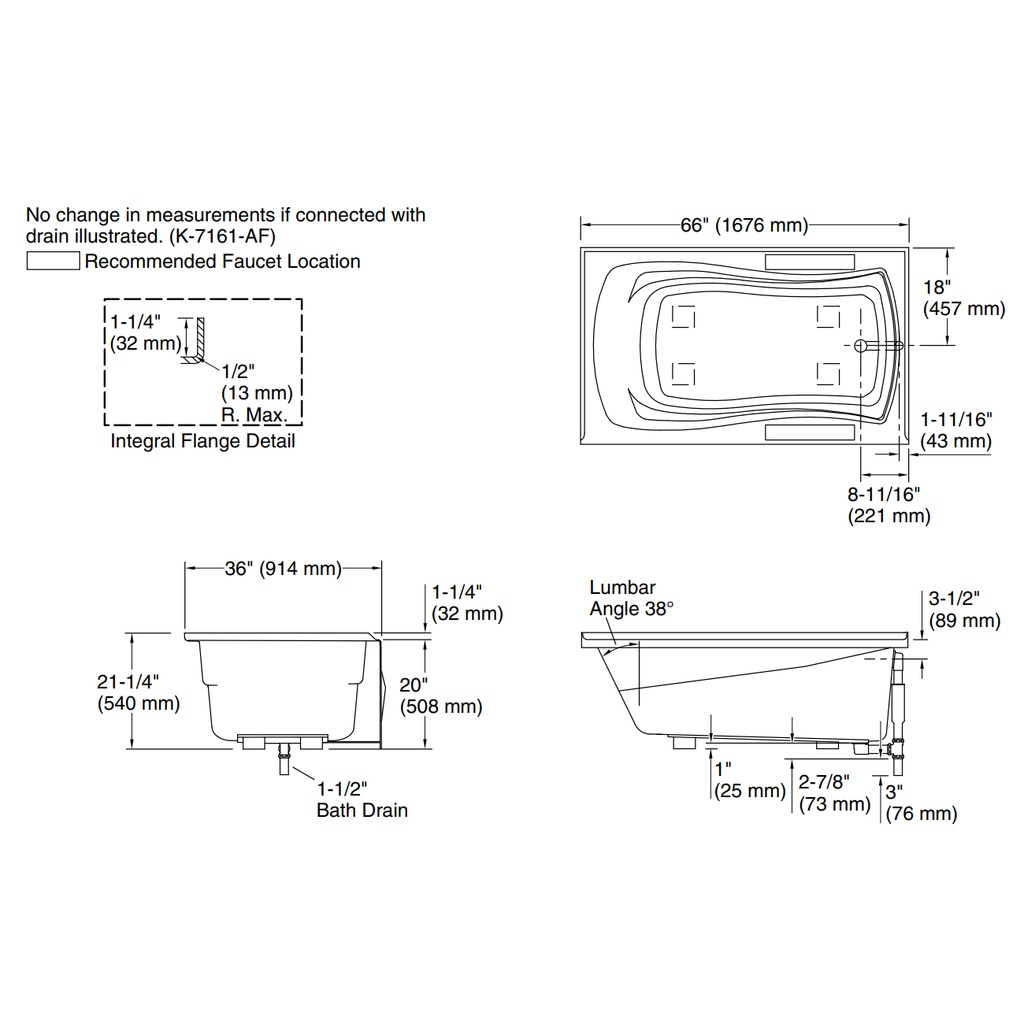

Technical Information
All product dimensions are nominal.
Drain location: Right
Basin area, bottom: 48" x 24" (1219 mm x 610 mm)
Basin area, top: 59" x 30" (1499 mm x 762 mm)
Weight: 65 lbs (29.5 kg)
Minimum floor load: 39 lbs/ftﾲ (190.4 kg/mﾲ)
Water depth: 14" (356 mm)
Water capacity: 67 gal (253.6 L)
Minimum flat for door: 1-15/16" (49 mm)
