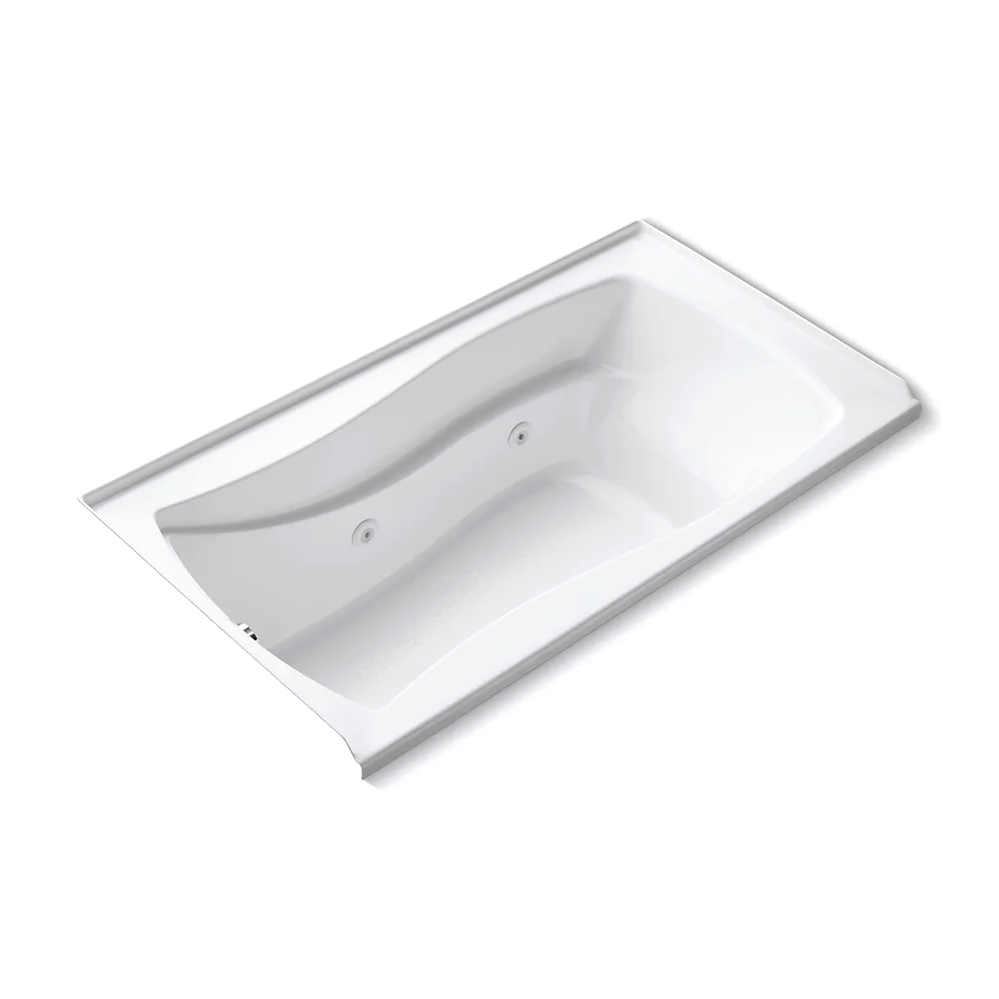

Kohler 1224-RH-0 Mariposa 66" x 35-7/8" Alcove Whirlpool With Heater Right Drain White
Mariposa
66" x 35-7/8" alcove whirlpool with integral flange, right-hand drain and heater
K-1224-RH-0
Color/Finish: White
With delicate curves and an hourglass shape, the Mariposa bath brings harmony to your bathroom's design. Whirlpool jets massage away the day's tension as the built-in heater keeps your bath at the perfect temperature.
Features
Single-speed whirlpool offers performance and value, with 5 fully adjustable jets
Hydromassage flow and direction can be controlled at each jet
Built-in heater
Hourglass shape adds style and elegance to your bathroom
Integral flange helps prevent water from seeping behind wall and simplifies alcove installation
Textured bottom surface
Hydrotherapy
Whirlpool
Material
Acrylic
Installation
Right drain
Alcove
Required Products/Accessories
K-T37391 Rotary-turn bath drain trim
K-T37392 Rotary-turn bath drain trim
Recommended Products/Accessories
K-1601 Bath/whirlpool footstop, removable
K-7213 27" Cable Bath Drain
K-7214 27" Cable Bath Drain
K-23726 Drain treatment
Required Electrical Service
Two dedicated circuits required, protected with Class A GroundFault Circuit-Interrupter (GFCI). Outside North America, this device may be known as a Residual Current Device (RCD).
Pump: 120 V, 15 A, 60 Hz
Heater: 120 V, 15 A, 60 Hz

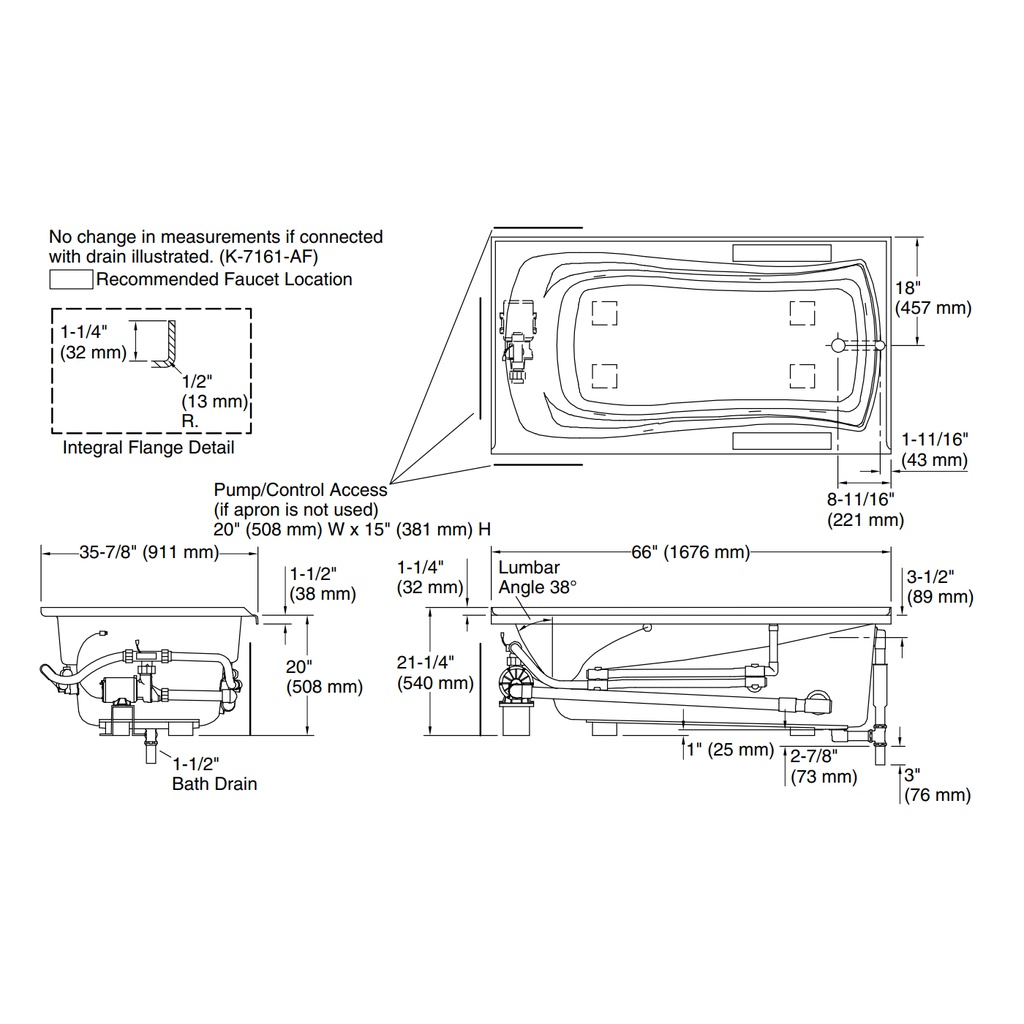

Technical Information
All product dimensions are nominal.
Drain location: Right
Basin area, bottom: 48" x 24" (1219 mm x 610 mm)
Basin area, top: 59" x 30" (1499 mm x 762 mm)
Weight: 115 lbs (52.2 kg)
Minimum floor load: 43 lbs/ftﾲ (209.9 kg/mﾲ)
Water depth: 14" (356 mm)
Water capacity: 67 gal (253.6 L)
Electrical component rating:
Pump: 120 V, 7.5 A, 60 Hz
Heater: 120 V, 12.5 A, 60 Hz, 1500 W
Pump speed: Single
Minimum flat for door: 1-15/16" (49 mm)
