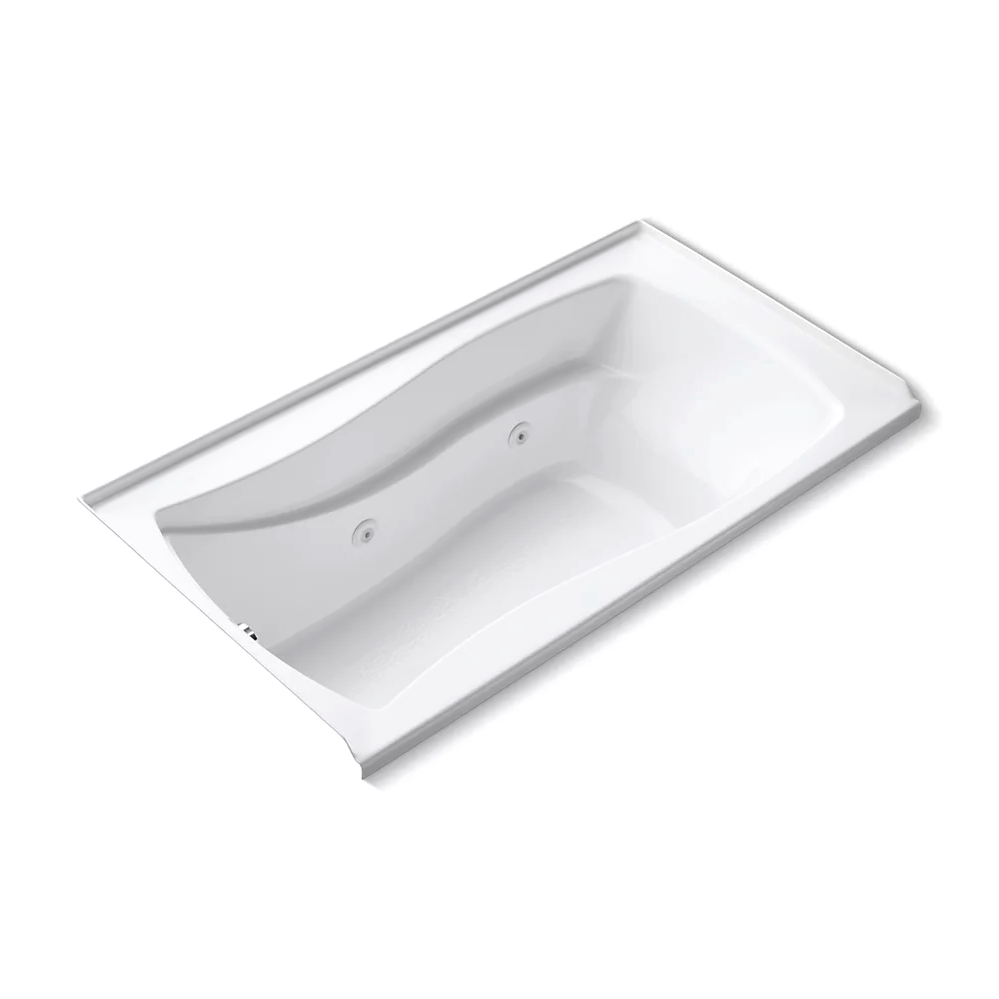

Kohler 1224-R-0 Mariposa 66" x 36" Alcove Whirlpool Right Drain White
Mariposa
66" x 36" alcove whirlpool, right drain
K-1224-R-0
Color/Finish: White
Escape to your own spa getaway without leaving home, and emerge transformed. Relax into your Mariposa 5.5' whirlpool and enjoy the extra-wide bathing retreat while the five adjustable ProFlex(R) whirlpool jets massage away stress to leave you renewed.
Features
66"L x 35-7/8"W x 20"H
Removable apron for front pump access option
Five adjustable ProFlex whirlpool jets for maximum bather comfort
Innovative technology enables this pump to provide a strong, steady level of hydromassage
Includes integral flange to simplify installation and prevent the possibility of water damage behind the wall
Textured bottom surface
Hydrotherapy
Whirlpool
Material
Acrylic
Installation
Alcove
Required Products/Accessories
K-T37391 Rotary-turn bath drain trim
K-T37392 Rotary-turn bath drain trim
Recommended Products/Accessories
K-1601 Bath/whirlpool footstop, removable
K-7213 27" Cable Bath Drain
K-7214 27" Cable Bath Drain
K-23726 Drain treatment
Required Electrical Service
One dedicated circuit required, protected with Class A GroundFault Circuit-Interrupter (GFCI). Outside North America, this device may be known as a Residual Current Device (RCD).
Pump: 120 V, 15 A, 60 Hz

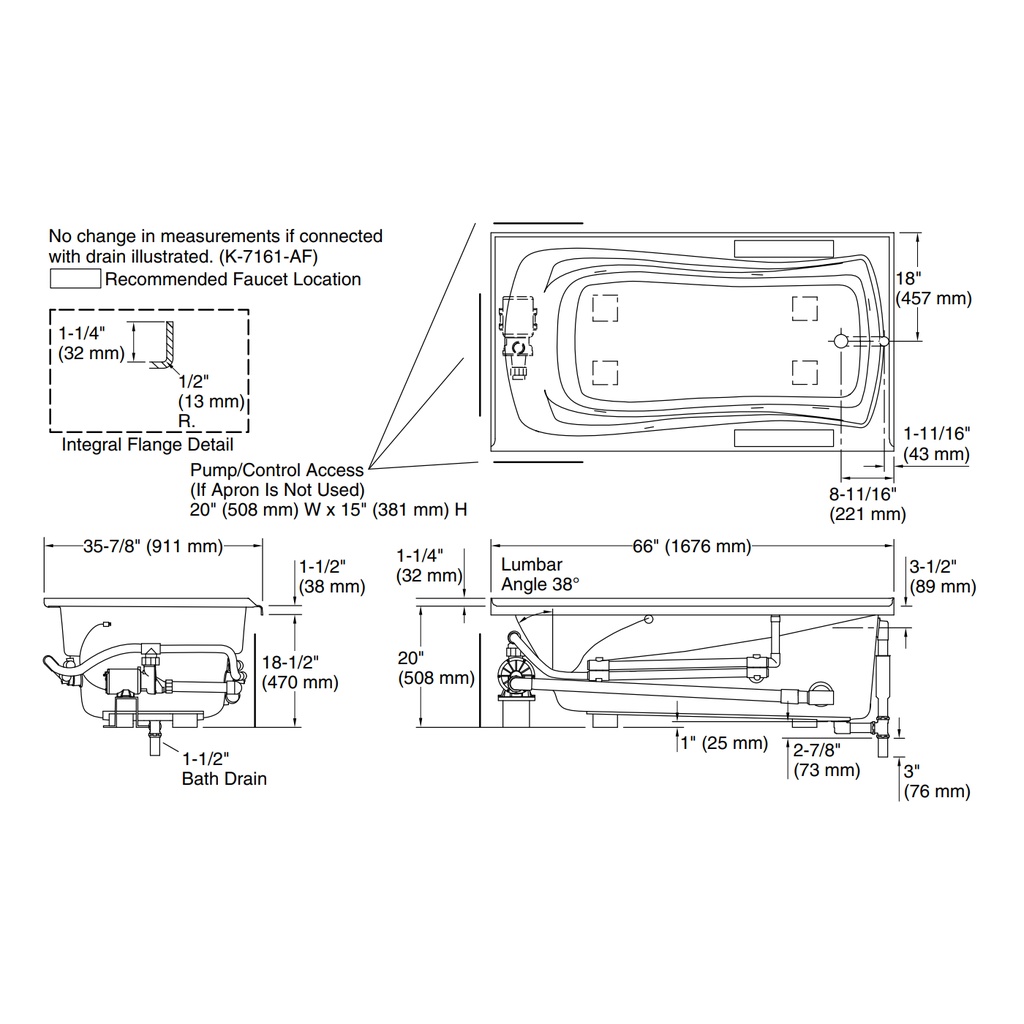

Technical Information
All product dimensions are nominal.
Drain location: Right
Basin area, bottom: 48" x 24" (1219 mm x 610 mm)
Basin area, top: 59" x 30" (1499 mm x 762 mm)
Weight: 110 lbs (49.9 kg)
Minimum floor load: 48 lbs/ftﾲ (234.4 kg/mﾲ)
Water depth: 14" (356 mm)
Water capacity: 67 gal (253.6 L)
Electrical component rating:
Pump: 120 V, 7.5 A, 60 Hz
Pump speed: Single
