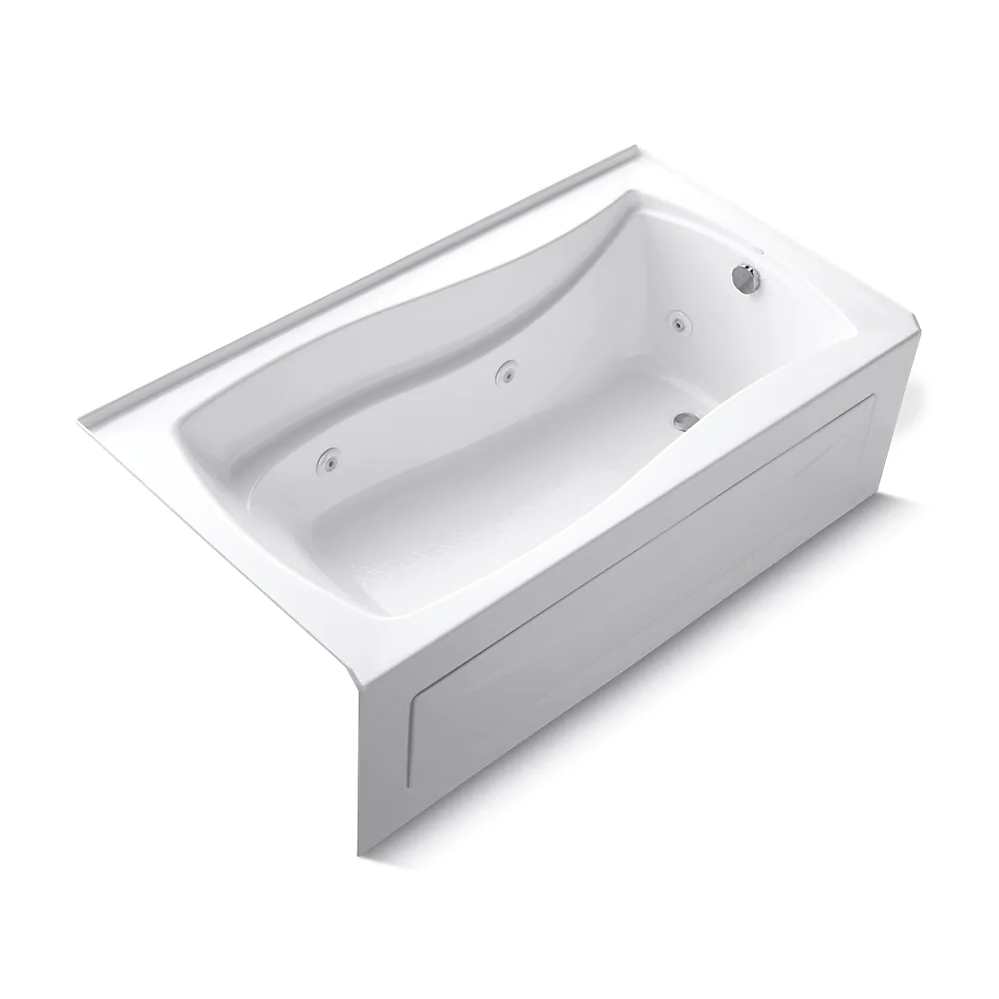

Kohler 1224-LAW-0 Mariposa 66" x 36" Alcove Whirlpool Bath Heated Surface Left Drain White
Mariposa
66" x 36" alcove whirlpool bath with Bask heated surface, left drain
K-1224-LAW-0
Color/Finish: White
With delicate curves and an hourglass shape, the Mariposa bath brings harmony to your bathroom's design. Whirlpool jets massage away the day's tension, while the heated surface warms your back and neck with adjustable temperature settings to create a soothing, spa-like environment. An integral flange helps protect the bathing area from water damage.
Features
Bask heated surface creates spa-like relaxation with soothing warmth on your back, shoulders, and neck
Three heat settings allow you to customize the surface temperature

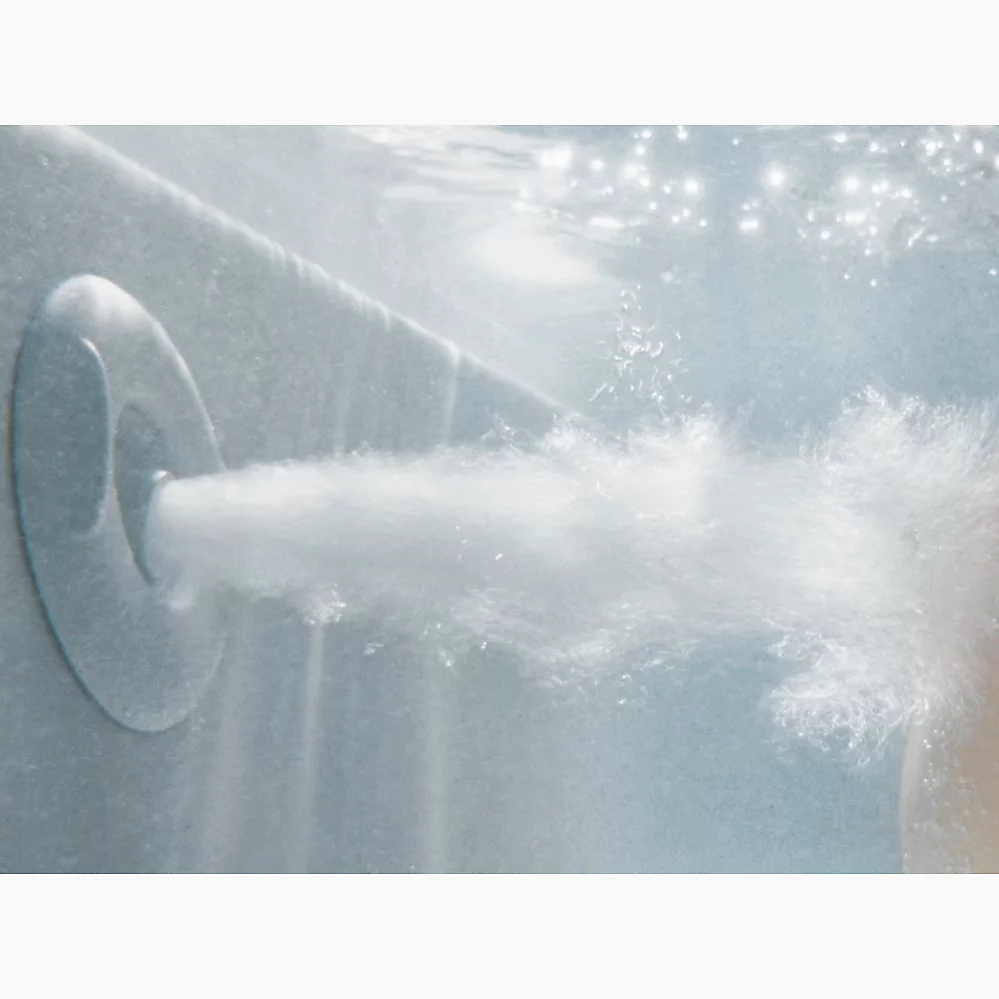

Single-speed whirlpool offers performance and value, with 5 fully adjustable jets
Hydromassage flow and direction can be controlled at each jet
Hourglass shape adds style and elegance to your bathroom
Integral apron
Integral flange helps prevent water from seeping behind wall and simplifies alcove installation
Textured bottom surface
Hydrotherapy
Whirlpool
Material
Acrylic
Installation
Left drain
Alcove
Required Products/Accessories
K-T37391 Rotary-turn bath drain trim
K-T37392 Rotary-turn bath drain trim
Required Electrical Service
One dedicated circuit required, protected with Class A GroundFault Circuit-Interrupter (GFCI). Outside North America, this device may be known as a Residual Current Device (RCD).
Pump, Heated Surface:
120 V, 15 A, 60 Hz

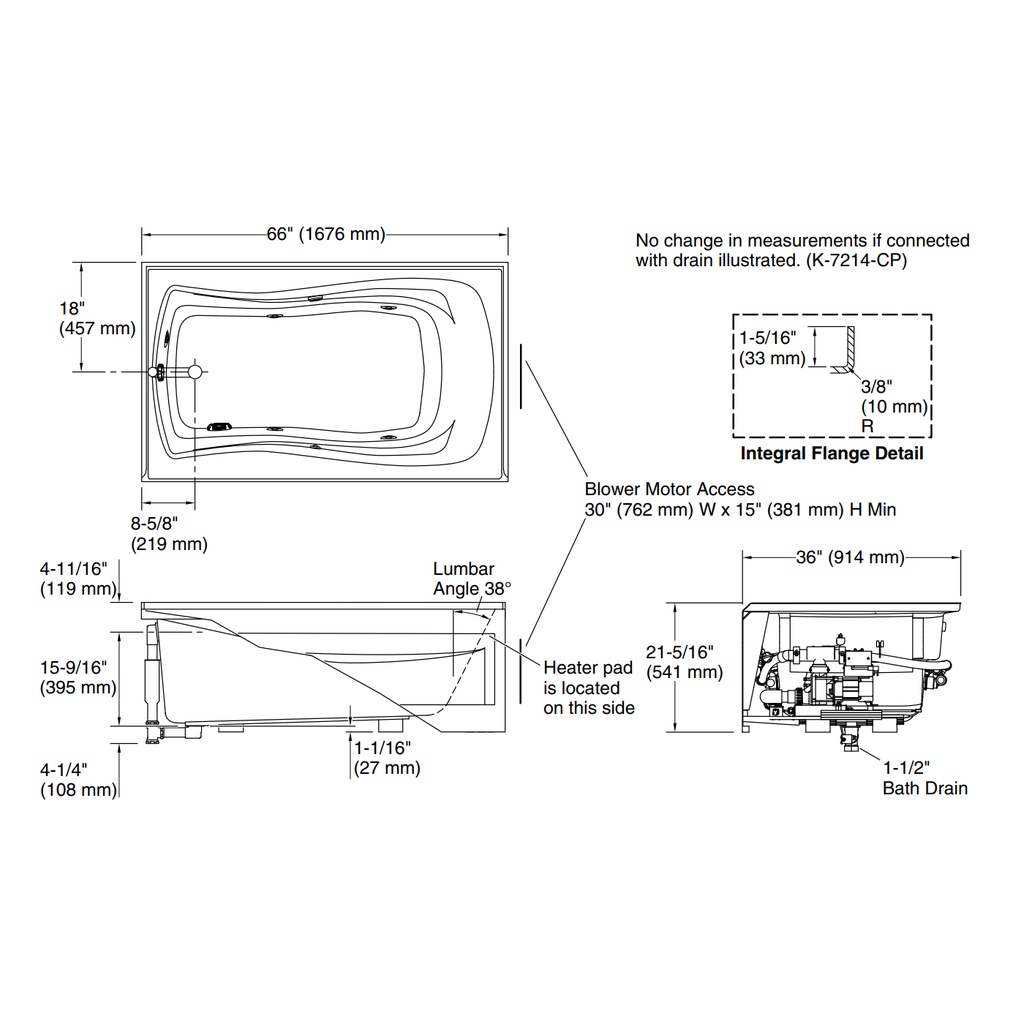

Technical Information
All product dimensions are nominal.
Drain location: Left
Basin area, bottom: 48" x 24" (1219 mm x 610 mm)
Basin area, top: 59" x 30" (1499 mm x 762 mm)
Weight: 116 lbs (52.6 kg)
Minimum floor load: 42 lbs/ftﾲ (205.1 kg/mﾲ)
Water depth: 14" (356 mm)
Water capacity: 67 gal (253.6 L)
Electrical component rating:
Pump: 120 V, 7 A, 60 Hz
Heated Surface: 120 V, 0.5 A, 60 Hz, 65W
Pump speed: Single
