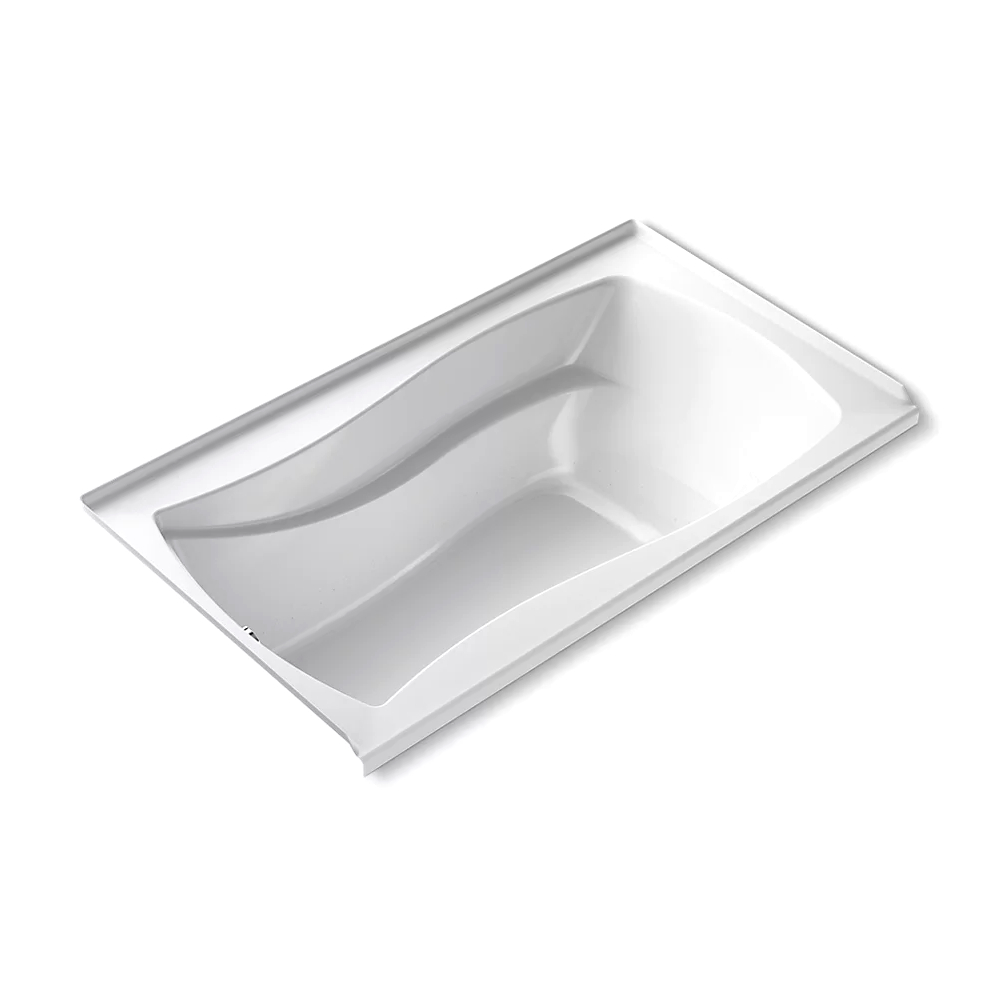

Kohler 1224-GHRF-0 Mariposa 66" x 36" Alcove Heated Bubble Massage Air Bath Right Drain White
Mariposa
66" x 36" alcove Heated BubbleMassageﾙ air bath, right drain
K-1224-GHRF-0
Color/Finish: White
With Heated BubbleMassageﾙ hydrotherapy, airjets release thousands of heated bubbles that deliver a blissfully warm, invigorating full-body massage designed to soothe and restore. Featuring delicate curves and an hourglass shape, the Mariposa air bath brings harmony to your bathroom's design.
Features
120 airjets release thousands of heated bubbles that surround and support the body in a warm massage
Variable-speed blower lets you adjust massage intensity to 18 levels
Heated BubbleMassageﾙ includes 60-minute automatic shutoff timer
Keypad control
Hourglass shape adds style and elegance to your bathroom
Integral flange helps prevent water from seeping behind wall and simplifies alcove installation
Textured bottom surface
Automatic and manual purge cycles remove residual water from air channels after use
Technology
Heated BubbleMassageﾙ technology warms and humidifies air before it enters the bath
Material
Acrylic
Installation
Right drain
Alcove
120 V electrical requirement allows for easy installation with standard outlet
Requires two dedicated circuits
Required Products/Accessories
K-T37391 Rotary-turn bath drain trim
K-T37392 Rotary-turn bath drain trim
K-37383 Rough-in cable bath drain, PVC, 30" cable with tubing
K-78438 30" cable bath drain
Recommended Products/Accessories
K-1446 Remote Installation Kit
K-1491 Bath/Whirlpool Pillow
K-1601 Bath/whirlpool footstop, removable
K-23726 Drain treatment
Required Electrical Service
Two dedicated circuits required, protected with Class A GroundFault Circuit-Interrupter (GFCI). Outside North America, this device may be known as a Residual Current Device (RCD).
Blower: 120 V, 15 A, 60 Hz
Air bath: 120 V, 15 A, 60 Hz

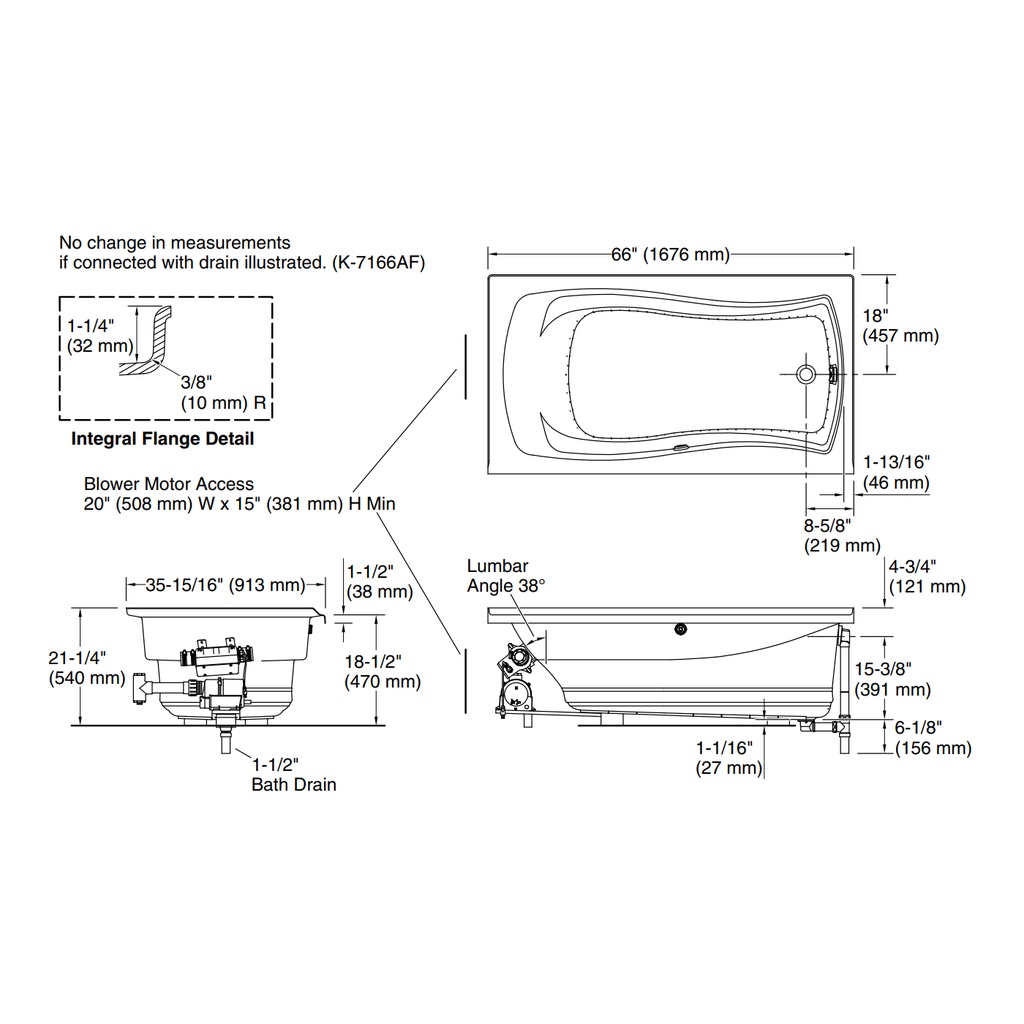

Technical Information
All product dimensions are nominal.
Drain location: Right
Basin area, bottom: 47-1/8" x 19-11/16" (1196 mm x 500 mm)
Basin area, top: 61-7/16" x 26" (1561 mm x 660 mm)
Weight: 106 lbs (48.1 kg)
Minimum floor load: 56 lbs/ftﾲ (273.4 kg/mﾲ)
Water depth: 13-11/16" (347 mm)
Water capacity: 67 gal (253.6 L)
Electrical component rating:
Blower: 120 V, 10 A, 60 Hz
Air bath: 120 V, 5 A, 60 Hz
Minimum flat for door: 1-15/16" (49 mm)
