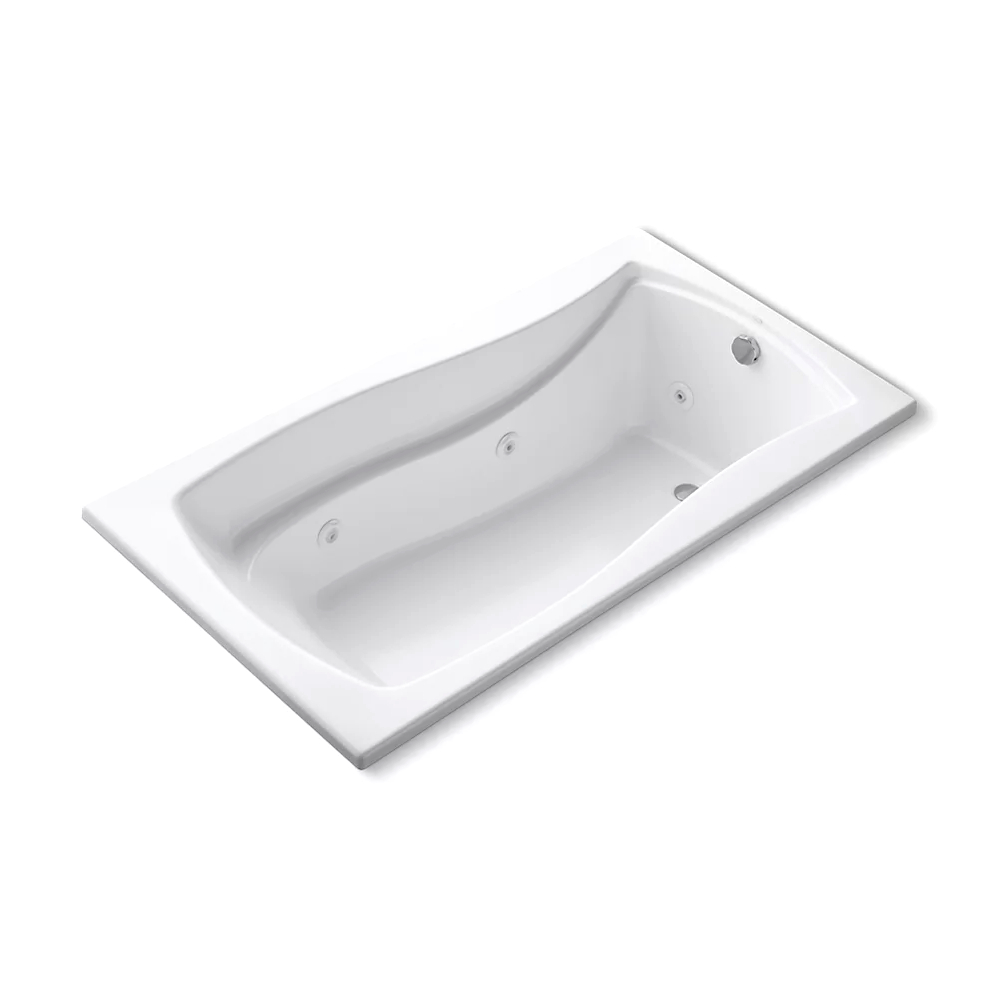

Kohler 1224-0 Mariposa 66" x 36" Drop-in Whirlpool Bath White
Mariposa®
66" x 36" drop-in whirlpool bath
K-1224-0
Color/Finish: White
Escape to your own spa getaway without leaving home, and emerge transformed. Relax into your Mariposa 5.5' whirlpool and enjoy the extra-wide bathing retreat while the five adjustable ProFlex(R) whirlpool jets massage away stress to leave you renewed. Available with a one year limited warranty.
Features
66"L x 35-7/8"W x 20"H
Removable apron for front pump access option
Five adjustable ProFlex® whirlpool jets for maximum bather comfort
Innovative technology enables this pump to provide a strong, steady level of hydromassage
Textured bottom surface
Hydrotherapy
Whirlpool
Material
Acrylic
Installation
Drop-in
Required Products/Accessories
K-T37391 Rotary-turn bath drain trim
K-T37392 Rotary-turn bath drain trim
K-37383 Rough-in cable bath drain, PVC, 30" cable with tubing
K-78438 30" cable bath drain
Recommended Products/Accessories
K-1601 Bath/whirlpool footstop, removable
K-7213 27" Cable Bath Drain
K-7214 27" Cable Bath Drain
K-23726 Drain treatment
Required Electrical Service
One dedicated circuit required, protected with Class A GroundFault Circuit-Interrupter (GFCI). Outside North America, this device may be known as a Residual Current Device (RCD).
Pump: 120 V, 15 A, 60 Hz

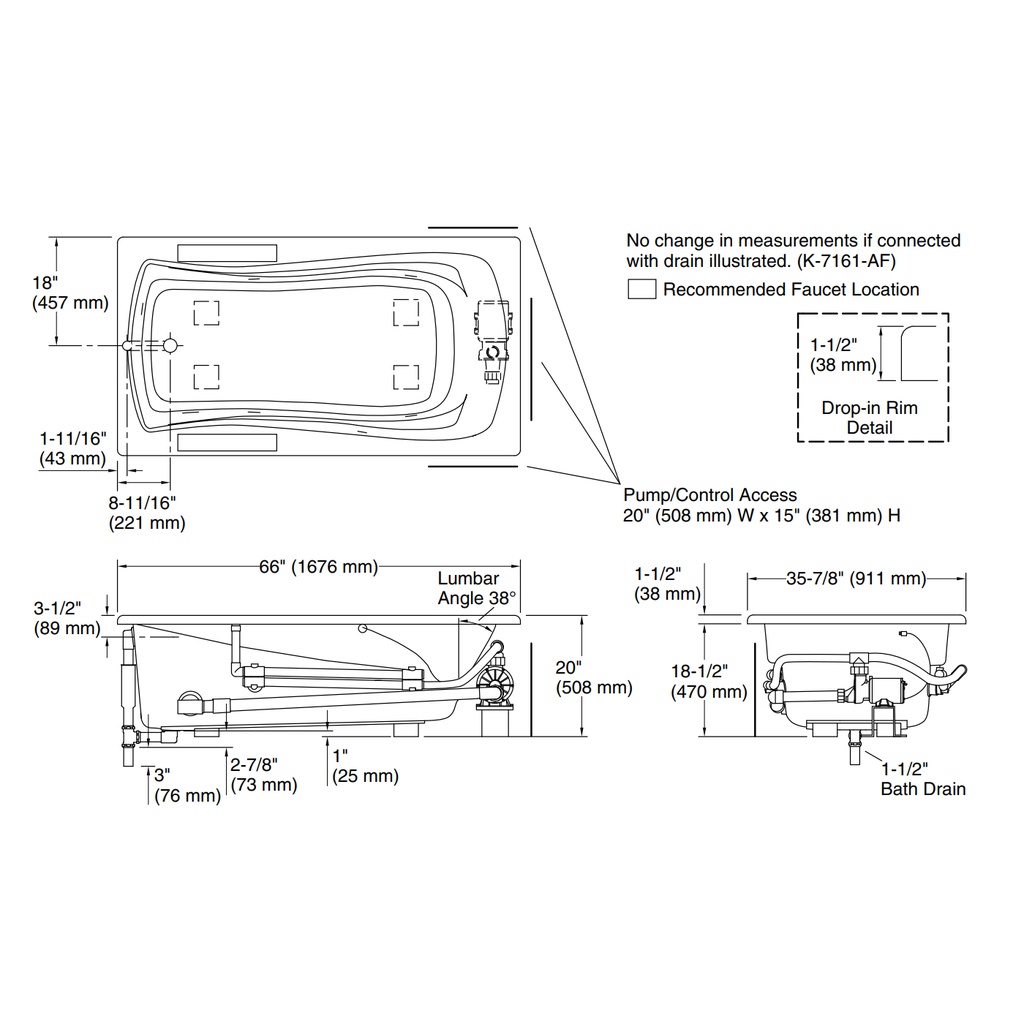

Technical Information
All product dimensions are nominal.
Drain location: Reversible
Basin area, bottom: 48" x 24" (1219 mm x 610 mm)
Basin area, top: 59" x 30" (1499 mm x 762 mm)
Weight: 110 lbs (49.9 kg)
Minimum floor load: 48 lbs/ft² (234.4 kg/m²)
Water depth: 14" (356 mm)
Water capacity: 67 gal (253.6 L)
Cutout: Drop-in, 64" x 34" (1626 mm x 864 mm)
Electrical component rating:
Pump: 120 V, 7.5 A, 60 Hz
Pump speed: Single
Minimum flat for door: 1-15/16" (49 mm)
