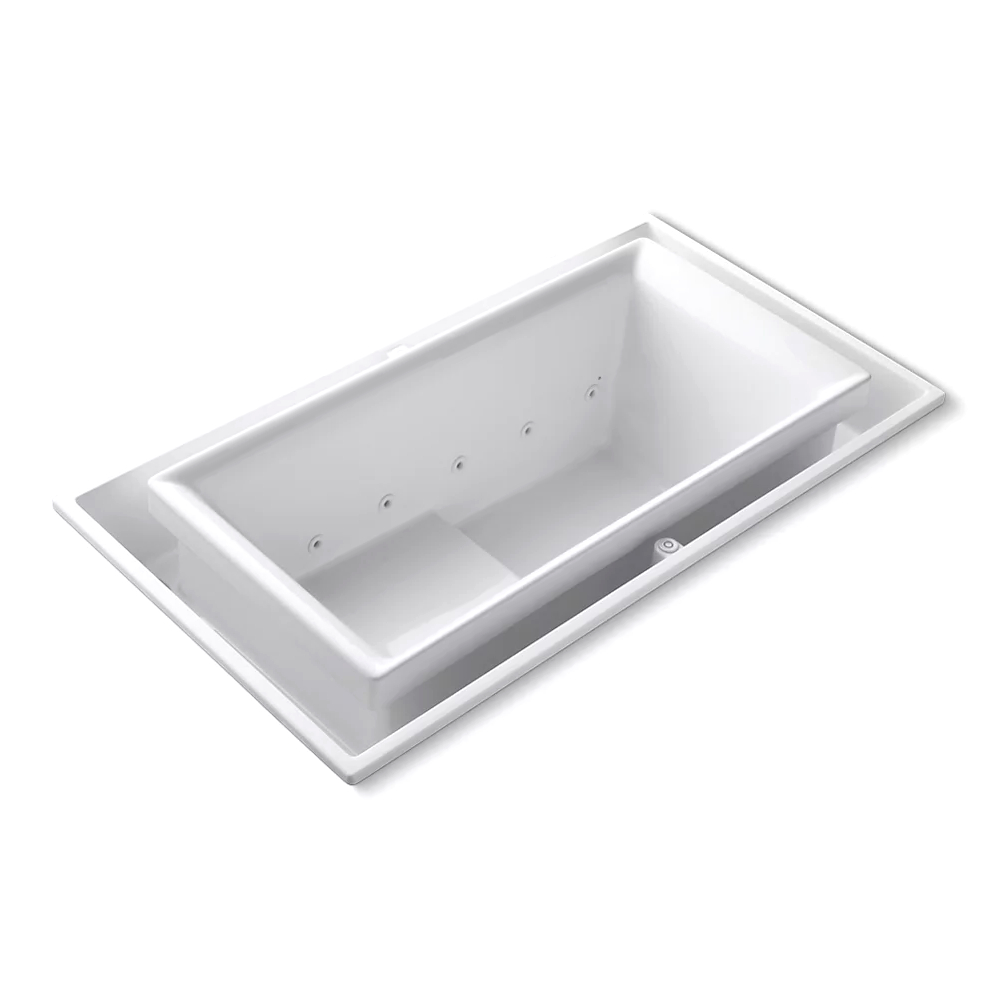

Kohler 1188-RE-0 Sok 63" x 31-1/2" Drop-in Effervescence Bath White
Sok®
63" x 31-1/2" drop-in Effervescence bath
K-1188-RE-0
Color/Finish: White
Escape and unwind in this ultra-deep and private retreat. With a continuous flow of water cascading over the sides of the basin, the sok bath offers whole-body immersion. Effervescence ports release thousands of tiny champagne-like bubbles, creating a luxurious sensory experience.
Features
Built-in heater
Remote control
Overflow channel for deep soak and unique infinity pool effect
Hydrotherapy
11 effervescence ports deliver gentle, caressing bubbles
Material
Acrylic
Installation
Drop-in
Required Products/Accessories
K-7193 Bath Drain
Recommended Products/Accessories
K-1601 Bath/whirlpool footstop, removable
K-923 Wall- or -ceiling-mount bath filler
K-23726 Drain treatment
Required Electrical Service
Two dedicated circuits required, protected with Class A GroundFault Circuit-Interrupter (GFCI). Outside North America, this device may be known as a Residual Current Device (RCD).
Pump: 240 V, 20 A, 50/60 Hz
Heater: 240 V, 20 A, 50/60 Hz

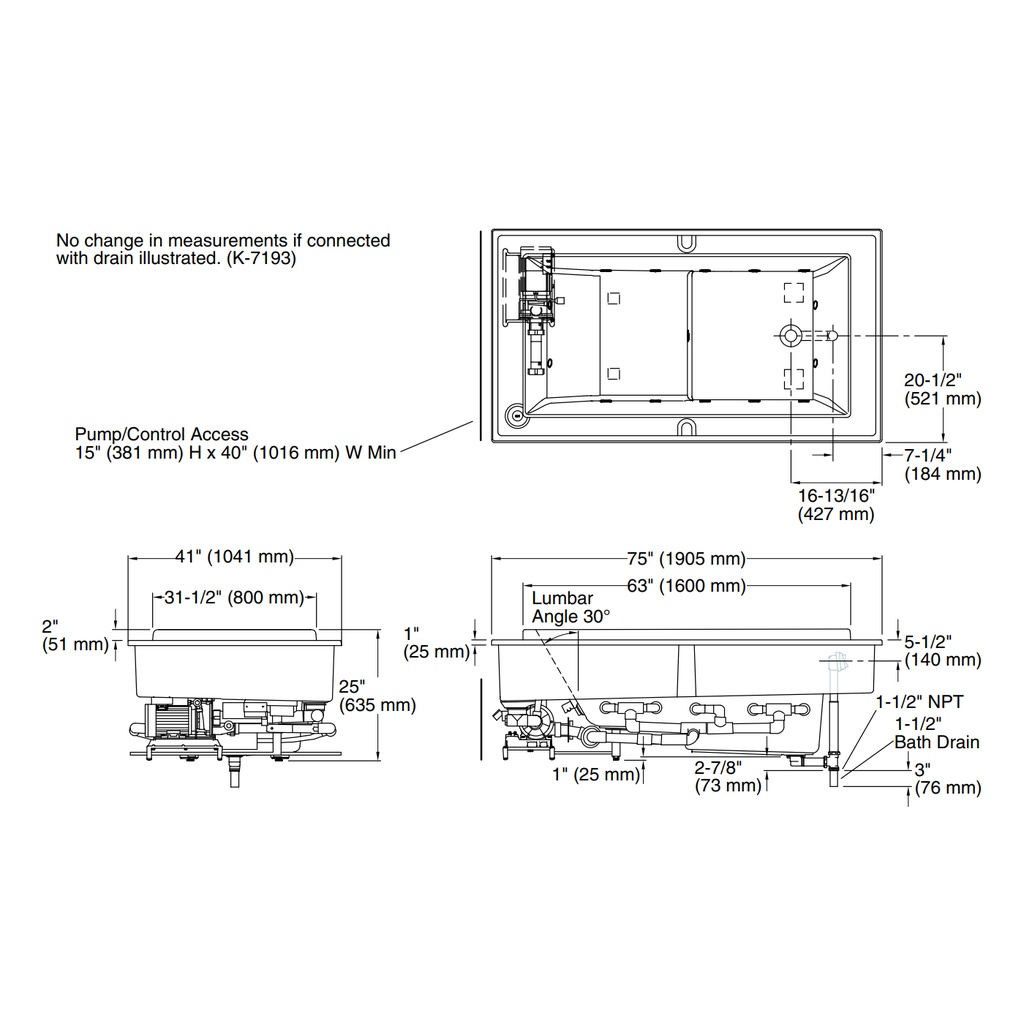

Technical Information
All product dimensions are nominal.
Drain location: Right
Basin area, bottom: 45" x 25-1/2" (1143 mm x 648 mm)
Basin area, top: 61-1/2" x 30-1/4" (1562 mm x 768 mm)
Weight: 280 lbs (127 kg)
Minimum floor load: 59 lbs/ft² (288.1 kg/m²)
Water depth: 23-1/2" (597 mm)
Water capacity: 142 gal (537.5 L)
Cutout: Drop-in, 73-1/2" x 39-1/2" (1867 mm x 1003 mm)
Electrical component rating:
Pump: 240 V, 17 A, 50/60 Hz
Heater: 240 V, 17 A, 50/60 Hz, 4000 W
Pump speed: Variable
