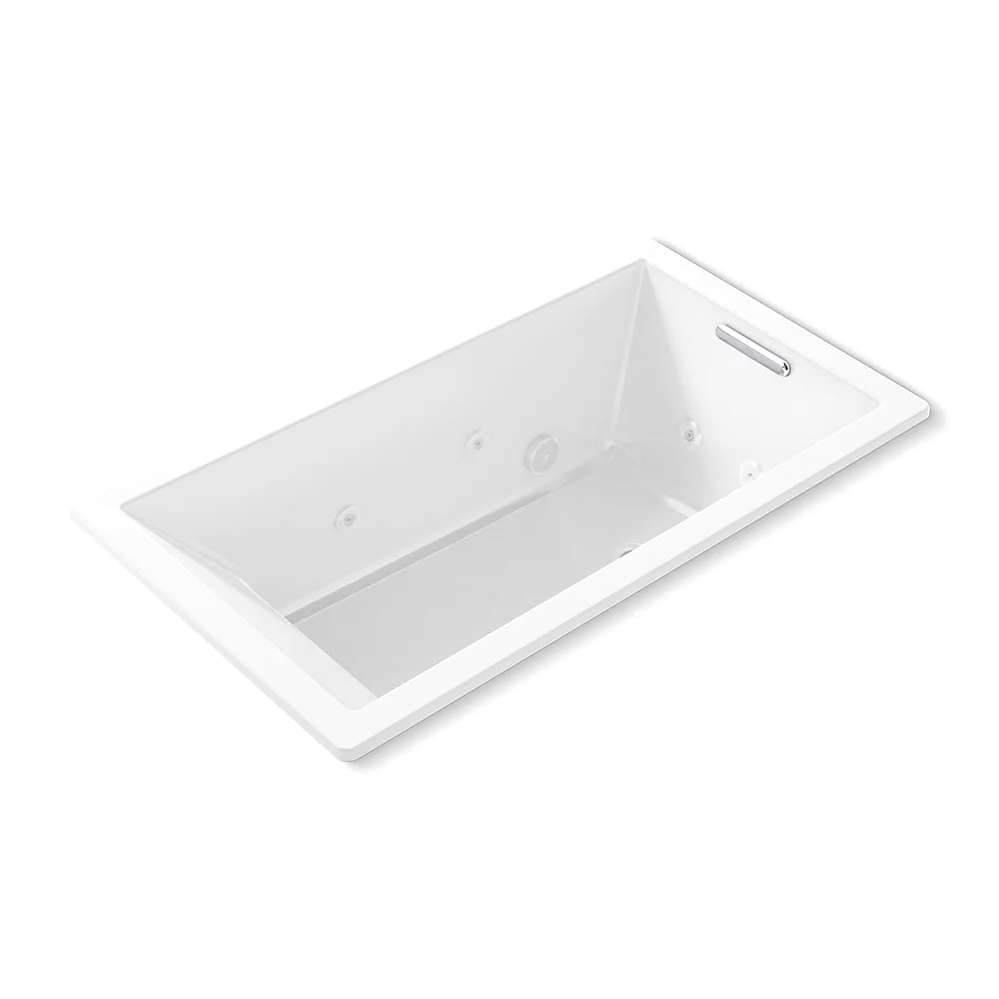

Kohler 1173-JH-0 Underscore 66" x 36" Drop-in Heated Whirlpool Bath White
Underscore®
66" x 36" drop-in heated whirlpool bath
K-1173-JH-0
Color/Finish: White
With clean, smooth lines, the Underscore whirlpool bath is a welcome retreat to soak away the day’s tension and center your mind. Lay back and melt in the deep bath as eight fully-adjustable jets deliver a powerful hydromassage, while the built-in heater maintains the water at your desired temperature to create a soothing, spa-like environment. Realize your vision. It’s all at the touch of your finger
Features
Eight Proflex® hydromassage jets can be individually adjusted for water flow and direction
Single-speed whirlpool offers performance and value with 8 fully adjustable jets
Built-in heater
Slotted overflow allows for deep soaking
Spacious design accommodates up to two bathers
Integral lumbar support
Textured bottom surface
Material
Acrylic
Installation
Requires K-7271 or K-7272 Clearflo slotted overflow bath drain (sold separately)
Drop-in or undermount
Reversible drain
120 V electrical requirement allows for easy installation with standard outlet
Requires two dedicated circuits
Required Products/Accessories
K-7271 Brass Slotted Overflow Bath Drain
K-7272 PVC Slotted Overflow Bath Drain
Recommended Products/Accessories
K-1491 Bath/Whirlpool Pillow
K-1601 Bath/whirlpool footstop, removable
K-591 Under-Mount Installation Kit (Qty 2)
Required Electrical Service
Two dedicated circuits required, protected with Class A GroundFault Circuit-Interrupter (GFCI). Outside North America, this device may be known as a Residual Current Device (RCD).
Pump: 120 V, 15 A, 60 Hz
Heater: 120 V, 15 A, 60 Hz

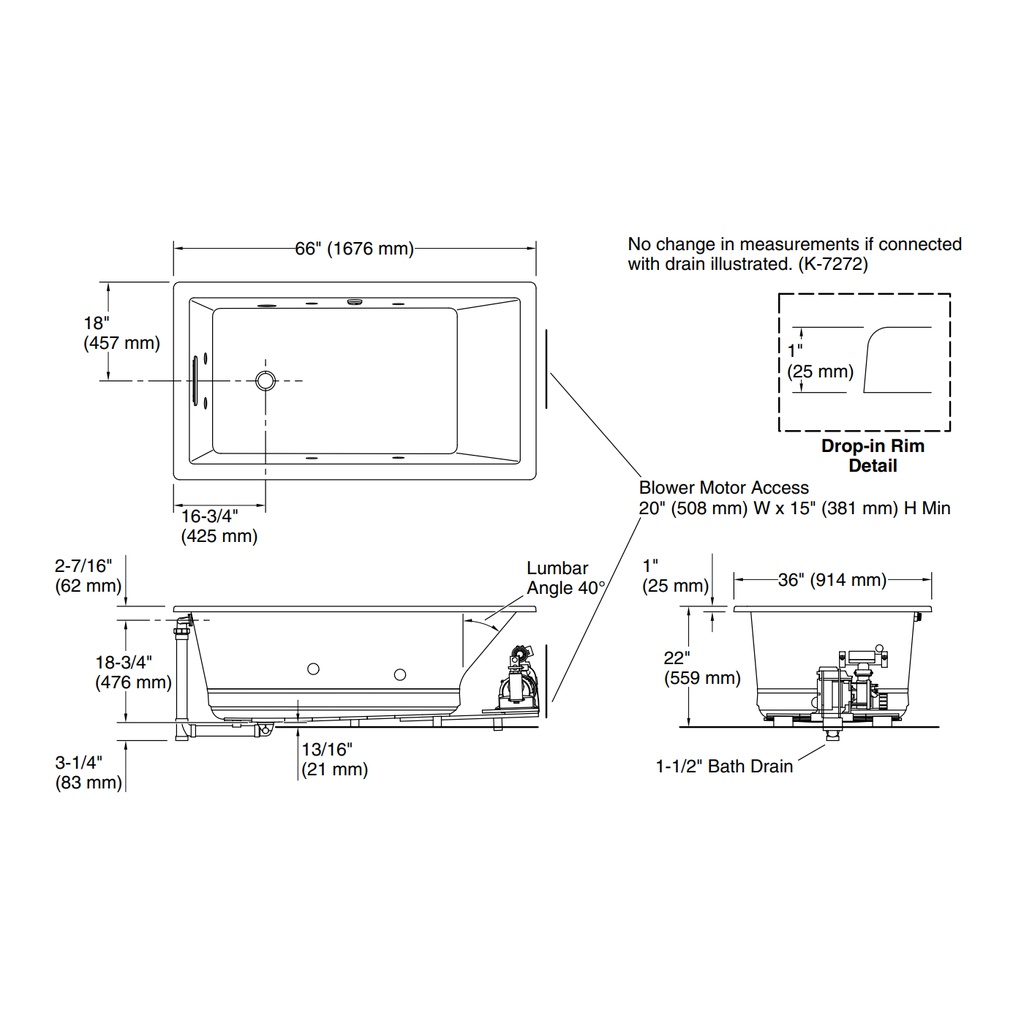

Technical Information
All product dimensions are nominal.
Drain location: Reversible
Basin area, bottom: 44-1/2" x 26-7/16" (1130 mm x 671 mm)
Basin area, top: 60-1/4" x 30-1/4" (1530 mm x 769 mm)
Weight: 125 lbs (56.7 kg)
Minimum floor load: 61 lbs/ft² (297.8 kg/m²)
Water depth: 17-3/4" (450 mm)
Water capacity: 100.4 gal (380.1 L)
Cutout: Drop-in, 65" x 35" (1651 mm x 889 mm)
Electrical component rating:
Pump: 120 V, 7 A, 60 Hz
Heater: 120 V, 12 A, 60 Hz
Minimum flat for door: 2-7/16" (61 mm)
