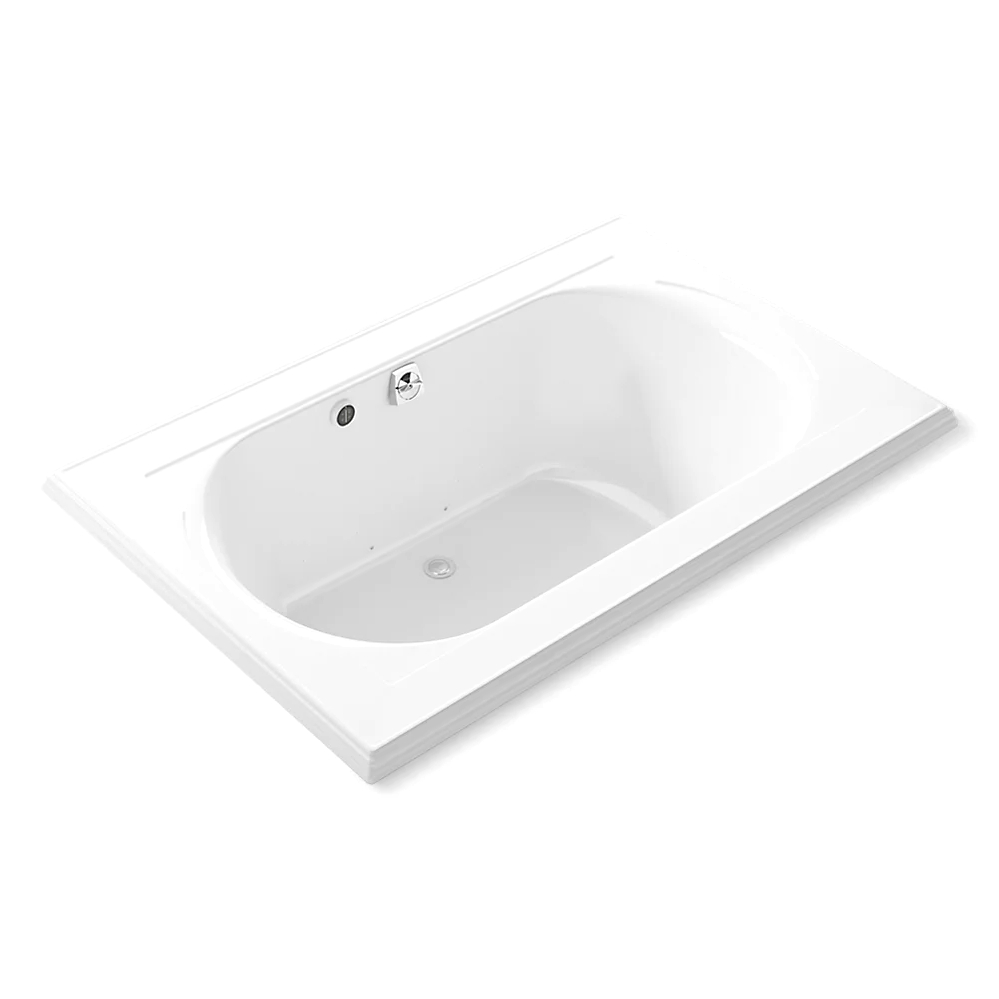

Kohler 1170-GH-0 Memoirs 66" x 42" Drop-in Heated Bubble Massage Air Bath White
Memoirs®
66" x 42" drop-in Heated BubbleMassage™ air bath
K-1170-GH-0
Color/Finish: White
With rich detailing reminiscent of crown molding, Memoirs brings classic architectural style to your bathroom. Ease into a soothing, fully customizable Heated Bubblemassage air bath and stay as long as you like. Pair this bath with other products in the Memoirs collection for a sophisticated bathroom ensemble.
Features
122 airjets release thousands of heated bubbles that surround, support, and massage the body
Variable-speed blower lets you adjust massage intensity to 18 levels
Built-in heater
Automatic and manual purge cycles remove residual water from air channels after use
60-minute automatic shutoff timer
Spacious design accommodates up to two bathers
Integral lumbar support
Keypad control
Textured bottom surface
Coordinates with other products in the Memoirs collection
Technology
Heated BubbleMassage™ technology warms and humidifies air before it enters the bath
Material
Acrylic
Installation
Drop-in
Rear center drain
120 V electrical requirement allows for easy installation with standard outlet
Requires two dedicated circuits
Required Products/Accessories
K-11677 Bath Drain
K-T37391 Rotary-turn bath drain trim
K-T37392 Rotary-turn bath drain trim
K-37383 Rough-in cable bath drain, PVC, 30" cable with tubing
K-78438 30" cable bath drain
K-37385 rough-in cable drain, PVC, 45” cable
K-78439 45" cable bath drain
Required Electrical Service
Two dedicated circuits required.
Blower: 120 V, 15 A, 60 Hz
Air bath: 120 V, 15 A, 60 Hz

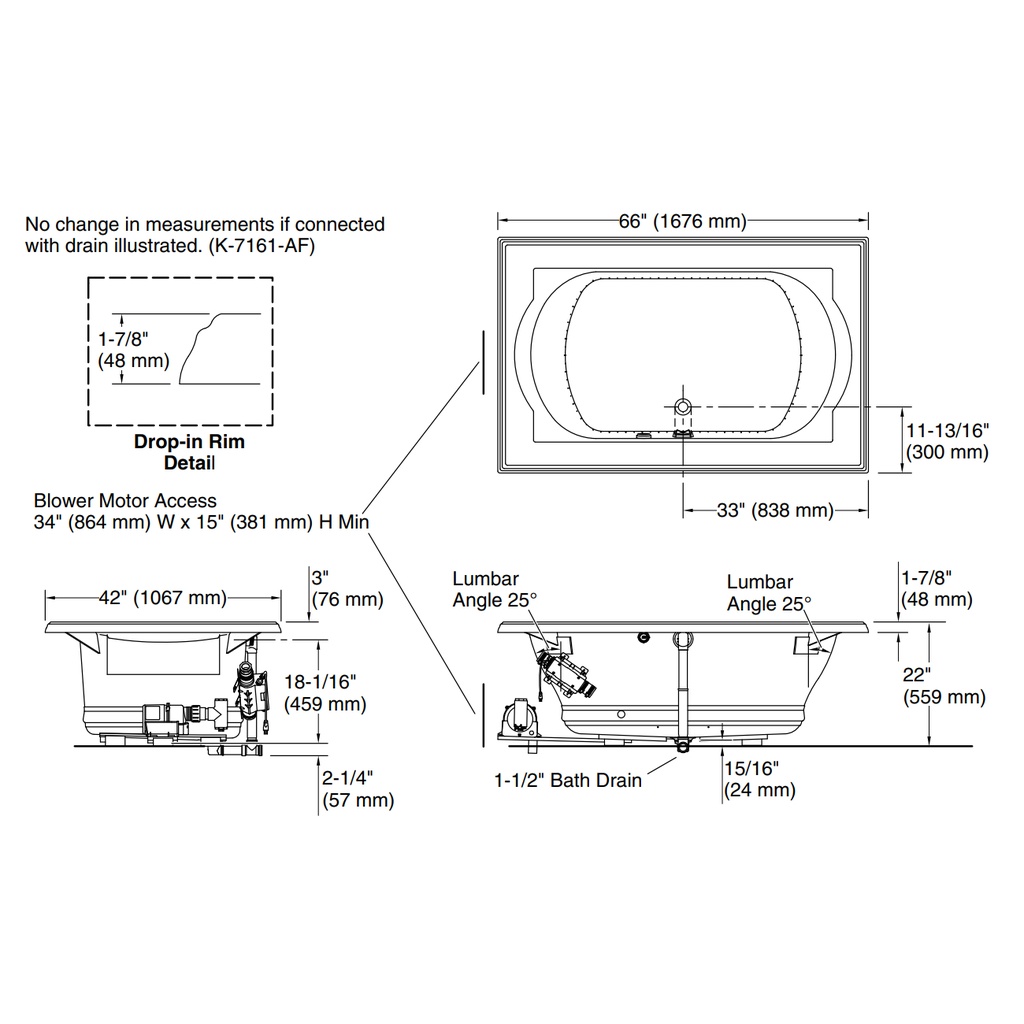

Technical Information
All product dimensions are nominal.
Drain location: Center
Basin area, bottom: 42" x 27" (1067 mm x 686 mm)
Basin area, top: 54" x 30" (1372 mm x 762 mm)
Weight: 156 lbs (70.8 kg)
Minimum floor load: 44 lbs/ft² (214.8 kg/m²)
Water depth: 16" (406 mm)
Water capacity: 81 gal (306.6 L)
Electrical component rating:
Blower: 120 V, 10 A, 60 Hz
Air bath: 120 V, 5 A, 60 Hz
Minimum flat for door: 3-13/16" (97 mm)
