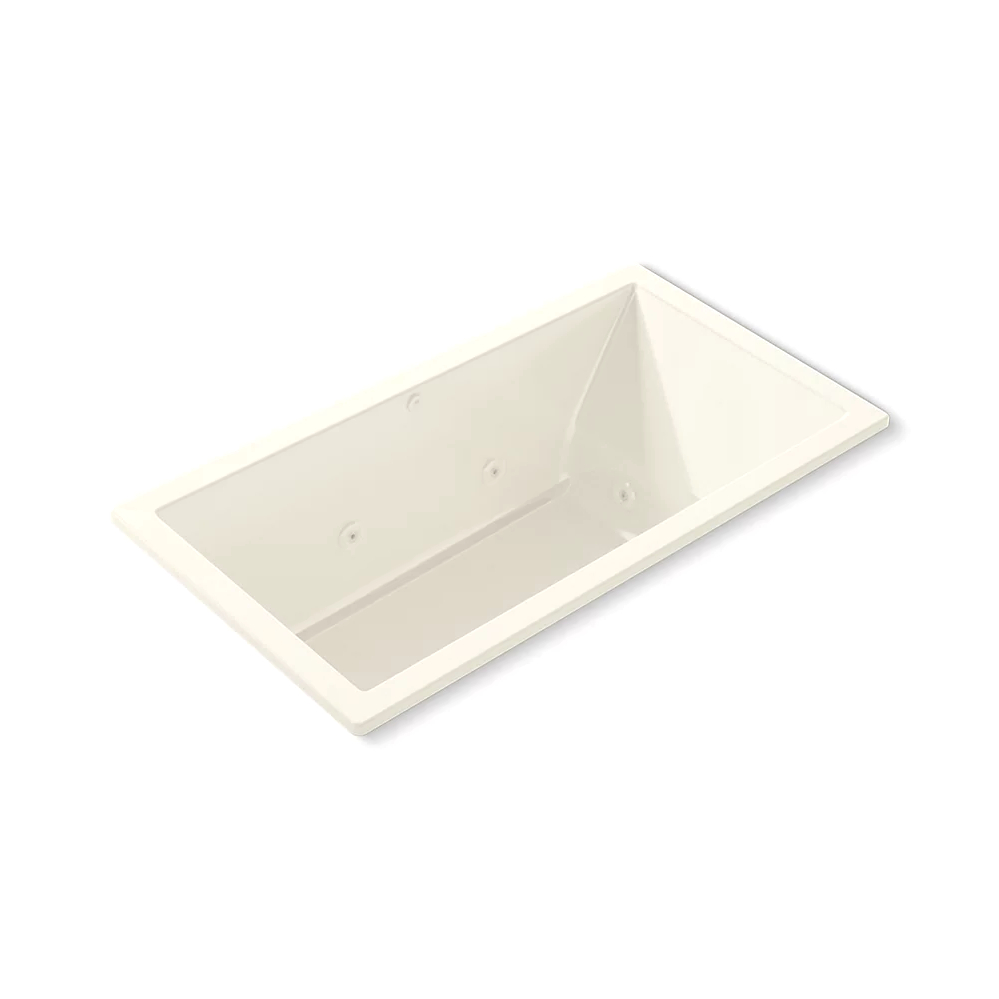

Kohler 1168-JH-96 Underscore 60" x 32" Drop-in Heated Whirlpool Bath Biscuit
Underscore®
60" x 32" drop-in heated whirlpool bath
K-1168-JH-96
Color/Finish: Biscuit
With clean, smooth lines, the Underscore whirlpool bath is a welcome retreat to soak away the day’s tension and center your mind. Lay back and melt in the deep bath as eight fully-adjustable jets deliver a powerful hydromassage, while the built-in heater maintains the water at your desired temperature to create a soothing, spa-like environment. Realize your vision. It’s all at the touch of your finger
Features
Eight Proflex® hydromassage jets can be individually adjusted for water flow and direction
Single-speed whirlpool offers performance and value with 8 fully adjustable jets
Built-in heater
Slotted overflow allows for deep soaking
Integral lumbar support
Textured bottom surface
Material
Acrylic
Installation
Requires K-7271 or K-7272 Clearflo slotted overflow bath drain (sold separately)
Drop-in or undermount
Reversible drain
120 V electrical requirement allows for easy installation with standard outlet
Requires two dedicated circuits
Required Products/Accessories
K-7271 Brass Slotted Overflow Bath Drain
K-7272 PVC Slotted Overflow Bath Drain
Recommended Products/Accessories
K-1491 Bath/Whirlpool Pillow
K-1601 Bath/whirlpool footstop, removable
K-706000-D3 Frameless Sliding Bath Door
K-706000-L 62" H sliding bath door with 1/4"-thick glass
K-706004-D3 Frameless Sliding Bath Door
K-706004-L Frameless Sliding Bath Door
Required Electrical Service
Two dedicated circuits required, protected with Class A GroundFault Circuit-Interrupter (GFCI). Outside North America, this device may be known as a Residual Current Device (RCD).
Pump: 120 V, 15 A, 60 Hz
Heater: 120 V, 15 A, 60 Hz

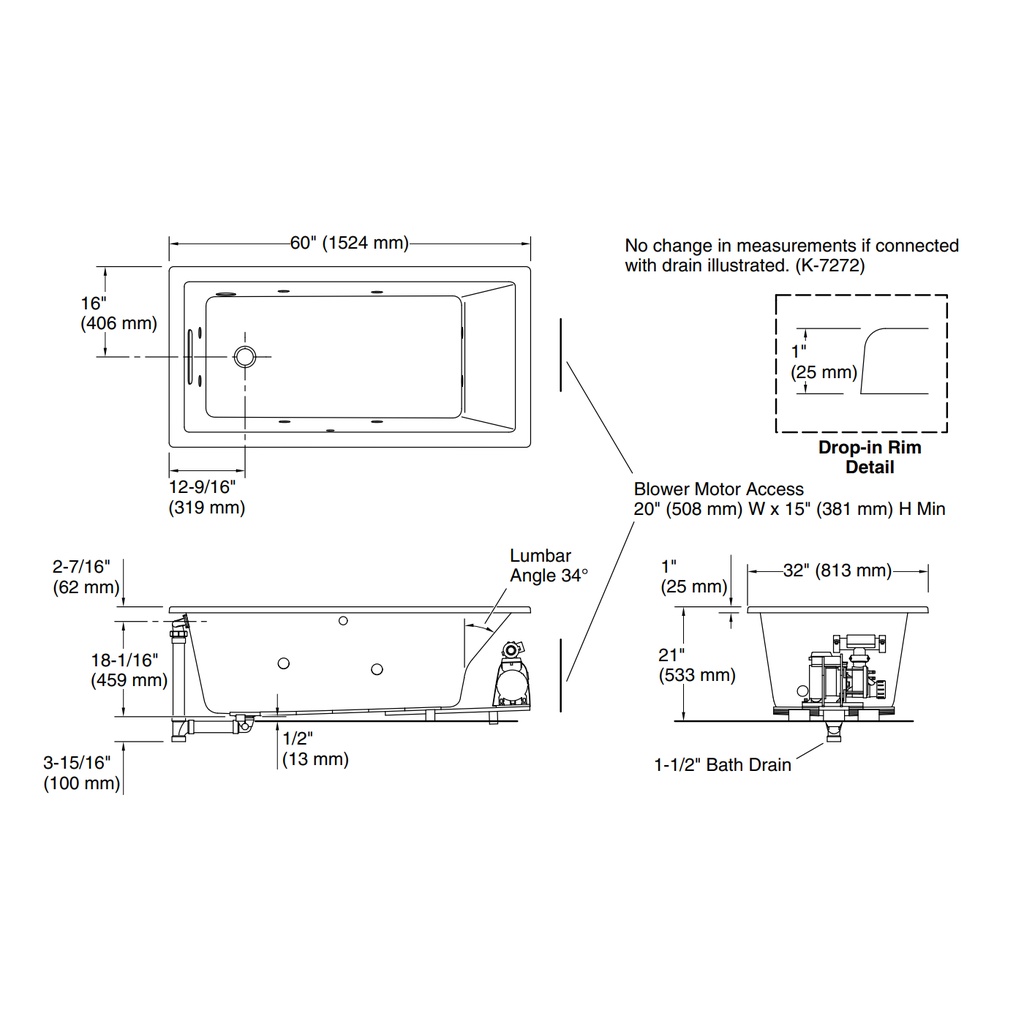

Technical Information
All product dimensions are nominal.
Drain location: Reversible
Basin area, bottom: 42" x 23-1/2" (1066 mm x 597 mm)
Basin area, top: 55-1/8" x 27-1/8" (1400 mm x 689 mm)
Weight: 120 lbs (54.4 kg)
Minimum floor load: 62 lbs/ft² (302.7 kg/m²)
Water depth: 17-3/16" (436 mm)
Water capacity: 81 gal (306.6 L)
Cutout: Drop-in, 58-1/2" x 30-1/2" (1486 mm x 775 mm)
Electrical component rating:
Pump: 120 V, 7 A, 60 Hz
Heater: 120 V, 12 A, 60 Hz
Minimum flat for door: 2" (51 mm)
