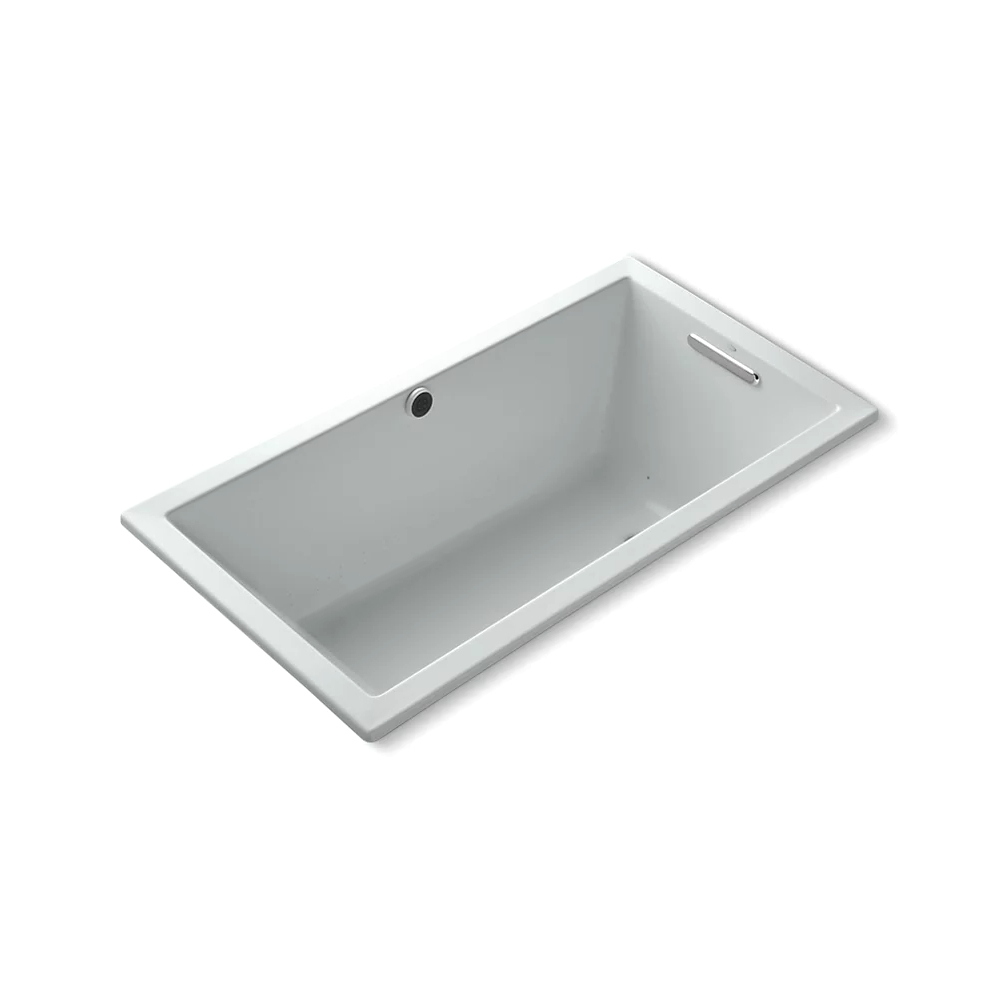

Kohler 1168-GHW-95 Underscore 60" x 32" Drop-in Heated Bubble Massage Air Bath Ice Grey
Underscore®
60" x 32" drop-in Heated BubbleMassage™ air bath with Bask® heated surface
K-1168-GHW-95
Color/Finish: Ice Grey
With clean, smooth lines, the Underscore Heated Bubblemassage™ air bath is a welcome retreat to soak away the day’s tension and center your mind. Lay back and melt in the deep bath as strategically-placed airjets release thousands of bubbles to massage your body at the level of intensity you prefer, while the heated surface warms your back and neck with adjustable temperature settings to create a soothing, spa-like environment. Realize your vision. It’s all at the touch of your finger
Features
122 airjets release thousands of heated bubbles that surround, support, and massage the body
Variable-speed blower lets you adjust massage intensity to 18 levels
Bask® heated surface creates spa-like relaxation with soothing warmth on your back, shoulders, and neck
Built-in heater
Automatic and manual purge cycles remove residual water from air channels after use
60-minute automatic shutoff timer
Slotted overflow allows for deep soaking
Integral lumbar support
Keypad control
Textured bottom surface
Technology
Heated BubbleMassage™ technology warms and humidifies air before it enters the bath
Material
Acrylic
Installation
Requires K-7271 or K-7272 Clearflo slotted overflow bath drain (sold separately)
Drop-in or undermount
Reversible drain
120 V electrical requirement allows for easy installation with standard outlet
Requires two dedicated circuits
Required Products/Accessories
K-7271 Brass Slotted Overflow Bath Drain
K-7272 PVC Slotted Overflow Bath Drain
Recommended Products/Accessories
K-1491 Bath/Whirlpool Pillow
K-1601 Bath/whirlpool footstop, removable
K-706000-D3 Frameless Sliding Bath Door
K-706000-L 62" H sliding bath door with 1/4"-thick glass
K-706004-D3 Frameless Sliding Bath Door
K-706004-L Frameless Sliding Bath Door
K-1177 Vinyl Tiling-in Bead
K-590 5' under-mount installation kit
Required Electrical Service
Two dedicated circuits required, protected with Class A GroundFault Circuit-Interrupter (GFCI). Outside North America, this device may be known as a Residual Current Device (RCD).
Blower, Heated Surface:
120 V, 15 A, 60 Hz
Air bath: 120 V, 15 A, 60 Hz

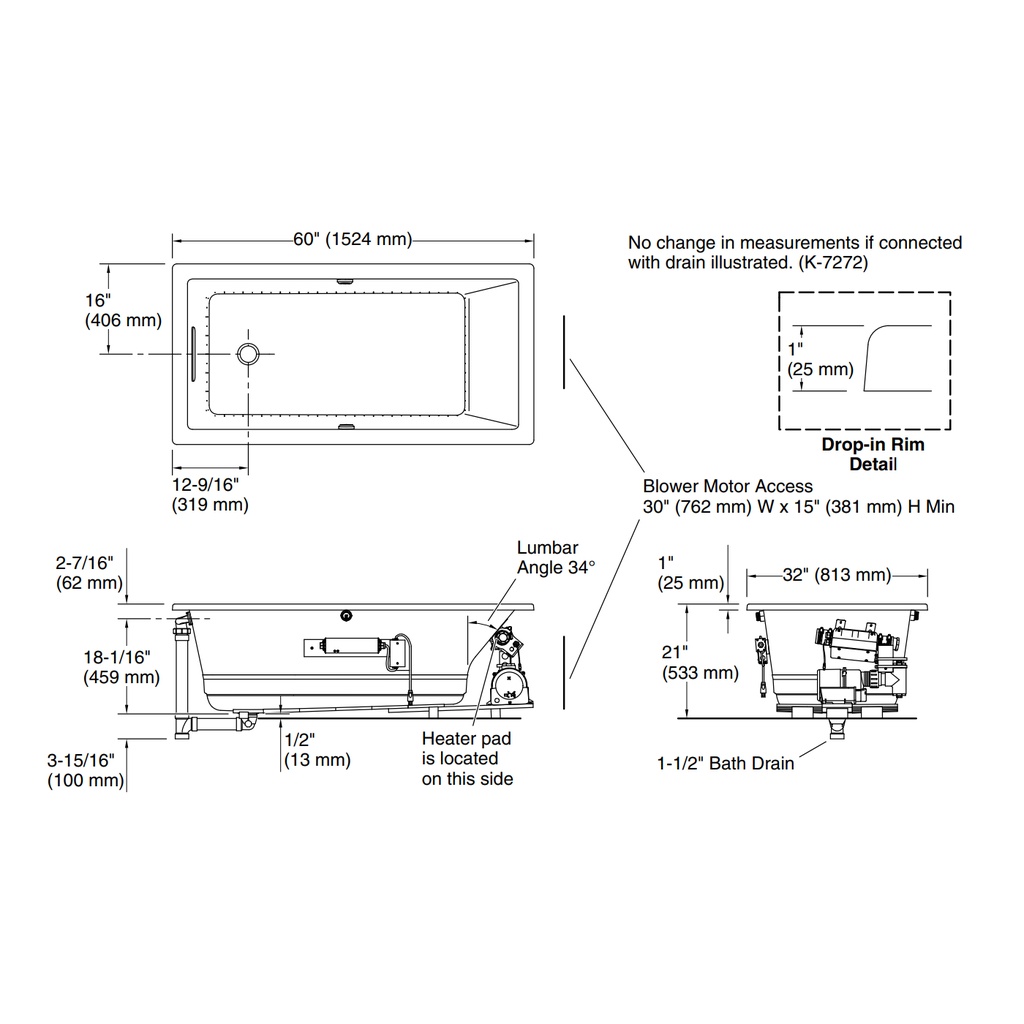

Technical Information
All product dimensions are nominal.
Drain location: Reversible
Basin area, bottom: 42" x 23-1/2" (1067 mm x 597 mm)
Basin area, top: 55-1/8" x 27-1/8" (1400 mm x 689 mm)
Weight: 100 lbs (45.4 kg)
Minimum floor load: 55 lbs/ft² (268.5 kg/m²)
Water depth: 17-1/8" (435 mm)
Water capacity: 81 gal (306.6 L)
Cutout: Drop-in, 59-1/2" x 31-1/2" (1511 mm x 800 mm)
Electrical component rating:
Blower: 120 V, 10 A, 60 Hz
Heated Surface: 120 V, 0.5 A, 60 Hz
