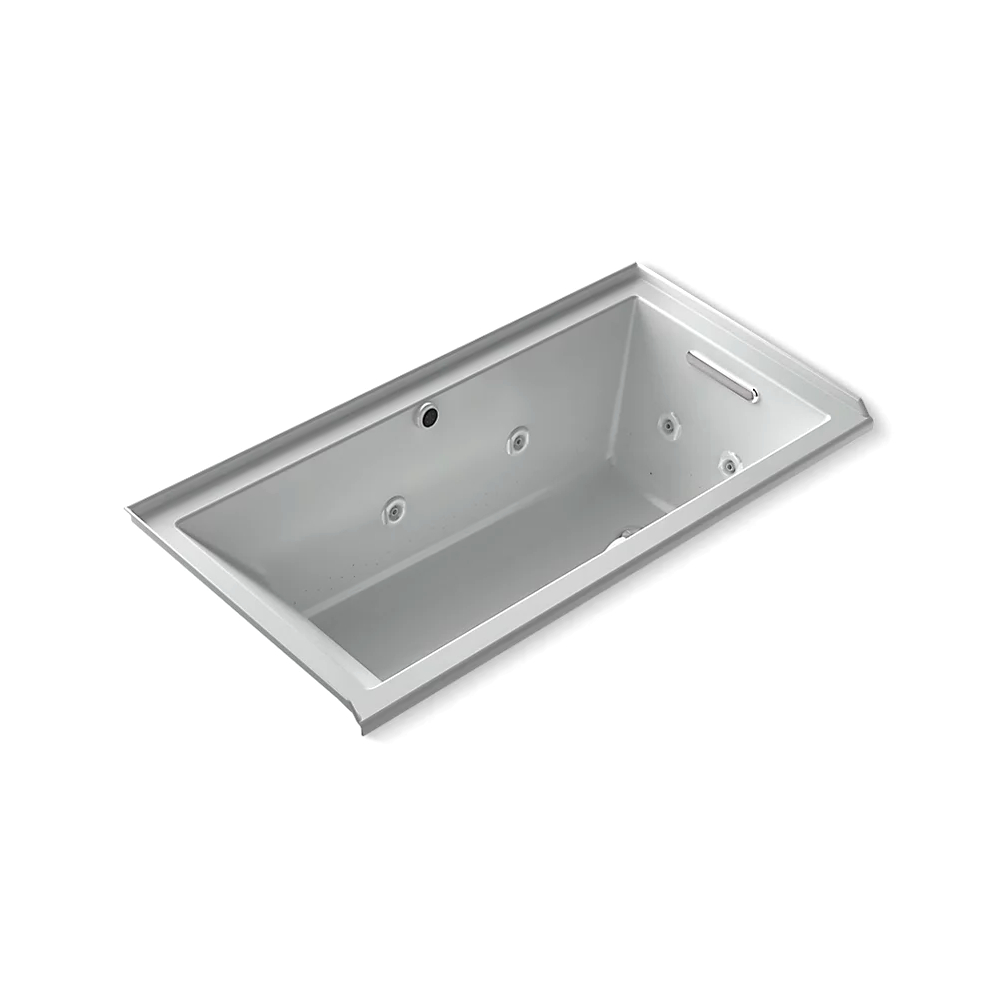

Kohler 1167-XHGHL-95 Underscore 60" x 30" Alcove Heated Bubble Massage Whirlpool Left Drain Ice Grey
Underscore®
60" x 30" alcove Heated BubbleMassage™ air bath with whirlpool, left drain
K-1167-XHGHL-95
Color/Finish: Ice Grey
With clean, smooth lines, the Underscore Heated Bubblemassage™ air bath and whirlpool is a welcome retreat to soak away the day’s tension and center your mind. Lay back and melt in the deep bath as strategically-placed airjets release thousands of bubbles to massage your body at the level of intensity you prefer, while another eight fully-adjustable jets deliver a powerful hydromassage to create a soothing, spa-like environment. Realize your vision. It’s all at the touch of your finger
Features
122 airjets release thousands of heated bubbles that surround, support, and massage the body
Variable-speed blower lets you adjust massage intensity to 18 levels
Eight Proflex® hydromassage jets can be individually adjusted for water flow and direction
Single-speed whirlpool offers performance and value with 8 fully adjustable jets
Built-in heater
Automatic and manual purge cycles remove residual water from air channels after use
60-minute automatic shutoff timer
Slotted overflow allows for deep soaking
Integral lumbar support
Keypad control
Textured bottom surface
Technology
Heated BubbleMassage™ technology warms and humidifies air before it enters the bath
Material
Acrylic
Installation
Requires K-7271 or K-7272 Clearflo slotted overflow bath drain (sold separately)
Alcove
Integral flange
Left drain
120 V electrical requirement allows for easy installation with standard outlet
Requires three dedicated circuits
Required Products/Accessories
K-7271 Brass Slotted Overflow Bath Drain
K-7272 PVC Slotted Overflow Bath Drain
Recommended Products/Accessories
K-1491 Bath/Whirlpool Pillow
K-1601 Bath/whirlpool footstop, removable
K-706000-D3 Frameless Sliding Bath Door
K-706000-L 62" H sliding bath door with 1/4"-thick glass
K-706004-D3 Frameless Sliding Bath Door
K-706004-L Frameless Sliding Bath Door
K-31797 Slotted overflow bath drain kit
K-31795 Slotted overflow above-the-floor bath drain kit
Required Electrical Service
Three dedicated circuits required, protected with Class A
Ground-Fault Circuit-Interrupter (GFCI). Outside North America, this device may be known as a Residual Current Device (RCD).
Blower: 120 V, 15 A, 60 Hz
Air bath, Pump: 120 V, 15 A, 60 Hz
Heater: 120 V, 15 A, 60 Hz

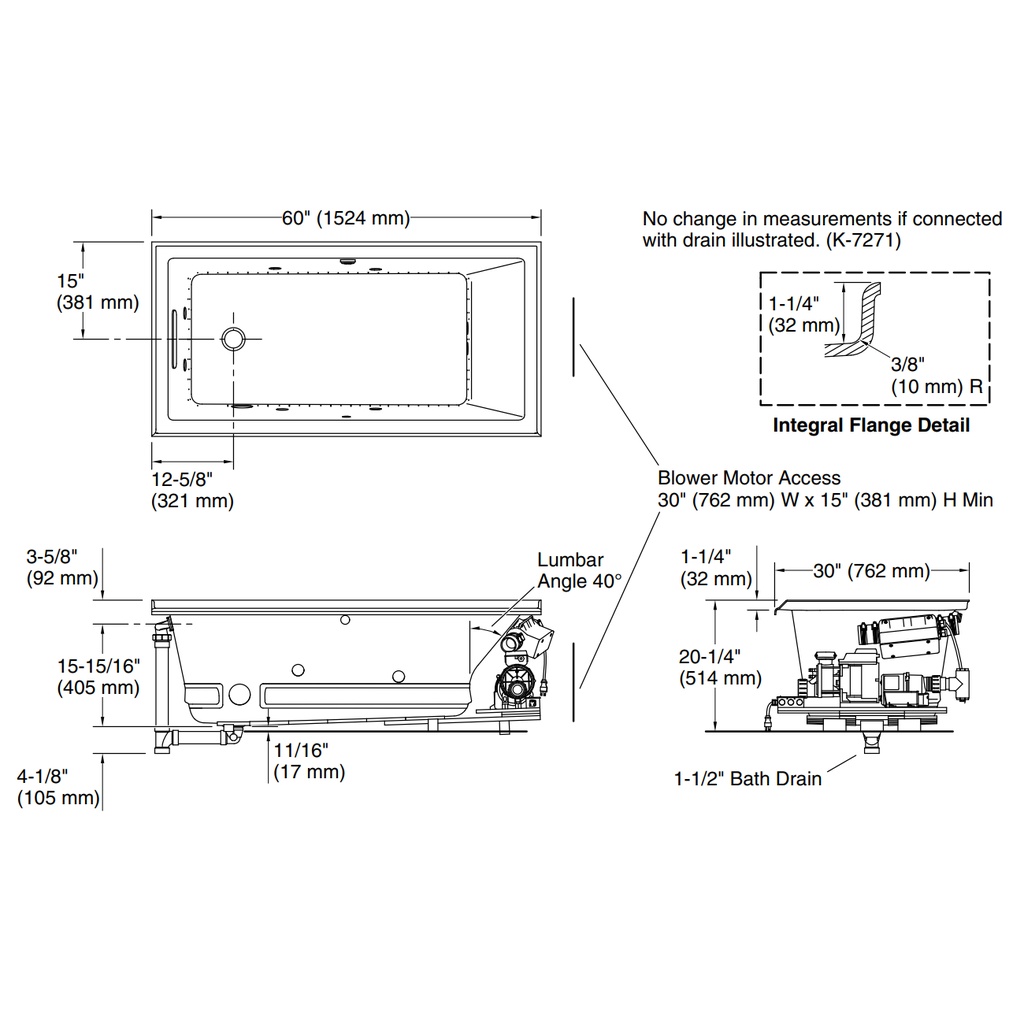

Technical Information
All product dimensions are nominal.
Drain location: Left
Basin area, bottom: 42-7/16" x 20" (1078 mm x 508 mm)
Basin area, top: 54-5/16" x 24-1/4" (1380 mm x 616 mm)
Weight: 152 lbs (68.9 kg)
Minimum floor load: 53.9 lbs/ft² (263.2 kg/m²)
Water depth: 15-1/8" (384 mm)
Water capacity: 59.8 gal (226.4 L)
Electrical component rating:
Blower: 120 V, 10 A, 60 Hz
Air bath: 120 V, 5 A, 60 Hz
Pump: 120 V, 7 A, 60 Hz
Heater: 120 V, 12 A, 60 Hz
