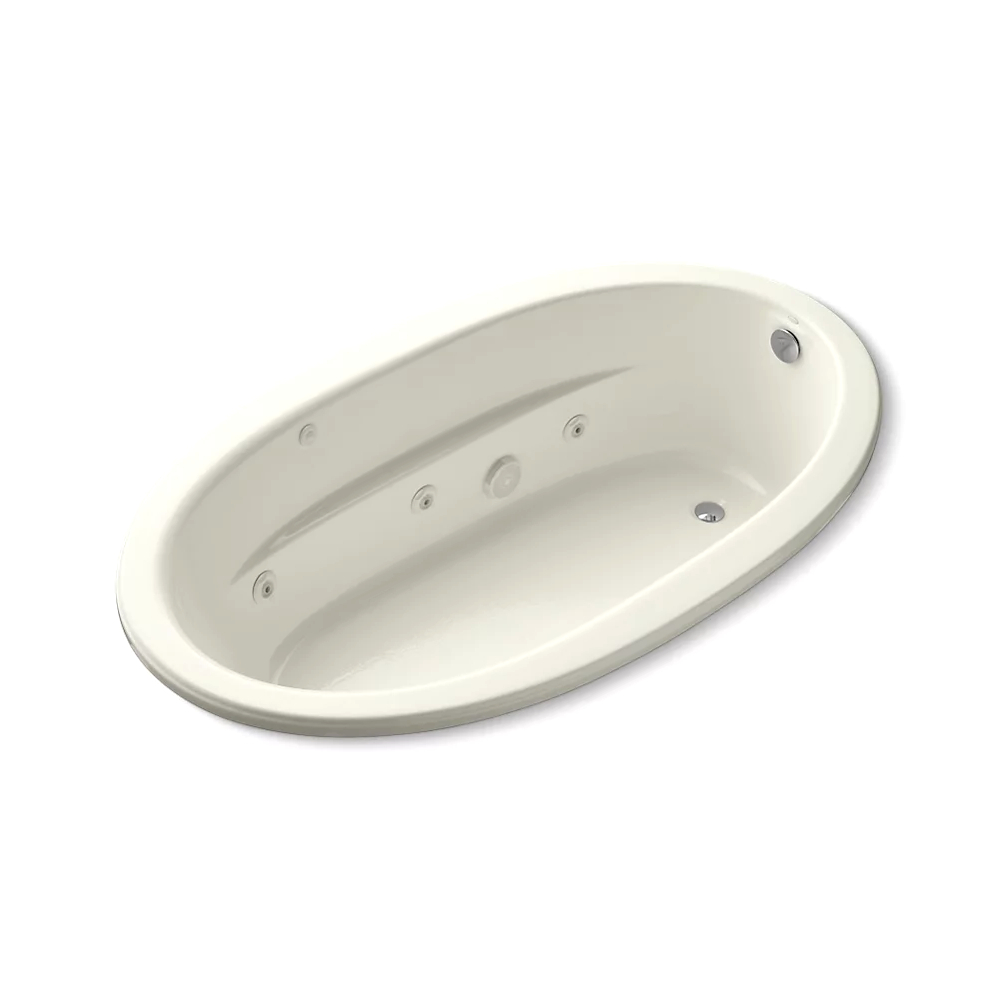

Kohler 1164-W1-96 Sunward 72" x 42" Drop-in Whirlpool Heated Bath Biscuit
Sunward®
72" x 42" drop-in whirlpool bath with Bask® heated surface
K-1164-W1-96
Color/Finish: Biscuit
Stretch out and relax as ribbons of water massage your body. Strong, steady whirlpool jets blast away at sore muscles, allowing you to unwind and rejuvenate. Meanwhile, the heated surface warms your back and neck with adjustable temperature settings to create a soothing, spa-like environment. Sunward's fluid lines convey grace and sophistication.
Features
Bask® heated surface creates spa-like relaxation with soothing warmth on your back, shoulders, and neck
Three heat settings allow you to customize the surface temperature

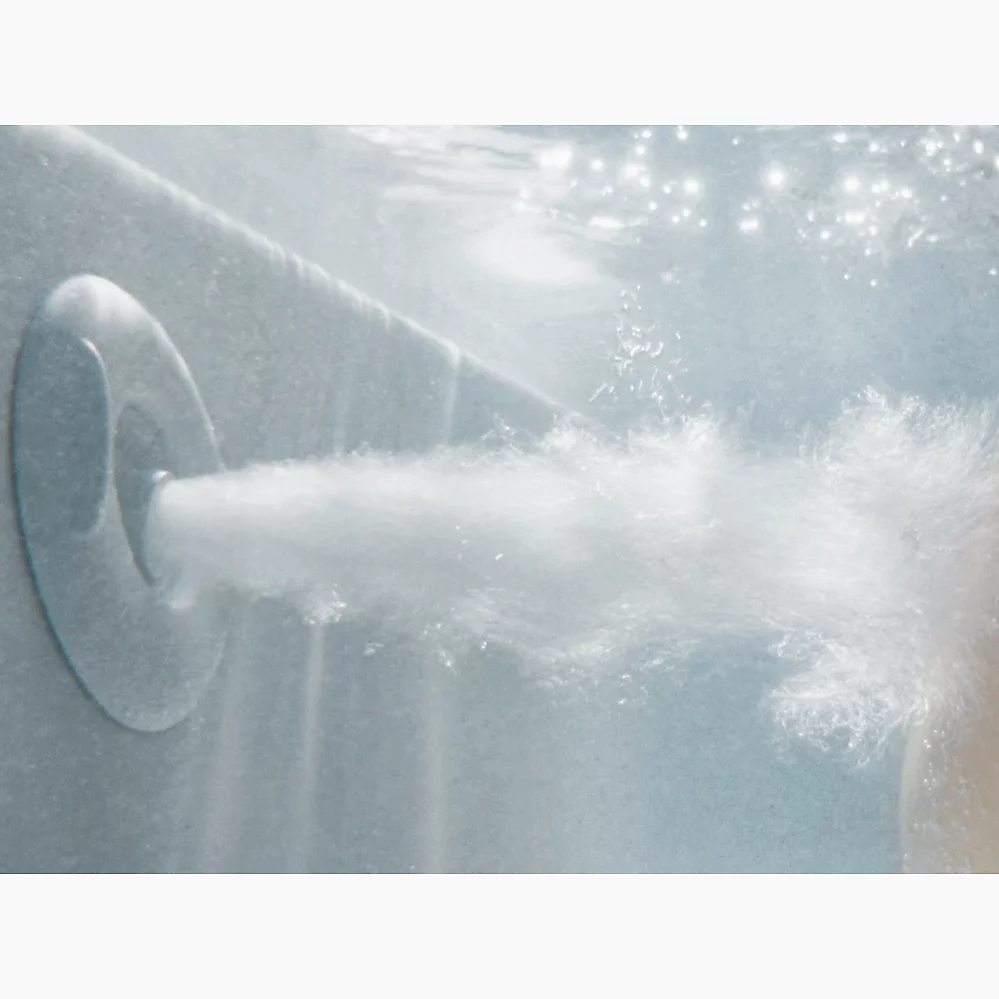

Single-speed whirlpool offers performance and value, with six fully adjustable jets
Hydromassage flow and direction can be controlled at each jet
Oval basin creates a spacious bathing experience
Integral lumbar support and armrests offer extra comfort while bathing
Hydrotherapy
Whirlpool
Material
Acrylic
Installation
Reversible drain
Drop-in or undermount
Recommended Products/Accessories
K-11677 Bath Drain
K-1491 Bath/Whirlpool Pillow
K-1601 Bath/whirlpool footstop, removable
K-577 Under-Mount Installation Kit
K-23726 Drain treatment
1015255 Jet trim kit
Required Electrical Service
One dedicated circuit required, protected with Class A GroundFault Circuit-Interrupter (GFCI). Outside North America, this device may be known as a Residual Current Device (RCD).
Pump, Heated Surface:
120 V, 15 A, 60 Hz

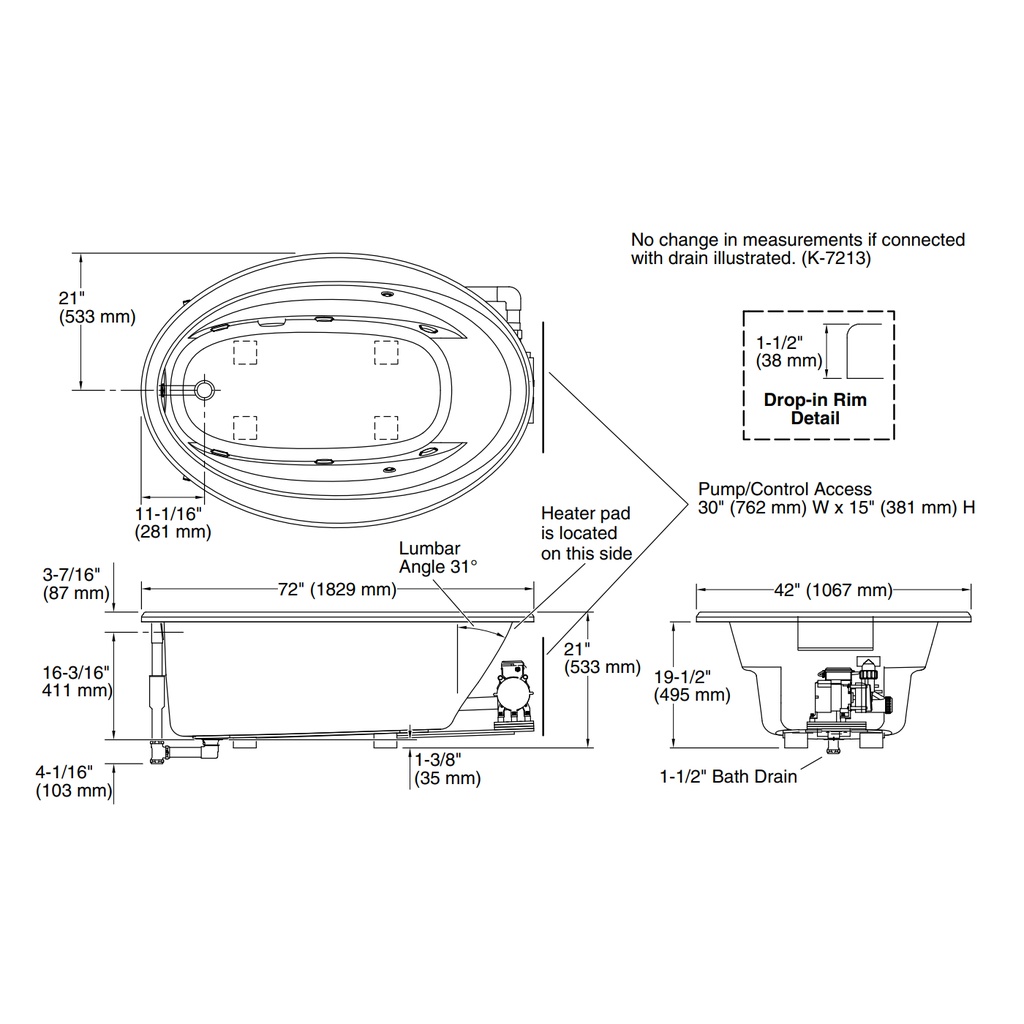

Technical Information
All product dimensions are nominal.
Drain location: Reversible
Basin area, bottom: 55-1/4" x 23-1/2" (1403 mm x 597 mm)
Basin area, top: 64-1/2" x 32" (1638 mm x 813 mm)
Weight: 118 lbs (53.5 kg)
Minimum floor load: 37 lbs/ft² (180.6 kg/m²)
Water depth: 15" (381 mm)
Water capacity: 75 gal (283.9 L)
Template: Drop-in, 1042557-7, required, included
Electrical component rating:
Pump: 120 V, 7 A, 60 Hz
Heated Surface: 120 V, 0.5 A, 60 Hz, 65 W
Pump speed: Single
