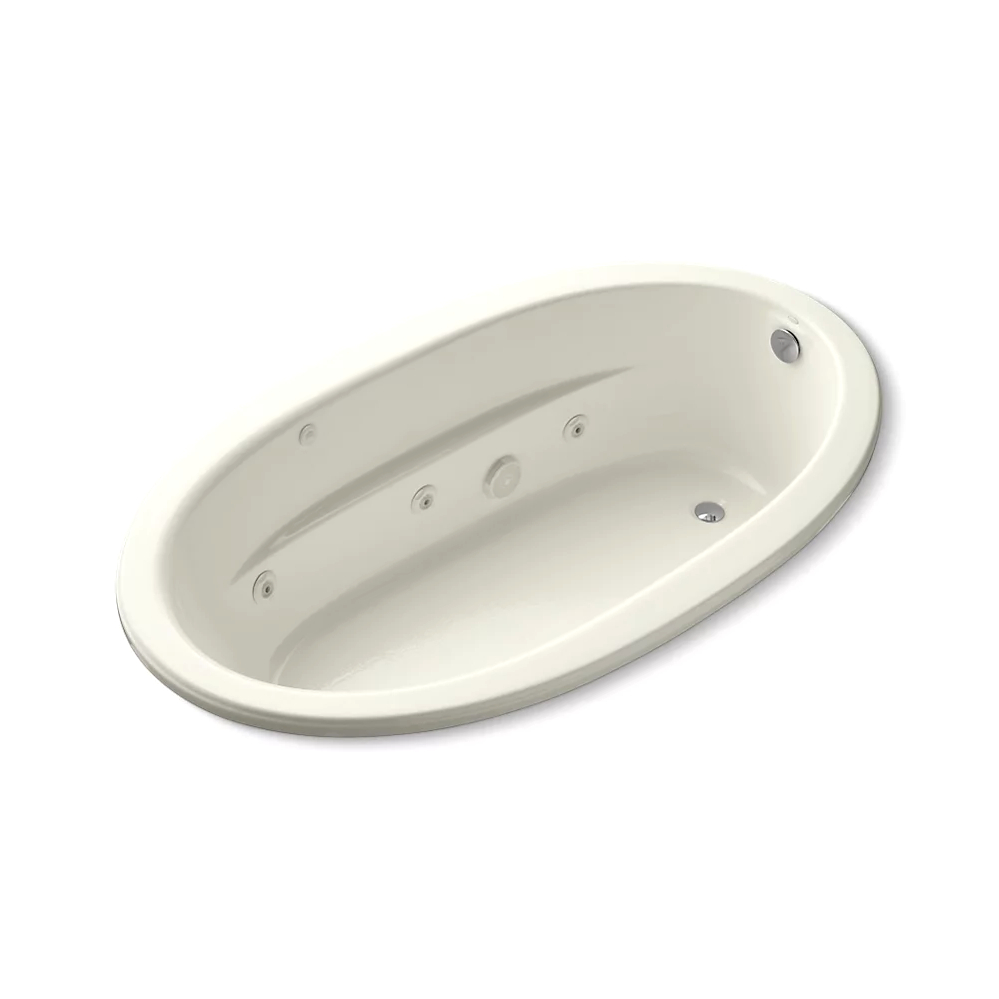

Kohler 1164-S1-96 Sunward 72" x 42" Drop-in Whirlpool Bath Biscuit
Sunward®
72" x 42" drop-in whirlpool bath
K-1164-S1-96
Color/Finish: Biscuit
Surround yourself with the comfortable contours and hydromassage features of the Sunward oval bath. This two-person bath's built-in back support and armrests encourage you to fully sink in, while adjustable whirlpool jets relax away the day's tension.
Features
Single-speed whirlpool offers performance and value, with six fully adjustable jets

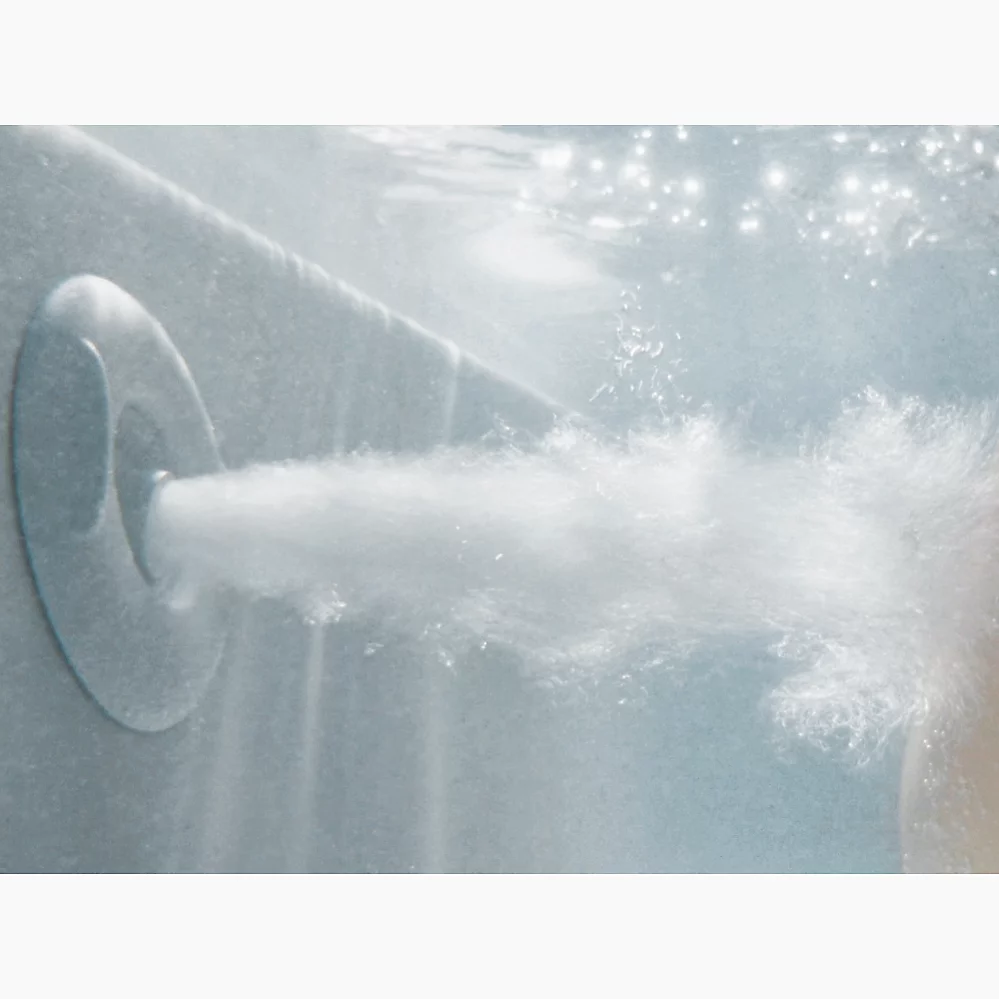

Hydromassage flow and direction can be controlled at each jet
Oval basin creates a spacious bathing experience
Integral lumbar support and armrests offer extra comfort while bathing
Textured bottom surface
Hydrotherapy
Whirlpool
Material
Acrylic
Installation
Reversible drain
Drop-in or undermount
Smooth backside for easy handling and mounting of drain and overflow
Recommended Products/Accessories
K-11677 Bath Drain
K-1491 Bath/Whirlpool Pillow
K-1601 Bath/whirlpool footstop, removable
K-577 Under-Mount Installation Kit
K-23726 Drain treatment
Required Electrical Service
One dedicated circuit required, protected with Class A GroundFault Circuit-Interrupter (GFCI). Outside North America, this device may be known as a Residual Current Device (RCD).
Pump: 120 V, 15 A, 60 Hz

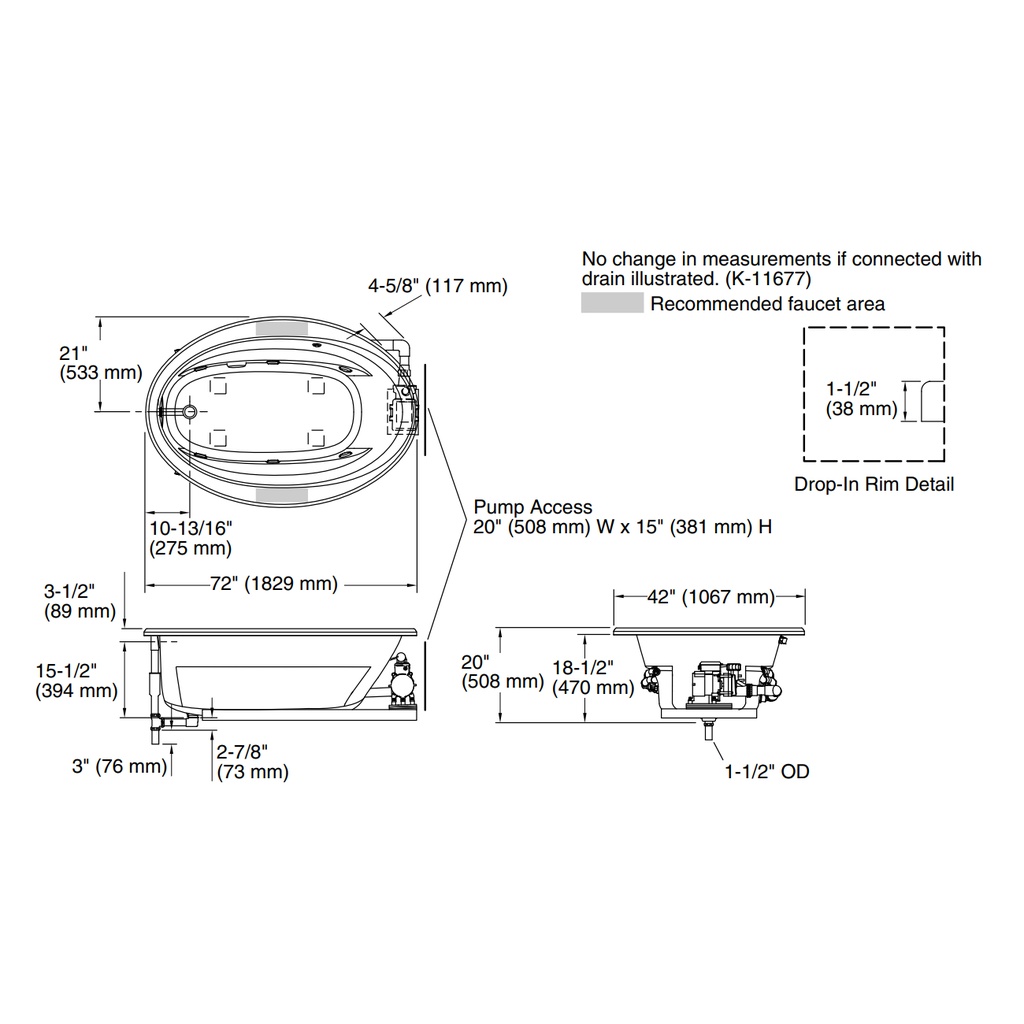

Technical Information
All product dimensions are nominal.
Drain location: Reversible
Basin area, bottom: 55-1/4" x 23-1/2" (1403 mm x 597 mm)
Basin area, top: 64-1/2" x 32" (1638 mm x 813 mm)
Weight: 110 lbs (49.9 kg)
Minimum floor load: 36 lbs/ft² (175.8 kg/m²)
Water depth: 15" (381 mm)
Water capacity: 75 gal (283.9 L)
Template: Drop-in, 1042557-7, required, included
Electrical component rating:
Pump: 120 V, 7.5 A, 60 Hz
Pump speed: Single
