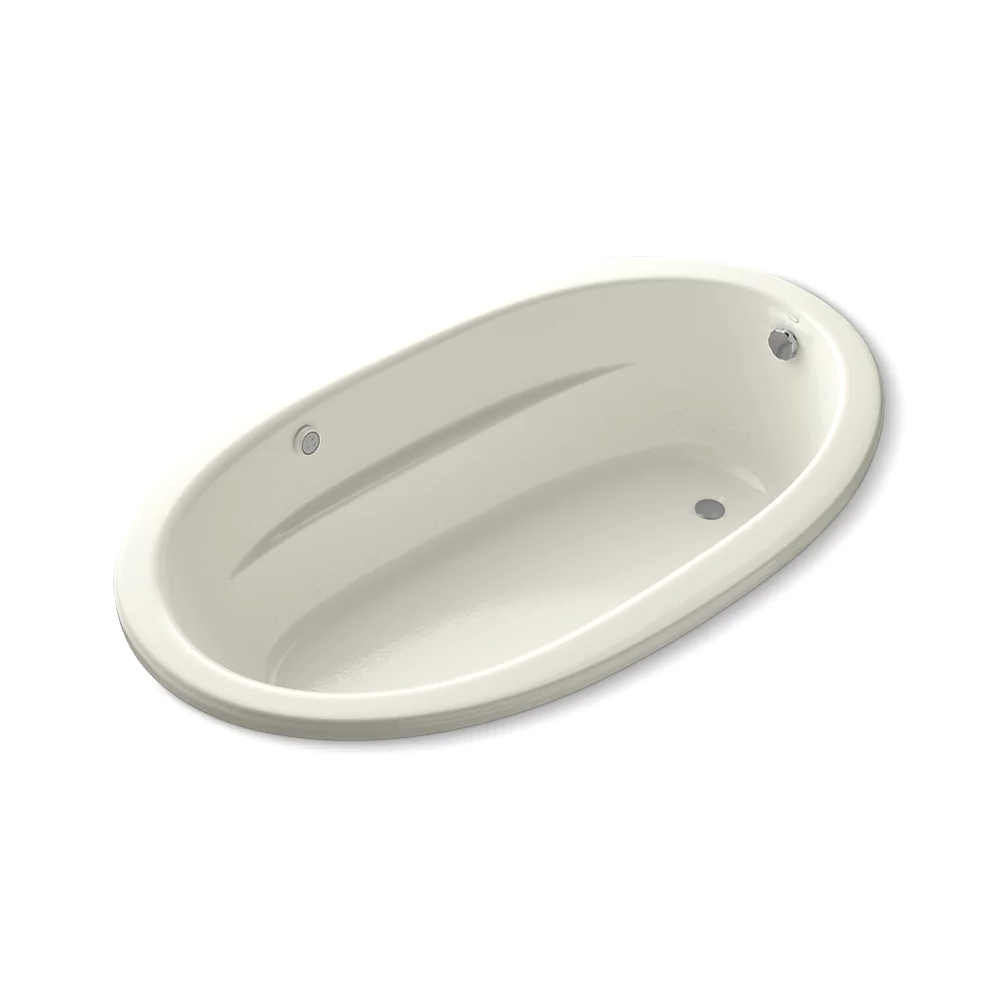

Kohler 1164-GHW-96 Sunward 72" x 42" Drop-in Heated Bubble Massage Air Bath Biscuit
Sunward®
72" x 42" drop-in Heated BubbleMassage™ air bath with Bask® heated surface
K-1164-GHW-96
Color/Finish: Biscuit
Surround yourself with the comfortable contours of the Sunward Heated Bubblemassage™ oval air bath. Built-in heated back support and armrests allow you to fully sink into the moment, as strong, steady heated whirlpool jets target sore muscles. Designed to turn any bathing area into a relaxing retreat, this bath's fluid lines convey grace and sophistication.
Features
120 airjets release thousands of heated bubbles that surround and support the body in a warm massage
Variable-speed blower lets you adjust massage intensity to 18 levels
Bask® heated surface creates spa-like relaxation with soothing warmth on your back, shoulders, and neck
Built-in heater
Automatic and manual purge cycles remove residual water from air channels after use
60-minute automatic shutoff timer
Oval basin creates a spacious bathing experience
Spacious design accommodates up to two bathers
Integral lumbar support and armrests offer extra comfort while bathing
Keypad control
Textured bottom surface
Technology
Heated BubbleMassage™ technology warms and humidifies air before it enters the bath
Material
Acrylic
Installation
Drop-in or undermount
Reversible drain
120 V electrical requirement allows for easy installation with standard outlet
Requires two dedicated circuits
Recommended Products/Accessories
K-11677 Bath Drain
K-1491 Bath/Whirlpool Pillow
K-1601 Bath/whirlpool footstop, removable
K-577 Under-Mount Installation Kit
K-1446 Remote Installation Kit
K-7213 27" Cable Bath Drain
K-7214 27" Cable Bath Drain
K-7259 Brass toe tap bath drain
Required Electrical Service
Two dedicated circuits required, protected with Class A GroundFault Circuit-Interrupter (GFCI). Outside North America, this device may be known as a Residual Current Device (RCD).
Blower, Heated Surface:
120 V, 15 A, 60 Hz
Air bath: 120 V, 15 A, 60 Hz

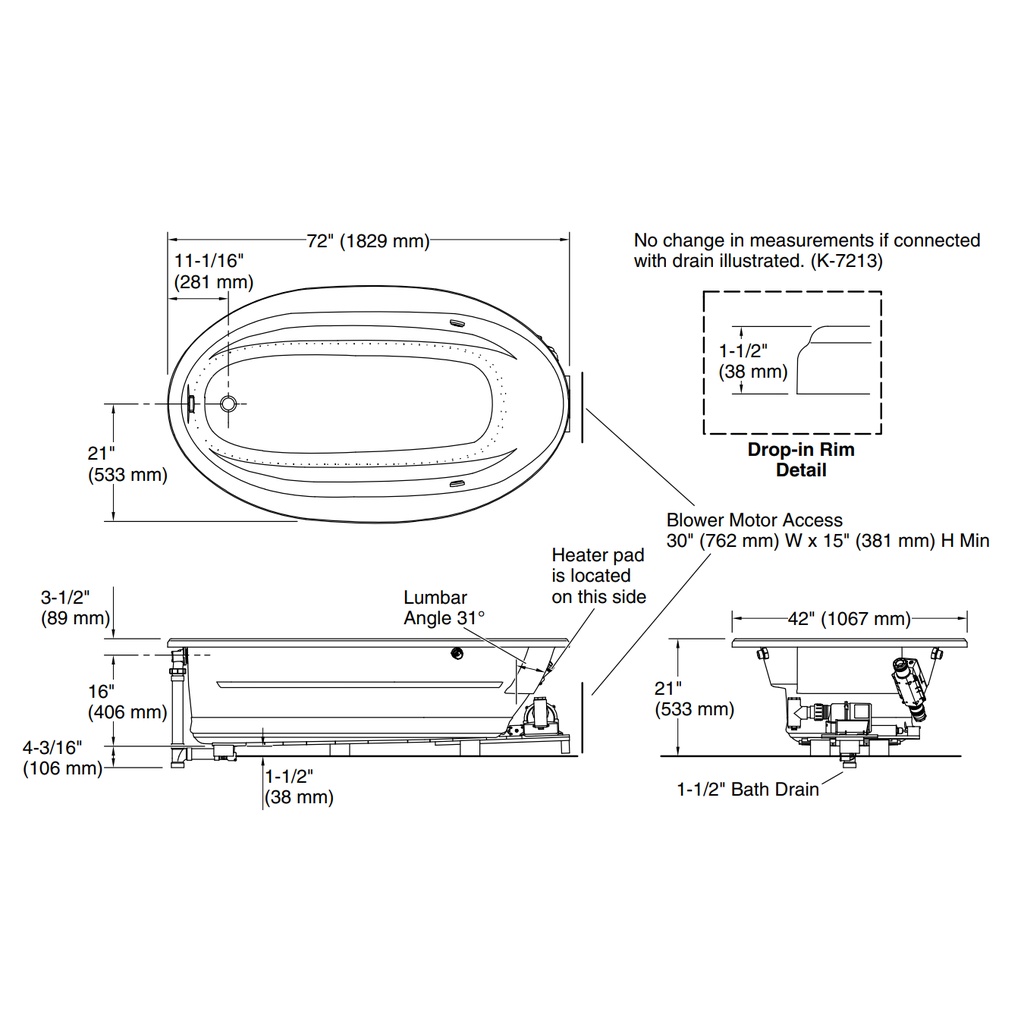

Technical Information
All product dimensions are nominal.
Drain location: Reversible
Basin area, bottom: 55-1/4" x 23-1/2" (1403 mm x 597 mm)
Basin area, top: 64-1/2" x 32" (1638 mm x 813 mm)
Weight: 174.5 lbs (79.2 kg)
Minimum floor load: 37 lbs/ft² (180.6 kg/m²)
Water depth: 15" (381 mm)
Water capacity: 75 gal (283.9 L)
Template: Drop-in, 1042557-7, required, included
Electrical component rating:
Blower: 120 V, 10 A, 60 Hz
Heated Surface: 120 V, 0.5 A, 60 Hz, 65 W
