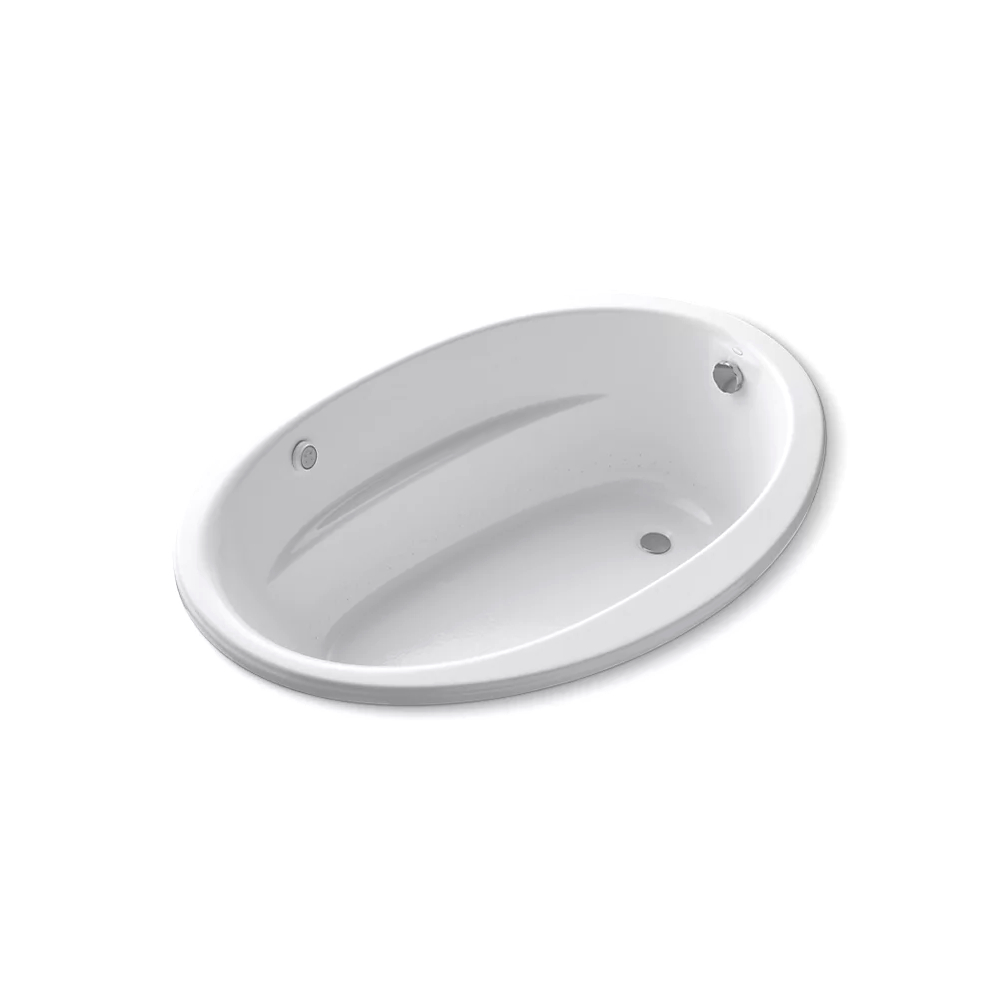

Kohler 1162-GH-0 Sunward 60" x 42" Drop-in Heated Bubble Massage Air Bath White
Sunward®
60" x 42" drop-in Heated BubbleMassage™ air bath
K-1162-GH-0
Color/Finish: White
Surround yourself with the comfortable contours of the Sunward Heated Bubblemassage™ oval air bath. Built-in back support and armrests allow you to fully sink into the moment, as strong, steady heated whirlpool jets target sore muscles. Designed to turn any bathing area into a relaxing retreat, this bath's fluid lines convey grace and sophistication.
Features
120 airjets release thousands of heated bubbles that surround and support the body in a warm massage
Variable-speed blower lets you adjust massage intensity to 18 levels
Built-in heater
Automatic and manual purge cycles remove residual water from air channels after use
60-minute automatic shutoff timer
Oval basin creates a spacious bathing experience
Integral lumbar support and armrests offer extra comfort while bathing
Keypad control
Textured bottom surface
Technology
Heated BubbleMassage™ technology warms and humidifies air before it enters the bath
Material
Acrylic
Installation
Drop-in or undermount
Reversible drain
120 V electrical requirement allows for easy installation with standard outlet
Requires two dedicated circuits
Recommended Products/Accessories
K-11677 Bath Drain
K-576 Undermount installation kit for K-1162/K-1163 baths
K-1446 Remote Installation Kit
K-1491 Bath/Whirlpool Pillow
K-1601 Bath/whirlpool footstop, removable
K-7213 27" Cable Bath Drain
K-7214 27" Cable Bath Drain
K-7265 Brass toe tap bath drain
Required Electrical Service
Two dedicated circuits required, protected with Class A GroundFault Circuit-Interrupter (GFCI). Outside North America, this device may be known as a Residual Current Device (RCD).
Blower: 120 V, 15 A, 60 Hz
Air bath: 120 V, 15 A, 60 Hz

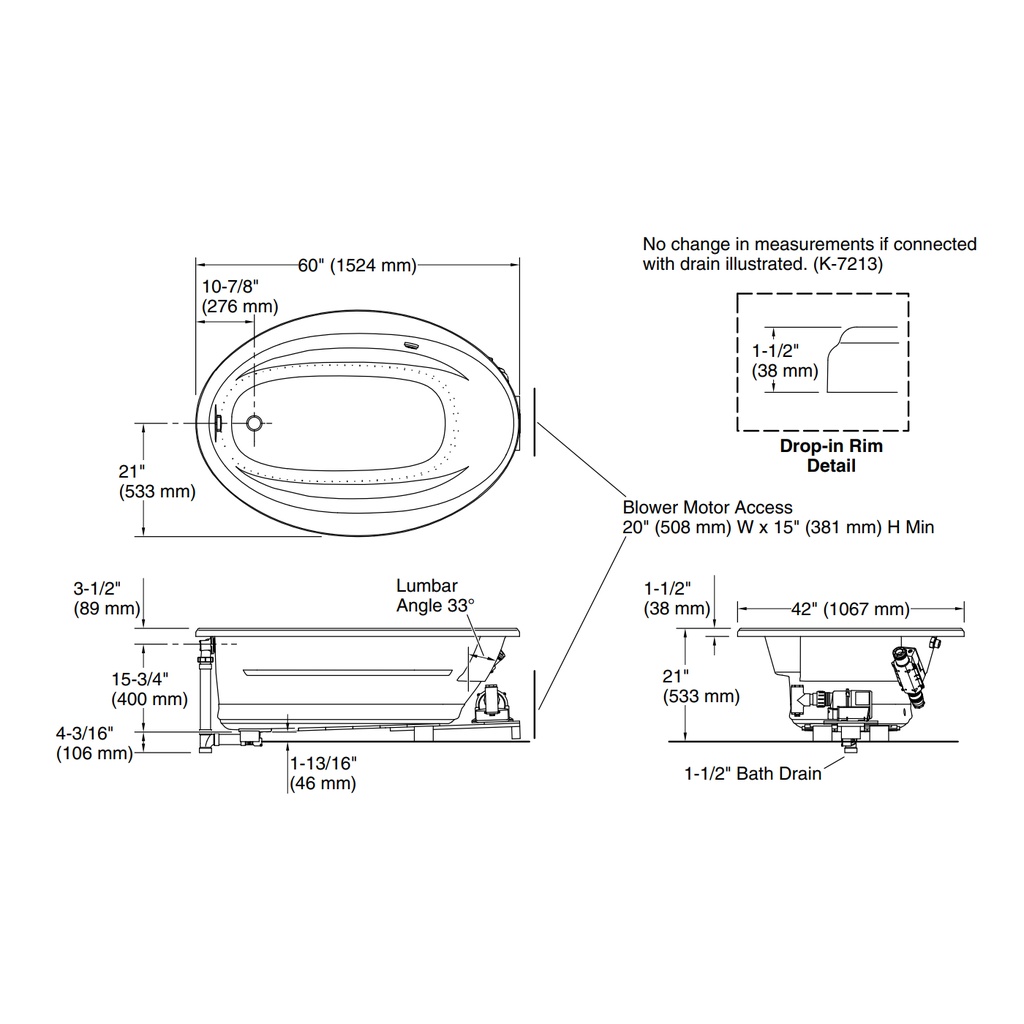

Technical Information
All product dimensions are nominal.
Drain location: Reversible
Basin area, bottom: 43" x 21-9/16" (1092 mm x 548 mm)
Basin area, top: 53-1/2" x 32-1/8" (1359 mm x 816 mm)
Weight: 146 lbs (66.2 kg)
Minimum floor load: 35 lbs/ft² (170.9 kg/m²)
Water depth: 15" (381 mm)
Water capacity: 57 gal (215.8 L)
Template: Drop-in, 1042556-7, required, included
Electrical component rating:
Blower: 120 V, 10 A, 60 Hz
Air bath: 120 V, 5 A, 60 Hz
