Kohler 1137-96 Underscore Contemporary 72" x 42" Drop-in Bath Biscuit
Underscore®
72" x 42" drop-in bath
K-1137-96
Color/Finish: Biscuit
Streamlined for simplicity, the Underscore bath exudes refined style with contemporary flair. A slotted overflow drain allows for a luxuriously deep bath as you relax against the comfortable sloped backrest.
Features
Spacious design accommodates up to two bathers
Integral lumbar support

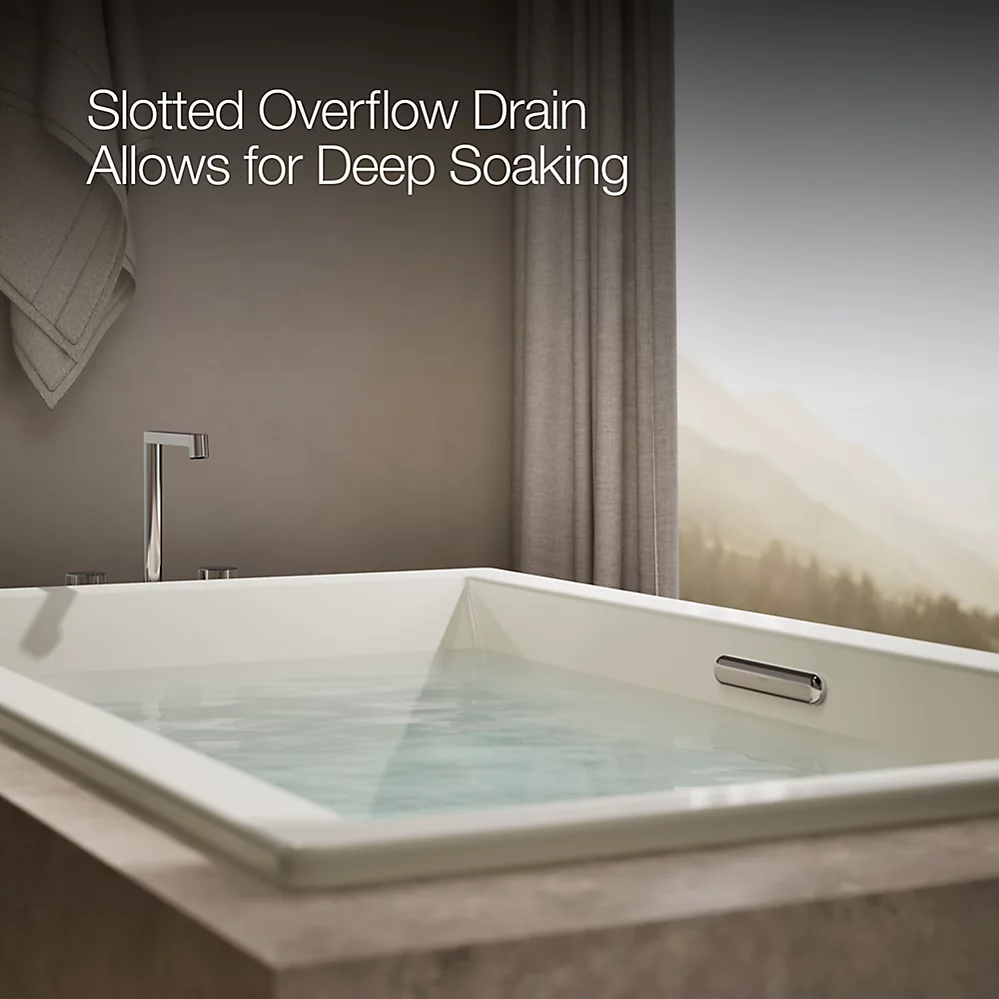

Slotted overflow allows for deep soaking
Material
Acrylic
Installation
Center drain
Drop-in or undermount
Required Products/Accessories
K-7271 Brass Slotted Overflow Bath Drain
K-7272 PVC Slotted Overflow Bath Drain
Technical Information
All product dimensions are nominal.
Drain location: Center
Basin area, bottom: 45-3/4" x 32" (1162 mm x 813 mm)
Basin area, top: 66" x 36" (1676 mm x 914 mm)
Weight: 85 lbs (38.6 kg)
Minimum floor load: 60 lbs/ft² (292.9 kg/m²)
Water depth: 19" (483 mm)
Water capacity: 139 gal (526.2 L)
Cutout: Drop-in, 70-1/2" x 40-1/2" (1791 mm x 1029 mm)
Minimum flat for door: 2-7/16" (61 mm)
