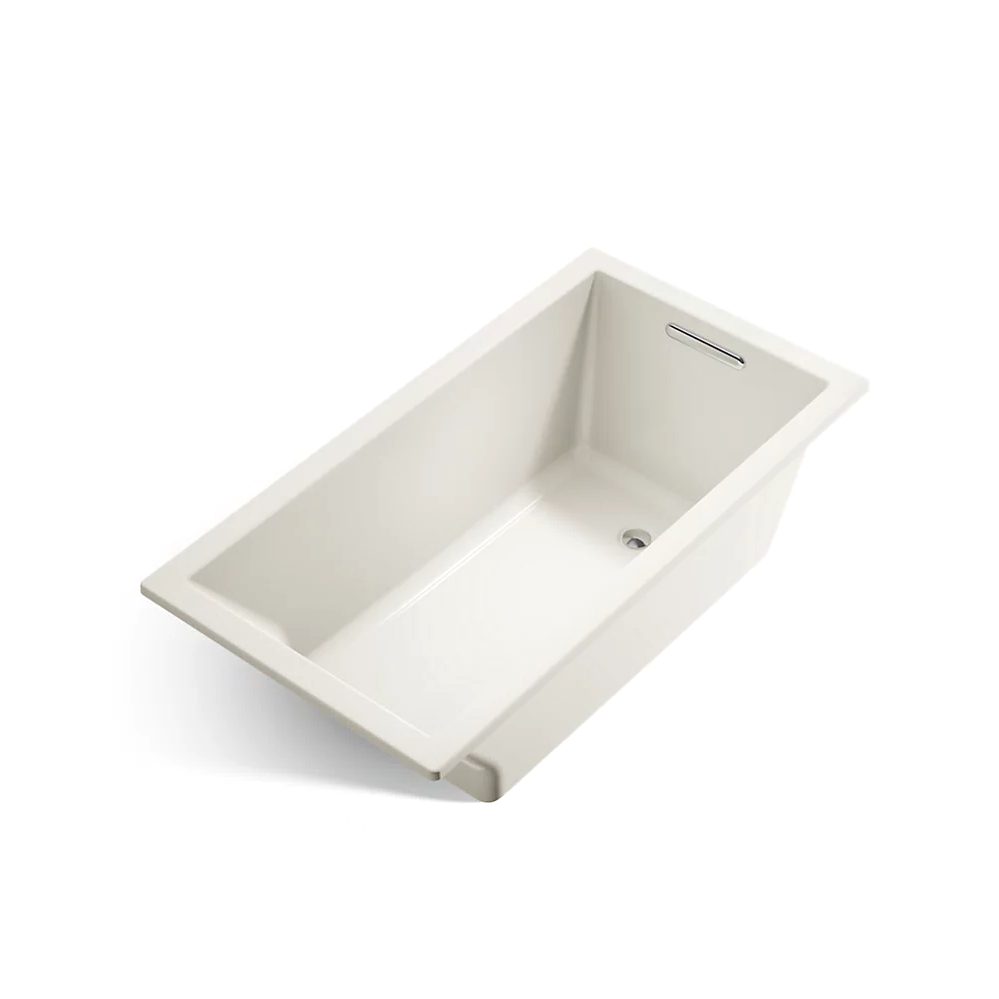

Kohler 1130-96 Underscore Contemporary 60" x 32" Drop-in Bath Biscuit
Underscore®
60" x 32" drop-in bath
K-1130-96
Color/Finish: Biscuit
Streamlined for simplicity, the Underscore bath exudes refined style with contemporary flair. A slotted overflow drain allows for a luxuriously deep bath as you relax against the comfortable sloped backrest.
Features
Integral lumbar support

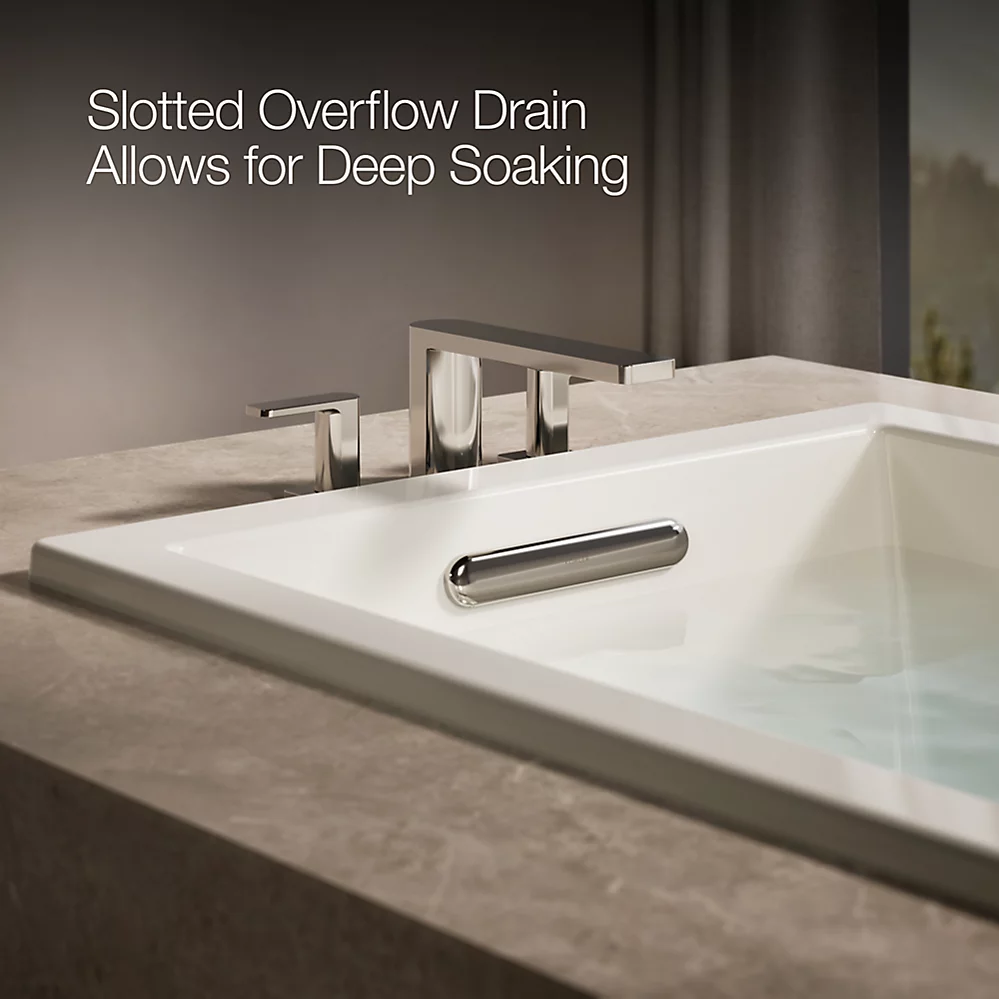

Slotted overflow allows for deep soaking

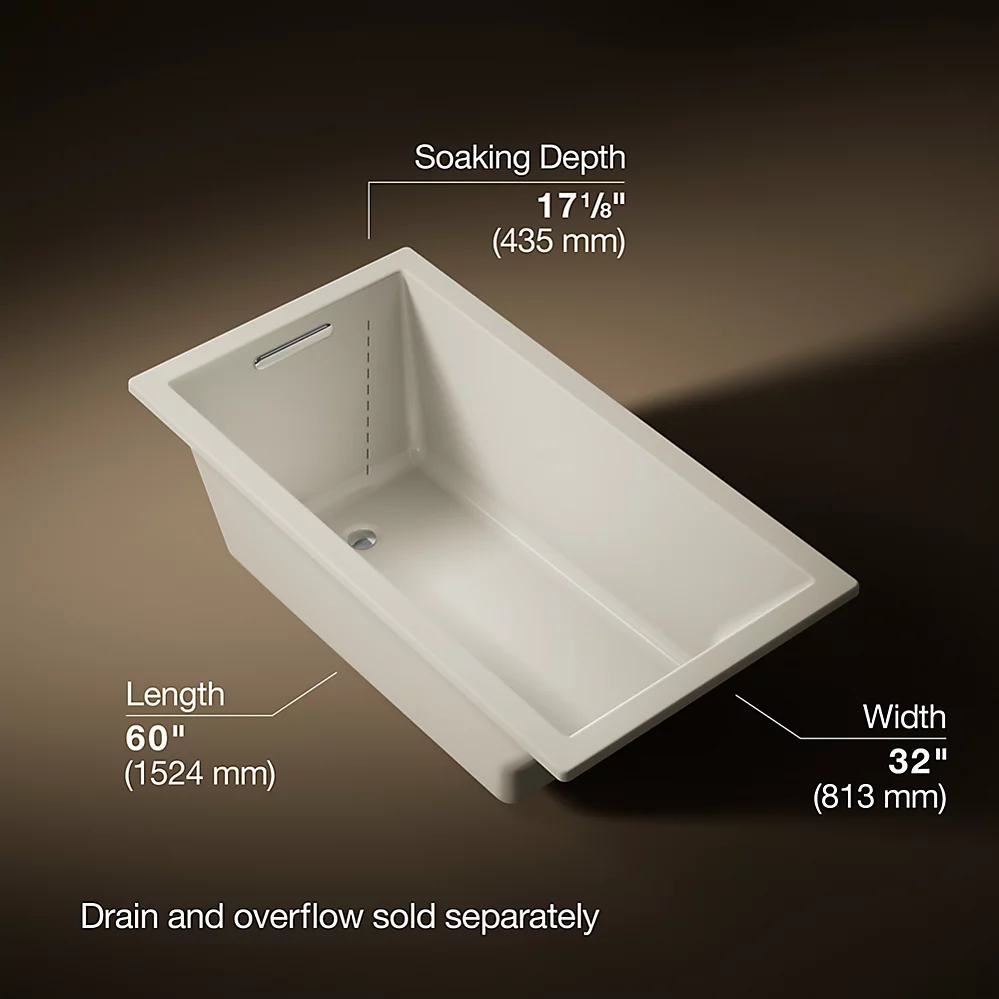

60" (1524 mm) x 32" (813 mm) x 21" (533 mm)
Material
Acrylic
Installation
Drop-in or undermount
Reversible drain
Required Products/Accessories
K-7271 Brass Slotted Overflow Bath Drain
K-7272 PVC Slotted Overflow Bath Drain

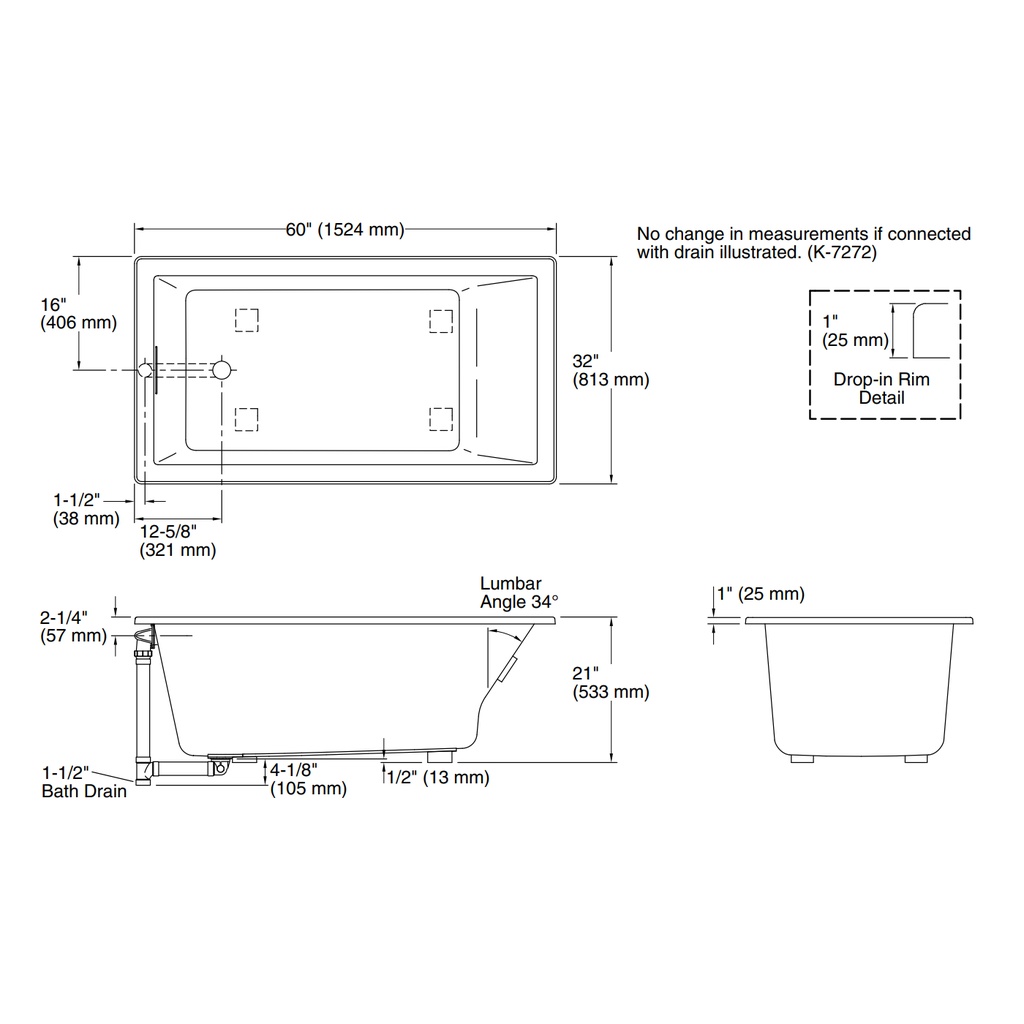

Technical Information
All product dimensions are nominal.
Drain location: Reversible
Basin area, bottom: 42" x 23-1/2" (1067 mm x 597 mm)
Basin area, top: 55-1/8" x 27-1/8" (1400 mm x 689 mm)
Weight: 75 lbs (34 kg)
Minimum floor load: 58 lbs/ft² (283.2 kg/m²)
Water depth: 17-1/8" (435 mm)
Water capacity: 81 gal (306.6 L)
Cutout: Drop-in, 58-1/2" x 30-1/2" (1486 mm x 775 mm)
Minimum flat for door: 2" (51 mm)
