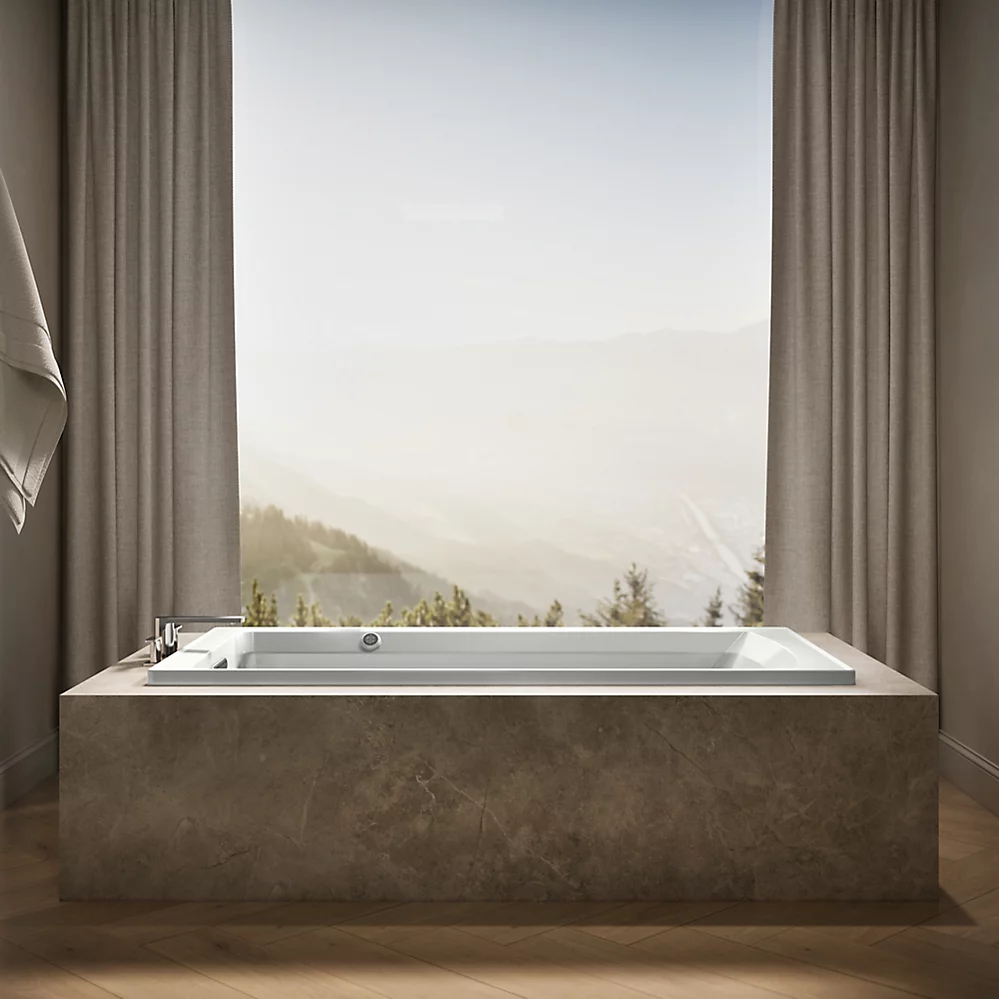

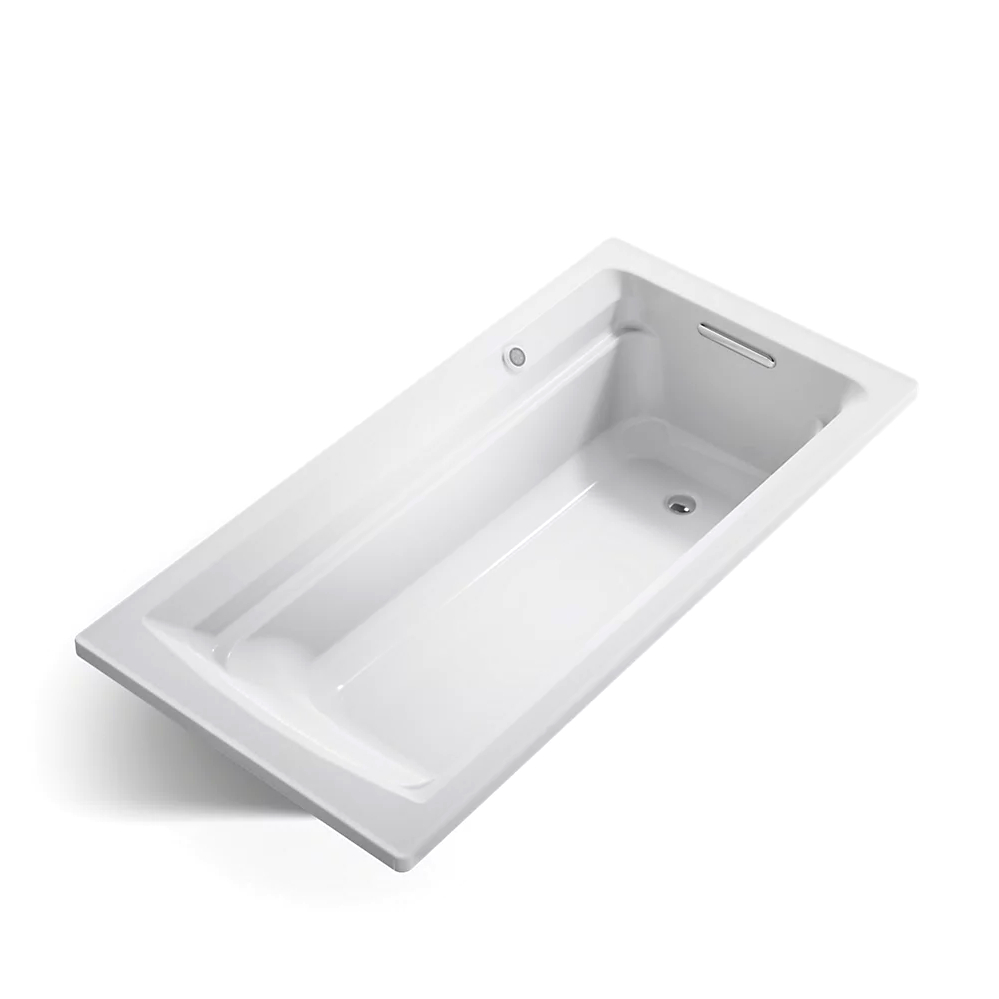

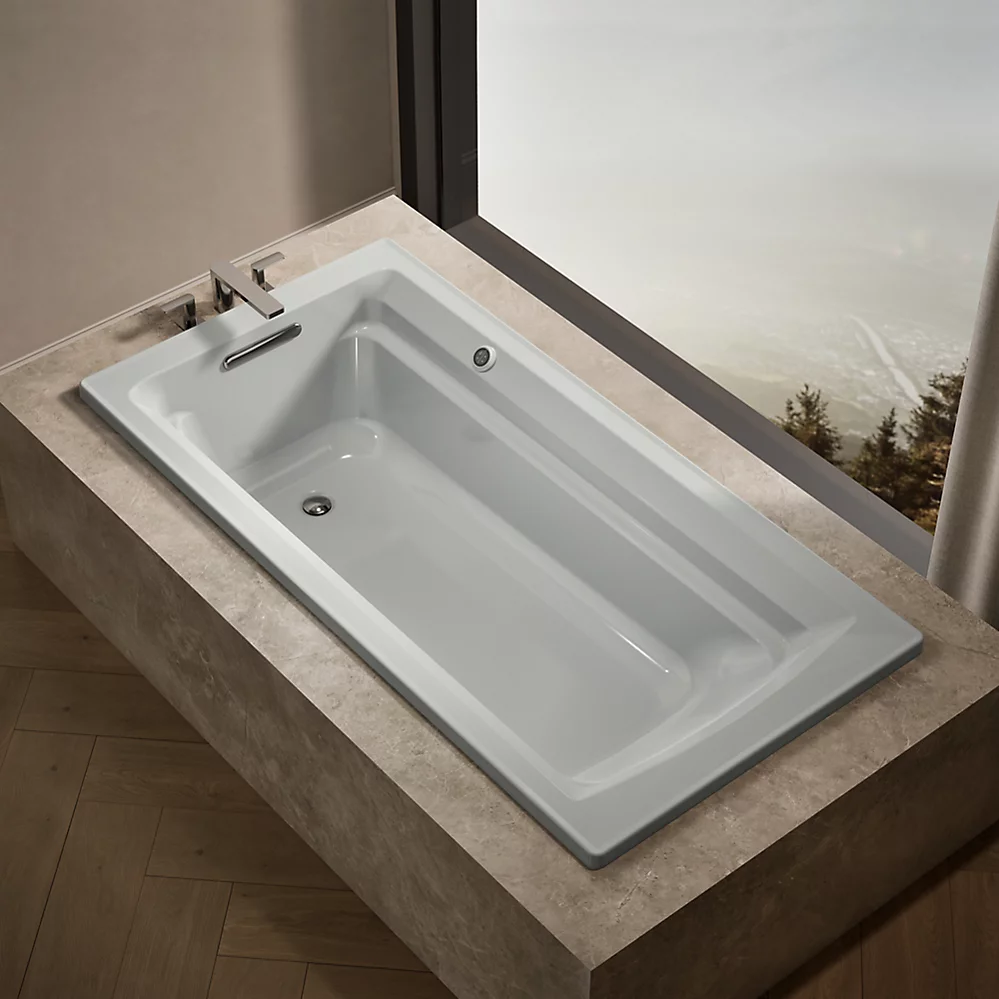

Kohler 1125-W1-95 Archer 72" x 36" Drop-in Bath With Heated Surface Ice Grey
Archer®
72" x 36" drop-in bath with Bask® heated surface
K-1125-W1-95
Color/Finish: Ice Grey
Taking its design cues from traditional Craftsman furniture, the Archer line of baths reveals beveled edges and curved bases for a clean, sophisticated style. This bath's heated surface warms the back and neck with adjustable temperature settings to create a soothing, spa-like environment. A low step-over height offers easy access while allowing deep, comfortable soaking. A lumbar arch gently support the natural curves of your body.
Features
Bask® heated surface creates spa-like relaxation with soothing warmth on your back, shoulders, and neck
Three heat settings allow you to customize the surface temperature
Comfort Depth® design offers a convenient 19" step-over height while retaining the same depth as a standard 21" bath
Generous length provides a spacious bathing area
Integral lumbar support

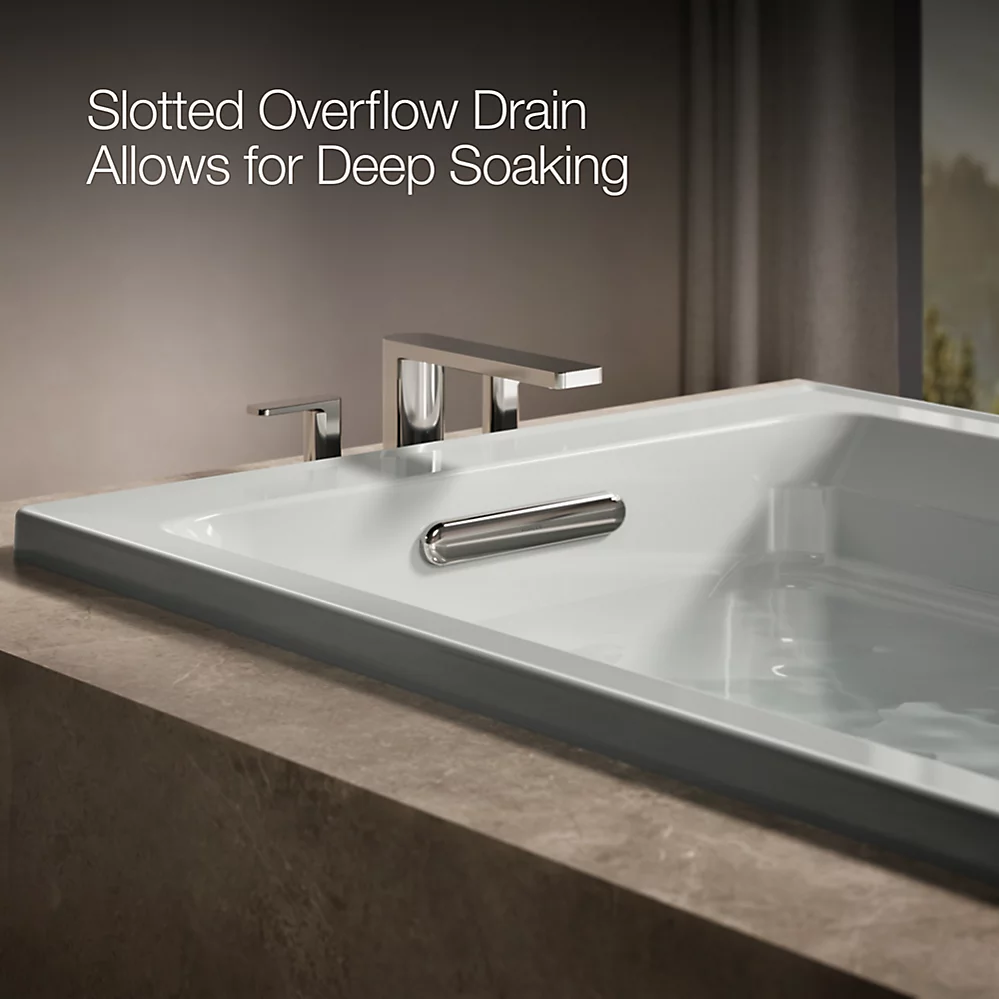

Slotted overflow allows for deep soaking
Textured bottom surface
Coordinates with other products in the Archer collection
Material
Acrylic
Installation
Reversible drain
Drop-in
Required Products/Accessories
K-7271 Brass Slotted Overflow Bath Drain
K-7272 PVC Slotted Overflow Bath Drain
Required Electrical Service
One circuit required, protected with Class A Ground-Fault
Circuit-Interrupter (GFCI). Outside North America, this device may be known as a Residual Current Device (RCD).
Heated Surface: 120 V, 15 A

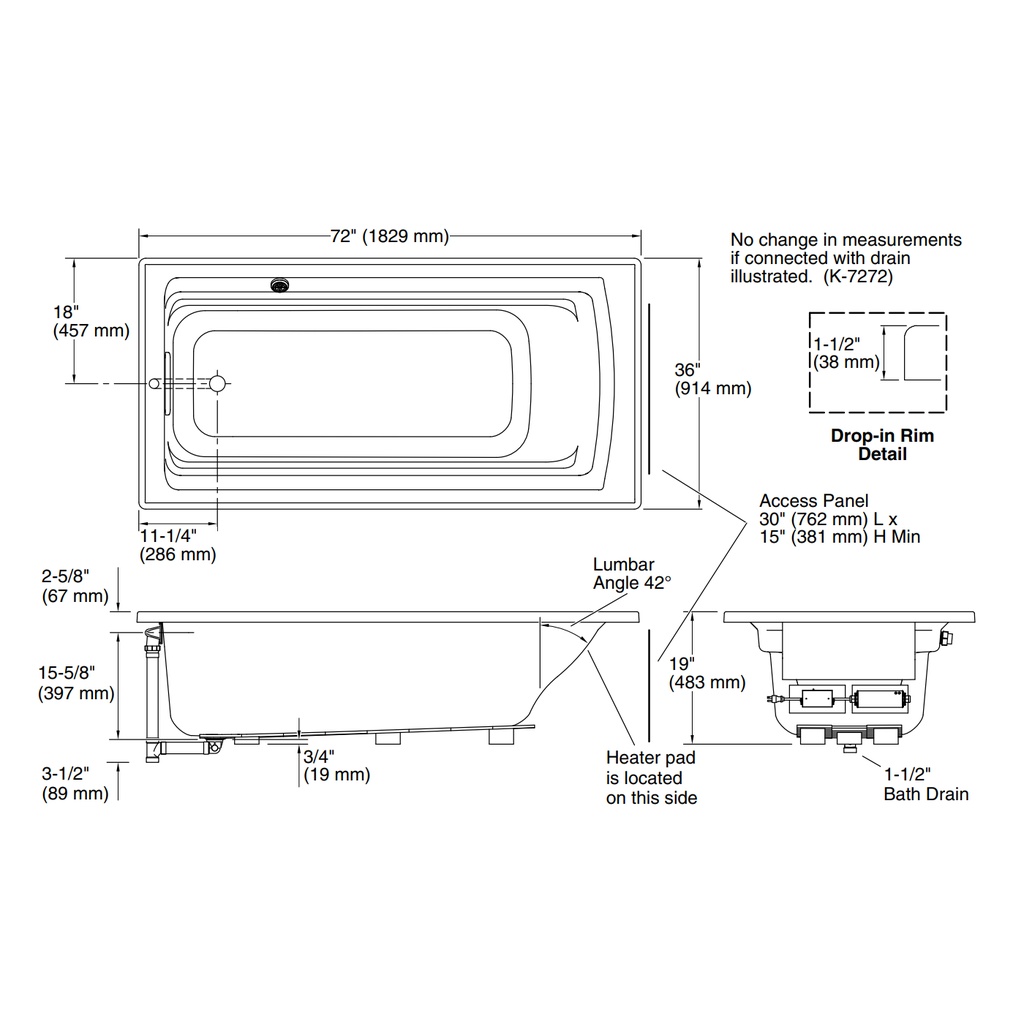

Technical Information
All product dimensions are nominal.
Drain location: Reversible

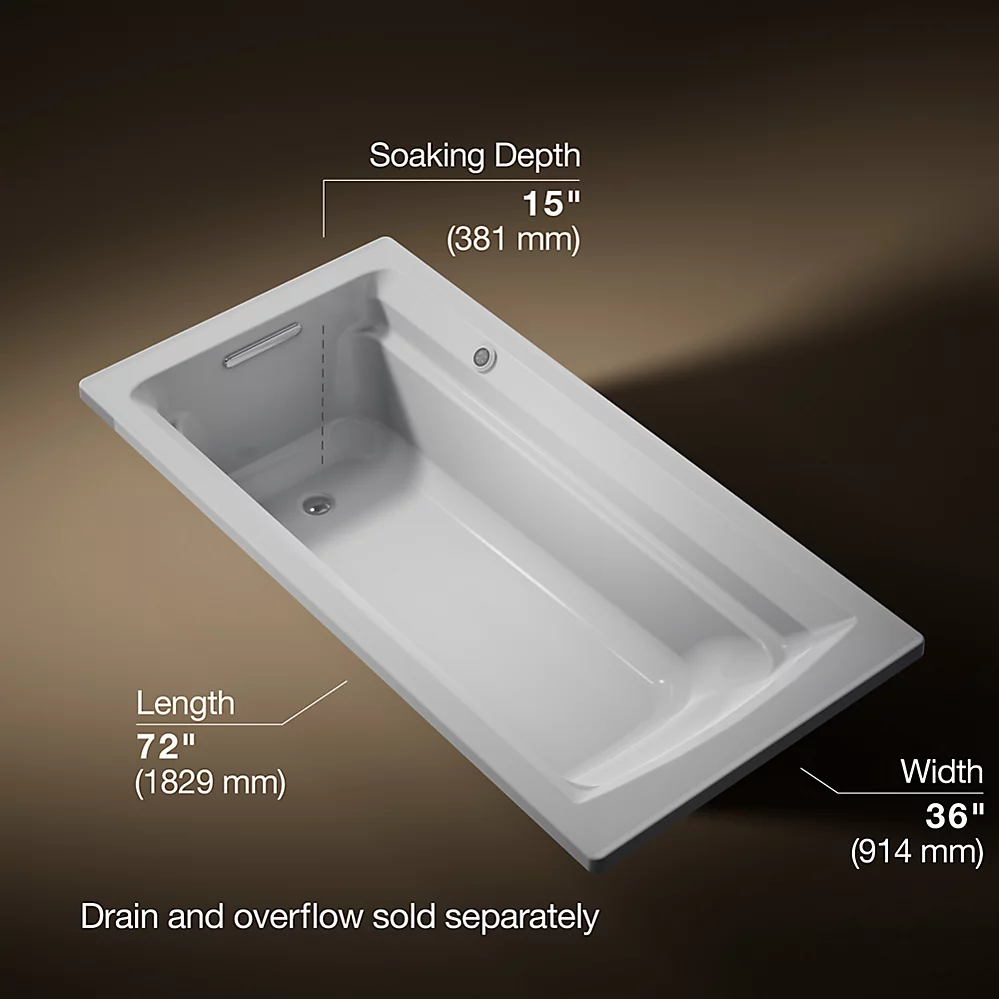

Basin area, bottom: 51-3/8" x 21" (1305 mm x 533 mm)
Basin area, top: 64-1/2" x 30-1/2" (1638 mm x 775 mm)
Weight: 70 lbs (31.8 kg)
Minimum floor load: 40 lbs/ft² (195.3 kg/m²)
Water depth: 15" (381 mm)
Water capacity: 72 gal (272.5 L)
Cutout: Drop-in, 70-1/2" x 34-1/2" (1791 mm x 876 mm)
Electrical component rating:
Heated Surface: 120 V, 0.5 A, 60 Hz, 65 W
Minimum flat for door: 1-9/16" (40 mm)
