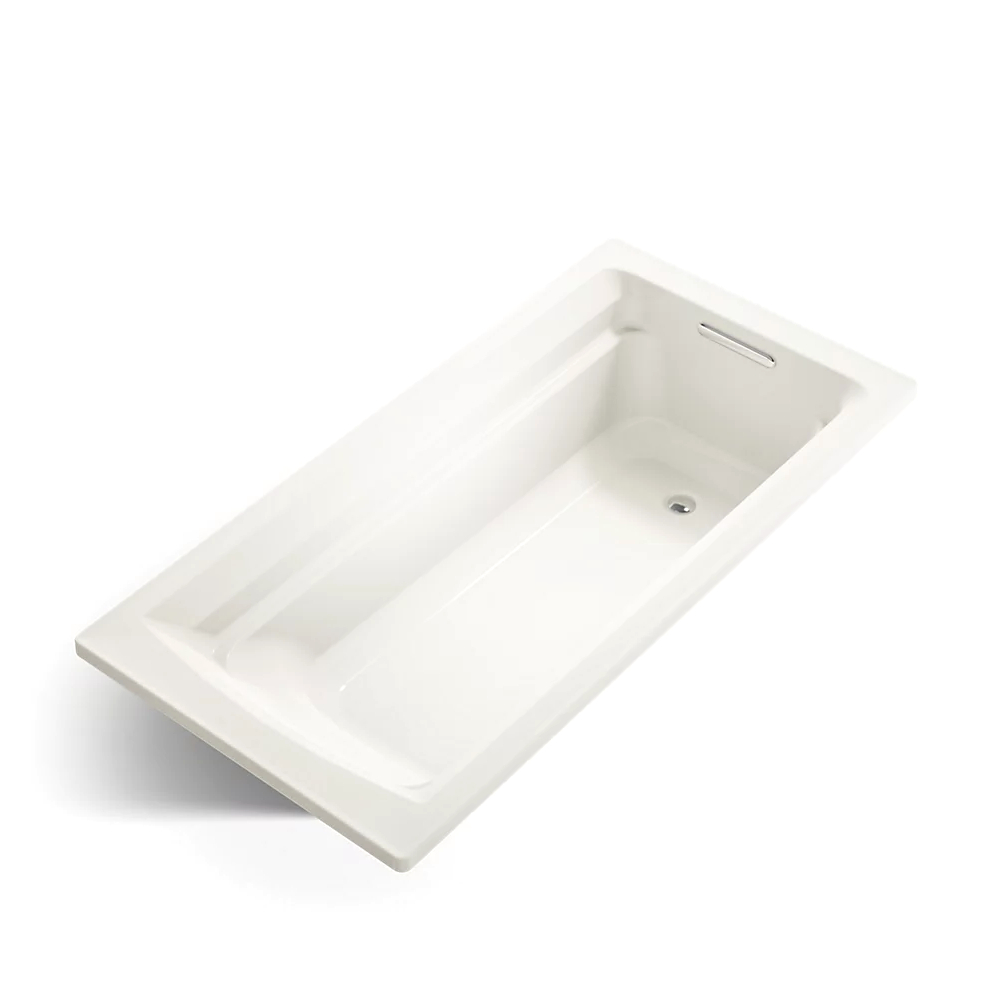

Kohler 1125-96 Archer 72" x 36" Drop-in Bath Biscuit
Archer®
72" x 36" drop-in bath
K-1125-96
Color/Finish: Biscuit
Taking its design cues from traditional Craftsman furniture, the Archer line of baths reveals beveled edges and curved bases for a clean, sophisticated style. This bath offers a low step-over height while allowing for deep, comfortable soaking. Lumbar arch gently support the natural curves of your body.
Features
Comfort Depth® design offers a convenient 19" step-over height while retaining the same depth as a standard 21" bath
Generous length provides a spacious bathing area
Integral lumbar support

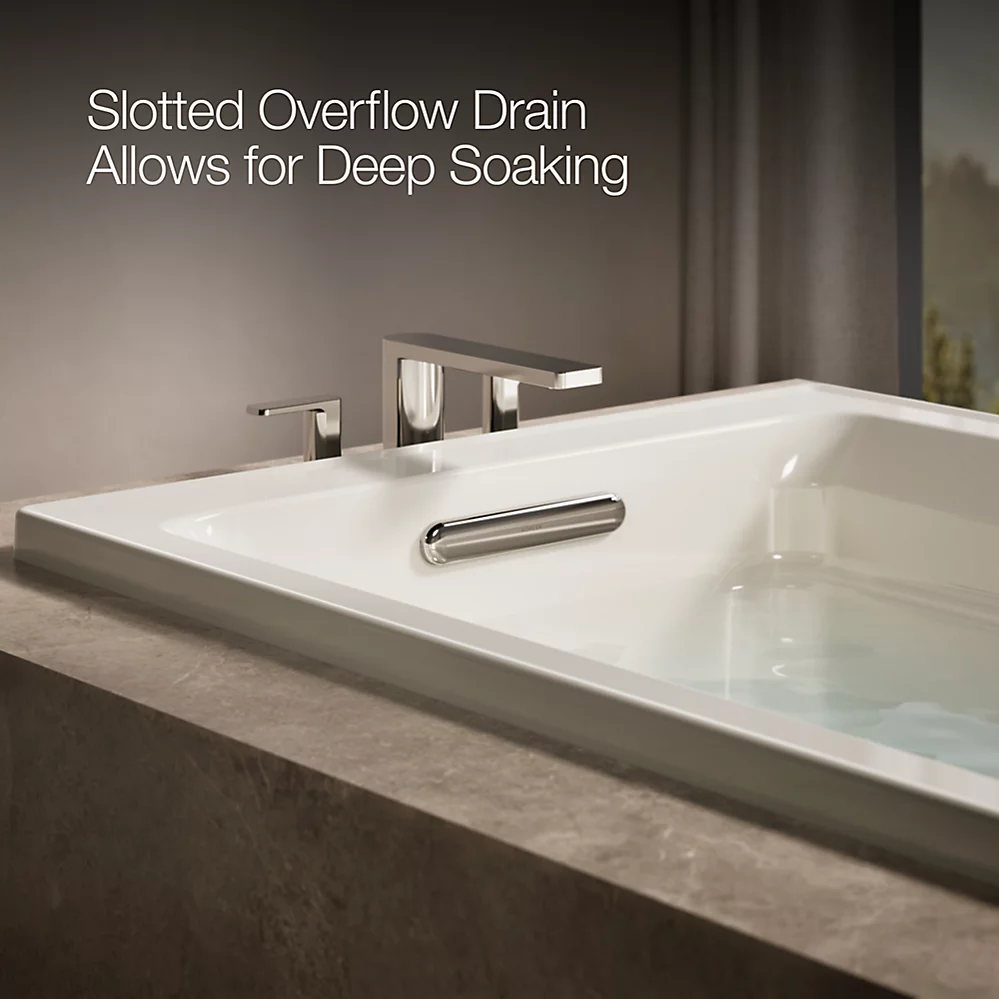

Slotted overflow allows for deep soaking
Textured bottom surface
Coordinates with other products in the Archer collection

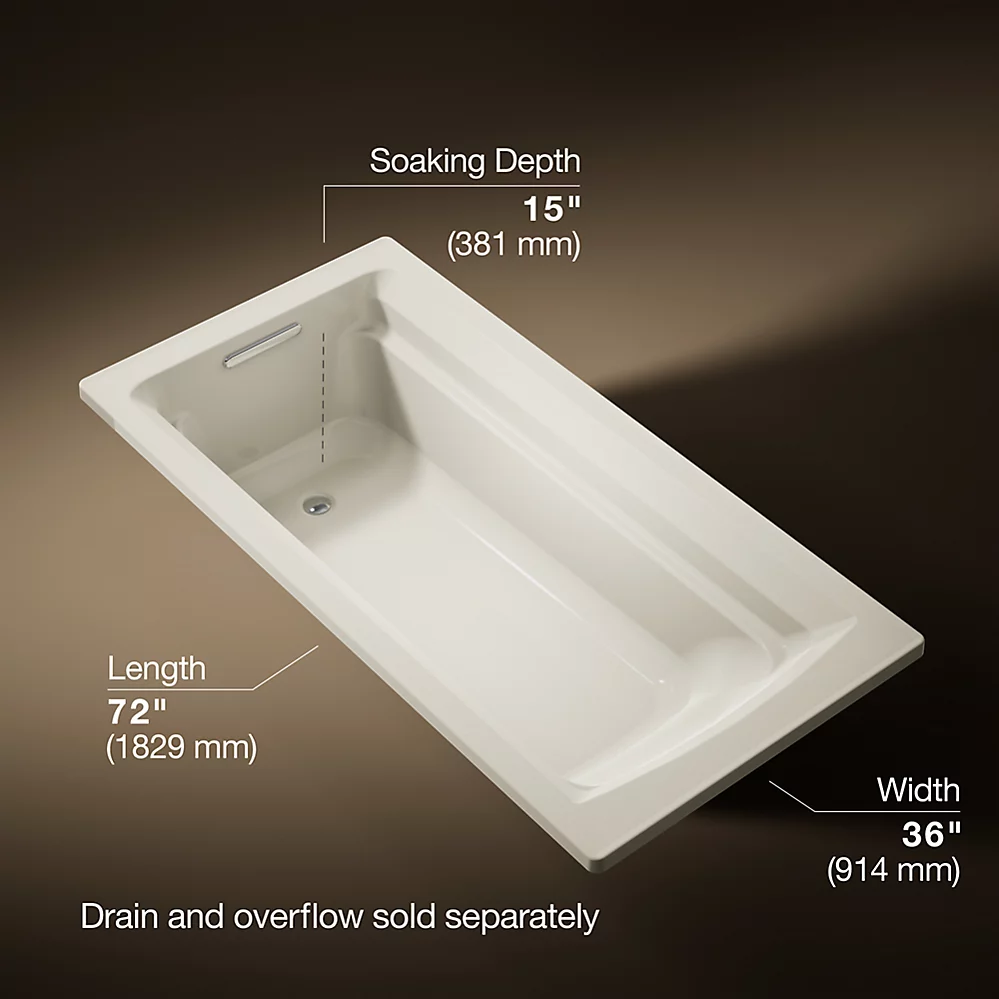

72" (1829 mm) x 36" (914 mm) x 19" (483 mm)
Material
Acrylic
Installation
Drop-in
Reversible drain
Required Products/Accessories
K-7271 Brass Slotted Overflow Bath Drain
K-7272 PVC Slotted Overflow Bath Drain

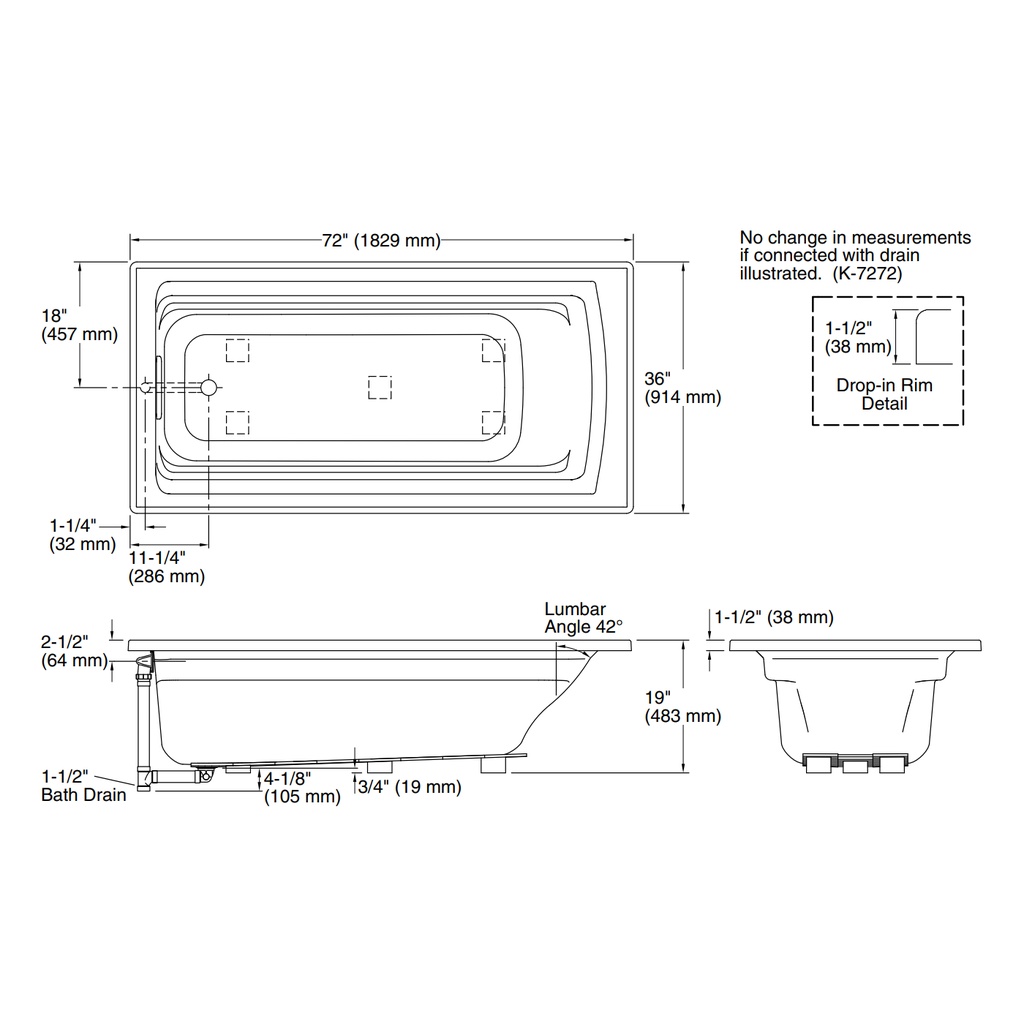

Technical Information
All product dimensions are nominal.
Drain location: Reversible
Basin area, bottom: 51-3/8" x 21" (1305 mm x 533 mm)
Basin area, top: 64-1/2" x 30-1/2" (1638 mm x 775 mm)
Weight: 70 lbs (31.8 kg)
Minimum floor load: 39 lbs/ft² (190.4 kg/m²)
Water depth: 15" (381 mm)
Water capacity: 72 gal (272.5 L)
Cutout: Drop-in, 70-1/2" x 34-1/2" (1791 mm x 876 mm)
Minimum flat for door: 1-5/8" (41 mm)
