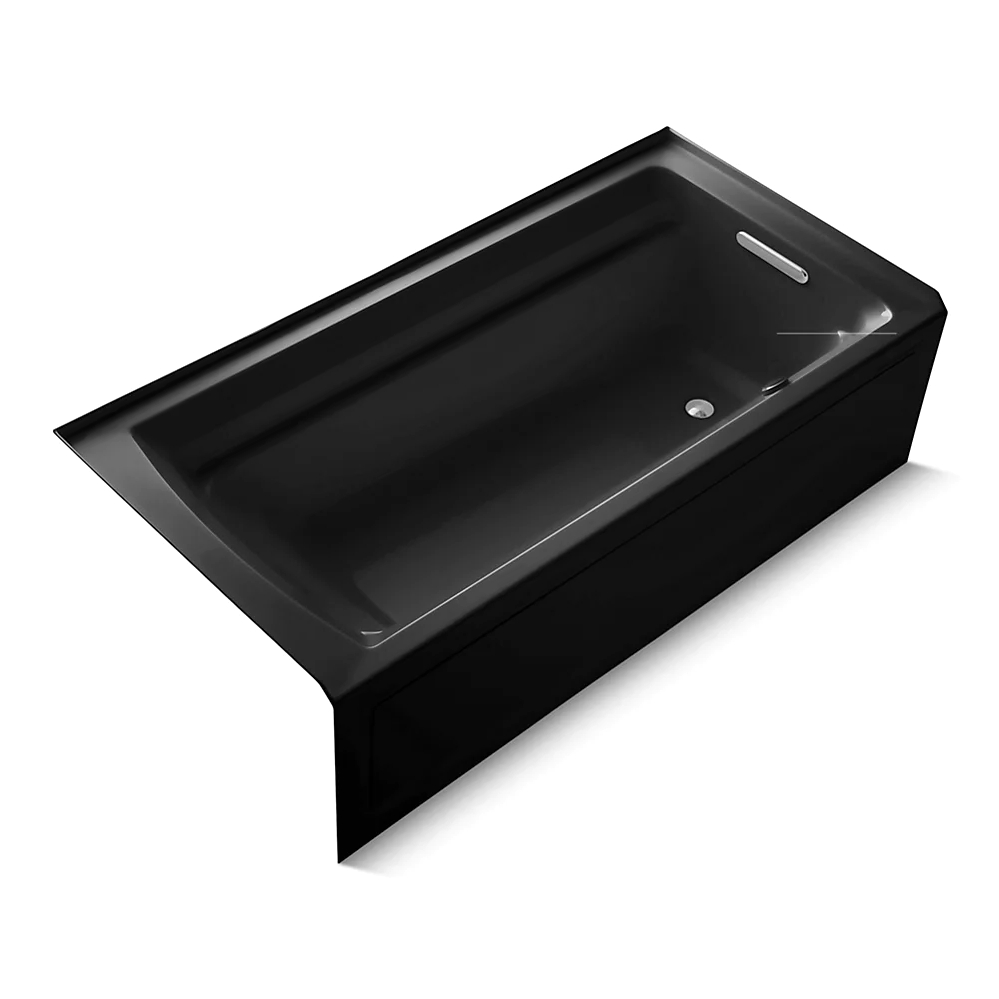

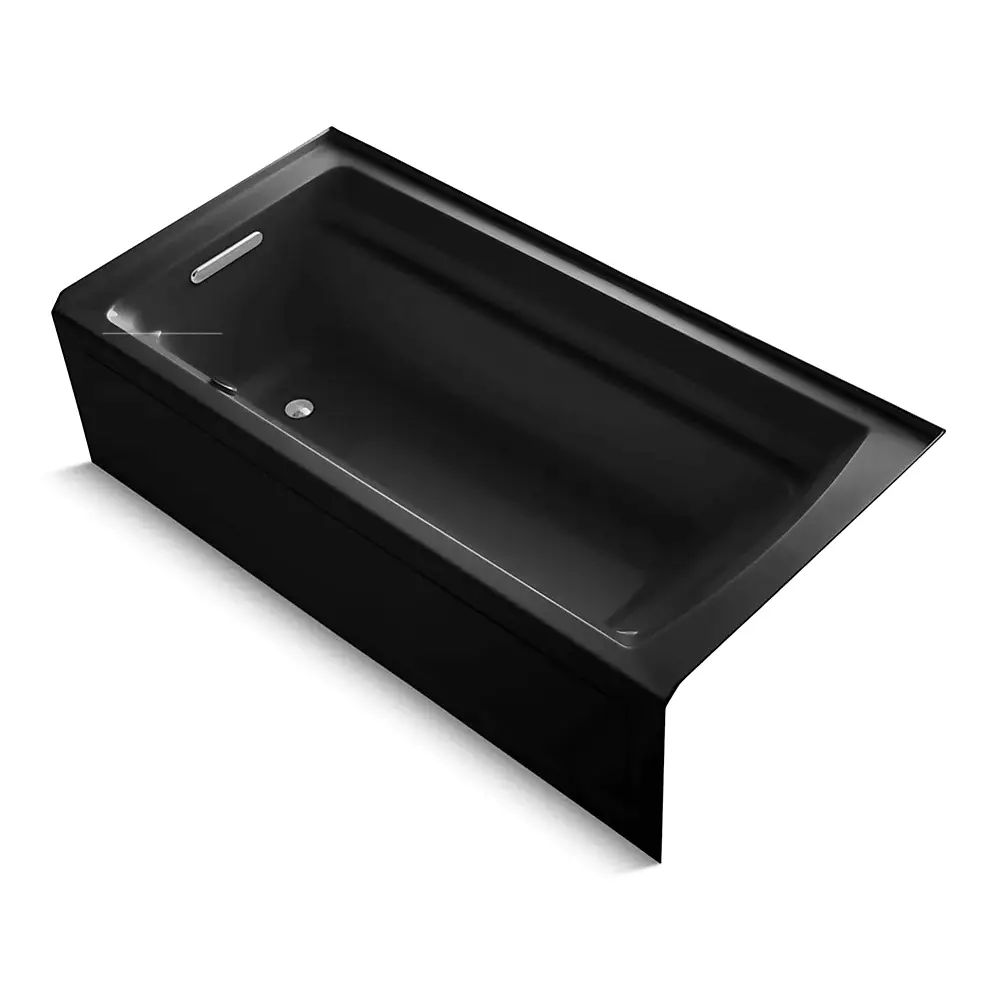

Kohler 1124-GHLA-7 Archer 72" x 36" Alcove Heated Bubble Massage Air Bath Left Drain Black
Archer®
72" x 36" alcove Heated BubbleMassage™ air bath, left drain
K-1124-GHLA-7
Color/Finish: Black
With Heated BubbleMassage™ hydrotherapy, airjets release thousands of heated bubbles that deliver a blissfully warm, invigorating full-body massage designed to soothe and restore. Taking its design cues from traditional Craftsman furniture, the Archer® line of baths reveals beveled edges and curved bases for a clean, sophisticated style. This air bath offers a low step-over height while allowing for deep, comfortable soaking.
Features
120 airjets release thousands of heated bubbles that surround and support the body in a warm massage
Automatic and manual purge cycles remove residual water from air channels after use
Variable-speed blower lets you adjust massage intensity to 18 levels
Comfort Depth® design offers a convenient 19" step-over height while retaining the same depth as a standard 21" bath
Integral lumbar support
Slotted overflow allows for deep soaking
Integral apron
Integral flange helps prevent water from seeping behind wall and simplifies alcove installation
Textured bottom surface
Coordinates with other products in the Archer collection
Built-in 600W BubbleMassage™ heater warms humidified air before it enters the bath
Technology
Auto-shutoff timer on blower allows users to enjoy Heated BubbleMassage™ experience for 60 minutes before turning off
User interface: electronic keypad control
Material
Acrylic
Installation
Left drain
Alcove
120 V electrical requirement allows for easy installation with standard outlet
Requires one dedicated circuit
Required Products/Accessories
K-7271 Brass Slotted Overflow Bath Drain
K-7272 PVC Slotted Overflow Bath Drain
Required Electrical Service
Two dedicated circuits required, protected with Class A GroundFault Circuit-Interrupter (GFCI). Outside North America, this device may be known as a Residual Current Device (RCD).
Blower: 120 V, 15 A, 60 Hz
Heater: 120 V, 15 A, 60 Hz

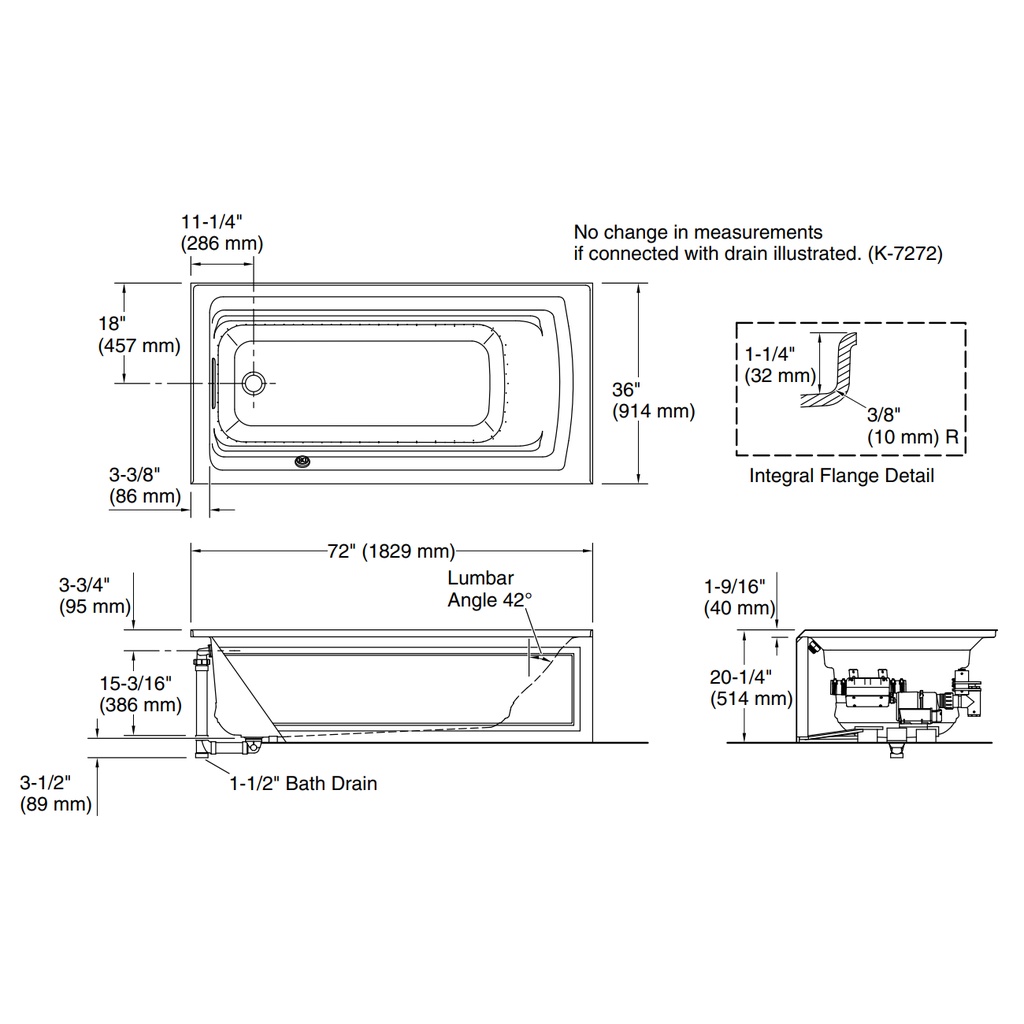

Technical Information
All product dimensions are nominal.
Drain location: Left
Basin area, bottom: 51-3/8" x 21" (1305 mm x 533 mm)
Basin area, top: 64-1/2" x 30-1/2" (1638 mm x 775 mm)
Weight: 120 lbs (54.4 kg)
Minimum floor load: 42 lbs/ft² (205.1 kg/m²)
Water depth: 15" (381 mm)
Water capacity: 72 gal (272.5 L)
Electrical component rating:
Blower: 120 V, 10 A, 60 Hz
Heater: 120 V, 5 A, 60 Hz
Minimum flat for door: 2" (51 mm)
