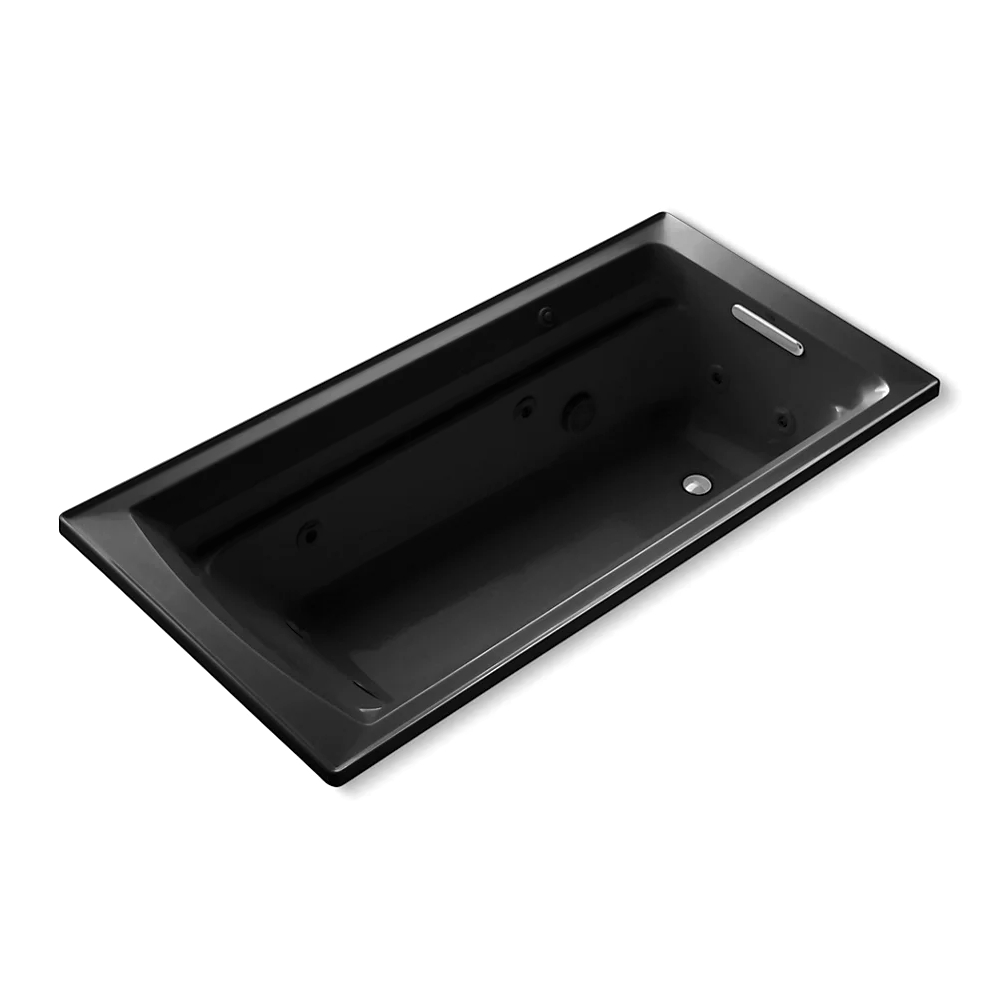

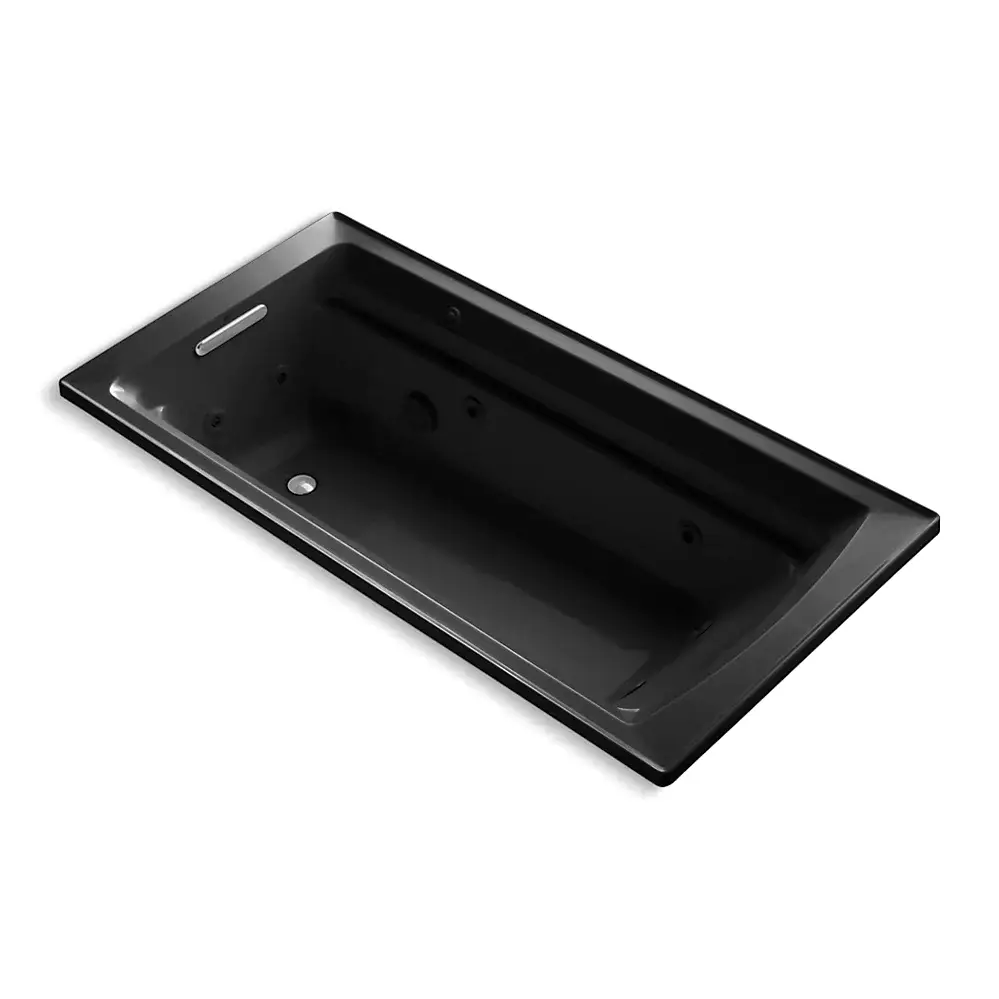

Kohler 1124-7 Archer 72" x 36" Drop-in Whirlpool Bath Black
Archer®
72" x 36" drop-in whirlpool bath
K-1124-7
Color/Finish: Black
Taking its design cues from traditional Craftsman furniture, the Archer line of baths reveals beveled edges and curved bases for a clean, sophisticated style. This bath offers a low step-over height while allowing for deep, comfortable soaking. Whirlpool jets relax away the day's tension.
Features

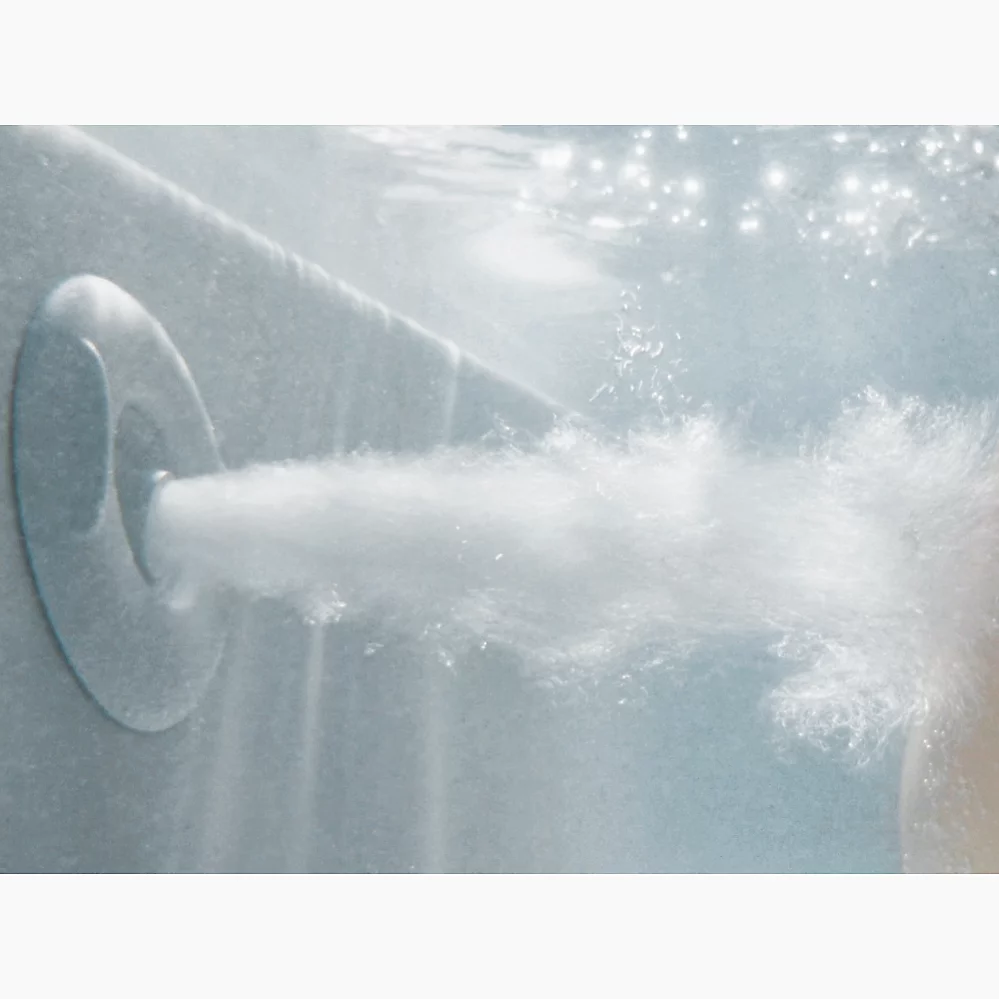

Single-speed whirlpool offers performance and value with 8 fully adjustable jets
Hydromassage flow and direction can be controlled at each jet
Comfort Depth® design offers a convenient 19" step-over height while retaining the same depth as a standard 21" bath
Generous length provides a spacious bathing area
Integral lumbar support
Slotted overflow allows for deep soaking
Textured bottom surface
Coordinates with other products in the Archer collection
Hydrotherapy
Whirlpool
Material
Acrylic
Installation
Reversible drain
Drop-in
Required Products/Accessories
K-7271 Brass Slotted Overflow Bath Drain
K-7272 PVC Slotted Overflow Bath Drain
Required Electrical Service
One dedicated circuit required, protected with Class A GroundFault Circuit-Interrupter (GFCI). Outside North America, this device may be known as a Residual Current Device (RCD).
Pump: 120 V, 15 A, 60 Hz

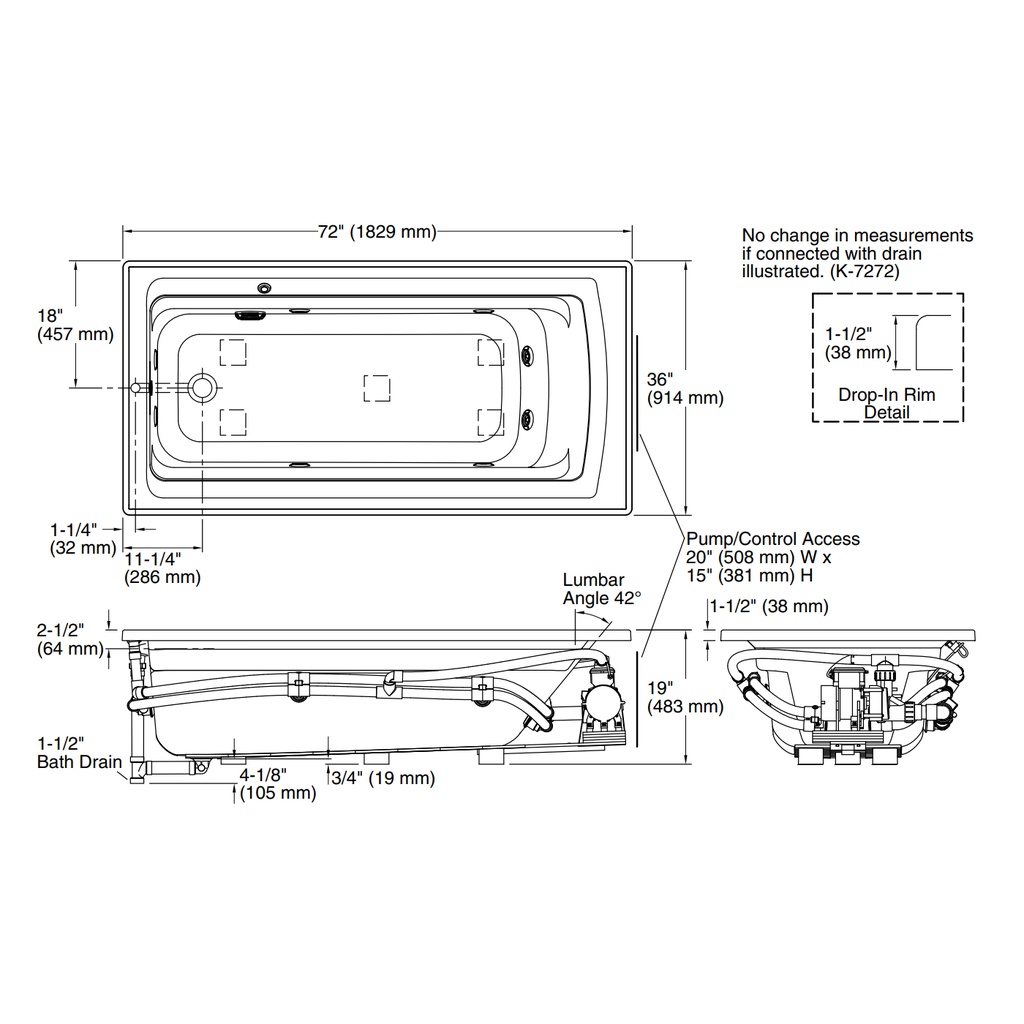

Technical Information
All product dimensions are nominal.
Drain location: Reversible
Basin area, bottom: 51-3/8" x 21" (1305 mm x 533 mm)
Basin area, top: 64-1/2" x 30-1/2" (1638 mm x 775 mm)
Weight: 110 lbs (49.9 kg)
Minimum floor load: 41 lbs/ft² (200.2 kg/m²)
Water depth: 15" (381 mm)
Water capacity: 72 gal (272.5 L)
Cutout: Drop-in, 70-1/2" x 34-1/2" (1791 mm x 876 mm)
Electrical component rating:
Pump: 120 V, 7 A, 60 Hz
Minimum flat for door: 1-9/16" (40 mm)
