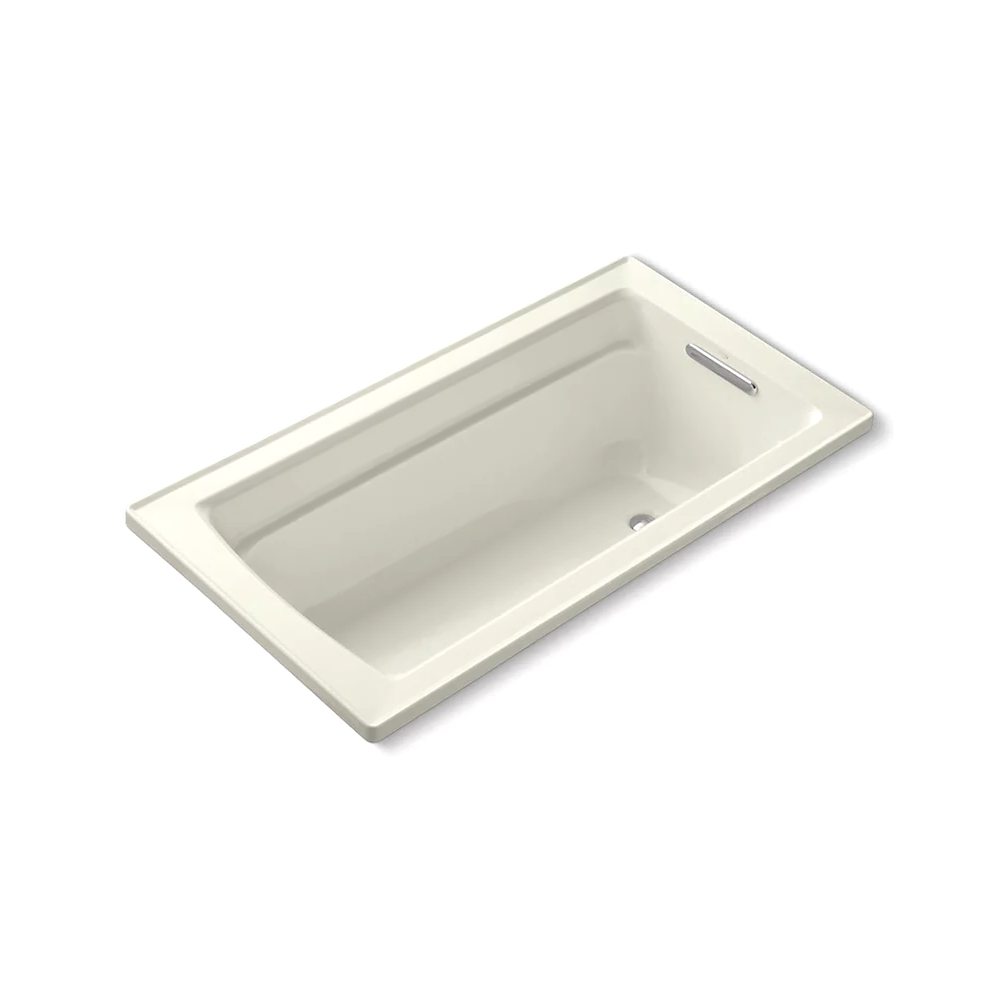

Kohler 1123-W1-96 Archer 60" x 32" Drop-in Bath With Heated Surface Biscuit
Archer®
60" x 32" drop-in bath with Bask® heated surface
K-1123-W1-96
Color/Finish: Biscuit
Taking its design cues from traditional Craftsman furniture, the Archer line of baths reveals beveled edges and curved bases for a clean, sophisticated style. This bath's heated surface warms the back and neck with adjustable temperature settings to create a soothing, spa-like environment. A low step-over height offers easy access while allowing deep, comfortable soaking. A lumbar arch gently support the natural curves of your body.
Features
Bask® heated surface creates spa-like relaxation with soothing warmth on your back, shoulders, and neck
Three heat settings allow you to customize the surface temperature
Comfort Depth® design offers a convenient 19" step-over height while retaining the same depth as a standard 21" bath
Integral lumbar support
Slotted overflow allows for deep soaking

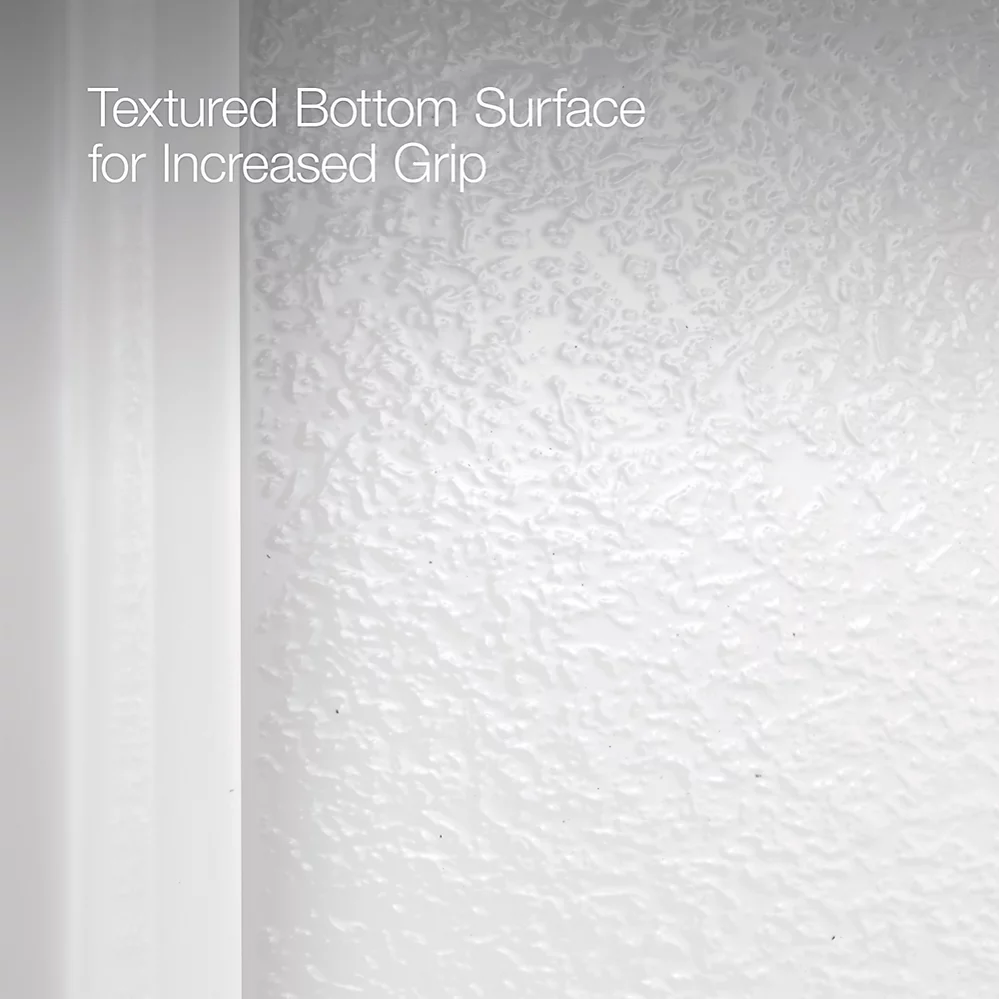

Textured bottom surface
Coordinates with other products in the Archer collection
Material
Acrylic
Installation
Reversible drain
Requires K-7271 or K-7272 Clearflo slotted overflow bath drain (sold separately)
Drop-in
Required Products/Accessories
K-7271 Brass Slotted Overflow Bath Drain
K-7272 PVC Slotted Overflow Bath Drain
Required Electrical Service
One circuit required, protected with Class A Ground-Fault
Circuit-Interrupter (GFCI). Outside North America, this device may be known as a Residual Current Device (RCD).
Heated Surface: 120 V, 15 A

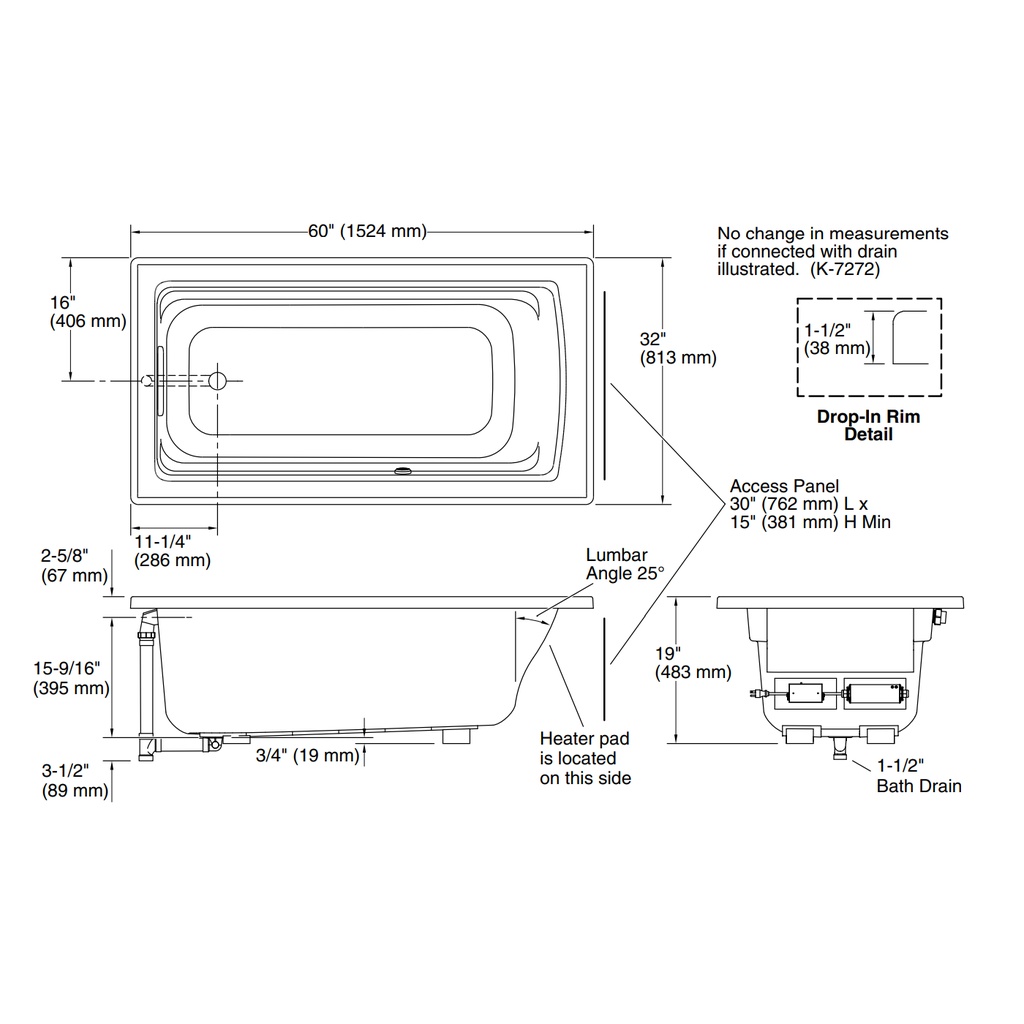

Technical Information
All product dimensions are nominal.
Drain location: Reversible
Basin area, bottom: 45-1/8" x 19-11/16" (1146 mm x 500 mm)
Basin area, top: 52-3/4" x 25-5/16" (1340 mm x 643 mm)
Weight: 70 lbs (31.8 kg)
Minimum floor load: 44 lbs/ft² (214.8 kg/m²)
Water depth: 15" (381 mm)
Water capacity: 58 gal (219.6 L)
Cutout: Drop-in, 58-1/2" x 30-1/2" (1486 mm x 775 mm)
Electrical component rating:
Heated Surface: 120 V, 0.5 A, 60 Hz, 65 W
Minimum flat for door: 2-1/8" (54 mm)
