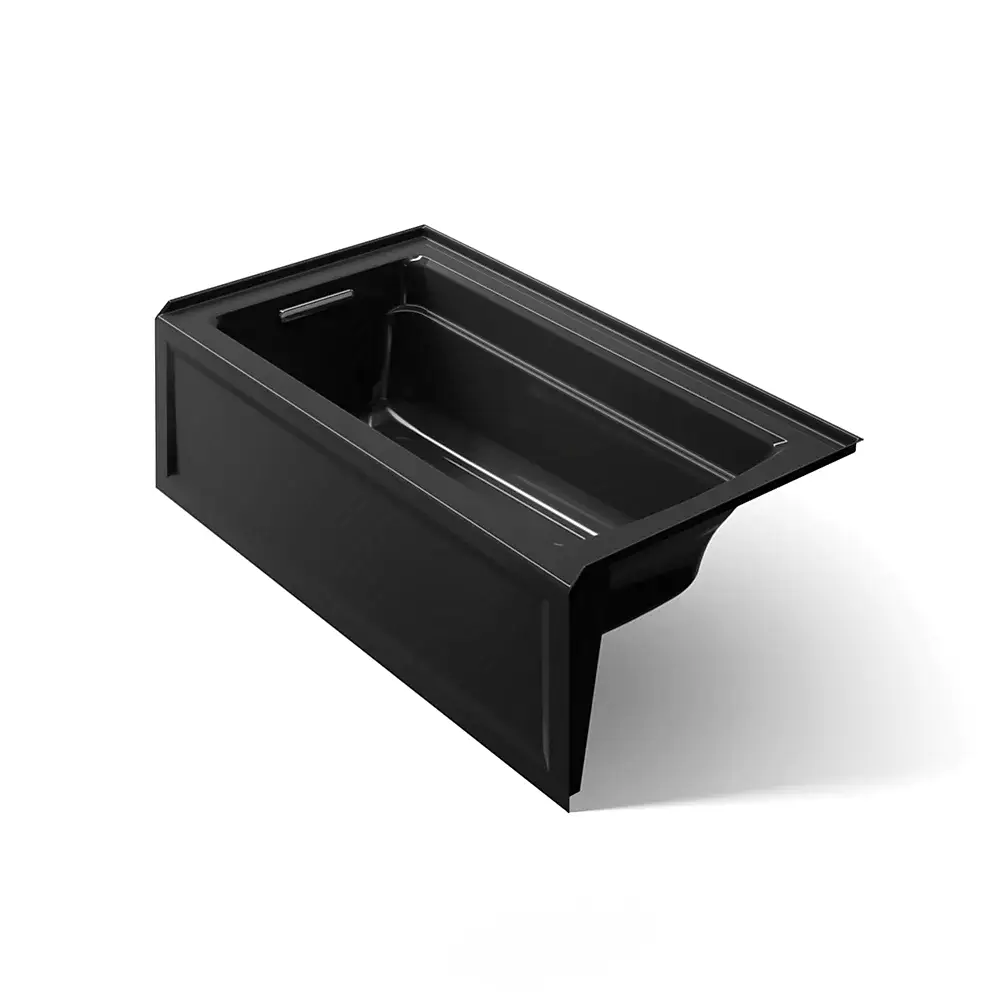

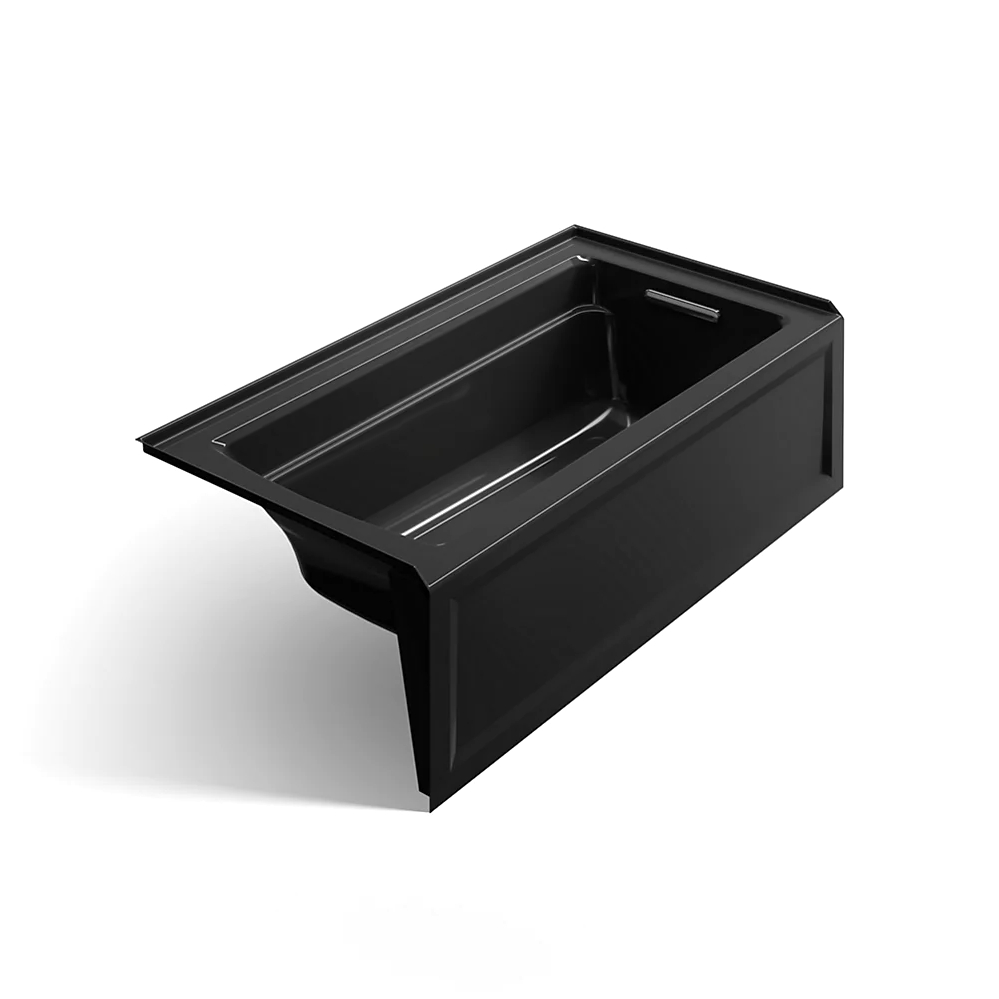

Kohler 1123-RAW-7 Archer 60" x 32" Alcove Bath Heated Surface Right Drain Black
Archer®
60" x 32" alcove bath with Bask® heated surface, right drain
K-1123-RAW-7
Color/Finish: Black
Taking its design cues from traditional Craftsman furniture, the Archer line of baths reveals beveled edges and curved bases for a clean, sophisticated style. This bath's heated surface warms the back and neck with adjustable temperature settings to create a soothing, spa-like environment. A low step-over height offers easy access while allowing deep, comfortable soaking. A lumbar arch gently support the natural curves of your body.
Features
Bask® heated surface creates spa-like relaxation with soothing warmth on your back, shoulders, and neck
Three heat settings allow you to customize the surface temperature
Comfort Depth® design offers a convenient 19" step-over height while retaining the same depth as a standard 21" bath
Integral lumbar support and armrests offer extra comfort while bathing

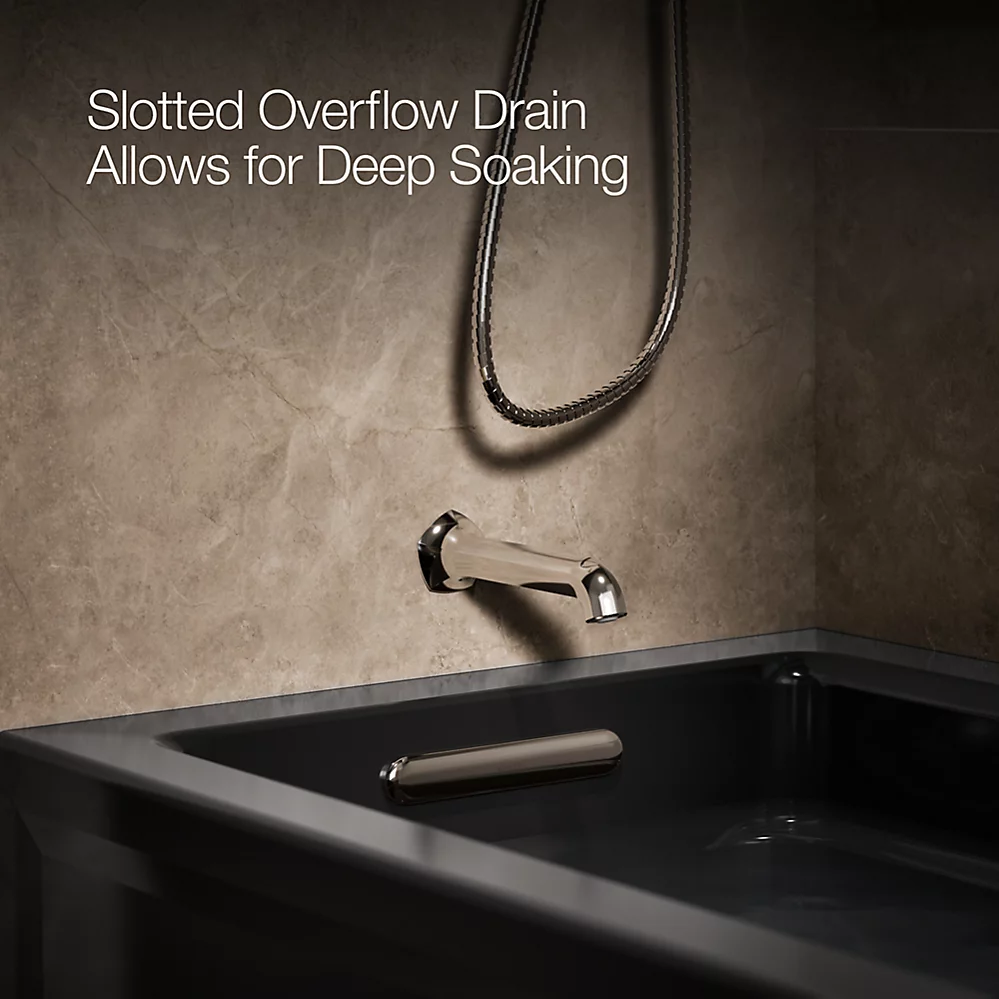

Slotted overflow allows for deep soaking
Integral apron
Integral flange helps prevent water from seeping behind wall and simplifies alcove installation
Textured bottom surface
Coordinates with other products in the Archer collection
Material
Acrylic
Installation
Right drain
Requires K-7271 or K-7272 Clearflo slotted overflow bath drain (sold separately)
Alcove
Required Products/Accessories
K-7271 Brass Slotted Overflow Bath Drain
K-7272 PVC Slotted Overflow Bath Drain
Required Electrical Service
One circuit required, protected with Class A Ground-Fault
Circuit-Interrupter (GFCI). Outside North America, this device may be known as a Residual Current Device (RCD).
Heated Surface: 120 V, 15 A

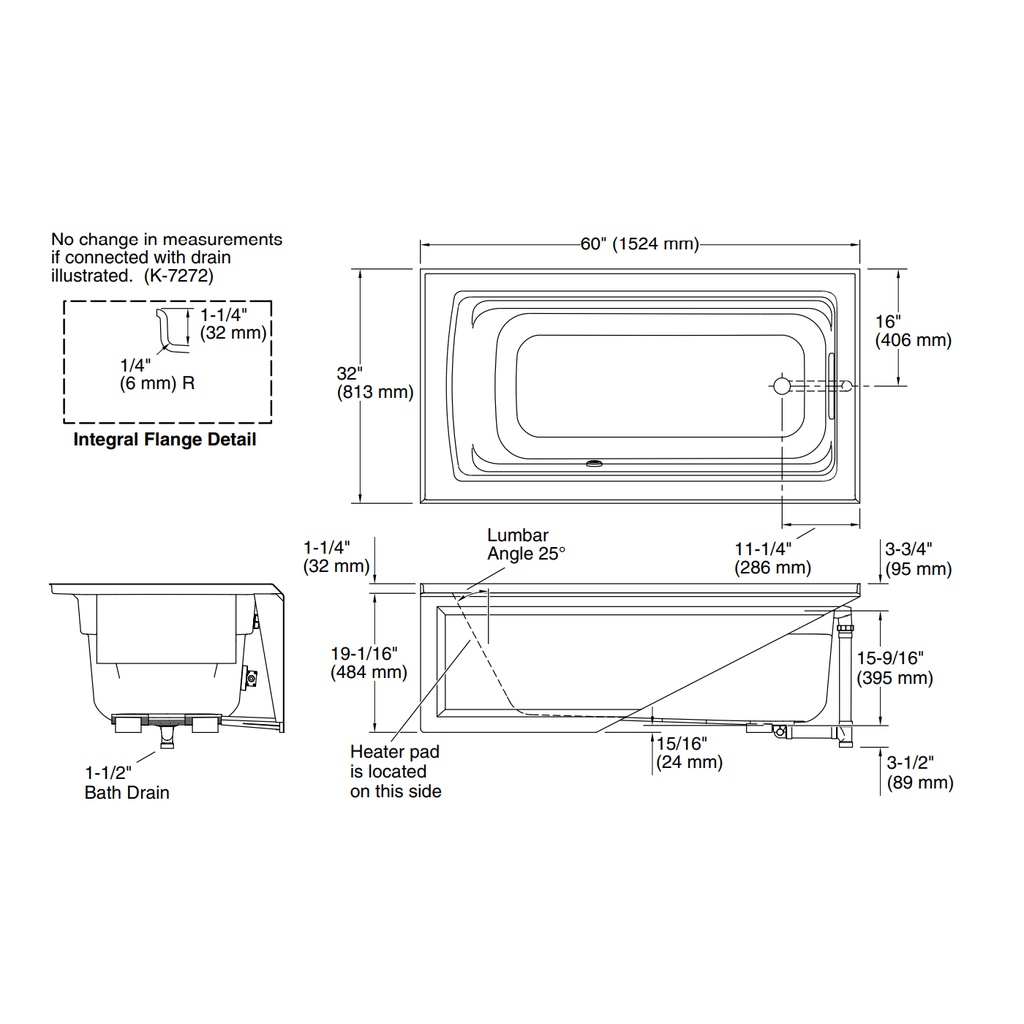

Technical Information
All product dimensions are nominal.
Drain location: Right
Basin area, bottom: 45-1/8" x 19-11/16" (1146 mm x 500 mm)
Basin area, top: 52-3/4" x 25-5/16" (1340 mm x 643 mm)
Weight: 80 lbs (36.3 kg)
Minimum floor load: 45 lbs/ft² (219.7 kg/m²)

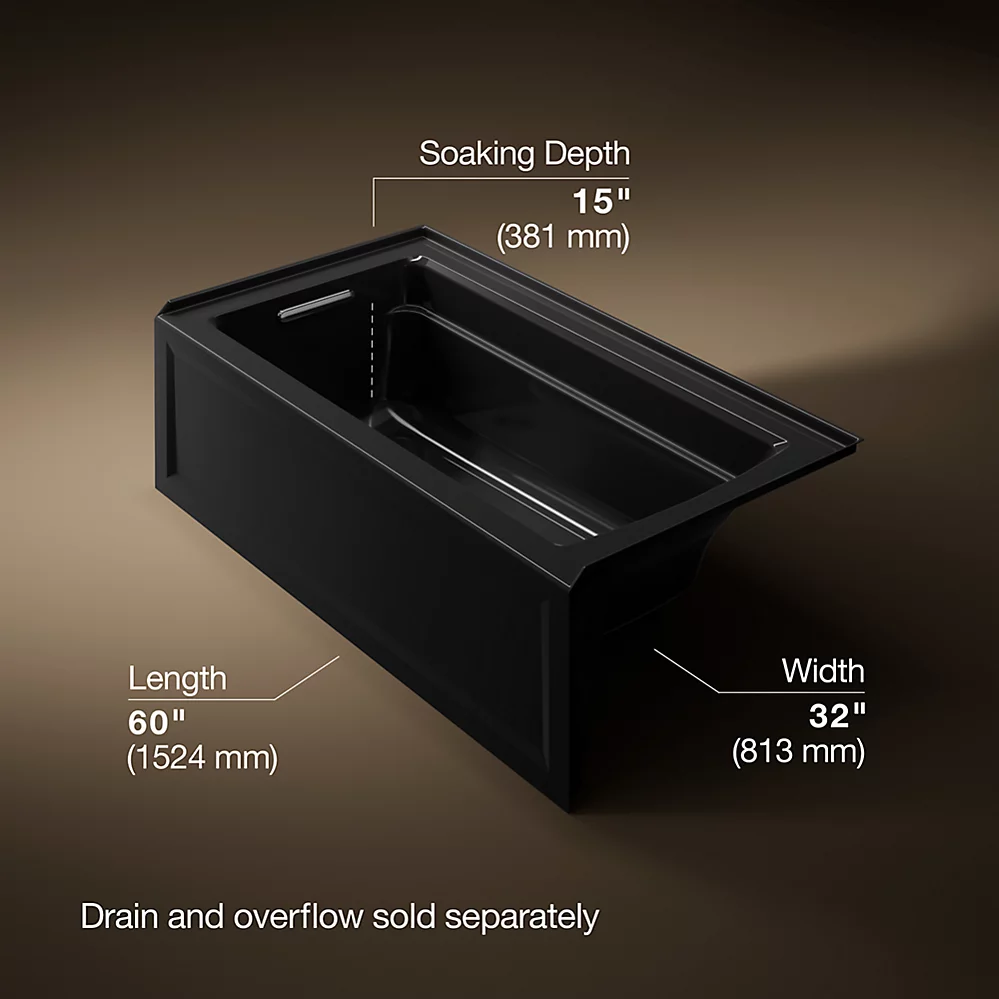

Water depth: 15" (381 mm)
Water capacity: 58 gal (219.6 L)
Electrical component rating:
Heated Surface: 120 V, 0.5 A, 60 Hz, 65 W
Minimum flat for door: 2-9/16" (65 mm)
