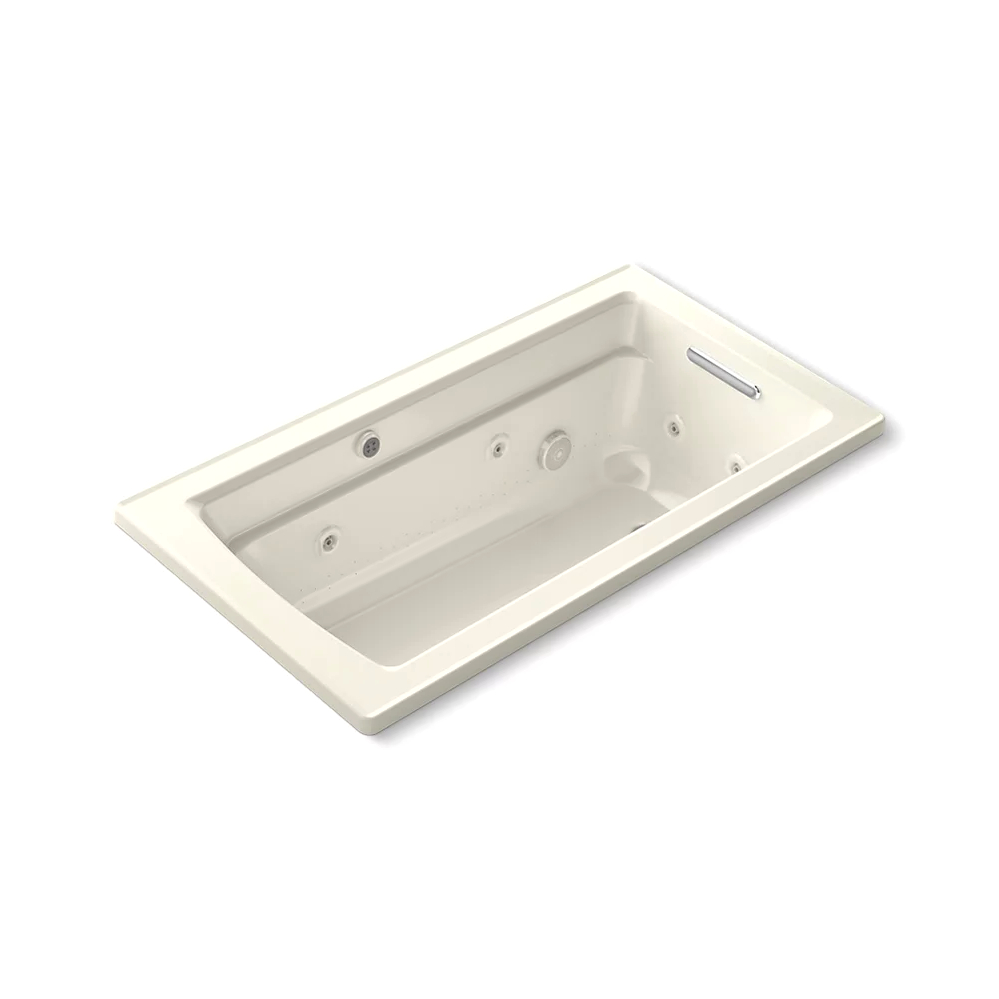

Kohler 1122-XHGH-96 Archer 60" x 32" Drop-in Heated Bubble Massage Air Bath Whirlpool Biscuit
Archer®
60" x 32" drop-in Heated BubbleMassage™ air bath and whirlpool
K-1122-XHGH-96
Color/Finish: Biscuit
This Archer® bath offers both a relaxing whirlpool hydromassage and a soothing Heated BubbleMassage™, with each experience controlled independently. Whirlpool jets relax away the day's tension as you surround your body in a cushion of heated massaging bubbles.
With Heated BubbleMassage™ hydrotherapy, airjets release thousands of heated bubbles that deliver a blissfully warm, invigorating full-body massage. This bath has a low step-over height while allowing deep, comfortable soaking.
Features
118 airjets release thousands of heated bubbles that surround and support the body in a warm massage
Automatic and manual purge cycles remove residual water from air channels after use
Variable-speed blower lets you adjust Heated BubbleMassage™ massage intensity to 18 levels
Single-speed whirlpool revitalizes sore muscles

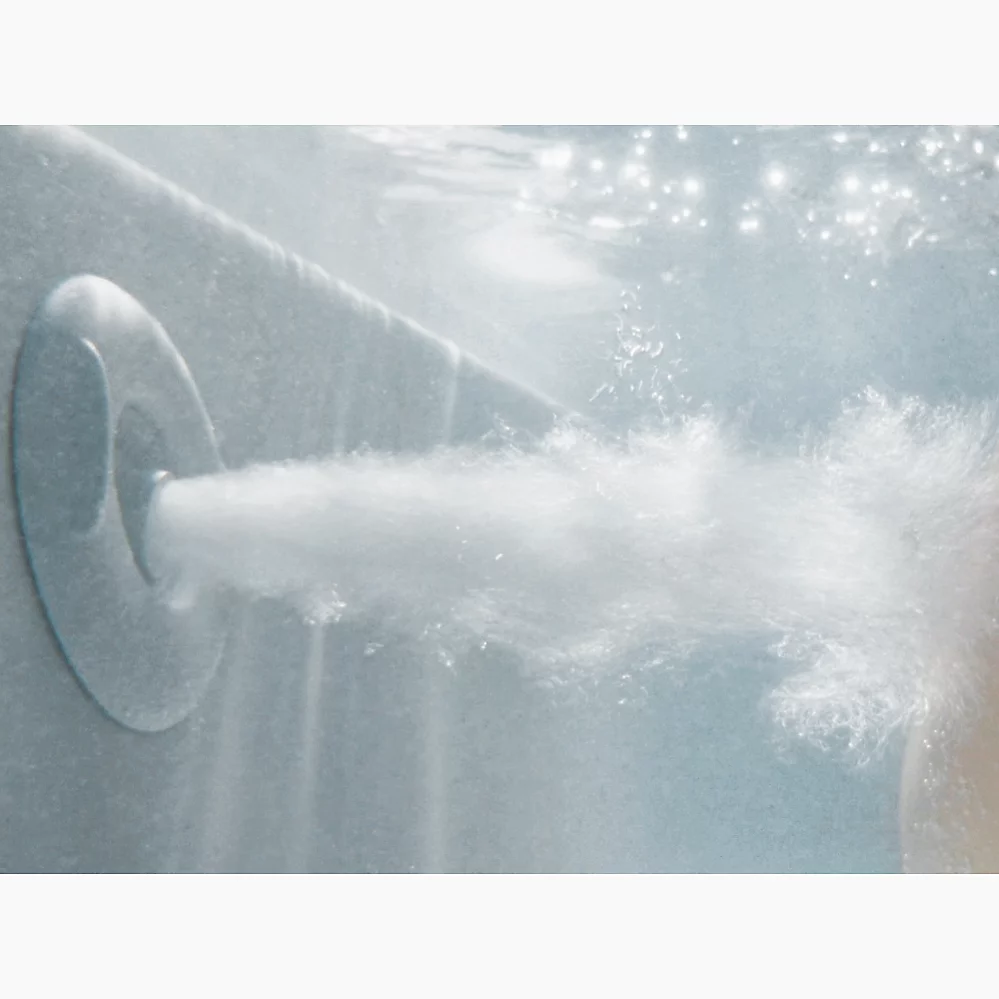

8 fully adjustable whirlpool jets allow users to customize hydromassage flow and direction at each jet
Comfort Depth® design offers a convenient 19" step-over height while retaining the same depth as a standard 21" bath
Integral lumbar support
Slotted overflow allows for deep soaking
Textured bottom surface
Coordinates with other products in the Archer collection
Built-in 600W BubbleMassage™ heater warms humidified air before it enters the bath
Technology
Auto-shutoff timer on blower allows users to enjoy Heated BubbleMassage™ experience for 60 minutes before turning off

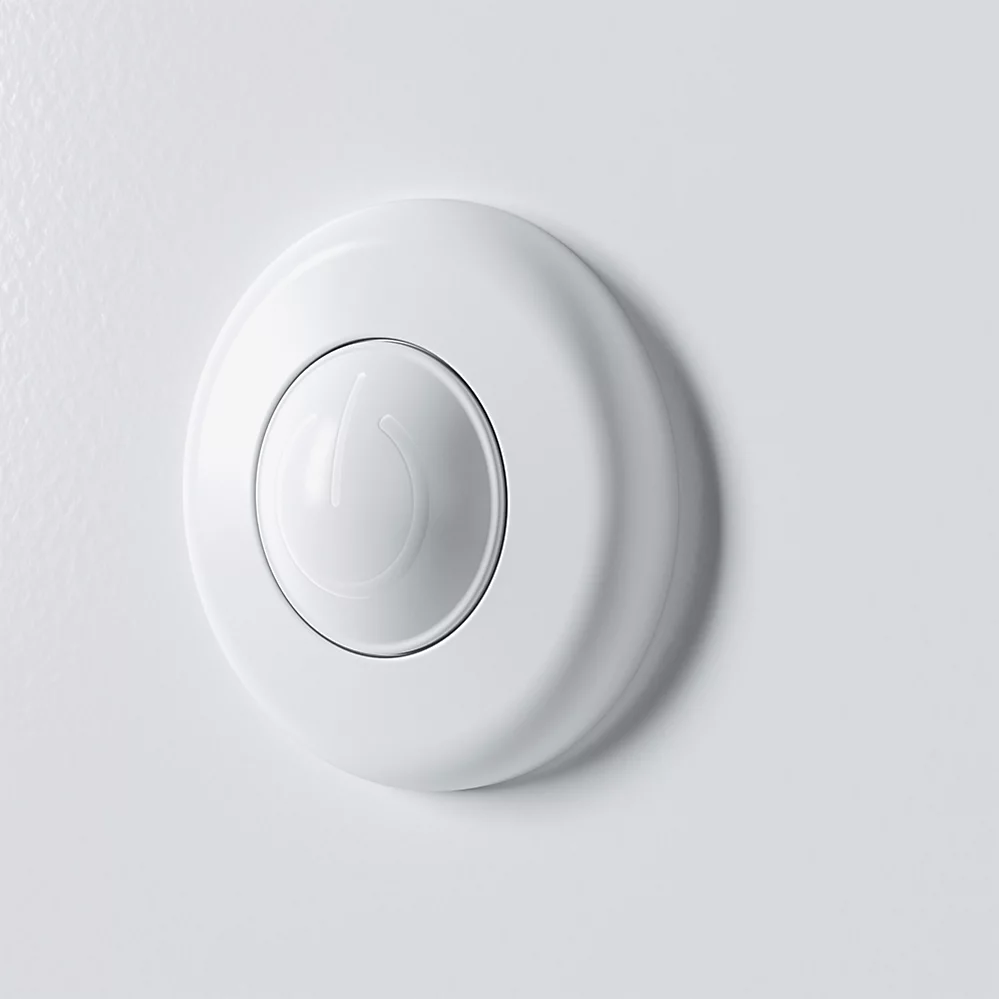

User interface: electronic keypad control for Heated BubbleMassage™; air switch actuator for whirlpool
Hydrotherapy
Whirlpool
Material
Acrylic
Installation
Reversible drain
Drop-in
Whirlpool pump: 120V electrical requirement
Blower: 120V electrical requirement
BubbleMassage™ heater: 120V electrical requirement
Requires three dedicated circuits
Remote blower motor installation required (relocation kit is included)
Required Products/Accessories
K-7271 Brass Slotted Overflow Bath Drain
K-7272 PVC Slotted Overflow Bath Drain
Required Electrical Service
Three dedicated circuits required, protected with Class A
Ground-Fault Circuit-Interrupter (GFCI). Outside North America, this device may be known as a Residual Current Device (RCD).
Pump, Heater: 120 V, 15 A, 60 Hz
Heater: 120 V, 15 A, 60 Hz
Blower: 120 V, 15 A, 60 Hz

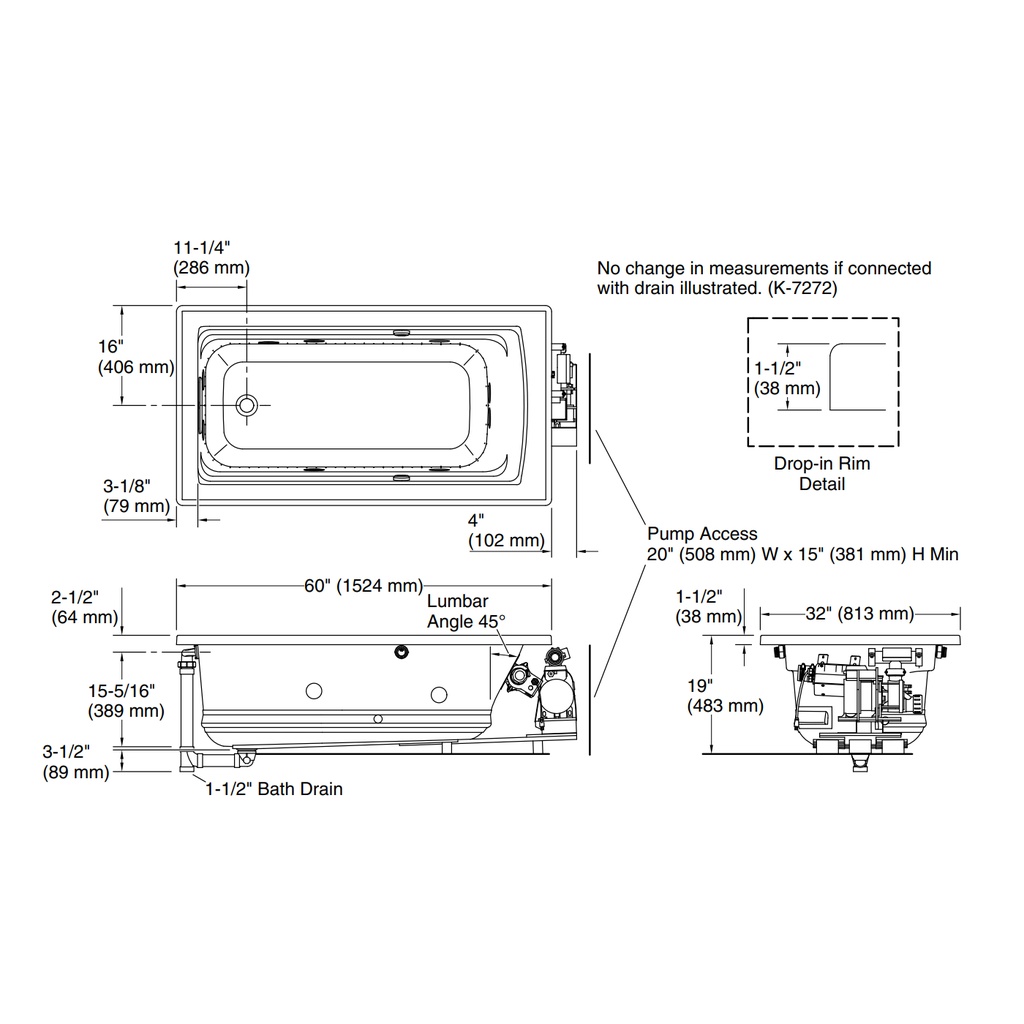

Technical Information
All product dimensions are nominal.
Drain location: Reversible
Basin area, bottom: 45-1/8" x 19-11/16" (1146 mm x 500 mm)
Basin area, top: 52-3/4" x 25-5/16" (1340 mm x 643 mm)
Weight: 160 lbs (72.6 kg)
Minimum floor load: 47.5 lbs/ft² (231.9 kg/m²)
Water depth: 15" (381 mm)
Water capacity: 58 gal (219.6 L)
Cutout: Drop-in, 58-1/2" x 30-1/2" (1486 mm x 775 mm)
Electrical component rating:
Pump: 120 V, 7 A, 60 Hz
