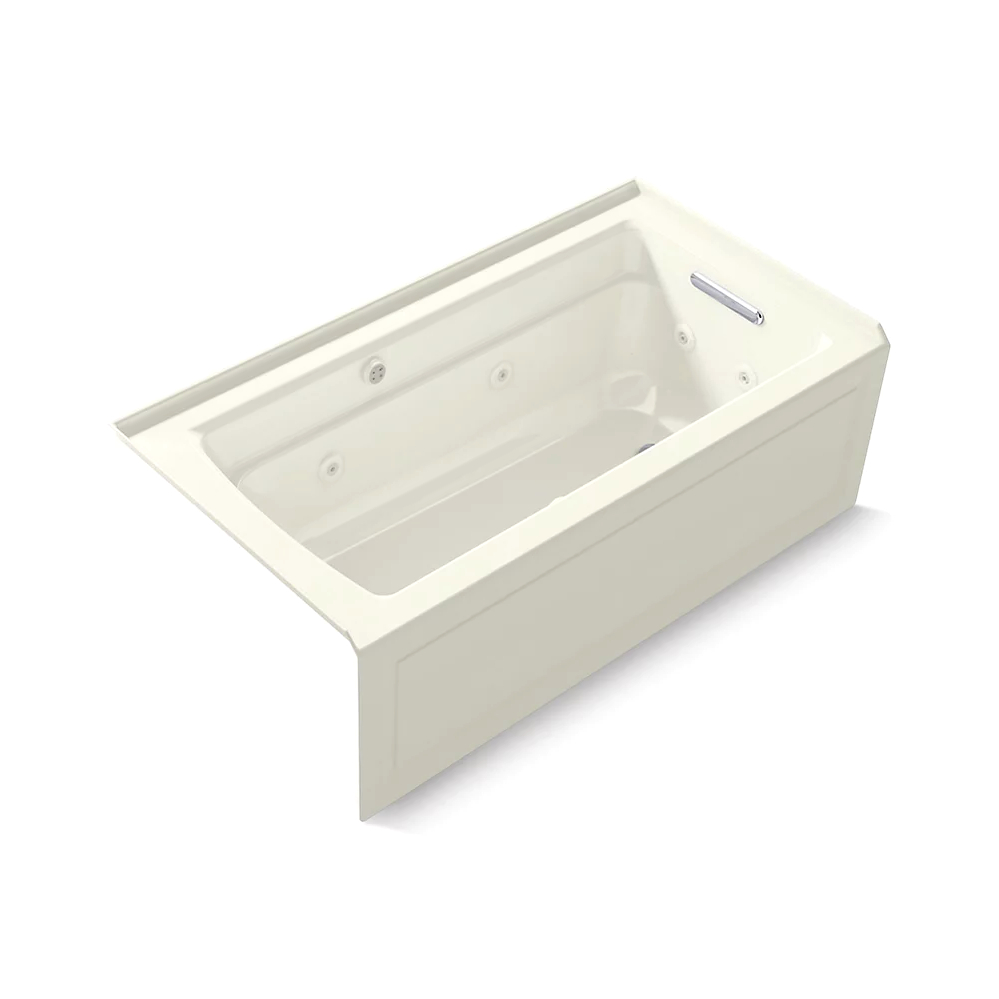

Kohler 1122-XGHRA-96 Archer 60" x 32" Alcove Heated Bubble Massage Bath Right Drain Biscuit
Archer®
60" x 32" alcove Heated BubbleMassage™ air bath and whirlpool, right drain
K-1122-XGHRA-96
Color/Finish: Biscuit
This Archer® bath offers both a relaxing whirlpool hydromassage and a soothing Heated BubbleMassage™, with each experience controlled independently. Whirlpool jets relax away the day's tension as you surround your body in a cushion of heated massaging bubbles. With Heated BubbleMassage™ hydrotherapy, airjets release thousands of heated bubbles that deliver a blissfully warm, invigorating full-body massage. This bath has a low step-over height while allowing deep, comfortable soaking.
Features
118 airjets release thousands of heated bubbles that surround and support the body in a warm massage
Automatic and manual purge cycles remove residual water from air channels after use
Variable-speed blower lets you adjust Heated BubbleMassage™ massage intensity to 18 levels
Single-speed whirlpool revitalizes sore muscles

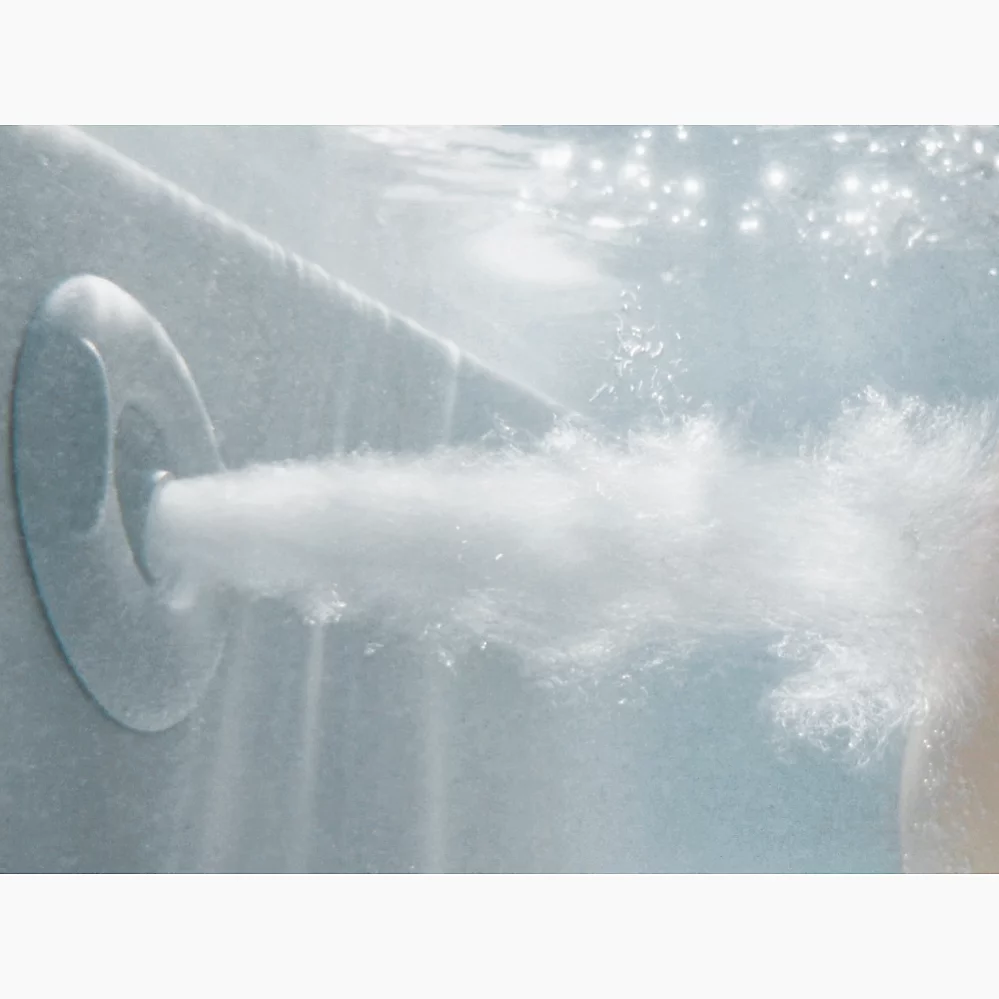

8 fully adjustable whirlpool jets allow users to customize hydromassage flow and direction at each jet
Comfort Depth® design offers a convenient 19" step-over height while retaining the same depth as a standard 21" bath
Integral lumbar support
Slotted overflow allows for deep soaking
Integral apron
Integral flange helps prevent water from seeping behind wall and simplifies alcove installation
Textured bottom surface
Coordinates with other products in the Archer collection
Built-in 600W BubbleMassage™ heater warms humidified air before it enters the bath
Technology
Auto-shutoff timer on blower allows users to enjoy Heated BubbleMassage™ experience for 60 minutes before turning off

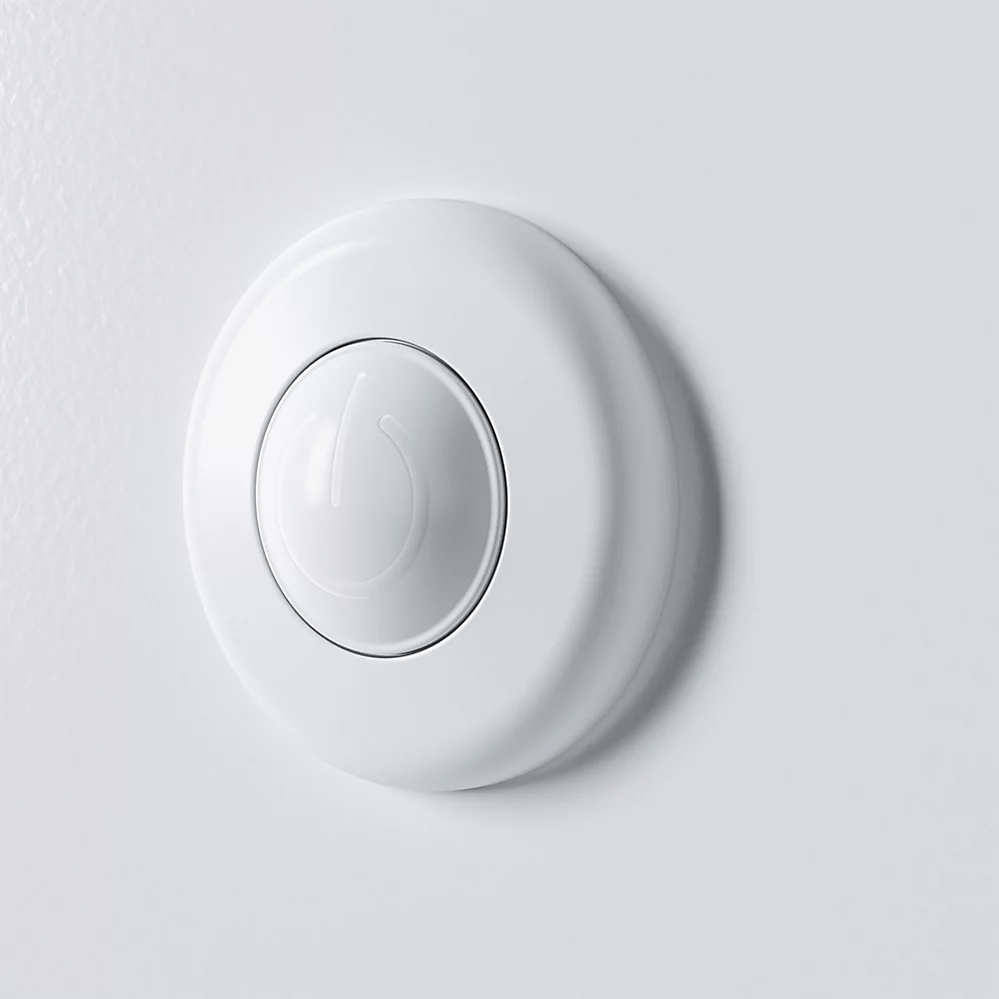

User interface: electronic keypad control for Heated BubbleMassage™; air switch actuator for whirlpool
Hydrotherapy
Whirlpool
Material
Acrylic
Installation
Right drain
Alcove
Whirlpool pump, blower, air heat: 120V electrical requirement
Requires three dedicated circuits
Remote blower motor installation required (relocation kit is included)
Required Products/Accessories
K-7271 Brass Slotted Overflow Bath Drain
K-7272 PVC Slotted Overflow Bath Drain
Required Electrical Service
Three dedicated circuits required, protected with Class A
Ground-Fault Circuit-Interrupter (GFCI). Outside North America, this device may be known as a Residual Current Device (RCD).
Pump, Heater: 120 V, 15 A, 60 Hz
Heater: 120 V, 15 A, 60 Hz
Blower: 120 V, 15 A, 60 Hz
Technical Information

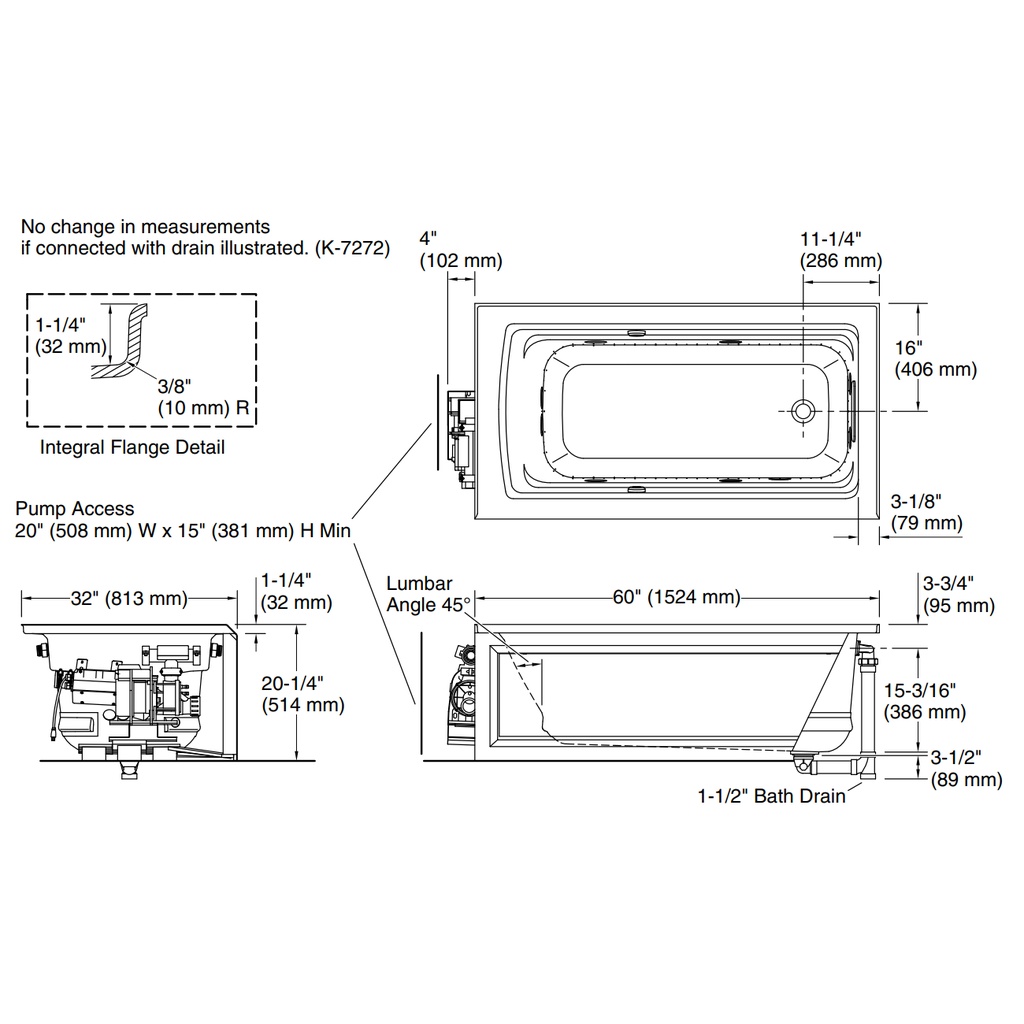

All product dimensions are nominal.
Drain location: Right
Basin area, bottom: 45-1/8" x 19-11/16" (1146 mm x 500 mm)
Basin area, top: 52-3/4" x 25-5/16" (1340 mm x 643 mm)
Weight: 165 lbs (74.8 kg)
Minimum floor load: 52 lbs/ft² (253.9 kg/m²)
Water depth: 15" (381 mm)
Water capacity: 58 gal (219.6 L)
Electrical component rating:
Pump: 120 V, 7 A, 60 Hz
Heater: 120 V, 5 A, 60 Hz
Heater: 120 V, 12 A, 60 Hz
