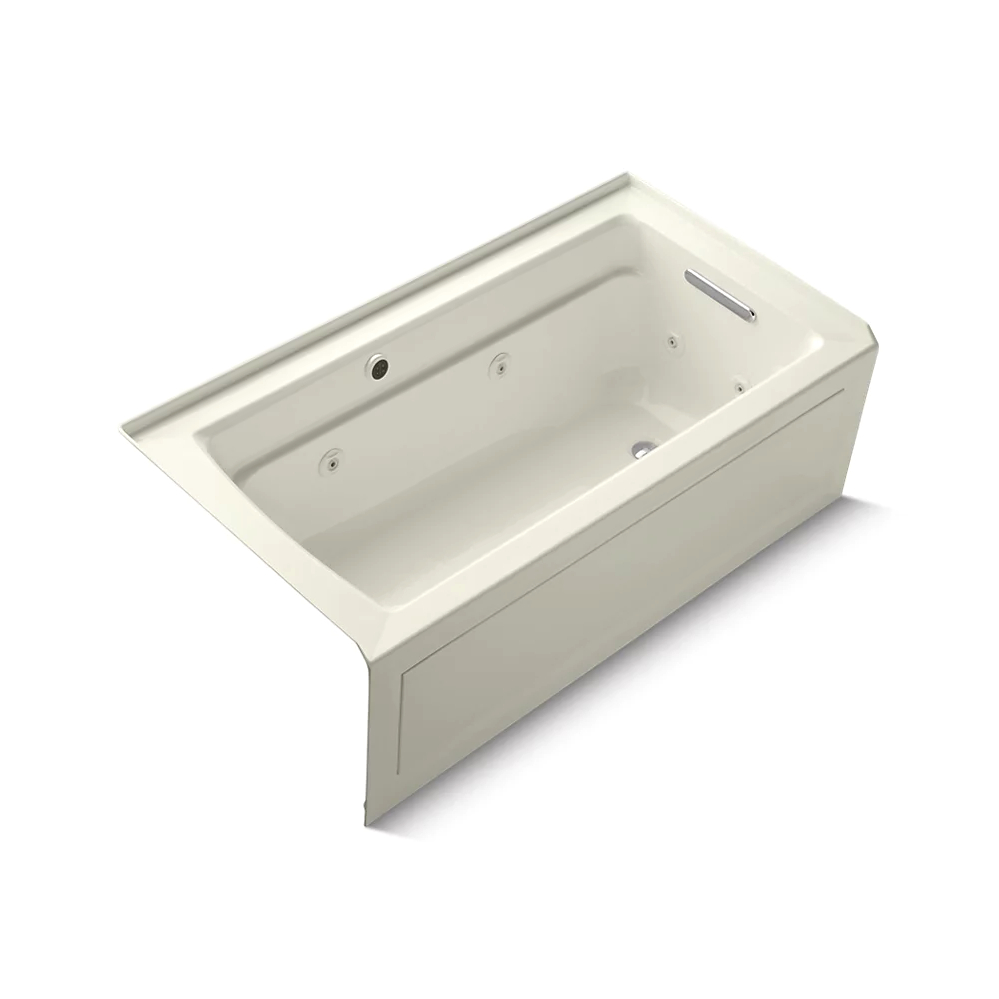

Kohler 1122-RAW-96 Archer 60" x 32" Alcove Whirlpool Heated Bath Right Drain Biscuit
Archer®
60" x 32" alcove whirlpool bath with Bask® heated surface, right drain
K-1122-RAW-96
Color/Finish: Biscuit
Taking its design cues from traditional Craftsman furniture, the Archer line of baths reveals beveled edges and curved bases for a clean, sophisticated style. Whirlpool jets relax away the day's tension, while the heated surface warms your back and neck with adjustable temperature settings to create a soothing, spa-like environment. This bath offers a low step-over height while allowing for deep, comfortable soaking.
Features
Bask® heated surface creates spa-like relaxation with soothing warmth on your back, shoulders, and neck
Three heat settings allow you to customize the surface temperature

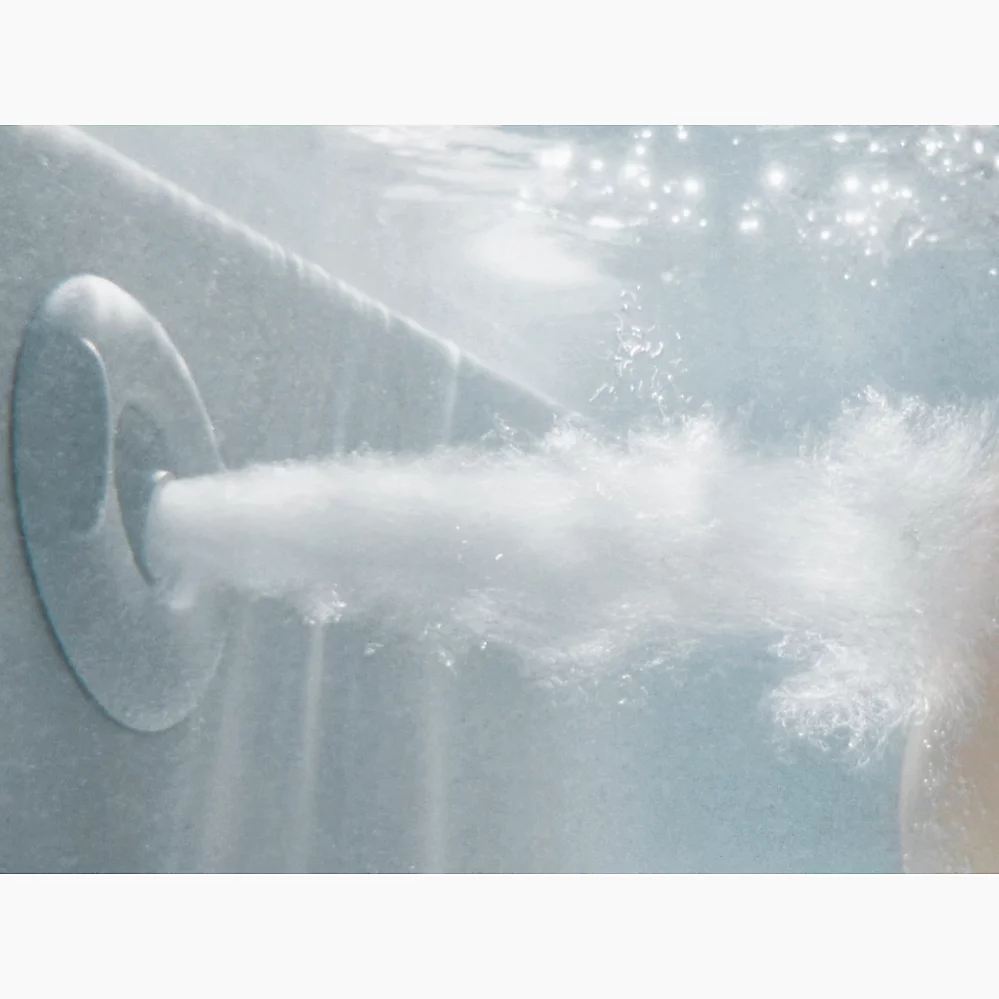

Single-speed whirlpool offers performance and value with 8 fully adjustable jets
Hydromassage flow and direction can be controlled at each jet
Comfort Depth® design offers a convenient 19" step-over height while retaining the same depth as a standard 21" bath
Integral lumbar support
Slotted overflow allows for deep soaking
Integral apron
Integral flange helps prevent water from seeping behind wall and simplifies alcove installation
Textured bottom surface
Coordinates with other products in the Archer collection
Hydrotherapy
Whirlpool
Material
Acrylic
Installation
Right drain
Alcove
Required Products/Accessories
K-7271 Brass Slotted Overflow Bath Drain
K-7272 PVC Slotted Overflow Bath Drain
Required Electrical Service
One dedicated circuit required, protected with Class A GroundFault Circuit-Interrupter (GFCI). Outside North America, this device may be known as a Residual Current Device (RCD).
Pump, Heated Surface:
120 V, 15 A, 60 Hz

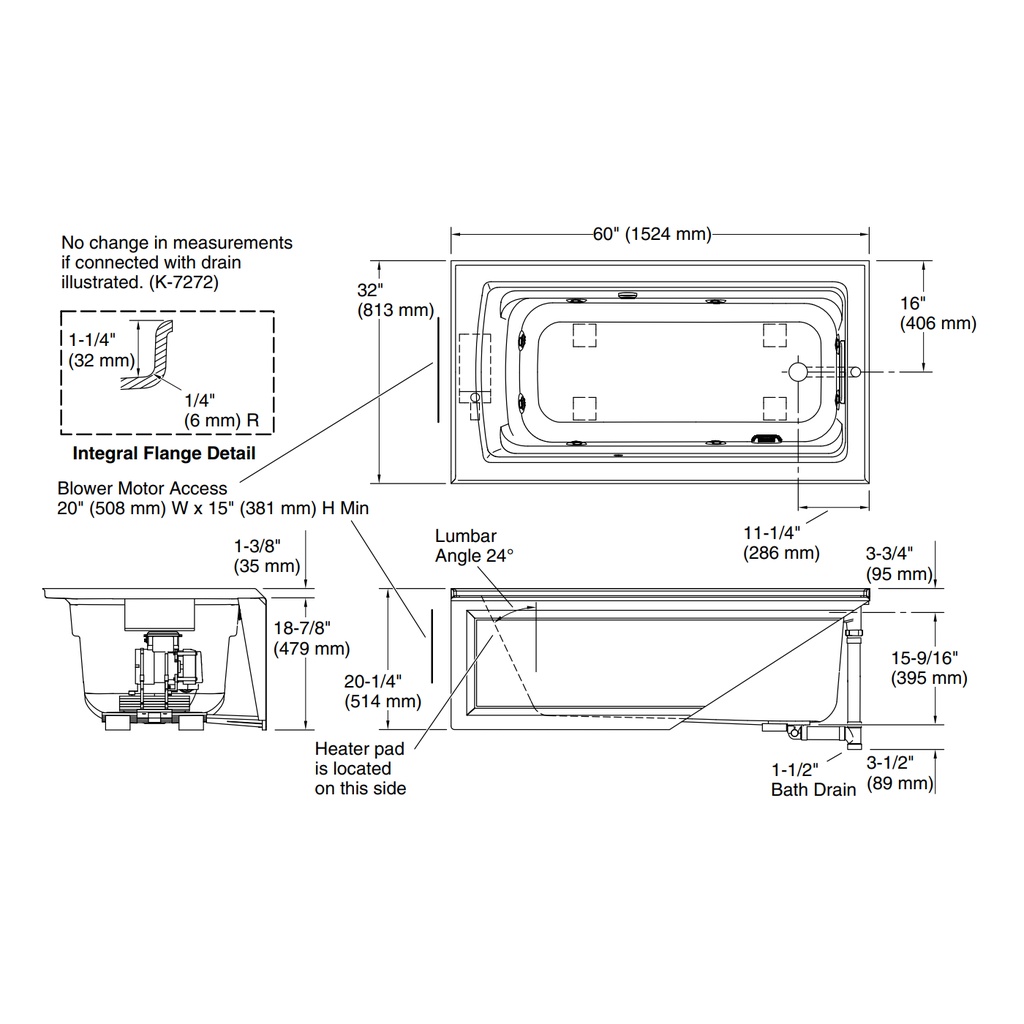

Technical Information
All product dimensions are nominal.
Drain location: Right
Basin area, bottom: 45-1/8" x 19-11/16" (1146 mm x 500 mm)
Basin area, top: 52-3/4" x 25-5/16" (1340 mm x 643 mm)
Weight: 141 lbs (64 kg)
Minimum floor load: 49 lbs/ft² (239.2 kg/m²)
Water depth: 15" (381 mm)
Water capacity: 58 gal (219.6 L)
Electrical component rating:
Pump: 120 V, 7 A, 60 Hz
Heated Surface: 120 V, 0.5 A, 60 Hz
Minimum flat for door: 2-9/16" (65 mm)
