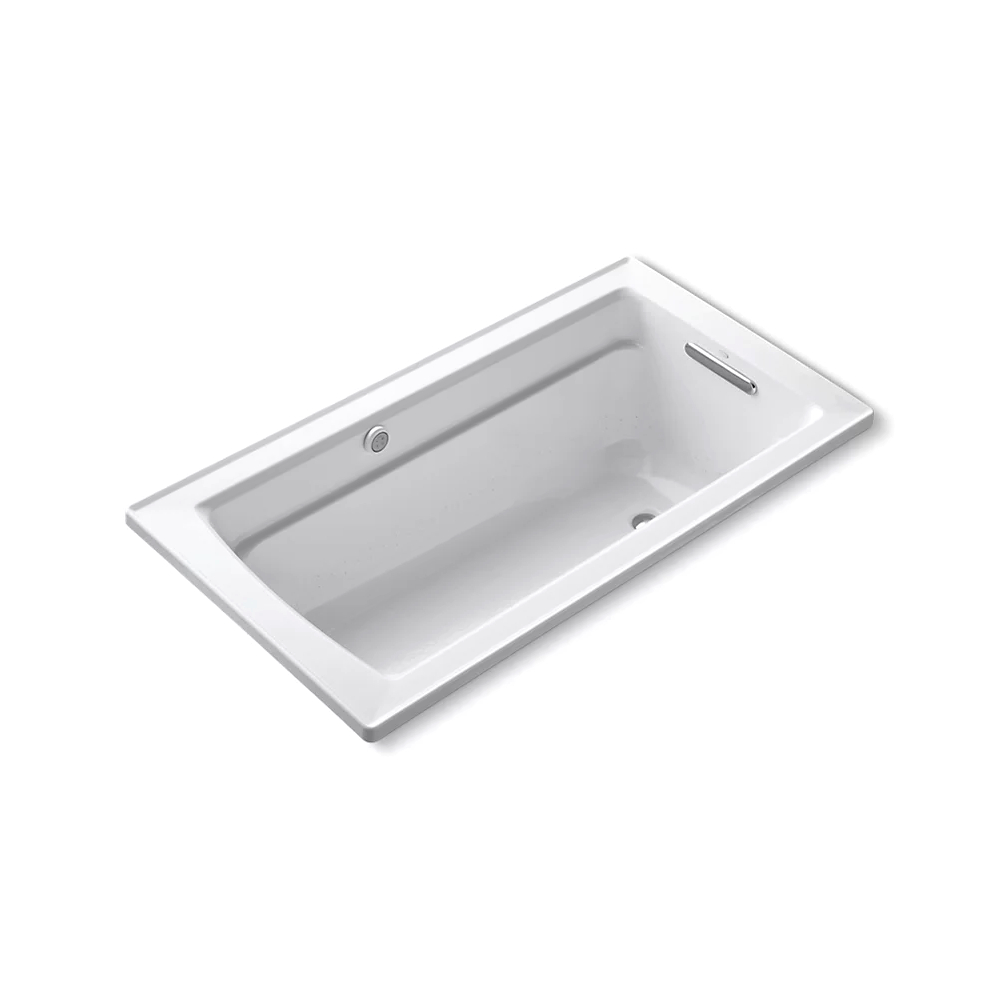

Kohler 1122-GHW-0 Archer 60" x 32" Drop-in Heated Bubble Massage Air Bath White
Archer®
60" x 32" drop-in Heated BubbleMassage air bath with Bask® heated surface
K-1122-GHW-0
Color/Finish: White
With Heated BubbleMassage hydrotherapy, airjets release thousands of heated bubbles that deliver a blissfully warm, invigorating full-body massage experience. This air bath's heated surface warms the back, shoulders and neck with adjustable temperature settings to create a soothing, spa-like environment.
Taking its design cues from traditional Craftsman furniture, the Archer® line of baths reveals beveled edges and curved bases for a clean, sophisticated style. This air bath offers a low step-over height while allowing for deep, comfortable soaking.
Features
Bask® heated surface creates spa-like relaxation with soothing warmth on your back, shoulders, and neck
Three heat settings allow you to customize the surface temperature
120 airjets release thousands of heated bubbles that surround and support the body in a warm massage
Automatic and manual purge cycles remove residual water from air channels after use
Variable-speed blower lets you adjust massage intensity to 18 levels
Comfort Depth® design offers a convenient 19" step-over height while retaining the same depth as a standard 21" bath
Integral lumbar support
Slotted overflow allows for deep soaking
Textured bottom surface
Coordinates with other products in the Archer collection
Built-in 600W BubbleMassage™ heater warms humidified air before it enters the bath
Built-in 60W electric heater included to keep bath surface warm
Technology
Auto-shutoff timer on blower allows users to enjoy Heated BubbleMassage™ experience for 60 minutes before turning off
User interface: two separate electronic keypad controls for Heated BubbleMassage™ and Bask®
Material
Acrylic
Installation
Reversible drain
Drop-in
120 V electrical requirement allows for easy installation with standard outlet
Requires two dedicated circuits
Required Products/Accessories
K-7271 Brass Slotted Overflow Bath Drain
K-7272 PVC Slotted Overflow Bath Drain
Required Electrical Service
Two dedicated circuits required, protected with Class A GroundFault Circuit-Interrupter (GFCI). Outside North America, this device may be known as a Residual Current Device (RCD).
Blower, Heated Surface: 120 V, 15 A, 60 Hz
Heater: 120 V, 15 A, 60 Hz
Technical Information

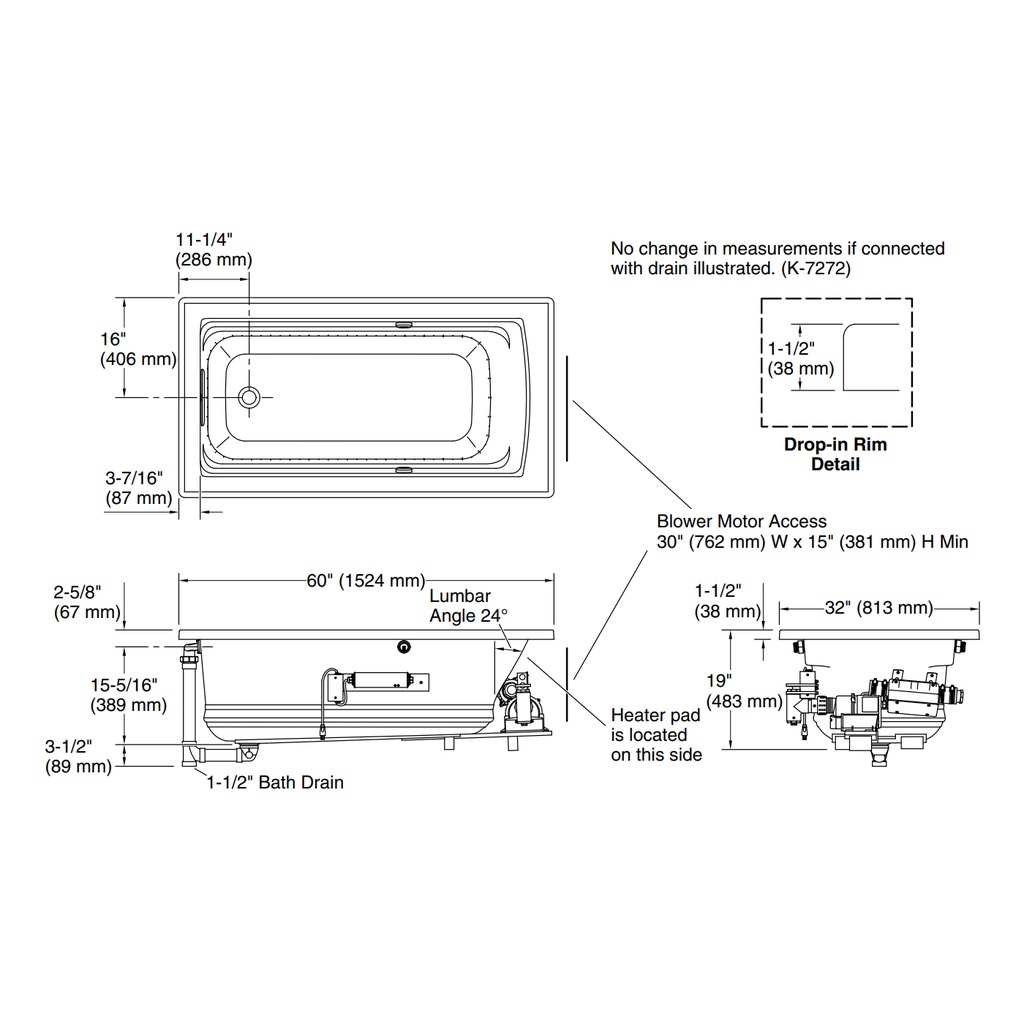

All product dimensions are nominal.
Drain location: Reversible
Basin area, bottom: 45-1/8" x 19-11/16" (1146 mm x 500 mm)
Basin area, top: 52-3/4" x 30-1/2" (1340 mm x 775 mm)
Weight: 90 lbs (40.8 kg)
Minimum floor load: 45 lbs/ft² (219.7 kg/m²)
Water depth: 15" (381 mm)
Water capacity: 58 gal (219.6 L)
Electrical component rating:
Blower: 120 V, 10 A, 60 Hz
Heated Surface: 120 V, 0.5 A, 60 Hz
Heater: 120 V, 5 A, 60 Hz, 620 W
